Special, Custom designed Handle and Escutcheon plate for Weathershield Window & Door. Used Primarily around 2006 -2009

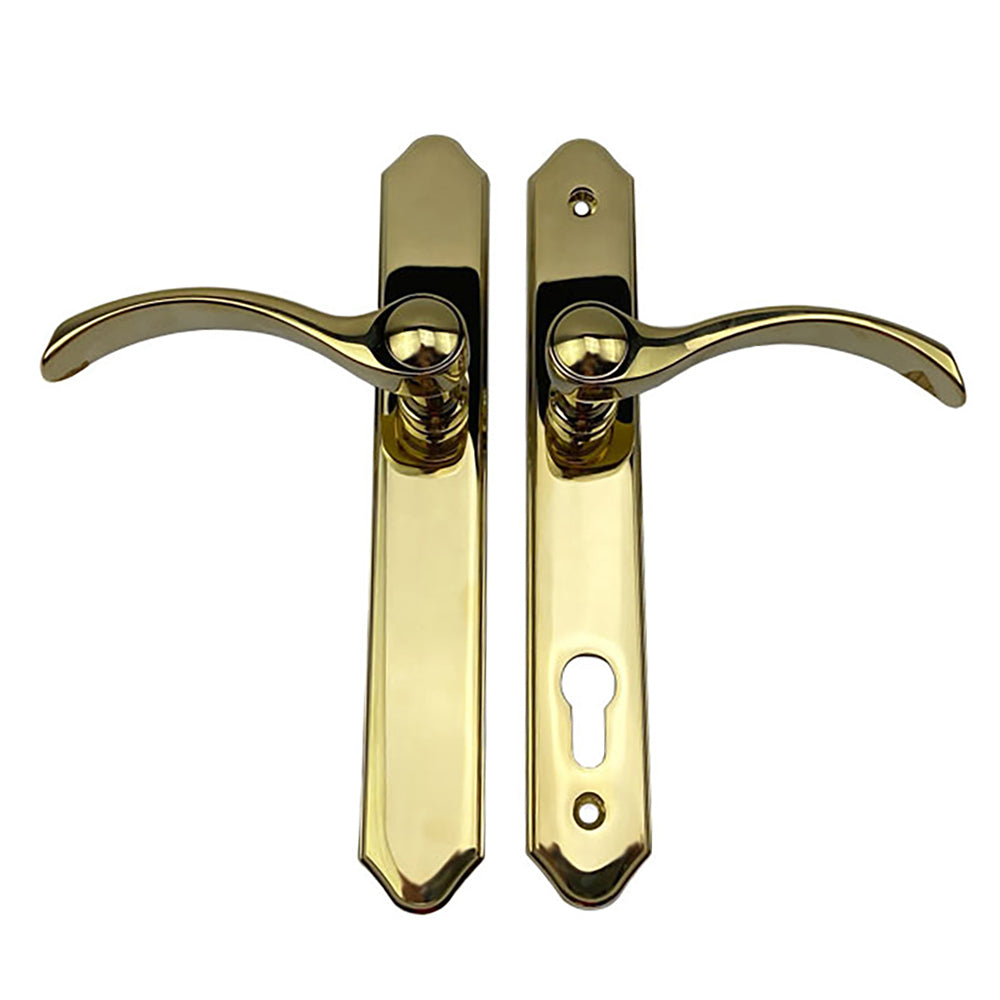

Weathershield Custom Handle and Plate design for Inactive / Passive Door

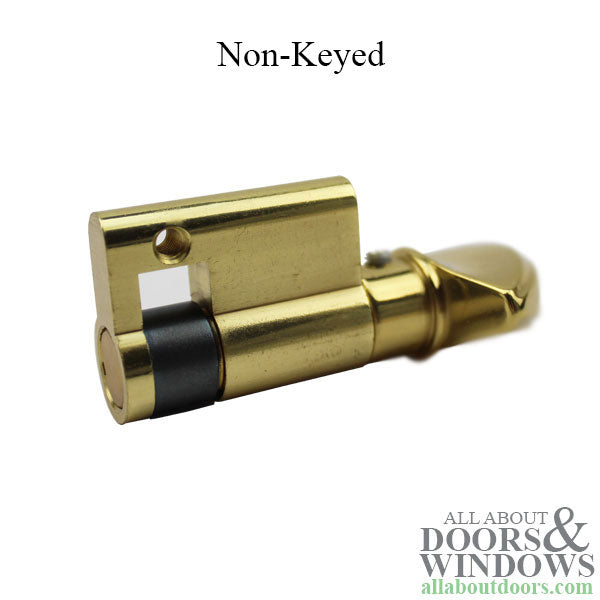

NON-KEYED CYLINDER
Thick Door: 1-3/4" (45mm) -
Color / Finish: PVD Polished Brass

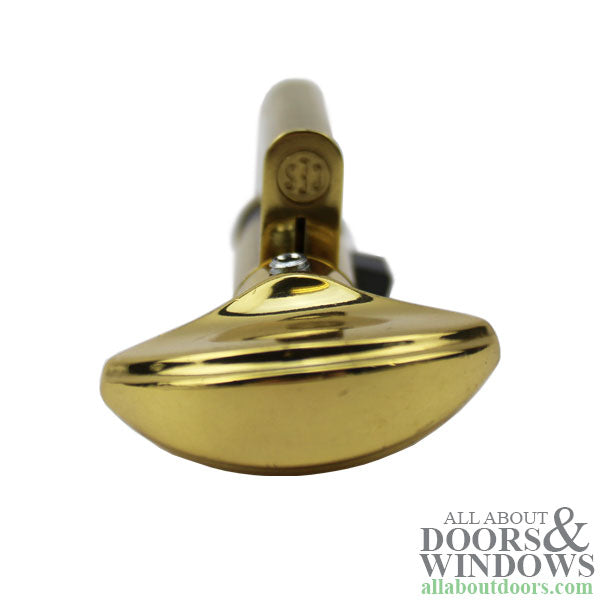

Cylinder: NON-Keyed, 1/2 cylinder with Thumbturn only
Escutcheon plate Markings: M3911

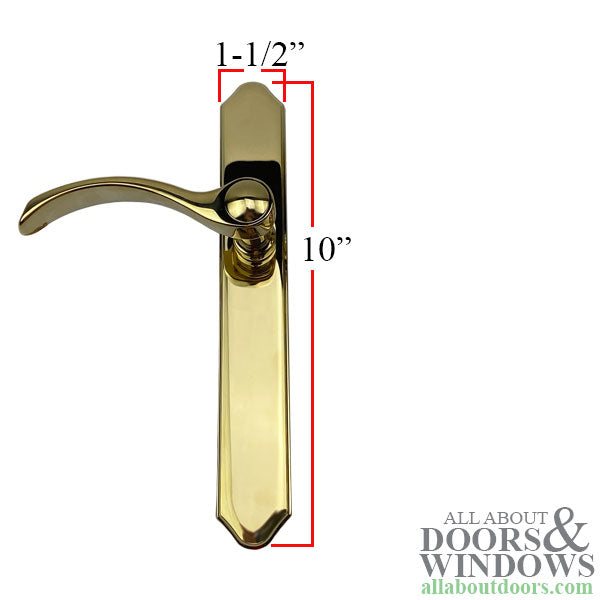

Weathershield Escutcheon plate Size: 1-1/2 x 10"
( Hoppe Escutcheon Plate Size - 1-3/8 x 8-3/4" )
Escutcheon Plate Screws: 2 length for 1-3/4" thick door

Cylinder Length:
Inside Cylinder Length - A: 31.5mm ( 1-1/4 inches)
Outside Cylinder Length -B: 10mm
Spindle Length: 2 piece; 4-11/16 inch
Spindle Diameter: 5/16 inch ( 8mm)
