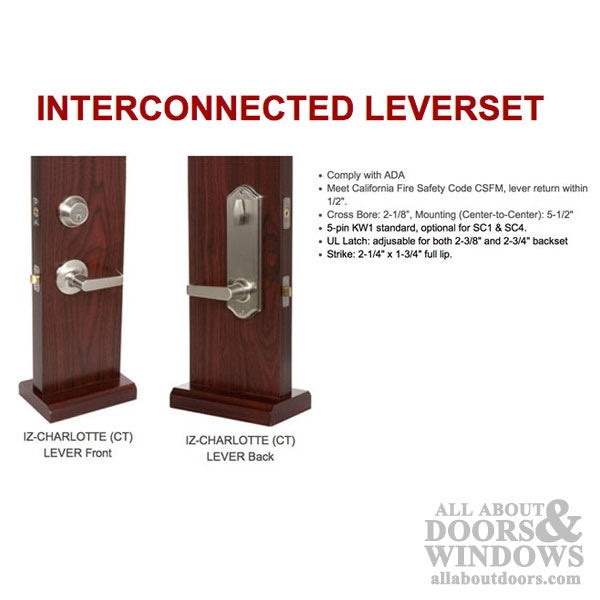

Interconnected Lock, 5-1/2 Centers, Grade 2 Keyed CT Lever, RH - Satin Nickel

Part Number: 380506 Price: $145.00
Discontinued - Best option for replacement, see 407001

Interconnected emergency exit Passage lock and deadbolt with 5-1/2 inch centers.

This type of lock is normally required in commercial applications when the Fire Marshall wants an emergency exit.

Lock Type: Interconnected; Lever retracts deadbolt from inside for emergency exit by
Retracting Latch and Deadbolt from inside when handle is pushed down to exit.

Lever Handle design: Charlotte (CT) Complies with ADA, optional San Diego (SD) Curved Lever
Handed: Yes, Right Handed door
Handing is determined from outside hinge location

Meet California Fire Safety Code CSFM, lever return within 1/2 inch

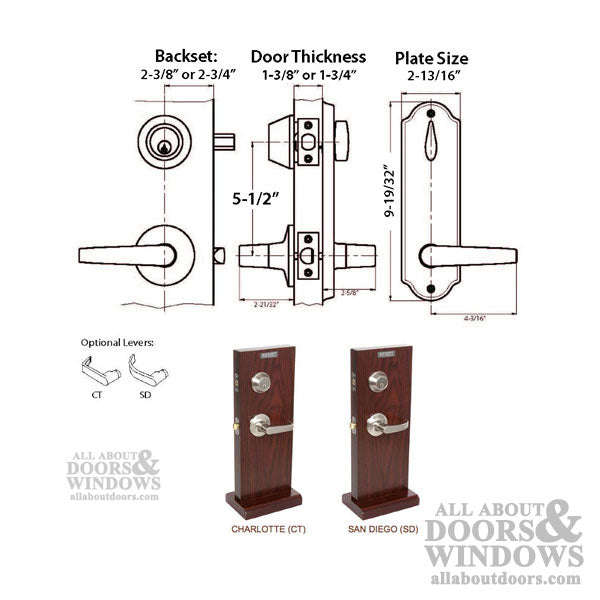

Cross Bore: 2-1/8 inch, Mounting (Center-to-Center): 5-1/2 inch ( Optional 4 inch )
Keyway: 5-pin KW1 standard, optional for SC1 & SC4
Spindle Diameter: 1/4" (7mm)
Horizontally installed Screws go through Springlatch and Deadbolt Latch
UL Latch: adjustable for both 2-3/8 and 2-3/4 backset
Door Thickness: 1-3/8" or 1-3/4"
Strike: 2-1/4 x 1-3/4 full lip.Ê
Color / Finish: Satin Nickel US15

Additional Specifications:Ê
Residential Grade 2
Lever Style: Charlotte ( ADA Approved )
Door Prep: Cross bore: 2-1/8 inch for Both Lever and Deadbolt

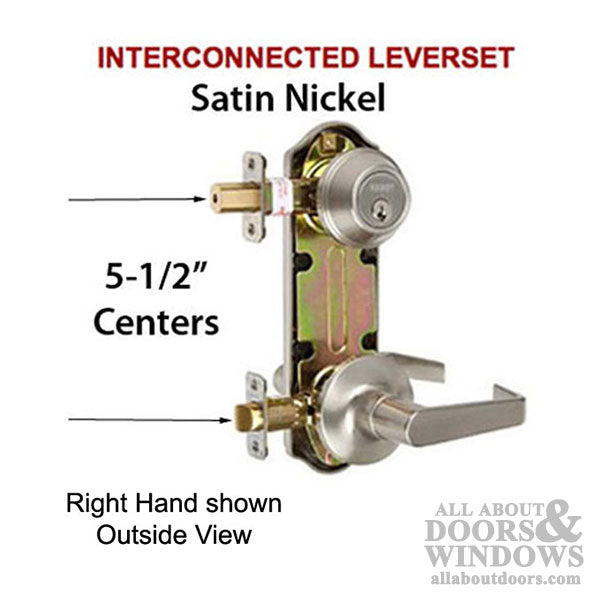

Bolt Centers: 5-1/2 Inch from center of Deadbolt to Center of Lever
Backset: Adjustable Latch, Fits both 2-3/8 and 2-3/4
Door Fitting: Interior 1-3/8 inch or Exterior 1-3/4 inch door thick. 2 inch thick optional.
Exposed Trim: Zinc or Stainless steel. Lever is zinc alloy.
Keys: Key as requested (KA, KD, MCK, MK, GMK)
Key Cylinder: Kwikset KW1 standard, Schlage SC1 optional.
Latch: UL Latch standard for both deadbolt and handle.Ê
Upper deadbolt: 2-3/8Ó and 2-3/4Ó adjustable (9092UL). Bolt: 1Ó throw with hardened steel rod insert. Faceplate: 1Ó x 2-1/4Ó round corner.Ê
Lower Lever handle: 2-3/8Ó and 2-3/4Ó adjustable (9079UL). Bolt: 1/2Ó throw. Faceplate: 1Ó x 2-1/4Ó round corner
Strike: Deadbolt: Full lip 1-3/4 x 2-1/4 round corner (9117). Handle: Full lip 1-3/4 x 2-1/4 round corner (9103).
Door Handing: Universal, non-handing
Function: ANSI F95 Entrance Single Locking
Finish: Satin Nickel, US15 Standard
Other finishes available with minimum order quantity and longer delivery lead-time.
Lever Style: San Diego (SD), Charlotte (CT) Standard
Other lever style available with minimum order quantity and longer delivery lead-time.

Priced and sold each.

For left handed version, see 380505 .
