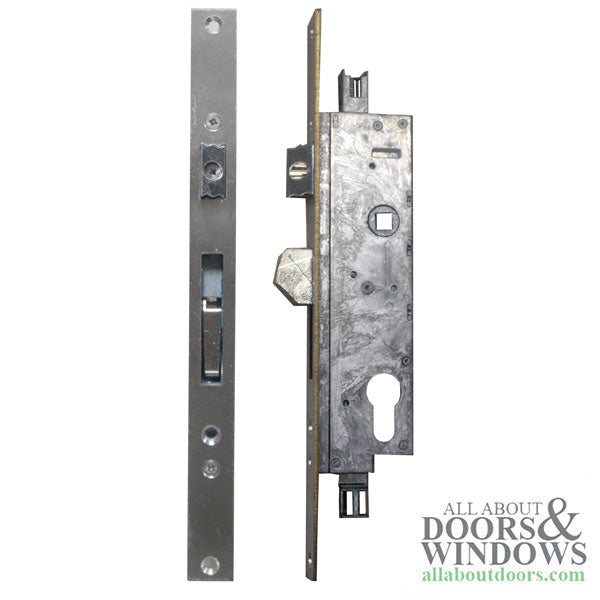

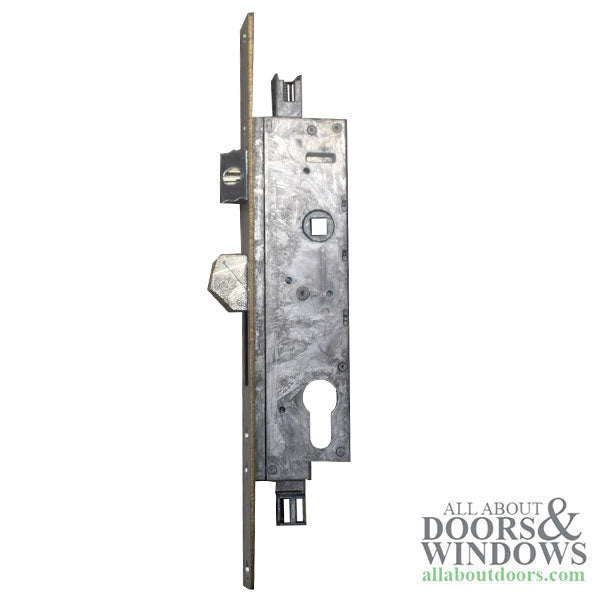

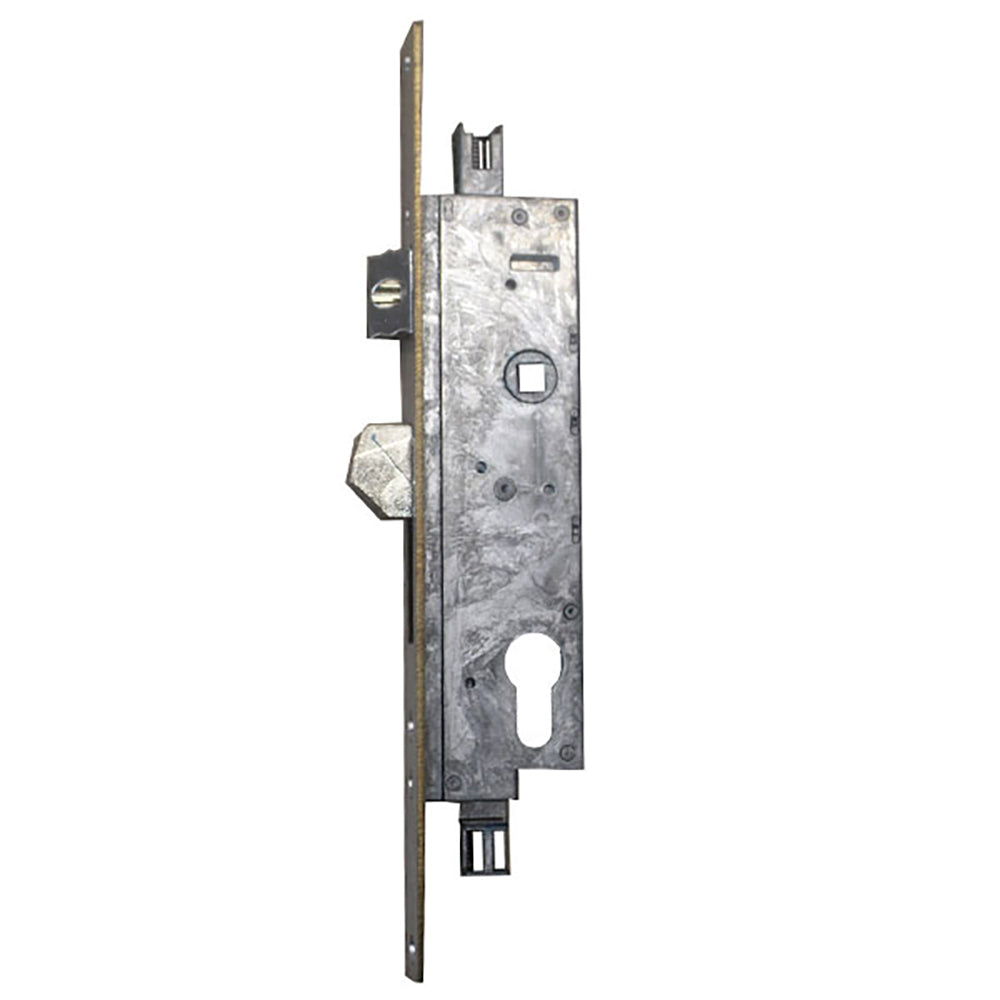

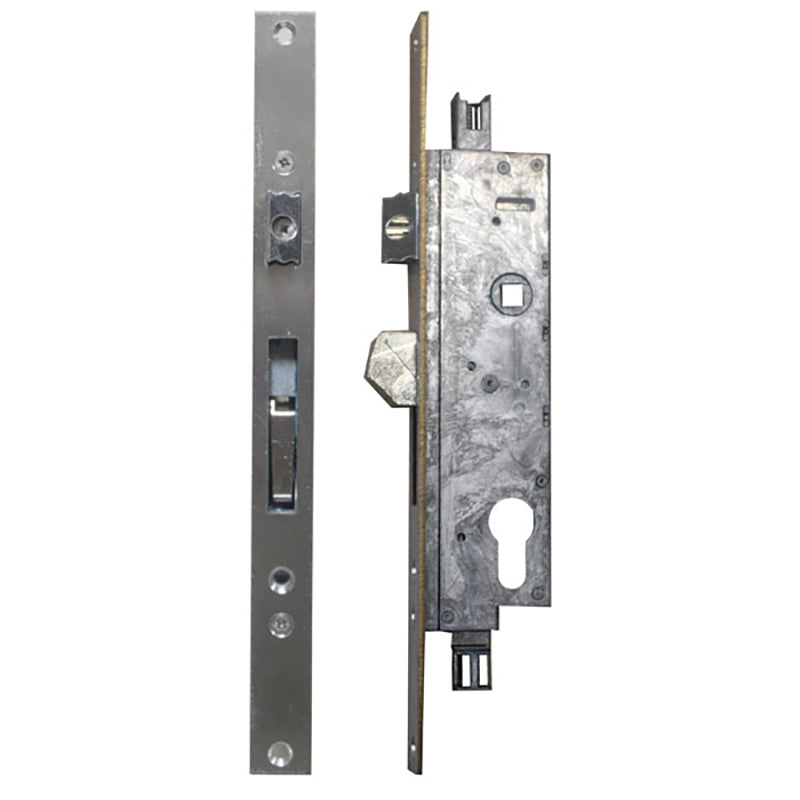

24mm Interlock LCL 4-Point Lever Compression Lock 35/85

Used as Single point lock or 4 point lock with concealed rods

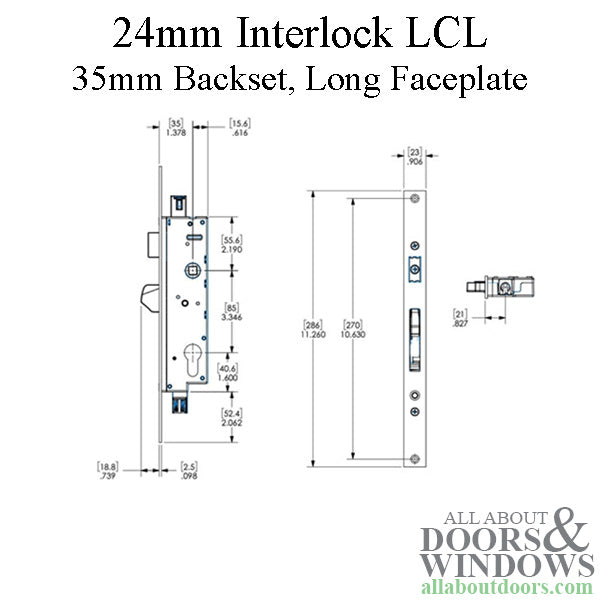

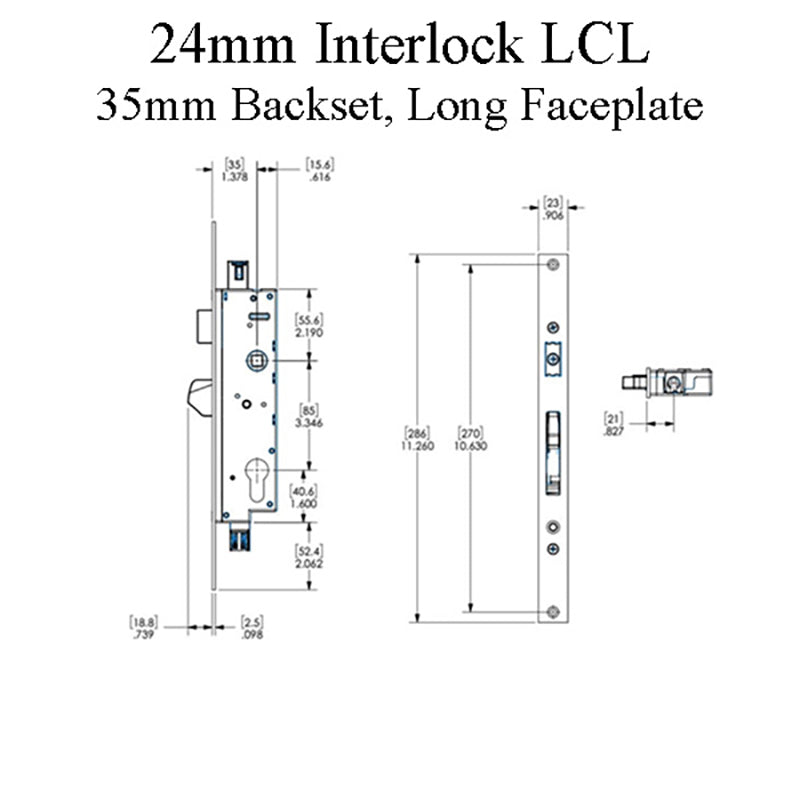

Specifications:

Available Backset: 1-3/8 inch (35mm)  1.378

Handle to Cylinder PZ:  3-5/16 inch ( 85mm) 3.346

Faceplate Width: 29/32 inch  (23mm)  .906

Faceplate Length: Long Extended 11-1/4 inch (286mm) 11.26

Faceplate Screw Holes: 10-5/8 inch (270mm) 10.63

Deadbolt Projection:  3/4 inch  (18.8mm) .739

Rod Connection, Backset: 13/16 inch (21mm) .827
