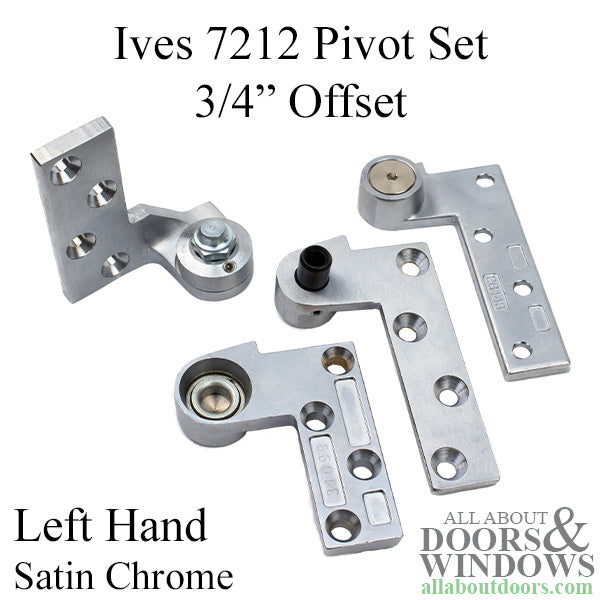

Ives 7212 Pivot Set, LH Top & Bottom 3/4" offset, US26D Satin Chrome
Part Number: 380261Ives 7212 Pivot Set, LH Top & Bottom Pivots, US26D Satin Chrome
Maximum Door Load of 200 lb.
Recommended for use with 1-3/4" minimum door thickness, with a 1/8" bevel in 2"
Vertical adjustment range 3/16", with positive locking
Includes 7212 Top Header mount and 7212 Jamb Mount.
Meets ANSI/BHMA A156.4 C07131
Material: Cast Brass
Finish: Satin Chrome
Offset: 3/4"
Top Pivot Markings: 26143 / 26144
Bottom Pivot Markings: 31099 / 31095
