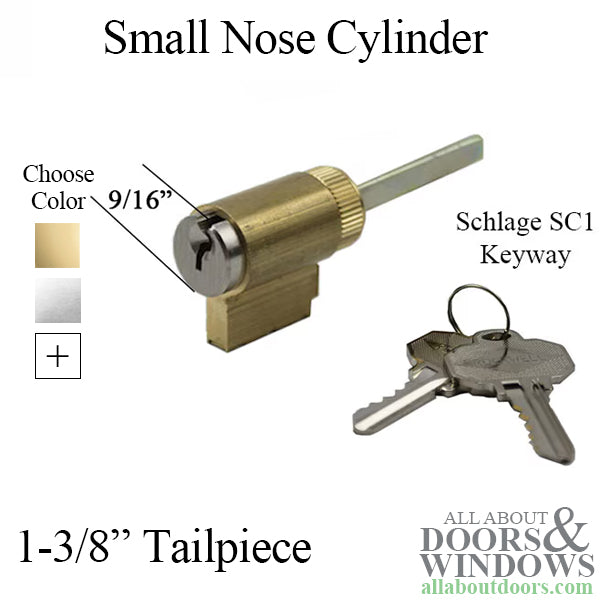

Keylock Cylinder with 2 Keys, Small Nose, 36mm Tailpiece for Entry Door Handlesets

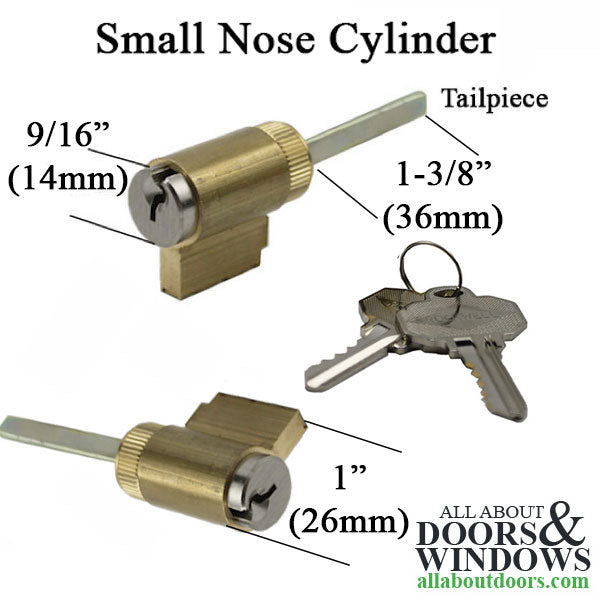

Part Number: 14518-BR Price: $13.50 to $15.90Special 9/16 inch small nose key cylinder for Rockwell entry door handle sets. The flat tail piece is available in two lengths, 1-1/8 and 1-3/8 inch for different lock sets

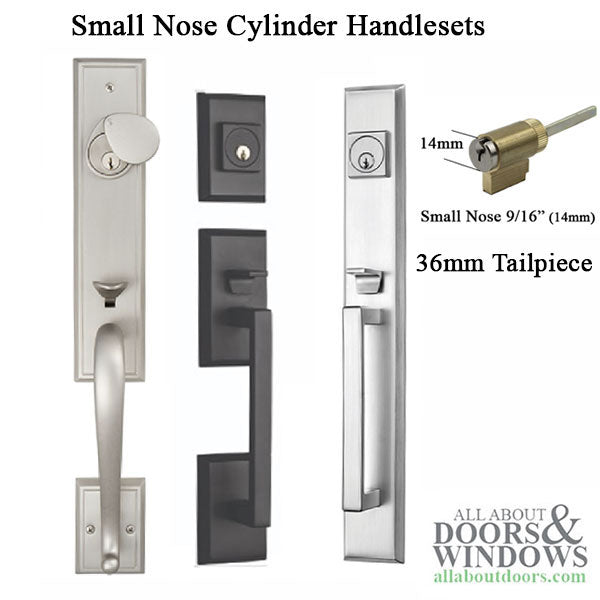

The longer 1-3/8 inch (36mm) is used primarily on the Entrance handles
The Shorter 1-1/8 inch ( 14mm) is used primarily on Deadbolts and smaller entry locksets.
Cylinder Type: Small Nose, American Version
Tail Piece Length: 1-3/8 inch ( 36mm) 1.42
Cylinder Height: 1-1/16 inch
5 pin locking cylinder w/ 2 keys
Keyway: Schlage 5 Pin SC1
keyable: Yes
Finish: Brushed Chrome

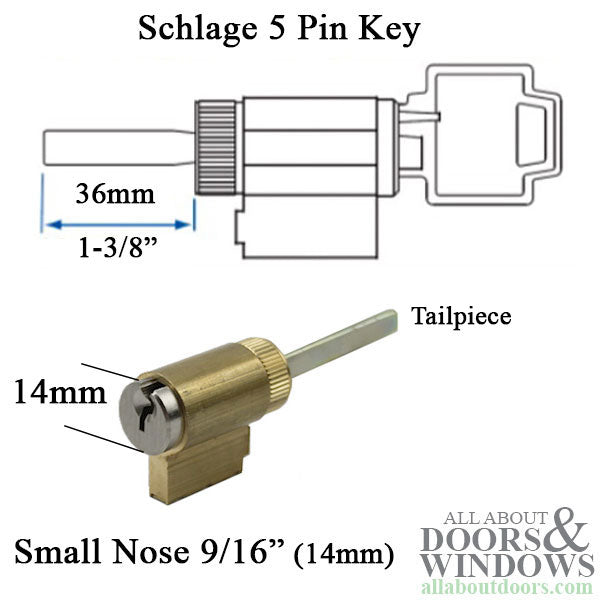

Note: Please measure the length of the tail piece as shown in second image to be sure you get the correct item.
The longer 1-3/8 inch (36mm) is used primarily on the Entrance handles
The Shorter 1-1/8 inch ( 14mm) is used primarily on Deadbolts and smaller entry locksets.
Cylinder Type: Small Nose, American Version
Tail Piece Length: 1-3/8 inch ( 36mm) 1.42
Cylinder Height: 1-1/16 inch
5 pin locking cylinder w/ 2 keys
Keyway: Schlage 5 Pin SC1
keyable: Yes
Finish: Brushed Chrome
Note: Please measure the length of the tail piece as shown in second image to be sure you get the correct item.
