Legacy Glass Sliding Door Handle, Keyed OFFSET Thumbturn

Part Number:14253-KW1-SPB-BLEM Price: $144.14
Legacy Handle Quick Set for Sliding Door, Keyed Lock with Weiser Keyway for Active Door
Non-Handed, Thumb Turn Position: OFF CENTER

Markings:
Sash Control 2265 Stamped on back of plate
Type: Uses Mortise Style Lock (Lock is inside door panel)
Does not include Internal mortise Latch - Sold Separately
(See 15142 for Wood & Vinyl Doors or
15143 for Metal Doors)

Function:
Active, with Keyed Lock
Keyway: Weiser / Kwikset
Rekeyable: Yes, 5 pin lock
OPTIONAL: Schlage lock 5 pin, SC1 key
For Schlage keyway, see handle set 14253-SC1-KIT

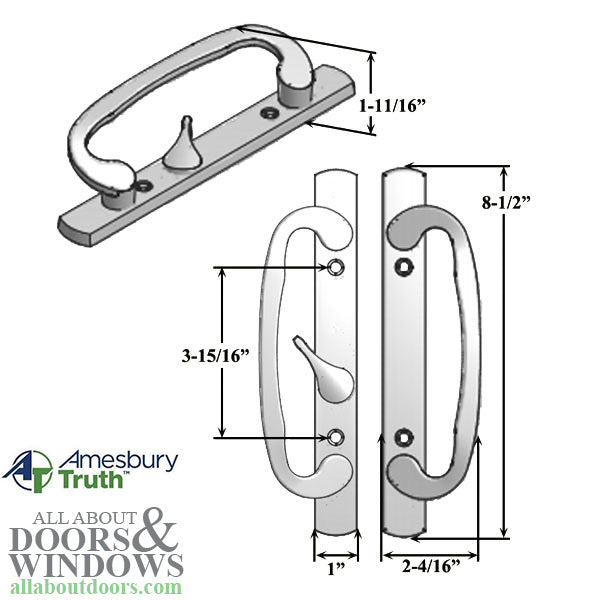

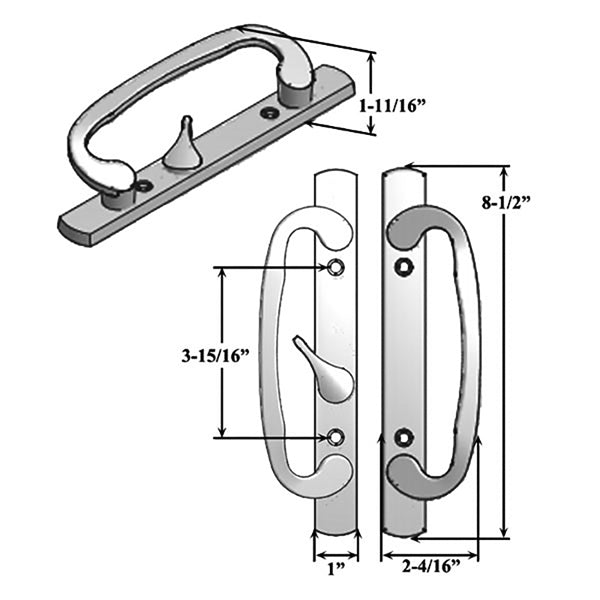

Escutcheon Plate Height: 8-1/2 Inch
Escutcheon Plate Width: 1 Inch
Escutcheon Plate Hole Center: 3-15/16 Inch
Handing: Non-Handed, fits left or right hand doors
Door Thickness: 1-3/4 inch thick door

Base Material:
Zinc on standard hardware, Brass on Premium Hardware

Standard Colors / Finishes:
White
Black
Almond
Mineral Bronze
Plated Polished Brass

Premium Color / Finishes:
Solid Polished Brass
Brushed/Satin Chrome
Lifetime Brushed/Satin Nickel (PVD)

The Legacy Handle Set consists of non-handed two piece construction
It can be mixed and matched by color, keyed, non-keyed and dummy versions.
Handle Set may be used with Single or Multi-Point Locks and can be keyed alike or different.
This set is compatible with 3 or 4 hole pattern hole fabrication and 1-3/4 inch stile thickness.
(others will fit 1-1/4 to 2-1/4 thick doors - Check with office )

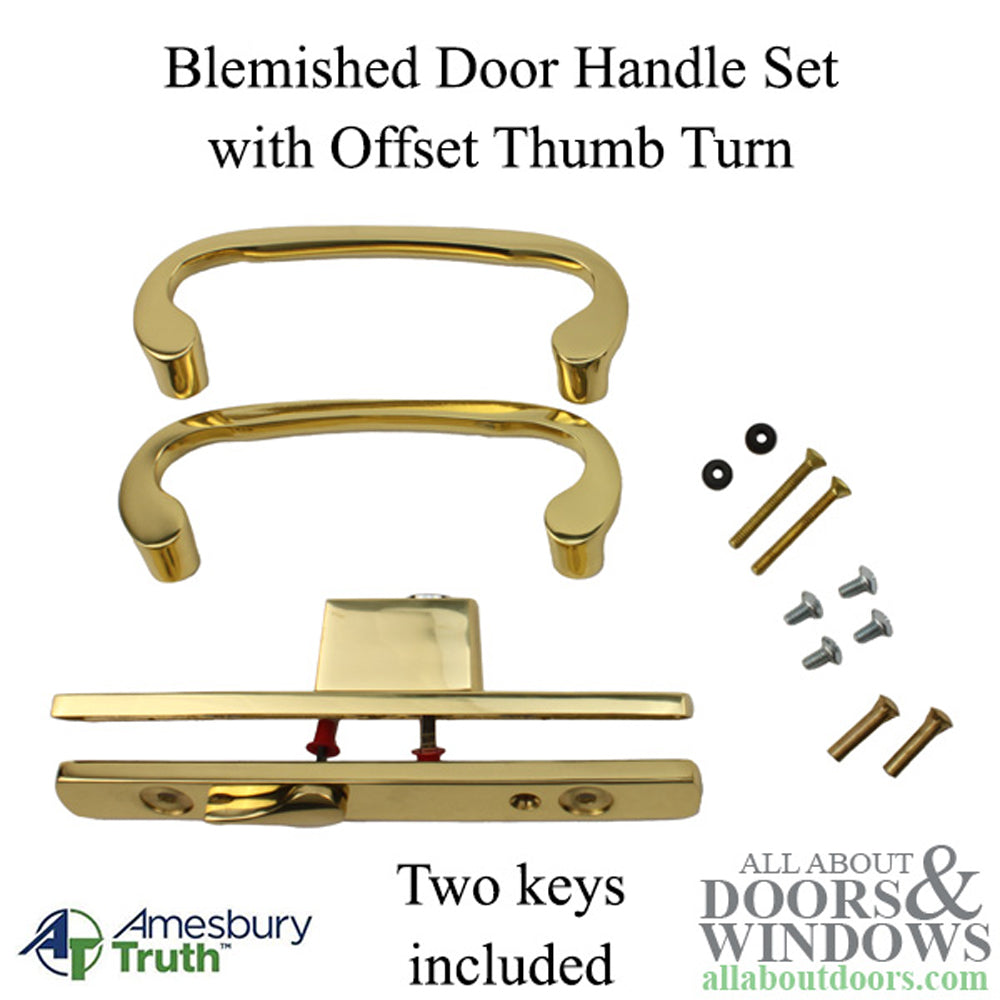

Contents: 1 Inside Plate, 1 Inside Handle, 1 Outside Plate, 1 Outside Handle and Installation Screws.
Weiser Keyed Cylinder, 2 keys

These handles are available in 30 finishes - Special Order, additional lead time and cost.
Contact office to order special colors.

Related Parts:
14251 - Non Keyed, Off Center Thumb Turn
14252 - Non Keyed, Centered Thumb Turn
14253-WR - Keyed Version, Off Center Thumb Turn (Weiser Keyway)
14253-SC1 - Keyed Version, Off Center Thumb Turn (Schlage Keyway)
14254-WR - Keyed Version, Centered Thumb Turn (Weiser Keyway)
14254-SC1 - Keyed Version, Centered Thumb Turn (Schlage Keyway)
14255 - Dummy Version, NO thumb turn
