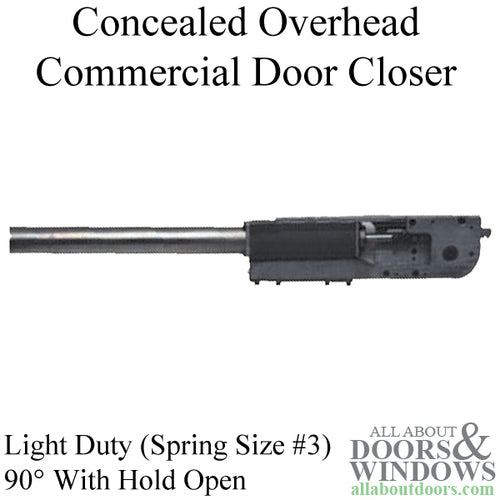

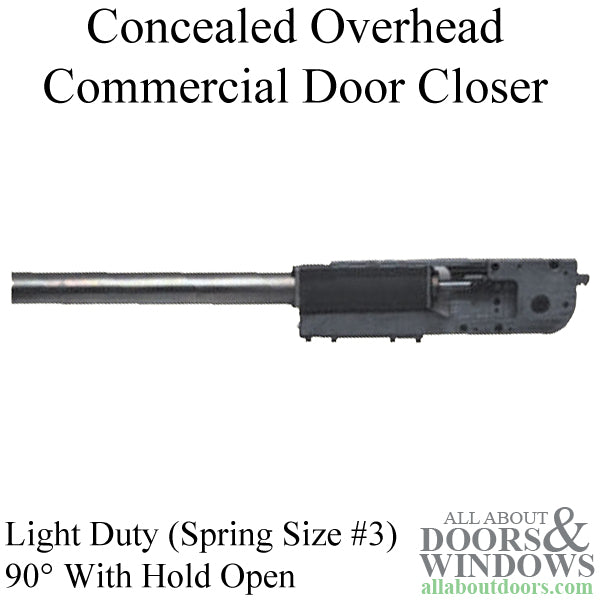

Light Duty Concealed Overhead Commercial Door Closer, 90° With Hold Open
Part Number: 381072 Price: $325.00This overhead commercial door closer replaces the original “Kawneer Husky” concealed overhead closer.
The new version features a two-speed closing control to prevent the door from slamming on single-acting applications.
It also prevents over-swing on double-acting applications.
This closer is ideal for schools, office buildings, hospitals and department stores.
NOTE: Through the first 80 degrees of the closing cycle, the door should be kept at a moderate speed to prevent “heel bumping” as someone enters through an out-swing door.
Spring Tension Size: Light - #3
Maximum Door Size and Weight: 36" interior / 30" exterior (155 lbs.)
Swing Degree: 90° With Hold Open
Same as original "Kawneer Husky" closer 37-625
Other Commercial Closer Options:
381070 - Replaces Kawneer 37-626: 105° w/Hold Open, spring size #3;
381071 - Replaces Kawneer 37-624: 105° No Hold Open, spring size #3;
381073 - Replaces Kawneer 37-629: 105° w/Hold Open, spring size #4;
381074 - Replaces Kawneer 37-627: 105° No Hold Open, spring size #4;
381075 - Replaces Kawneer 37-628: 90° w/Hold Open, spring size #4;
381076 - Replaces Kawneer 37-632: 105° w/Hold Open, spring size #5;
381077 - Replaces Kawneer 37-630: 105° No Hold Open, spring size #5;
381078 - Replaces Kawneer 37-631: 90° w/Hold Open, spring size #5;
Commercial Closer Sizes:
Spring size 3: Light duty commercial closer, for maximum door size 36" interior / 30" exterior (155 lbs)
Spring size 4: Medium duty commercial closer, for maximum door size 44" interior / 36" exterior (243 lbs)
Spring size 5: Heavy duty commercial closer, for maximum door size 48" interior / 42" exterior (375 lbs)
Other Related Parts: (sold separately)
381079 - Top Arm
381080 - Bottom Center Pivot
381081 - Offset Arm and Arm Track
NOTE: This is a Special Order Item and may take longer to ship.
The new version features a two-speed closing control to prevent the door from slamming on single-acting applications.
It also prevents over-swing on double-acting applications.
This closer is ideal for schools, office buildings, hospitals and department stores.
NOTE: Through the first 80 degrees of the closing cycle, the door should be kept at a moderate speed to prevent “heel bumping” as someone enters through an out-swing door.
Spring Tension Size: Light - #3
Maximum Door Size and Weight: 36" interior / 30" exterior (155 lbs.)
Swing Degree: 90° With Hold Open
Same as original "Kawneer Husky" closer 37-625
Other Commercial Closer Options:
381070 - Replaces Kawneer 37-626: 105° w/Hold Open, spring size #3;
381071 - Replaces Kawneer 37-624: 105° No Hold Open, spring size #3;
381073 - Replaces Kawneer 37-629: 105° w/Hold Open, spring size #4;
381074 - Replaces Kawneer 37-627: 105° No Hold Open, spring size #4;
381075 - Replaces Kawneer 37-628: 90° w/Hold Open, spring size #4;
381076 - Replaces Kawneer 37-632: 105° w/Hold Open, spring size #5;
381077 - Replaces Kawneer 37-630: 105° No Hold Open, spring size #5;
381078 - Replaces Kawneer 37-631: 90° w/Hold Open, spring size #5;
Commercial Closer Sizes:
Spring size 3: Light duty commercial closer, for maximum door size 36" interior / 30" exterior (155 lbs)
Spring size 4: Medium duty commercial closer, for maximum door size 44" interior / 36" exterior (243 lbs)
Spring size 5: Heavy duty commercial closer, for maximum door size 48" interior / 42" exterior (375 lbs)
Other Related Parts: (sold separately)
381079 - Top Arm
381080 - Bottom Center Pivot
381081 - Offset Arm and Arm Track
NOTE: This is a Special Order Item and may take longer to ship.
