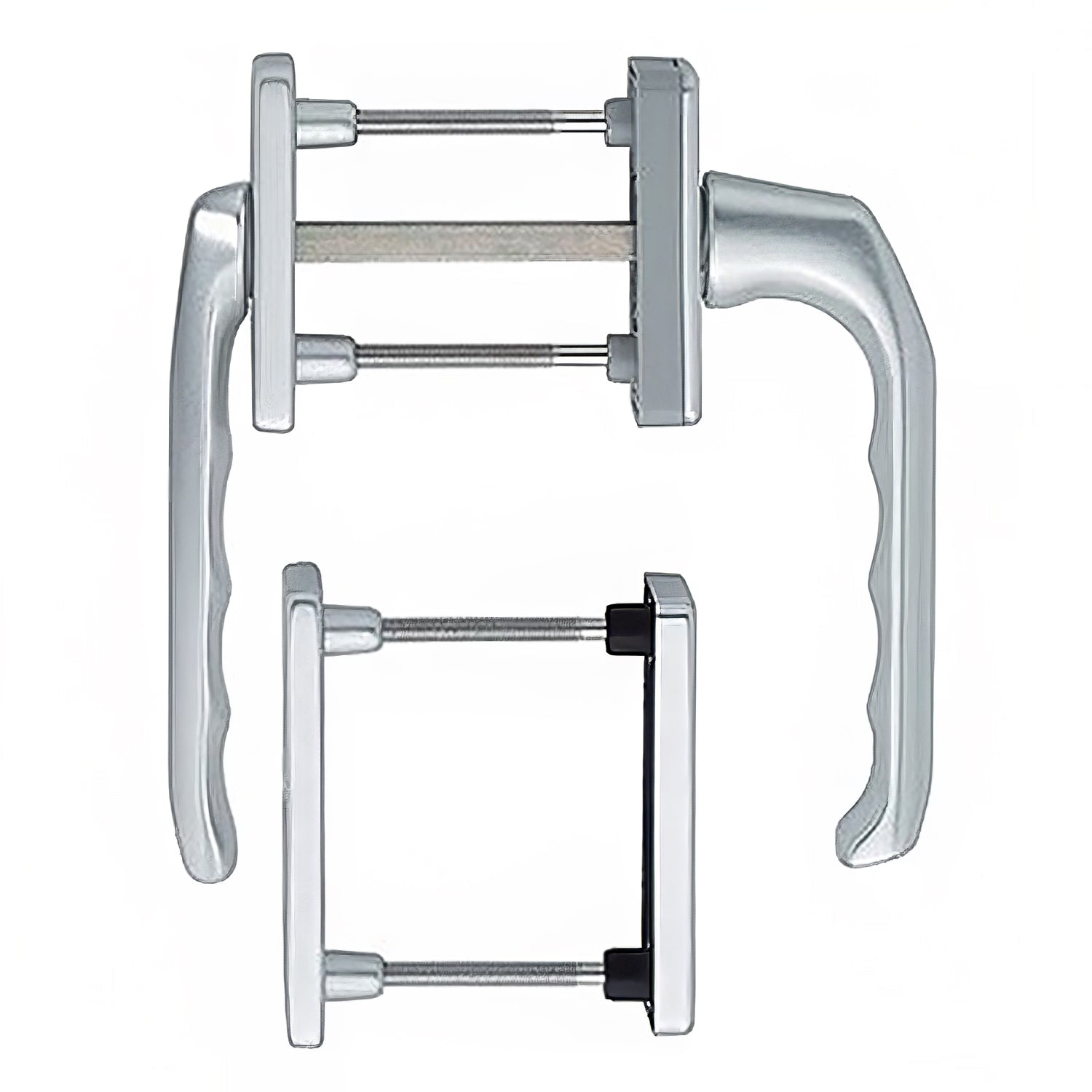

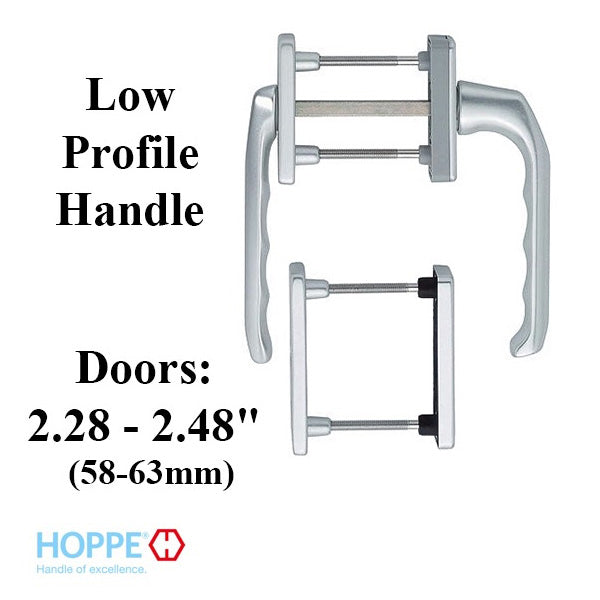

Hoppe London window hardware with 90 degree stops, non keyed handle with cylinder rosette

Brand: HOPPE
Model: London
Application: Tilt Turn Windows

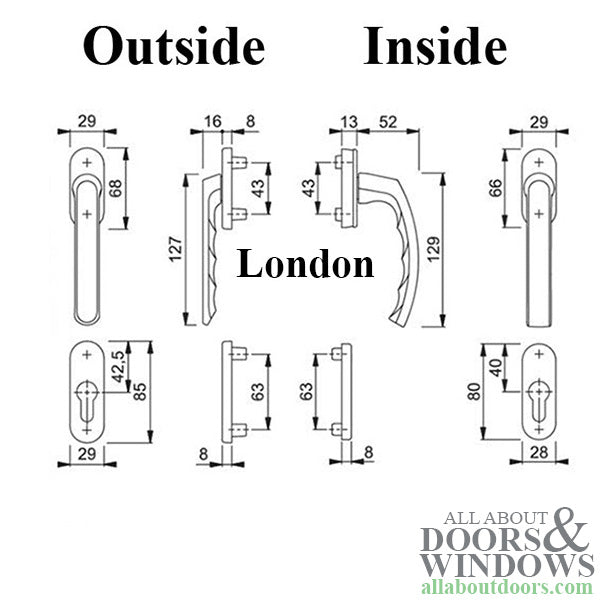

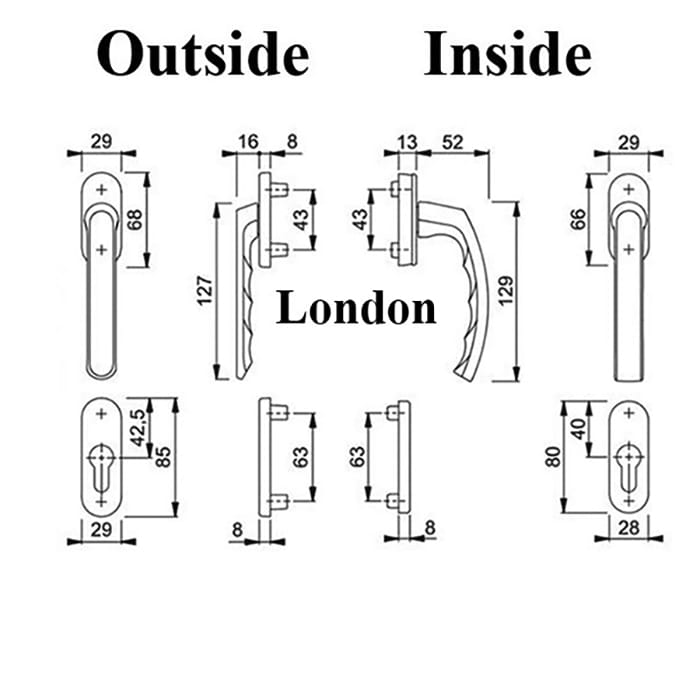

Handle mounting screw holes: 1-11/16 inch (43mm) 1.693
Rosette Mounting screw holes: 2-1/2 inch (63mm) 2.48
Spindle Diameter: 1/4 inch (7mm)
Exterior Stop: None
Interior Stop: 90 Degree
Door Thickness: 2.48"-2.87 ( 63-73mm )
Screws: M5 x 60mm (2) 65mm (2) & 70mm (2)
Markings: Hoppe Logo

Additional Information:
* Screws holes concealed with interior cover, screw holes are easily accessed by gently lifting both ends of cover and twisting.
* Exterior Lever is low profile
* Euro Profile Cylinder not included

Patio door set on rose set F1 Silver 10mm lugs, with stop positions, aluminum silver 7 mm Euro profile cylinder 58-63 mm Hoppe Logo ext= without stop position, int= 90 degree
