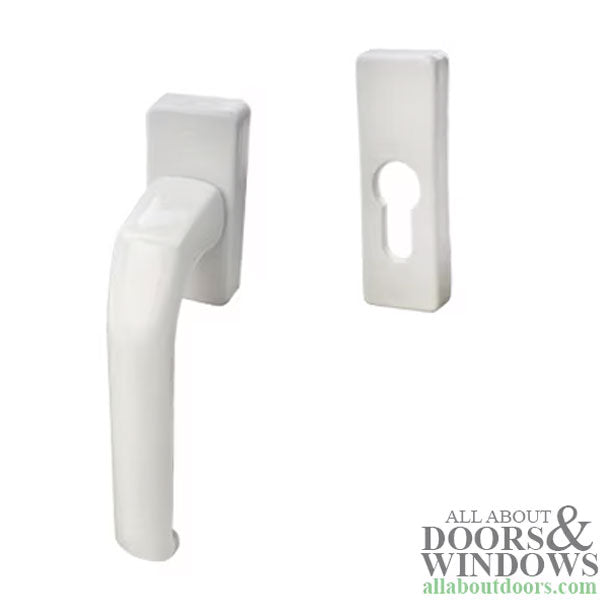

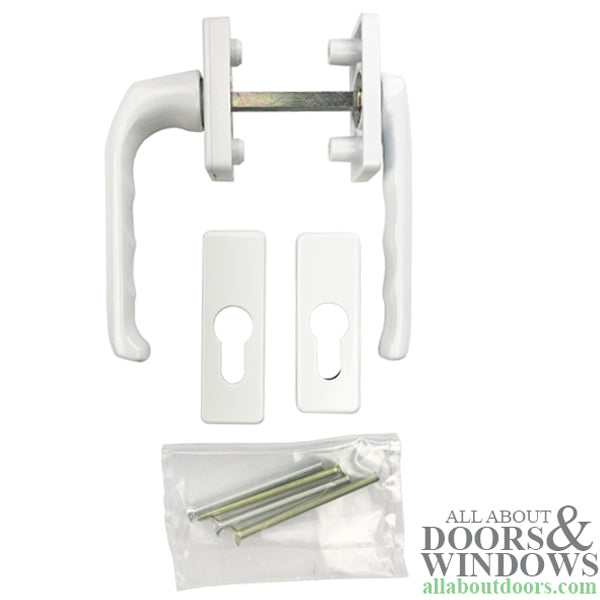

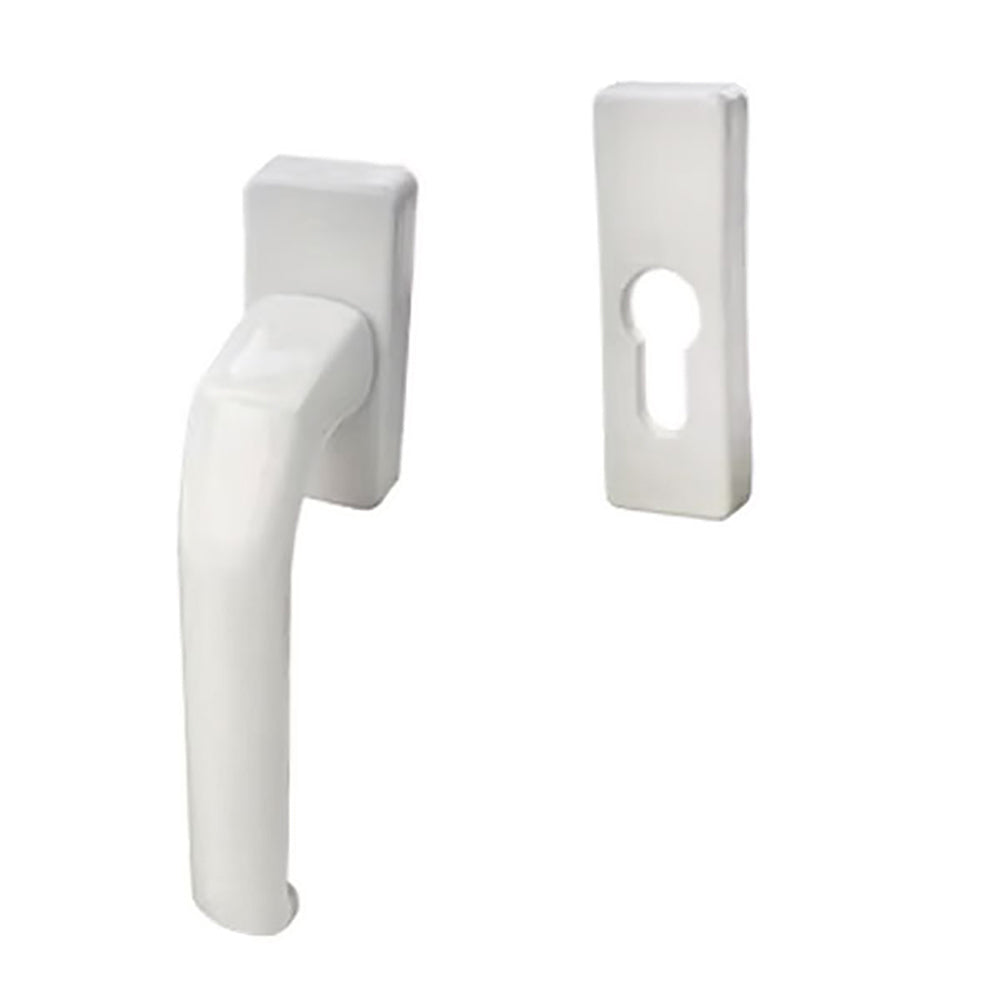

Hoppe London Tilt Turn window hardware with 90 degree stops, non keyed handle with cylinder rosette
Brand: HOPPE
Model: London
Application: Tilt Turn Windows

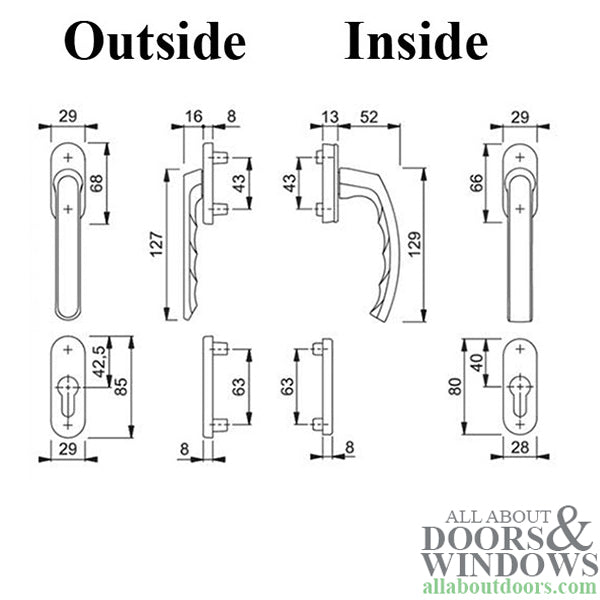

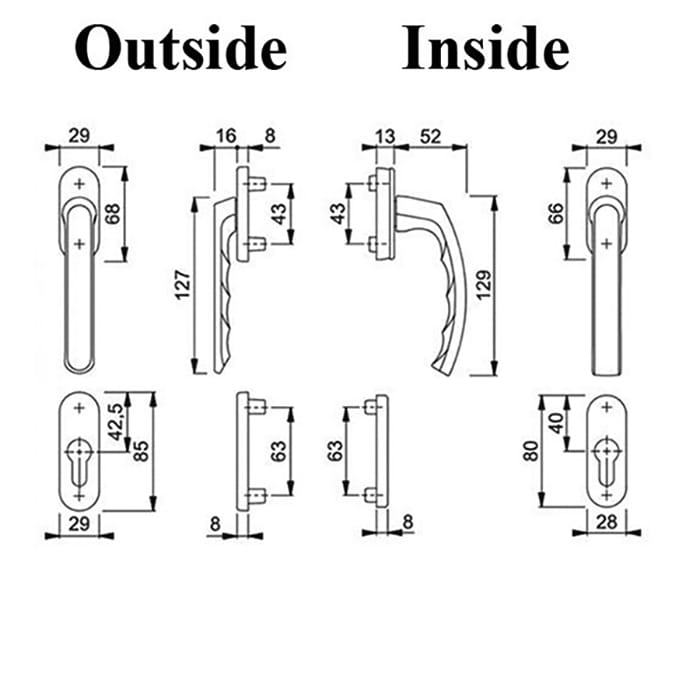

Handle mounting screw holes: 1-11/16 inch (43mm) 1.693
Rosette Mounting screw holes: 2-1/2 inch (63mm) 2.48
Spindle Diameter: 1/4 inch (7mm)
Exterior Stop: None
Interior Stop: 90 Degree
Door Thickness: 2.28 - 2.48" ( 58-63mm )
Screws: M5 x 60mm (2) & 70mm (2)
Markings: Hoppe Logo
Additional Information:
* Screws holes concealed with interior cover, screw holes are easily accessed by gently lifting both ends of cover and twisting.
* Euro Profile Cylinder not included
<p class="p1" style="margin: 0px; font-variant-numeric: normal; font-variant-east-asian: normal; font-stretch: normal; font-size: 12px; line-height: normal; font-family: " times="" new="" roman";"="">Hoppe London, balcony hardware, silver, non keyed handle with cylinder escutcheon<span class="Apple-converted-space"> </span></p><p class="p2" style="margin: 0px; font-variant-numeric: normal; font-variant-east-asian: normal; font-stretch: normal; font-size: 12px; line-height: normal; font-family: " times="" new="" roman";="" min-height:="" 15px;"=""><br></p><p class="p1" style="margin: 0px; font-variant-numeric: normal; font-variant-east-asian: normal; font-stretch: normal; font-size: 12px; line-height: normal; font-family: " times="" new="" roman";"="">Application: Patio Door, Tilt Turn<span class="Apple-converted-space"> </span></p><p class="p1" style="margin: 0px; font-variant-numeric: normal; font-variant-east-asian: normal; font-stretch: normal; font-size: 12px; line-height: normal; font-family: " times="" new="" roman";"="">Spindle Diameter: 1/4 inch (7mm)</p><p class="p1" style="margin: 0px; font-variant-numeric: normal; font-variant-east-asian: normal; font-stretch: normal; font-size: 12px; line-height: normal; font-family: " times="" new="" roman";"="">Exterior Stop: None</p><p class="p1" style="margin: 0px; font-variant-numeric: normal; font-variant-east-asian: normal; font-stretch: normal; font-size: 12px; line-height: normal; font-family: " times="" new="" roman";"="">Interior Stop: 90 Degree</p><p class="p1" style="margin: 0px; font-variant-numeric: normal; font-variant-east-asian: normal; font-stretch: normal; font-size: 12px; line-height: normal; font-family: " times="" new="" roman";"="">Door Thickness:<span class="Apple-converted-space"> </span>2.28 - 2.48"<span class="Apple-converted-space"> </span>(58-63mm<span class="Apple-converted-space"> </span>)<span class="Apple-converted-space"> </span></p><p class="p1" style="margin: 0px; font-variant-numeric: normal; font-variant-east-asian: normal; font-stretch: normal; font-size: 12px; line-height: normal; font-family: " times="" new="" roman";"="">Cylinder not included</p><p class="p1" style="margin: 0px; font-variant-numeric: normal; font-variant-east-asian: normal; font-stretch: normal; font-size: 12px; line-height: normal; font-family: " times="" new="" roman";"="">Markings:<span class="Apple-converted-space"> </span>Hoppe Logo</p><p class="p2" style="margin: 0px; font-variant-numeric: normal; font-variant-east-asian: normal; font-stretch: normal; font-size: 12px; line-height: normal; font-family: " times="" new="" roman";="" min-height:="" 15px;"=""><br></p><p class="p1" style="margin: 0px; font-variant-numeric: normal; font-variant-east-asian: normal; font-stretch: normal; font-size: 12px; line-height: normal; font-family: " times="" new="" roman";"="">Patio door set on rose set F1 Silver 10mm lugs, with stop positions, aluminum silver 7 mm Euro profile cylinder 58-63 mm Hoppe Logo ext= without stop position, int= 90 degree</p>
