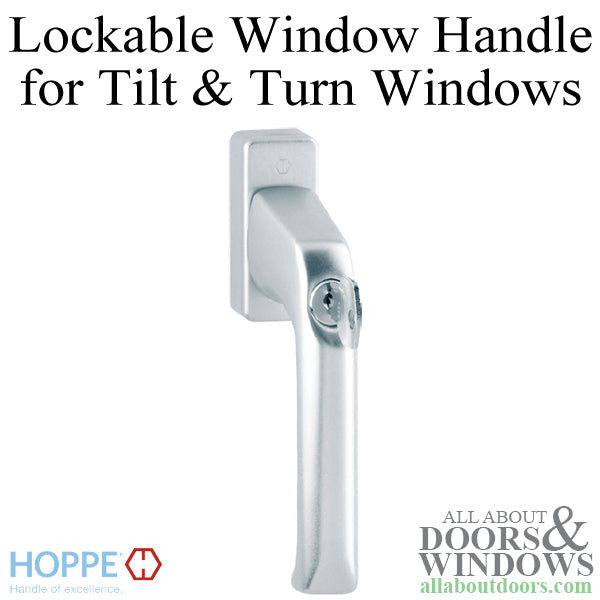

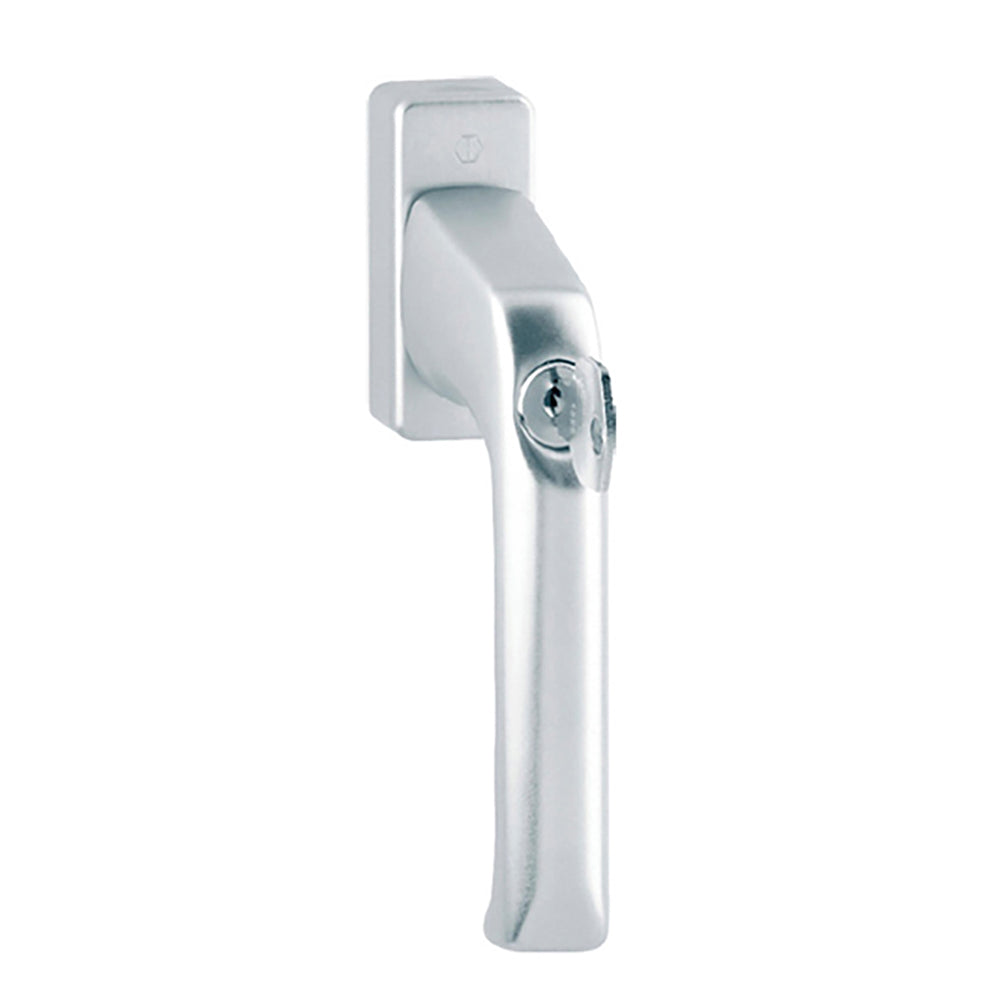

HOPPE 013S/U34 Lockable Tilt Before Turn (TBT) London Handle for Tilt & Turn Windows

Manufacturer: Hoppe
Model: 013S/U34
Handle Design: London
Product Line: DuraPlus®
Material: Cast Aluminum
Finish: Silver (F1)

Shaft (Spindle) Length: 32mm
Spindle Width: 7mm

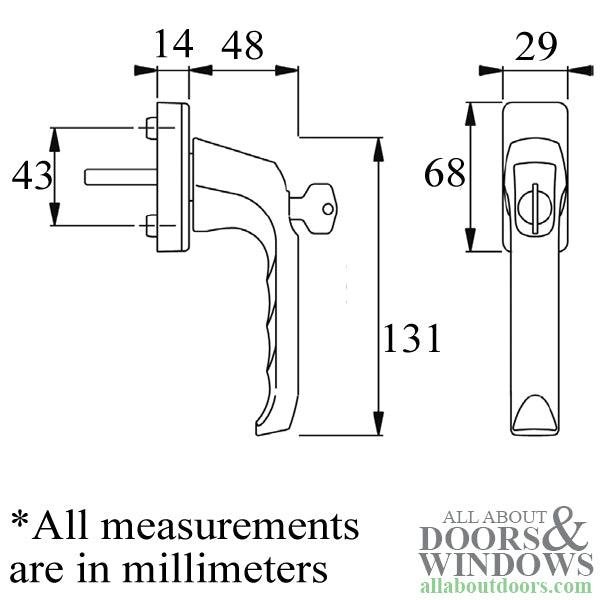

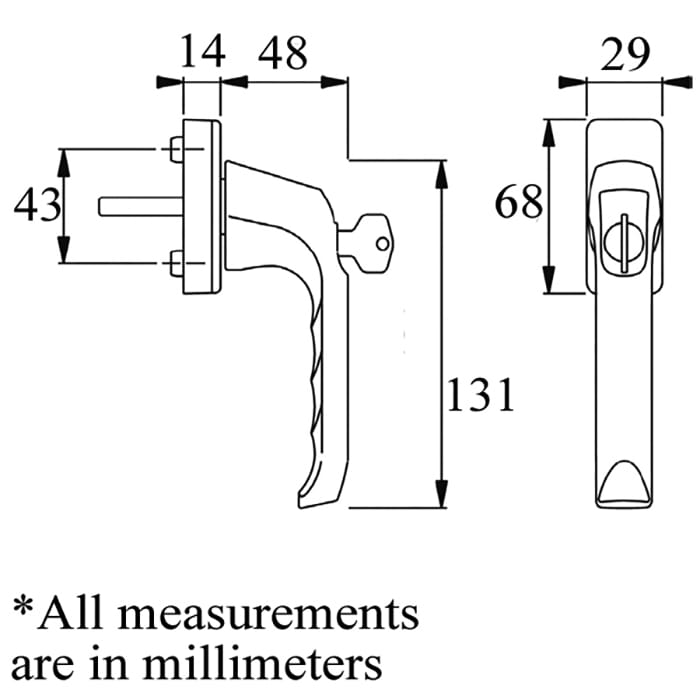

Spacing Between Centers of Screw Holes: 43mm
Handle Length: 131mm

Function: Lockable Tilt Before Turn (TBT); Handle functions between the closed and tilted positions freely, meaning that, although unlocking of the cylinder is not necessary, ventilation can occur. In the 90 degree tilted position, a blocking mechanism comes into operation so that turning the handle further to the 180 degree open position is only possible once the cylinder is unlocked by the key

Contents:
Handle with attached spindle
40mm Screws
Key

Spindle is not removable

This is a special order item that may take up to 10 weeks to process

Other Finishes/Functions:
6940183 - LOCKABLE London Tilt & Turn Handle in White
761081 -NON-LOCKING London Tilt & Turn Handle in White
792061 - NON-LOCKING London Tilt & Turn Handle in Champagne
792054 - NON-LOCKING London Tilt & Turn Handle in Silver (with 32mm shaft)
8148132 - NON-LOCKING London Tilt & Turn Handle in Silver (with 38mm shaft)
6830475 - NON-LOCKING London Tilt & Turn Handle in Bronze
792047 - NON-LOCKING London Tilt & Turn Handle in Titan (with 32mm shaft)
8184116 - NON-LOCKING London Tilt & Turn Handle in Titan (with 38mm shaft)
