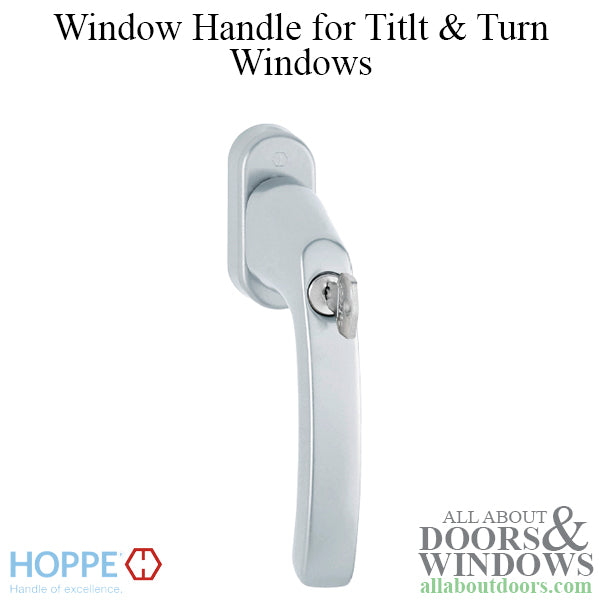

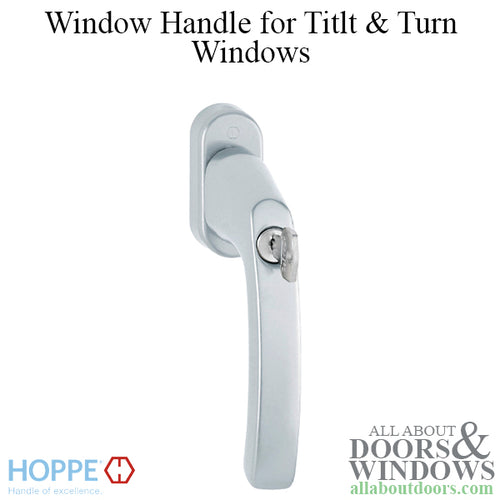

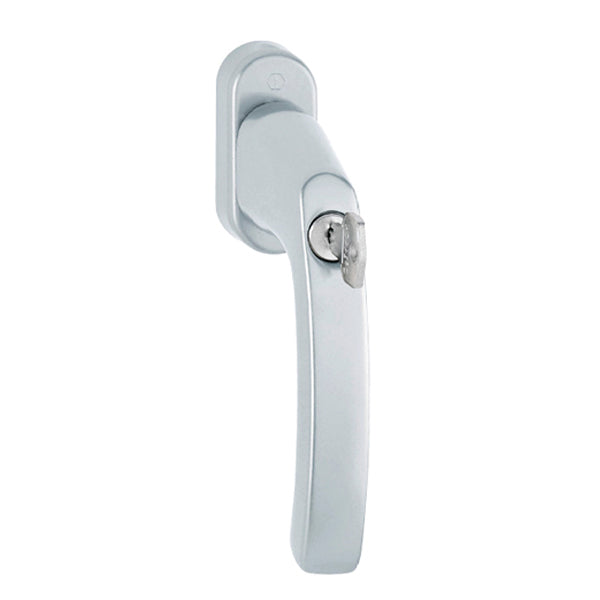

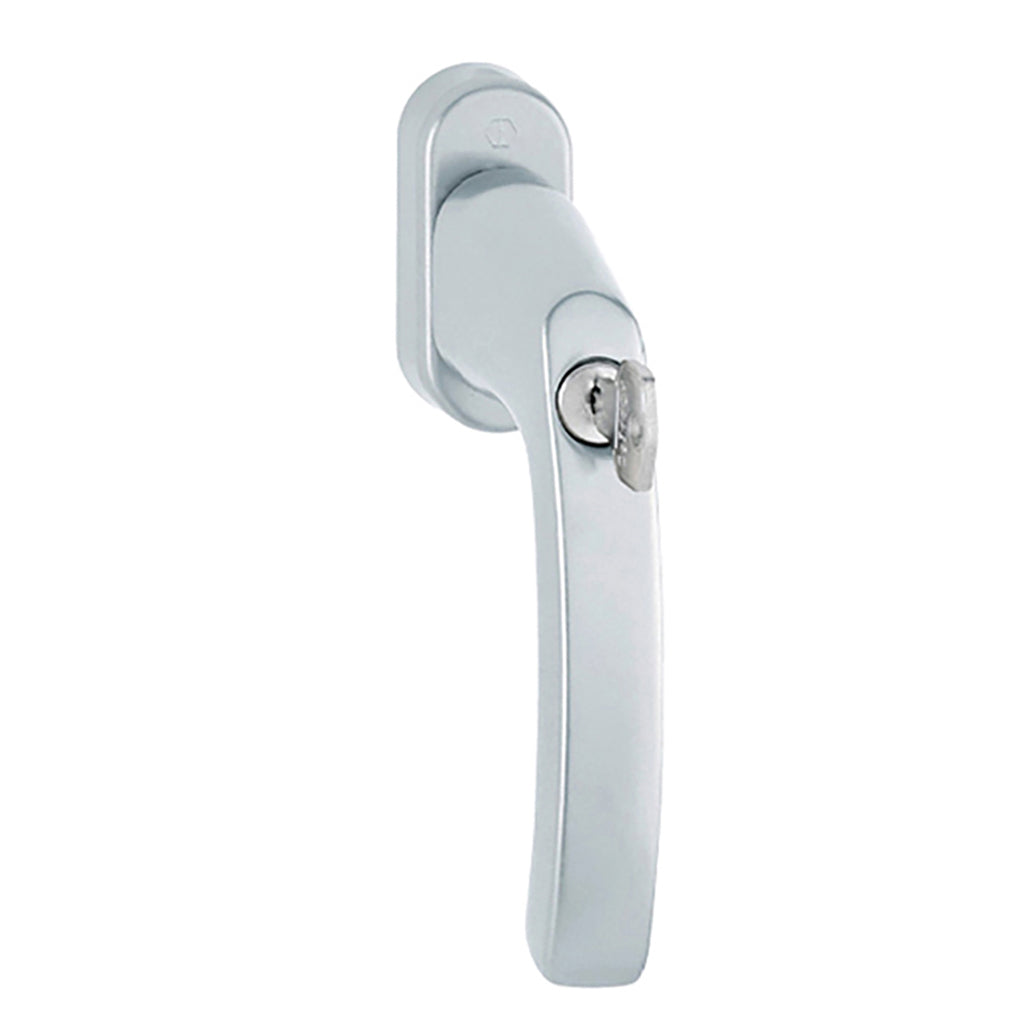

HOPPE 099S/U26 Lockable Luxembourg Handle for Tilt & Turn Windows

Manufacturer: Hoppe
Model: 099S/U26
Handle Design: Luxembourg
Product Line: DuraPlus®
Material: Cast Aluminum
Finish: Silver (F1)

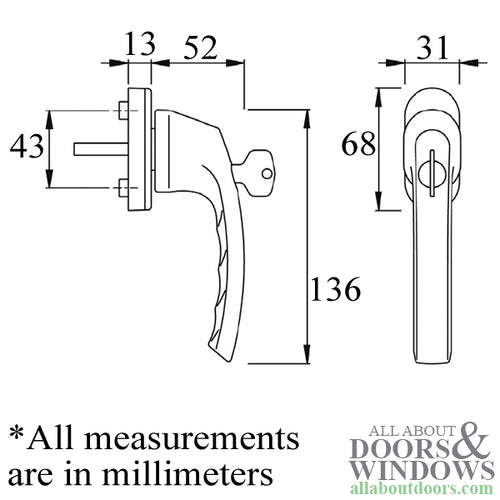

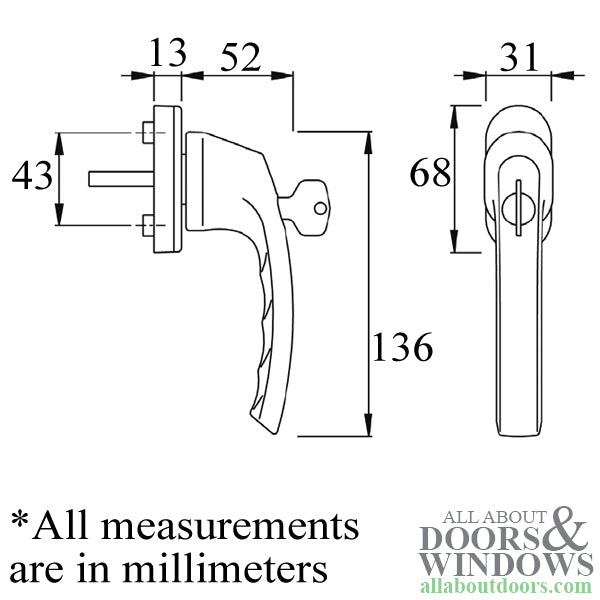

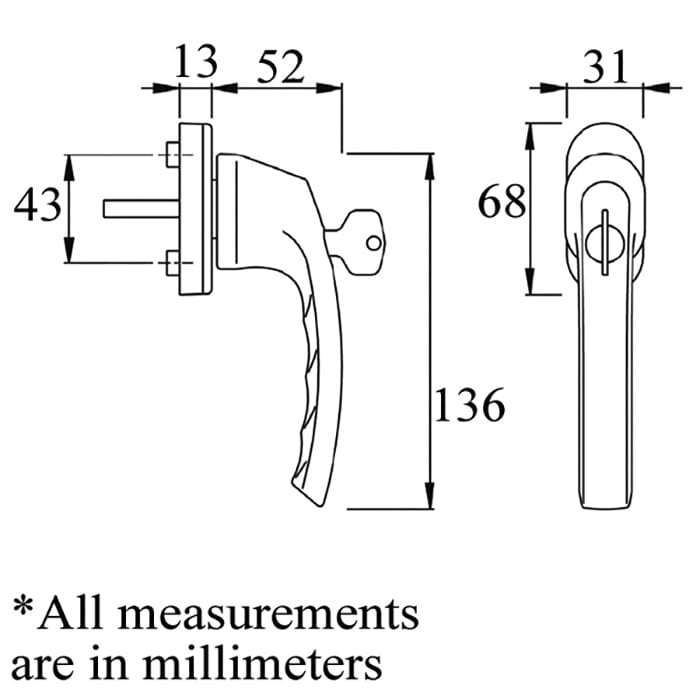

Shaft (Spindle) Length: 37mm
Spindle Width: 7mm
Spacing Between Centers of Screw Holes: 43mm
Handle Length: 136mm

Function: Lockable TBT; Handle functions between the closed and tilted positions freely, meaning that, although unlocking of the cylinder is not necessary, ventilation can occur. In the 90 degree tilted position, a blocking mechanism comes into operation so that turning the handle further to the 180 degree open position is only possible once the cylinder is unlocked by the key

Contents:
Handle with attached spindle
M5X45mm Screws
Key

Spindle is not removable

This is a special order item that (if not in stock) may take up to 9 weeks to process.

Other Finishes/Function:
10761612 - NON-LOCKING Luxembourg Tilt & Turn Handle in Silver Finish
10761778 - NON-LOCKING Luxembourg Tilt & Turn Handle in White
2085212 -LOCKABLE Luxembourg Tilt & Turn Handle in White
