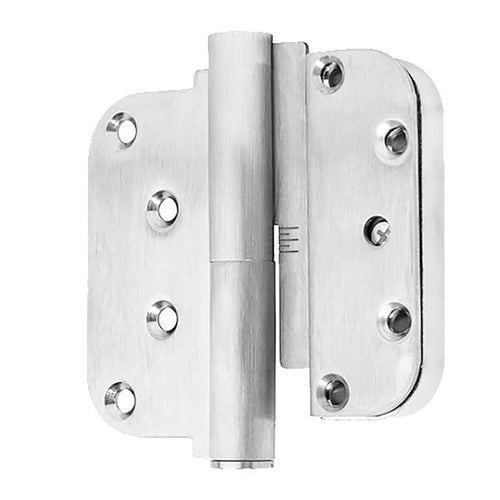

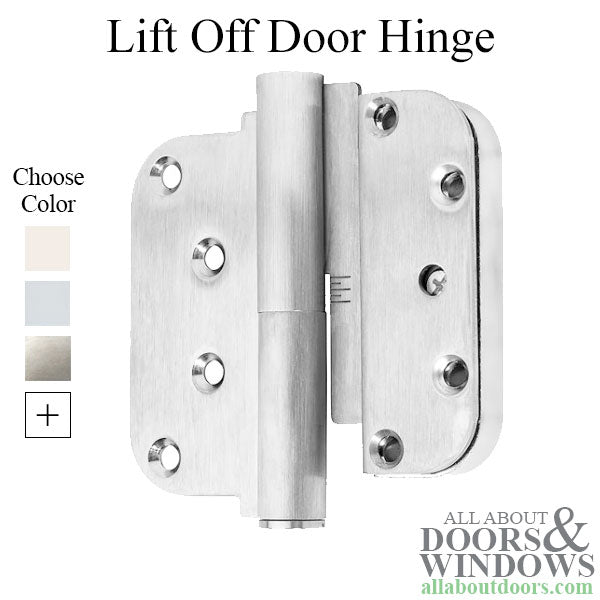

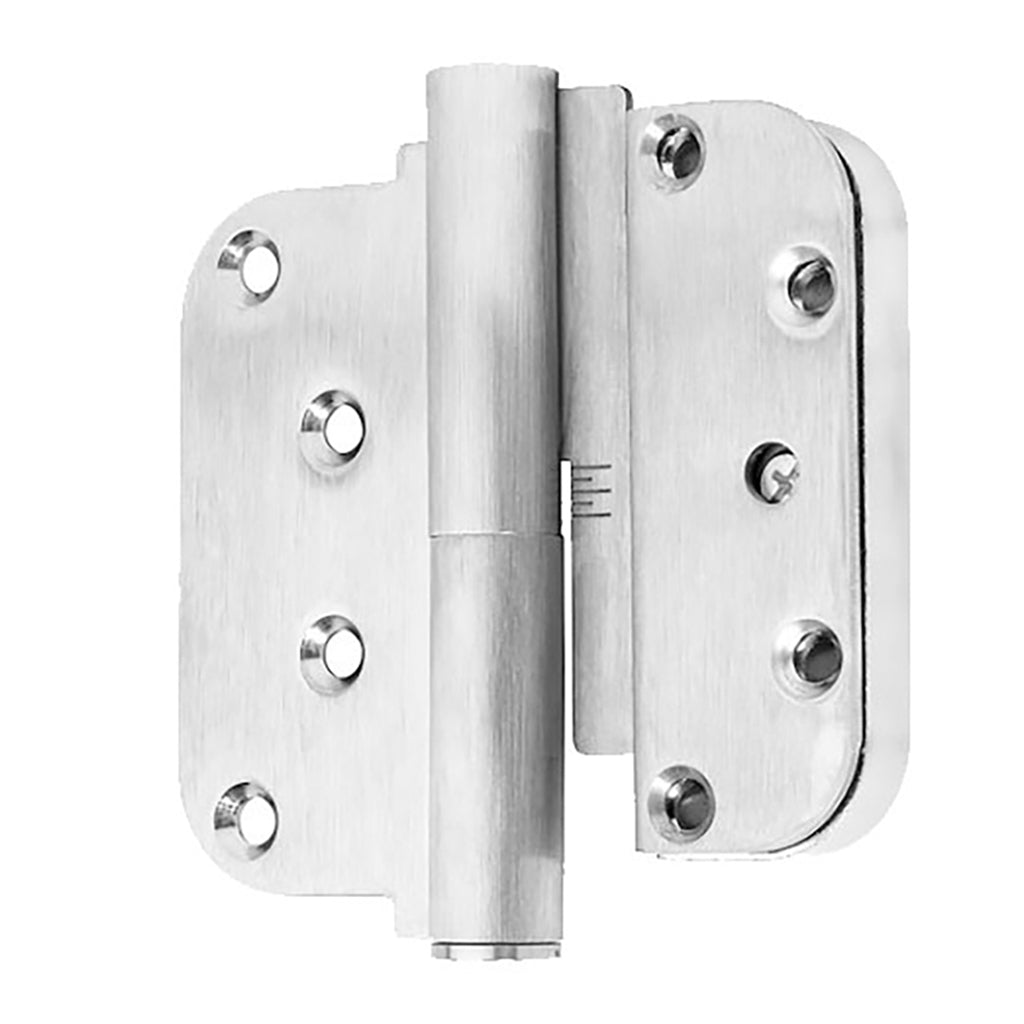

M3 Dual Adjustable Lift Off Hinge, Concealed Ball Bearings, Left Hand as Shown

Part Number: 125000-L-BC Price: $33.30 to $71.64
COLOR: - White
M3 Dual Adjustable Lift off hinge has Independent Dual vertical and horizontal adjustment
All in One hinge, No separate set and guide hinges.

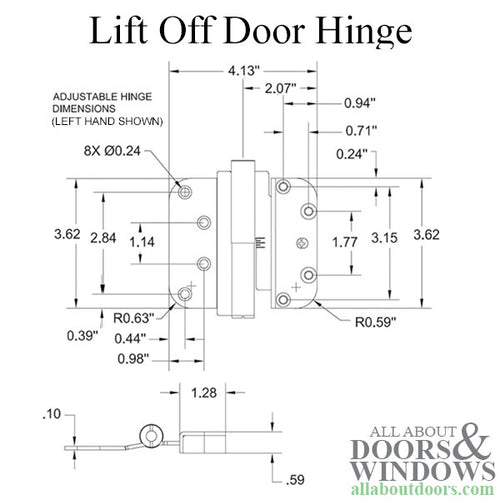

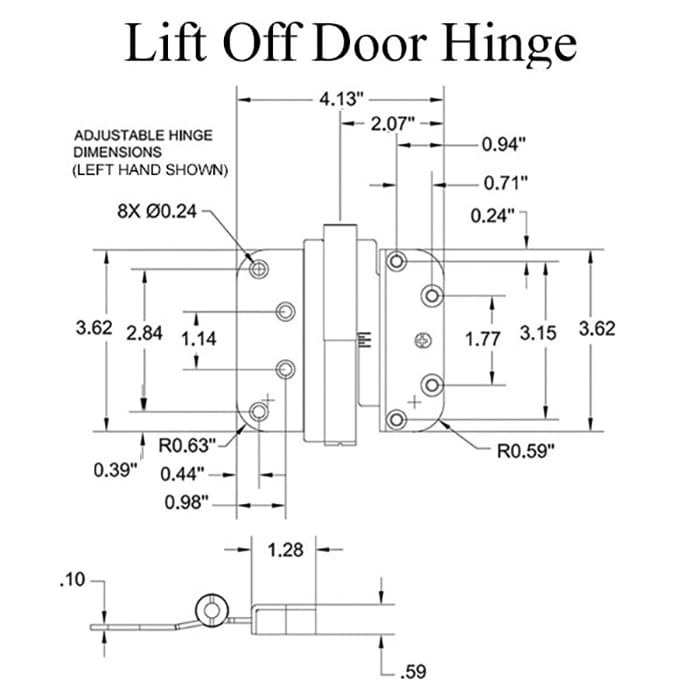

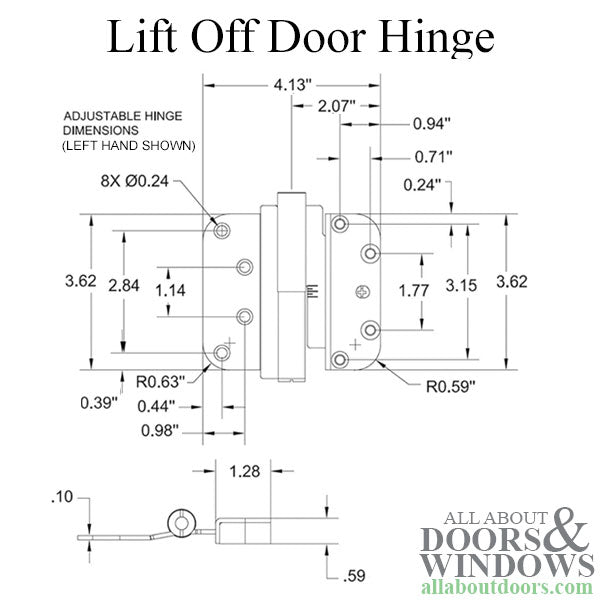

Hinge Height: 3-5/8 inch (92mm) 3.62
Hinge Width: 4-1/8 inch  (104.90mm)  4.13  when open

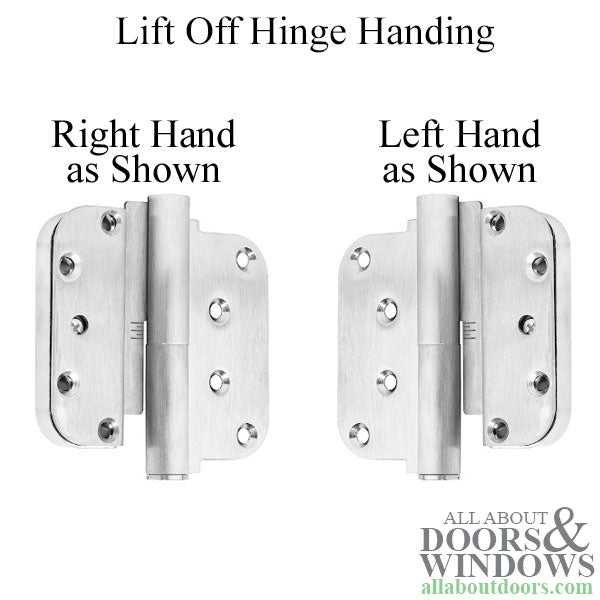

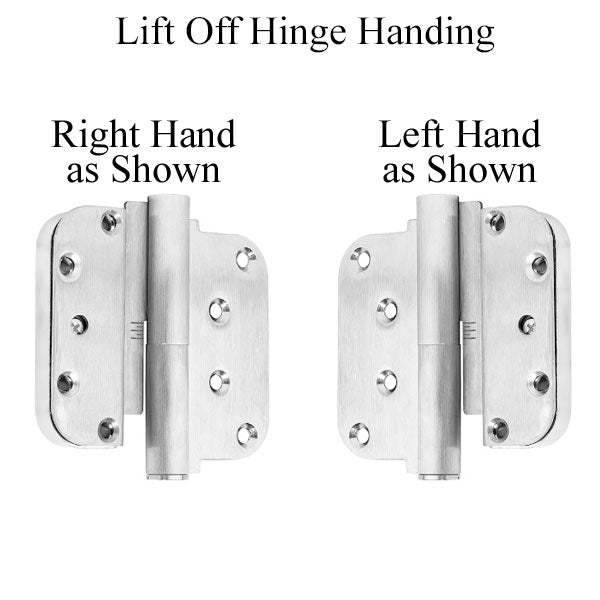

Handed: Yes, Left and Right as Shown
Door Route  3-5/8 inch (92mm) 3.62
Hinge Thickness, Door Panel : .59
Hinge Thickness, Door Frame  .10
Material:
Color Finish:
Maximum adjusted door weight : 180 lbs. 3 hinges or 240 lbs. 4 hinges.

Lift-Off Feature
The Lift-Off Feature allows for the easiest removal and installation of the door panel to and from the door frame where NO Tools are required, saving time and money.

Adjustability
Independent Dual vertical and horizontal adjustment comes standard on all hinges. No separate set and guide hinges.

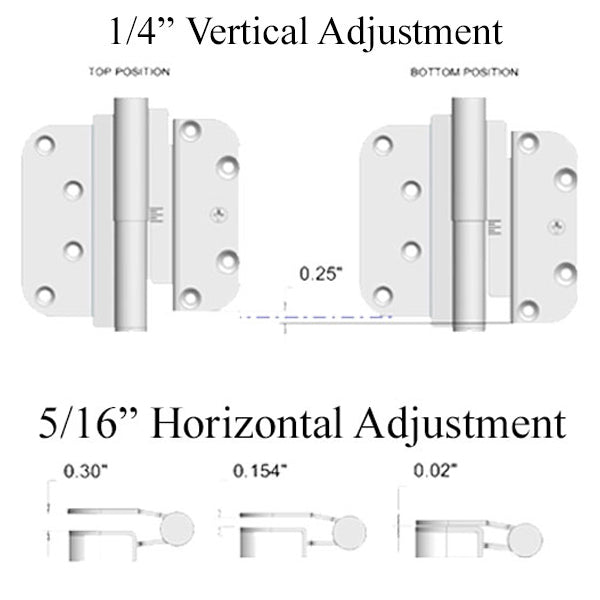

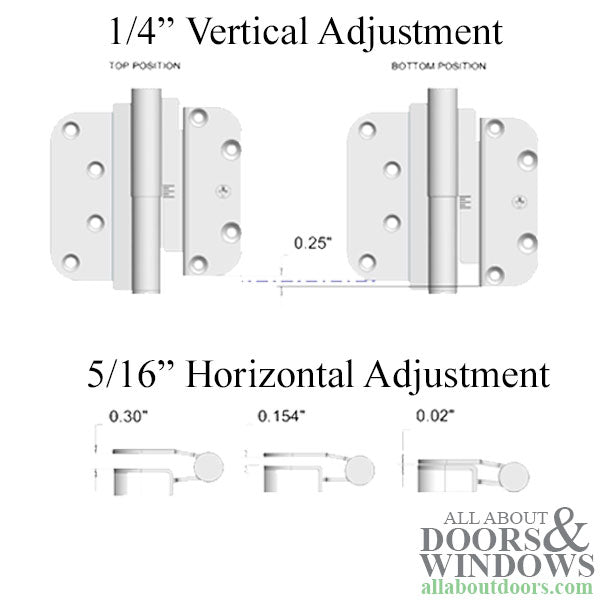

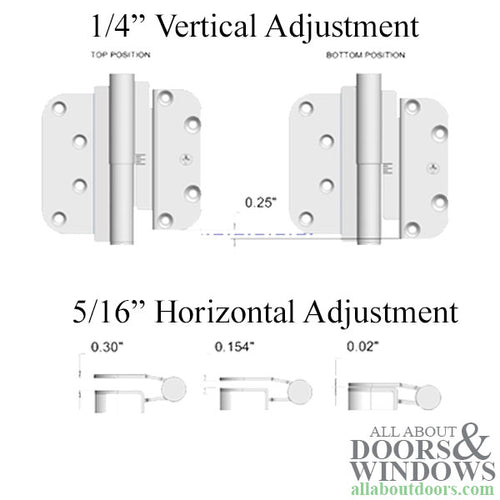

1/4" Vertical Adjustment with a heavy duty 7/16" hex head vertical adjustment screw that incorporates a ball bearing. Only 2-1/2 turns are required each way with a visual adjustment indicator.
5/16" horizontal adjustment with a combination head screw allows the use of either a Phillips or Flat head screw driver. Only 4 turns max are needed each way for 5/16" horizontal adjustment.
One step industry standard routing with 5/8" corner radius simplifies door preparation. Fits industry standard template making it suitable for new installations or replacements.

Additional Information:
M3 Hi-Performance Independent Dual Vertical and Horizontal adjustable hinge comes standard with a Lift off feature along with a concealed ball bearing and a Non-Removable Pin.
The M3 hinges are available in Steel, Stainless Steel or Solid Brass in coated and architectural finishes.

Security
Built-in Non-removable Pin comes standard making it suitable for both Inswing and Outswing Applications

Hi-Performance
Independently third party tested to exceed ANSI/BHMA 156.1 Grade 3 standard for 350,000 cycles with 3 hinges on a 180 lbs door panel.
