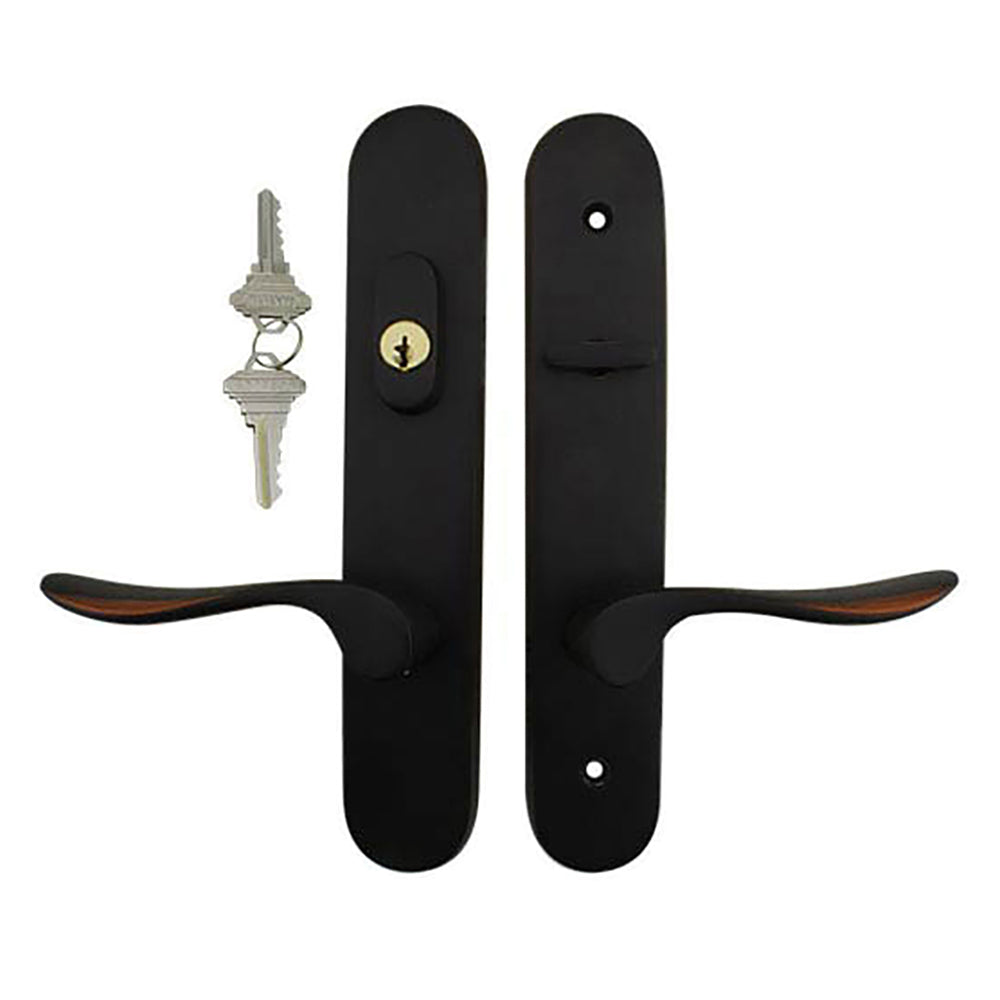

Marvin Active Keyed Hinged door trim, Multipoint Lock - Dark Bronze

Part Number:21448120 Price: $214.04

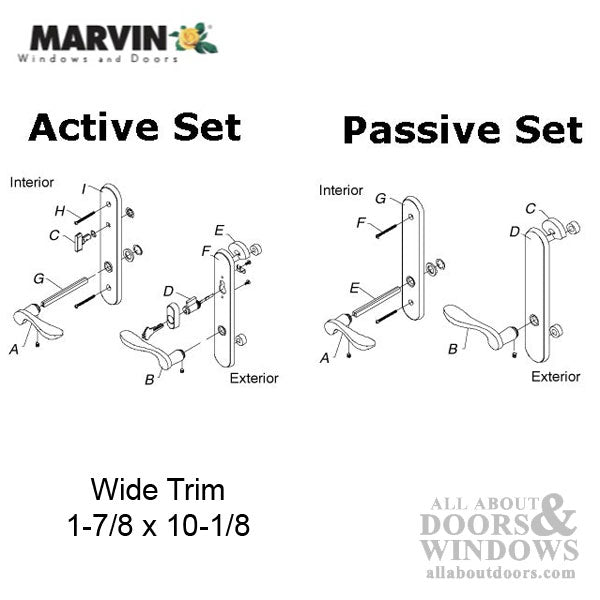

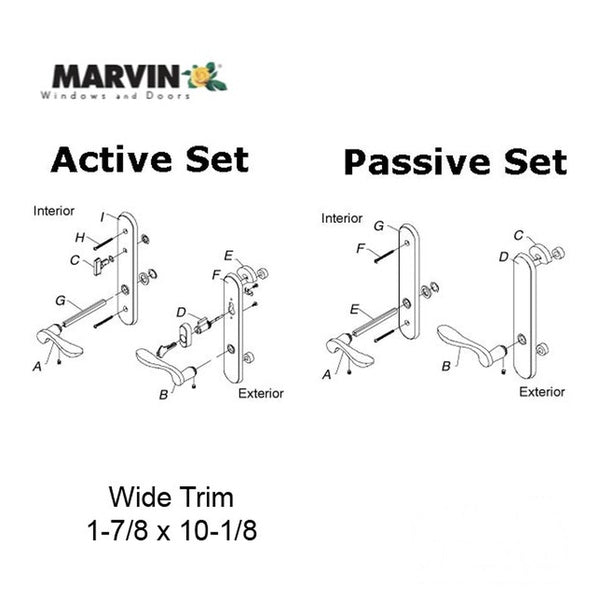

Marvin Traditional active handle set trim for multi-point lock hardware on hinged patio doors.

Marvin Active  doors: UIFD-UOFD-UAFD,

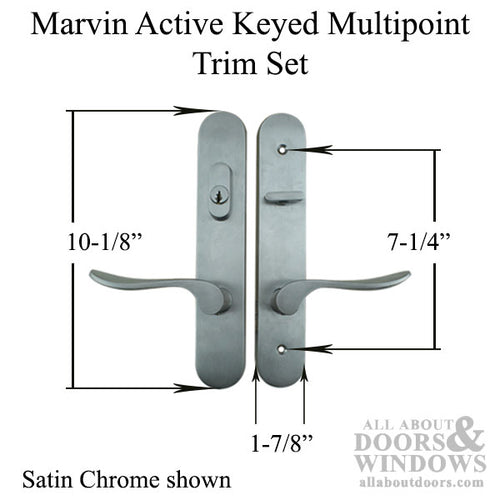

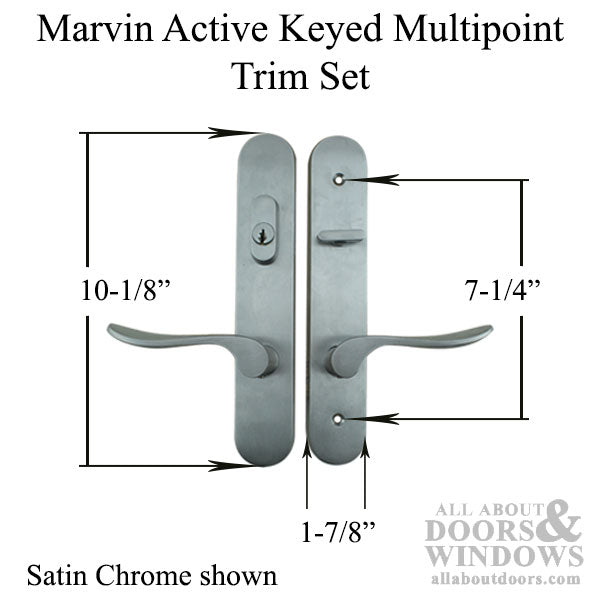

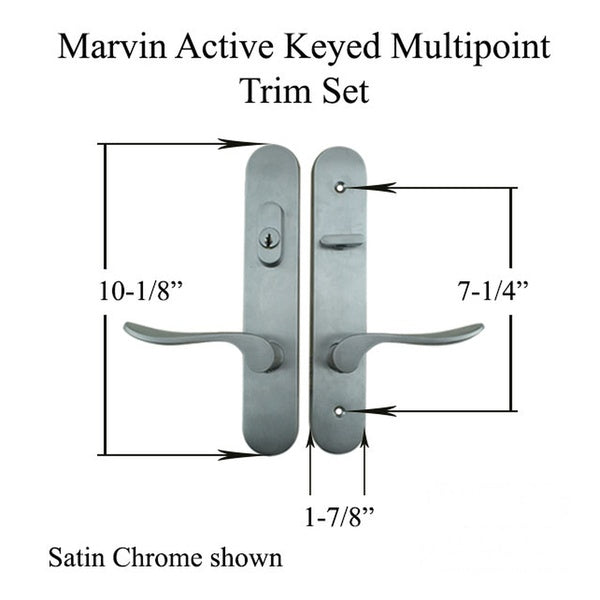

Back-plate Length: 10-1/8 inch

Back-plate Width: 1-7/8 inch

Screw Hole Spacing: 7-1/4 inch

Construction Material: Zinc

Square Spindle: 5/16 inch x 4-5/16 inch

Plate Design: Radius

Door Thickness: 1-3/4 inch

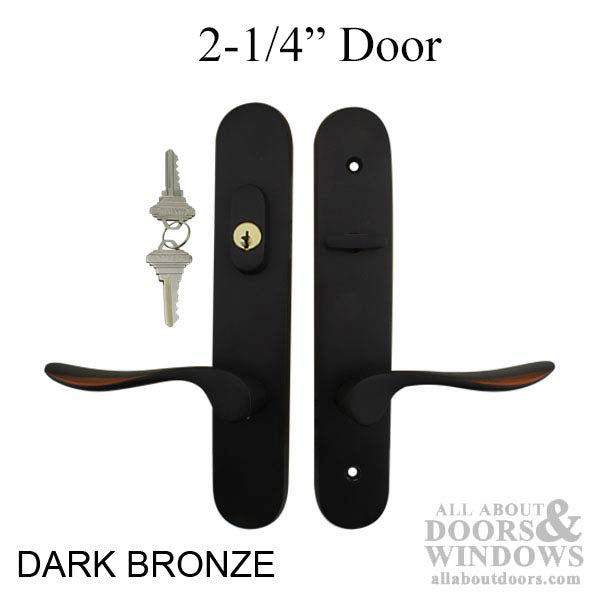

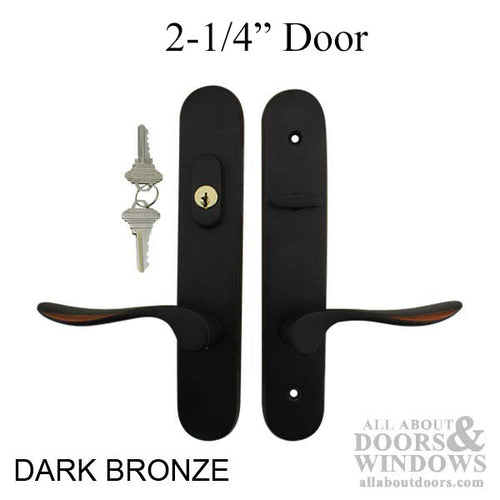

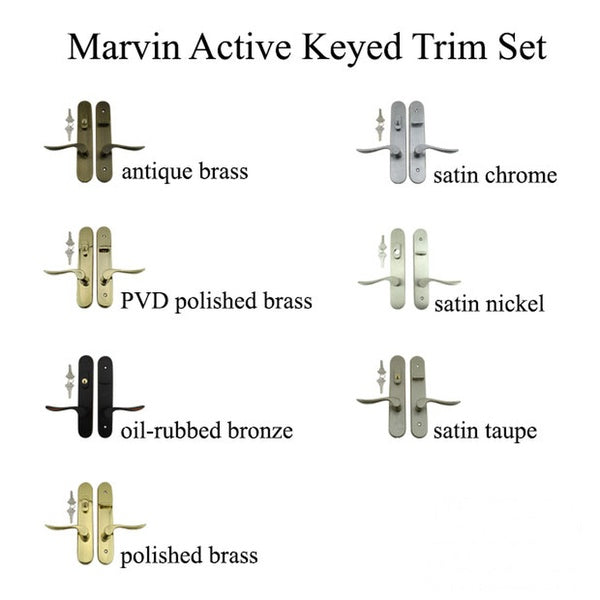

Color / Finish: Dark Bronze

Thumbturn interior


Marvin Active door trim, Keyed with Schlage SC-1, 5 pin keyway

Optional Kwikset / Weiser keyway available at an additional charge
