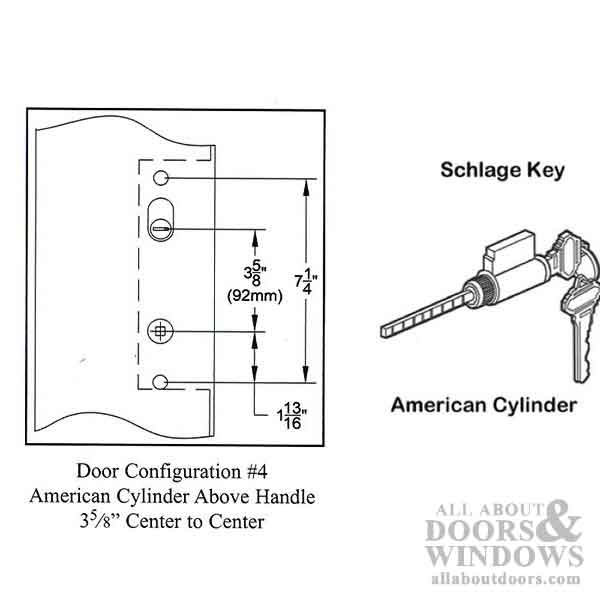

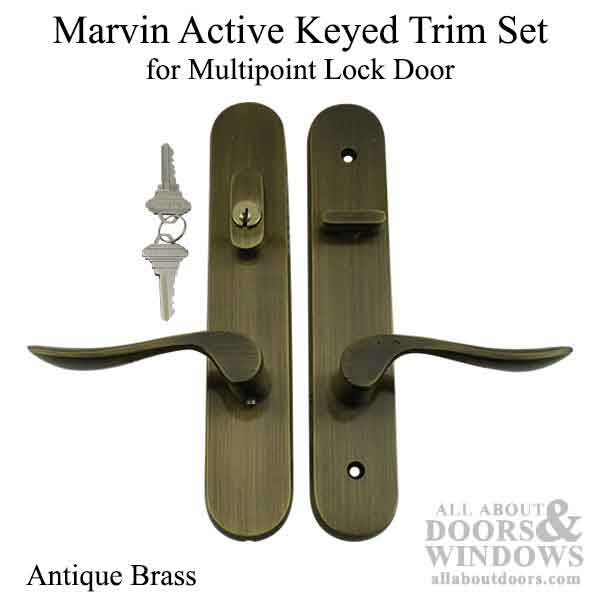

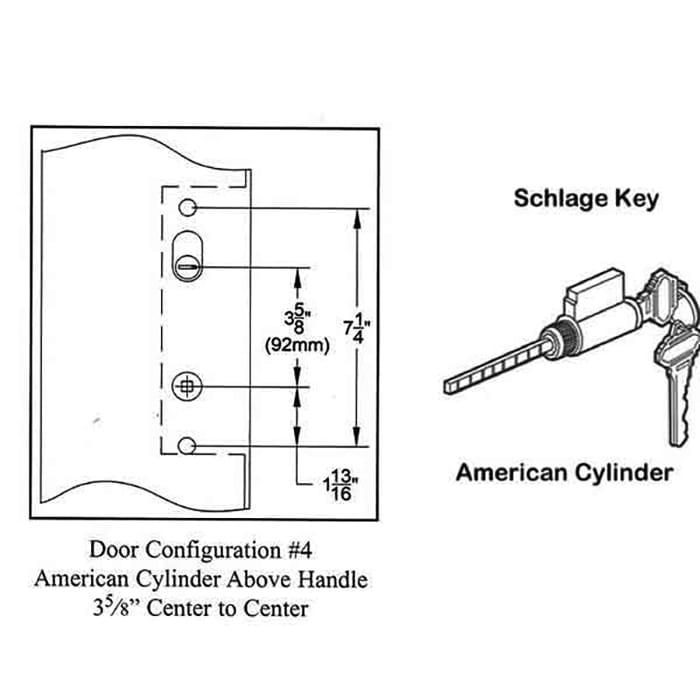

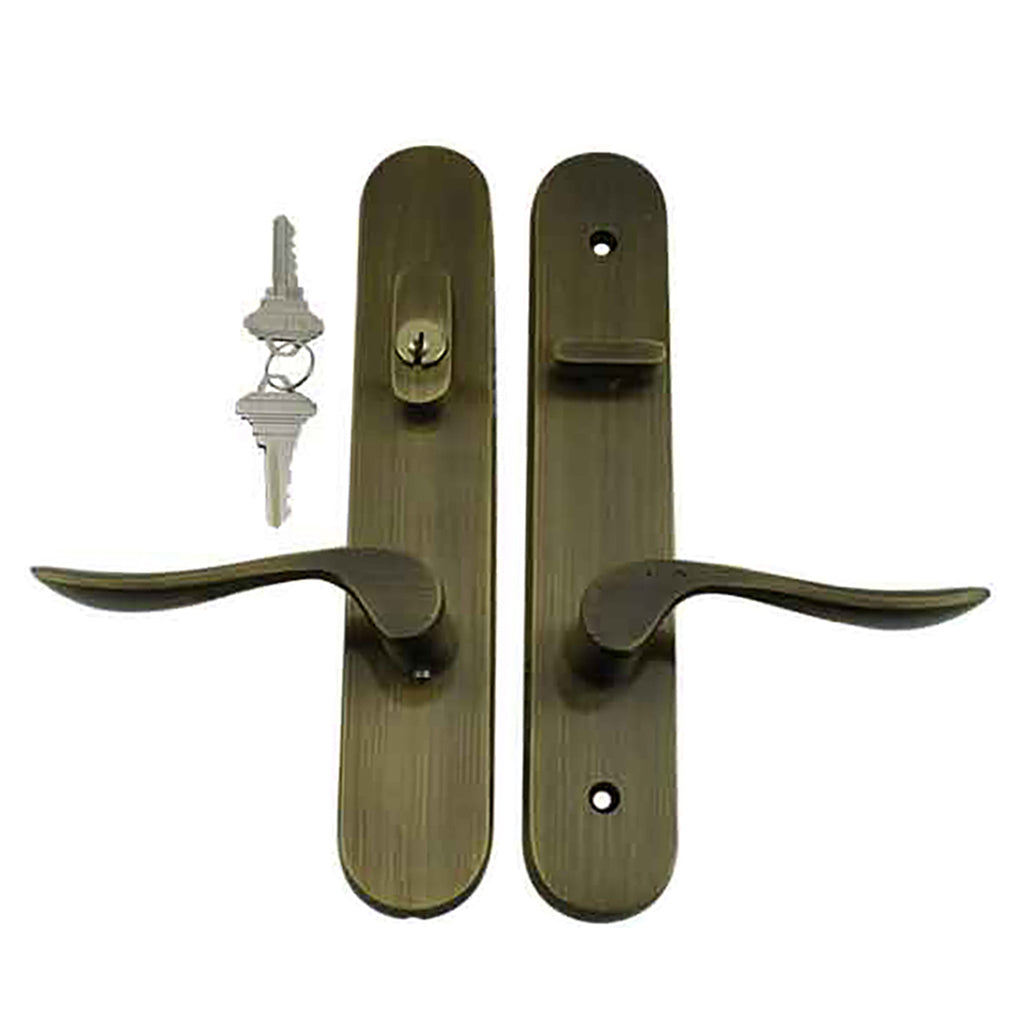

Marvin Active keyed multipoint lock trim for hinged door.This design is used by Marvin, but will fit other doors with the same configuration.Measurements and Details:Back-plate Length: 10-1/8 inchBack-plate Width: 1-7/8 inchHandle Spacing (PZ): 3-5/8 inchScrew Hole Spacing: 7-1/4 inchFinish: Antique BrassThis Handle-set uses a standard 5 Pin Schlage SC-1 American keyed cylinder with a flat tail-piece.
Optional Kwikset / Weiser cylinders available at an additional charge
