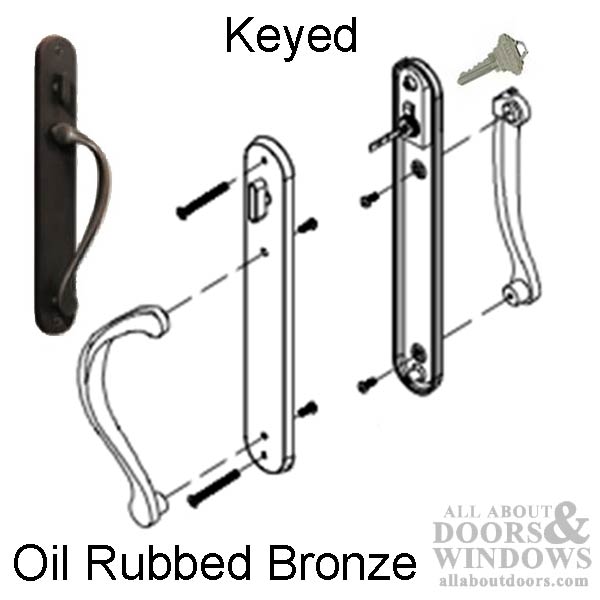

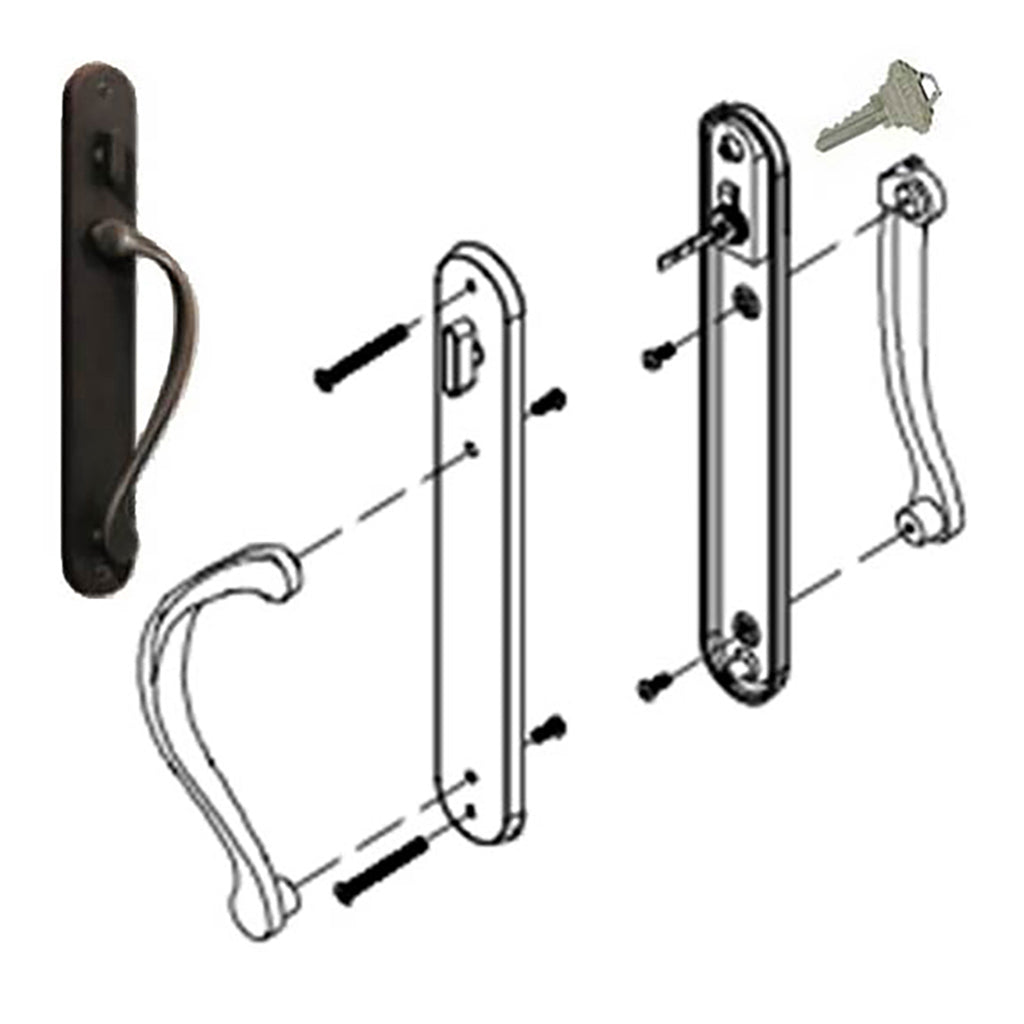

Marvin Keyed Handle Set for Sliding Door, New Style with Traditional wide plate

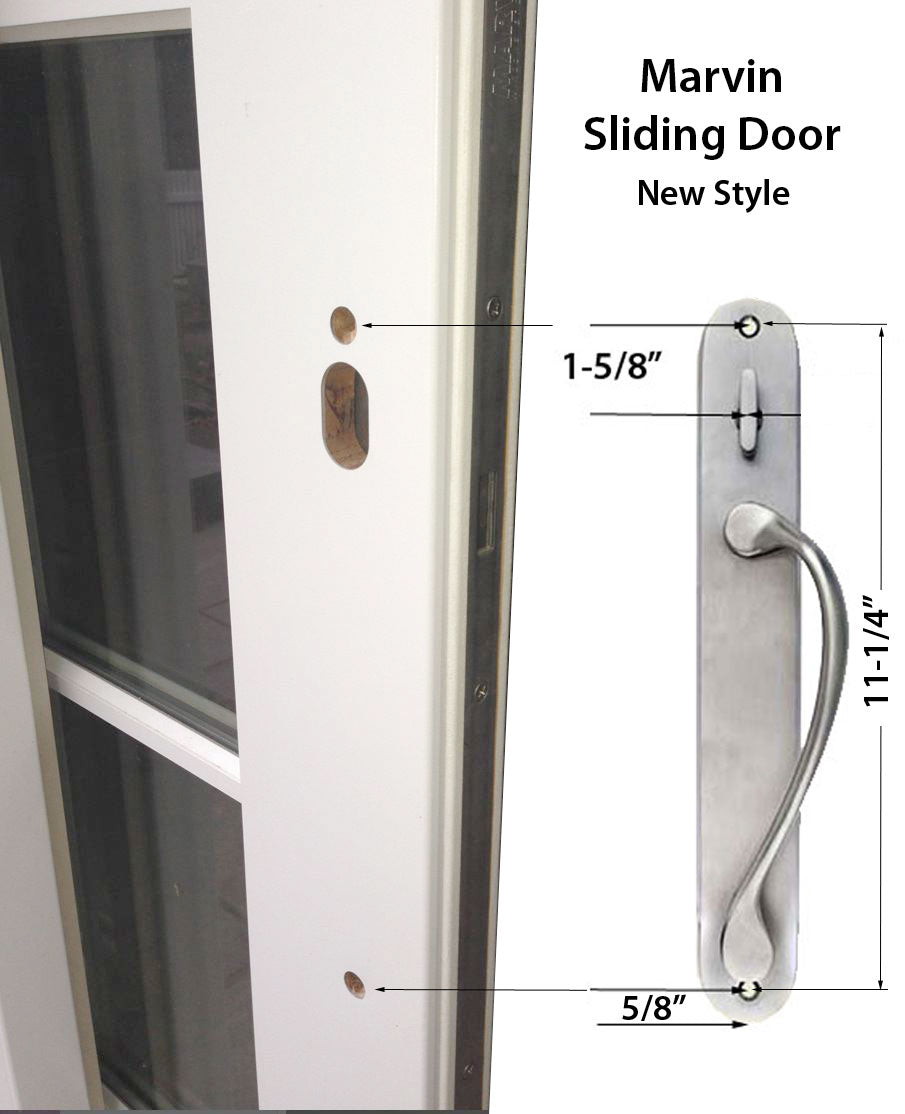

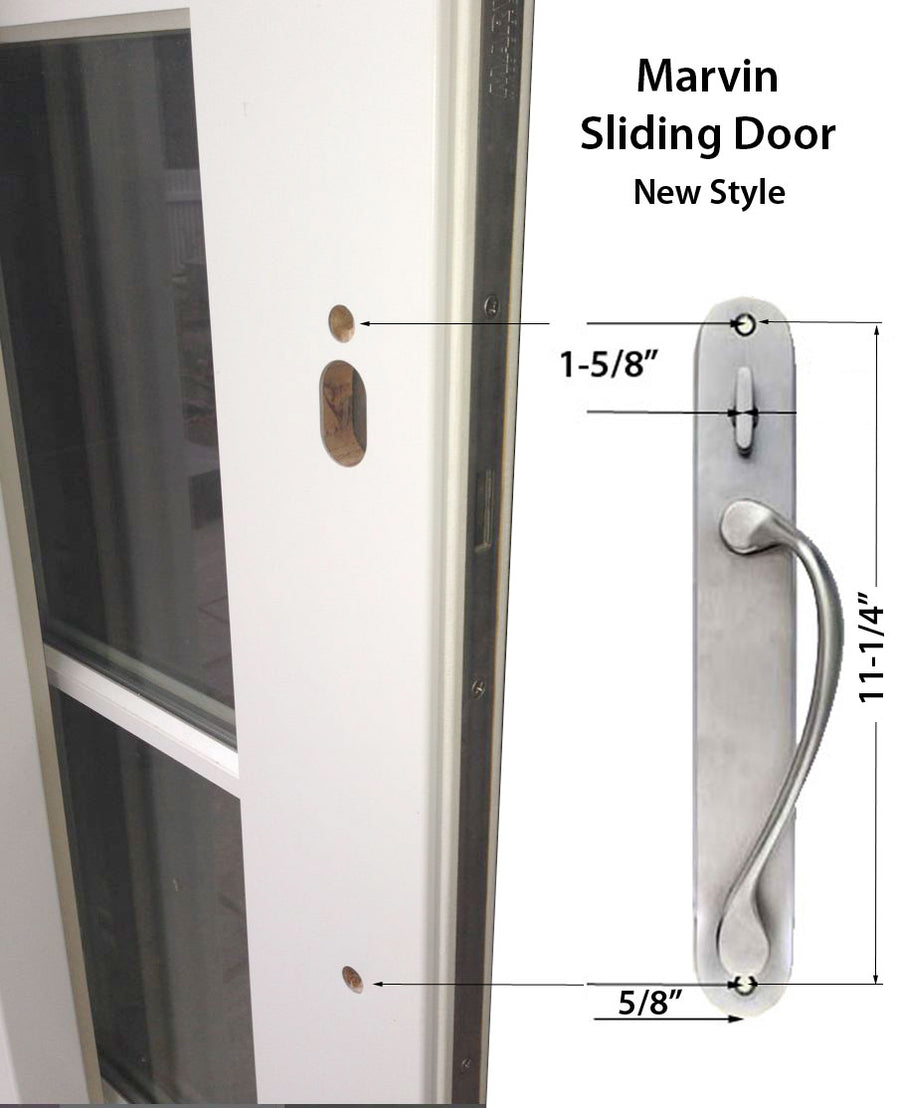

New Style has 2 screws, vertical screw holes on the interior plate at top and bottom.
Old style has 3 screws, 2 horizontal screws at thumbturn and 1 bottom screw on the interior plate.

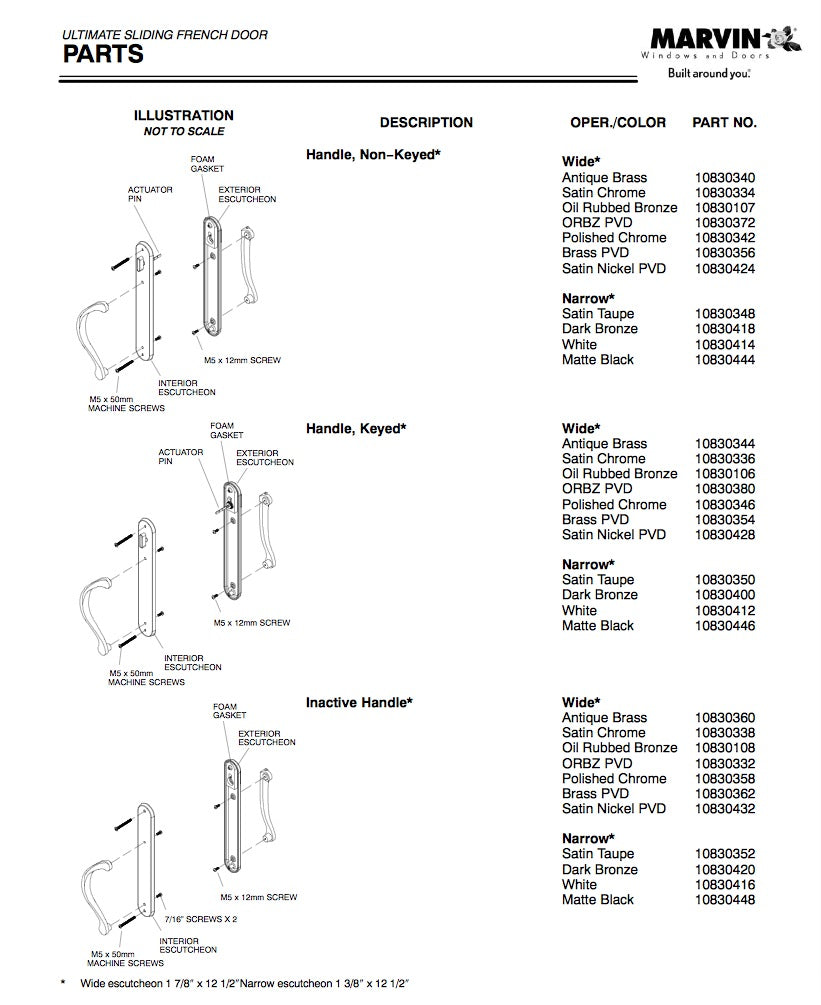

Current Style Marvin Sliding French Door & Ultimate Sliding French Patio Glass Doors

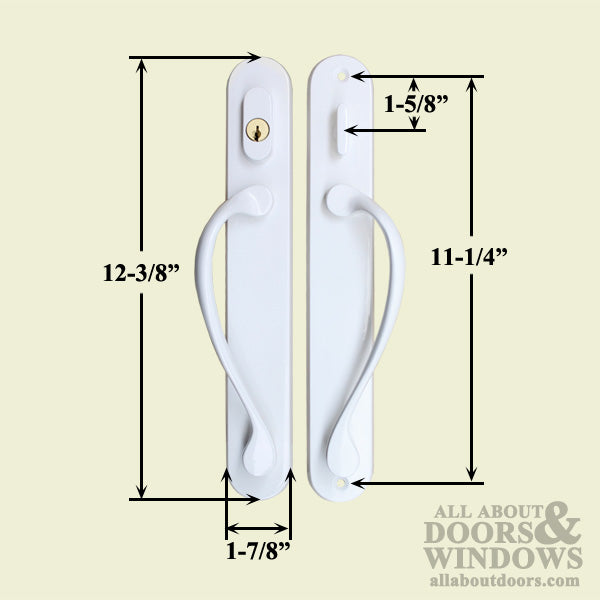

Escutcheon Plate Width: 1-7/8 inch
Escutcheon Plate Length: 13 Inches
Screw Holes: 2 Top and bottom of plate, Spaced Vertically @ 11-3/16 inch
Top Screw hole to Center of thumb turn: 1-5/8 inch
Handed: No, handles can be switched for left or right hand doors
Handle Screws: #10 x 7/16
Installation Screws: #10 x 2 Phillips Oval Head
Allen Wrench: 1/8 inch
IMPORTANT NOTE:

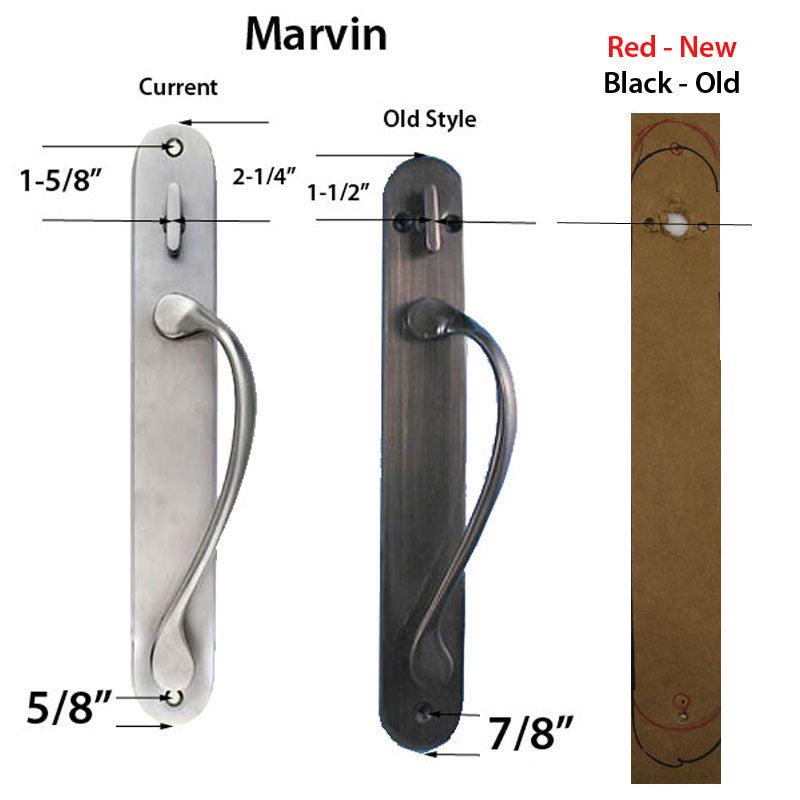

If you have the old style and are replacing with the new style, there will me marks from the old handle set that will NOT be covered by the new style.
Please see additional images
