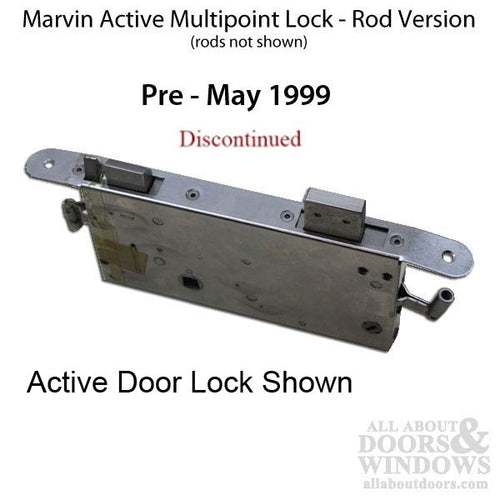

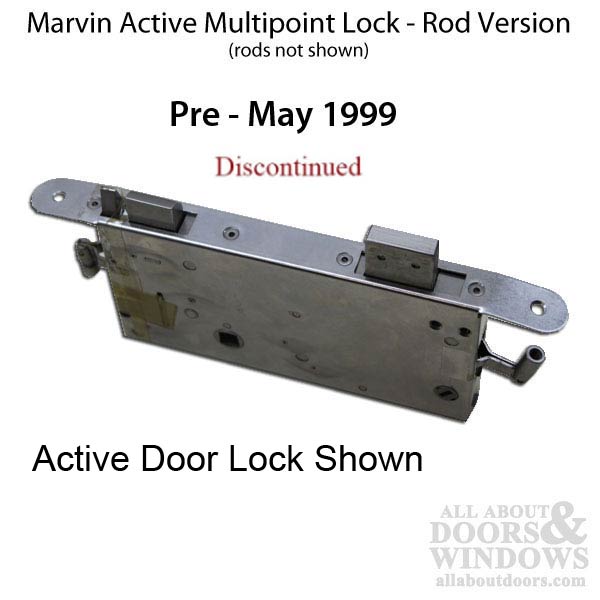

This lock has been discontinued and is no longer available for purchase. Several Options Available

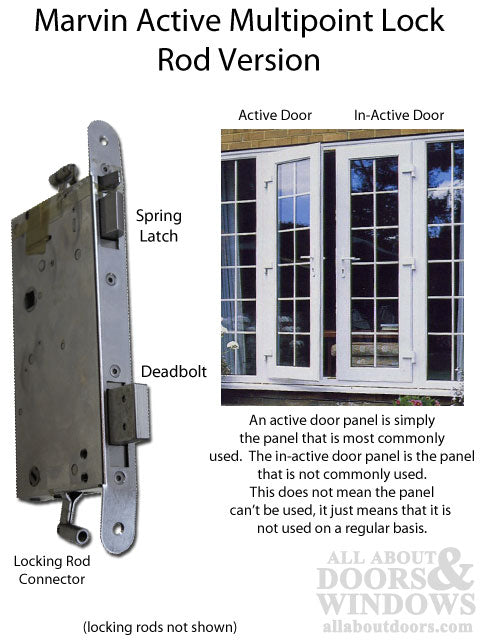

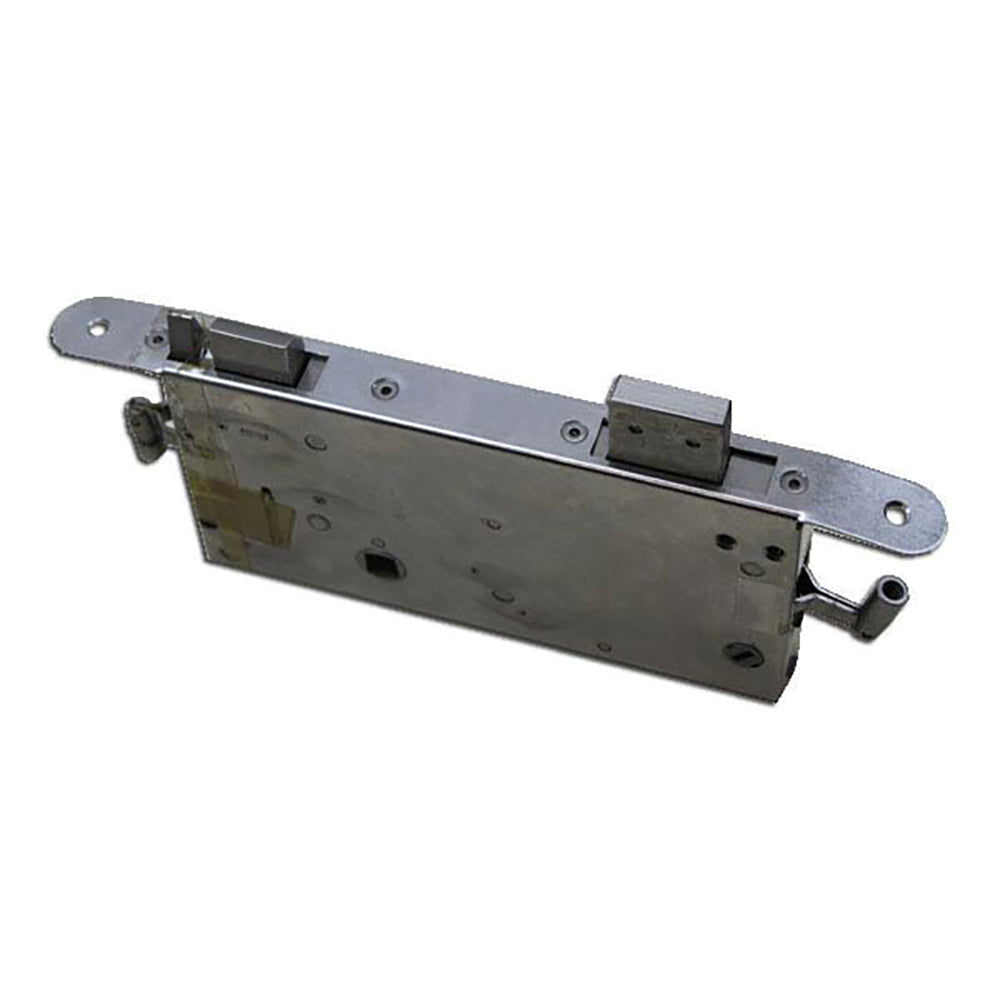

Marvin Active Vertical Rod Lock Body Only - NO Rods This is a Concealed Rod version Multi-Point Lock used by Marvin on Active doors. This lock has a pair of vertical locking rods that screw into the mortise locks body. This lock is used on Active doors, The passive lock is different. There is a Spring Latch and a Deadbolt on this multipoint lock. It is designed to be used with single or double french doors.

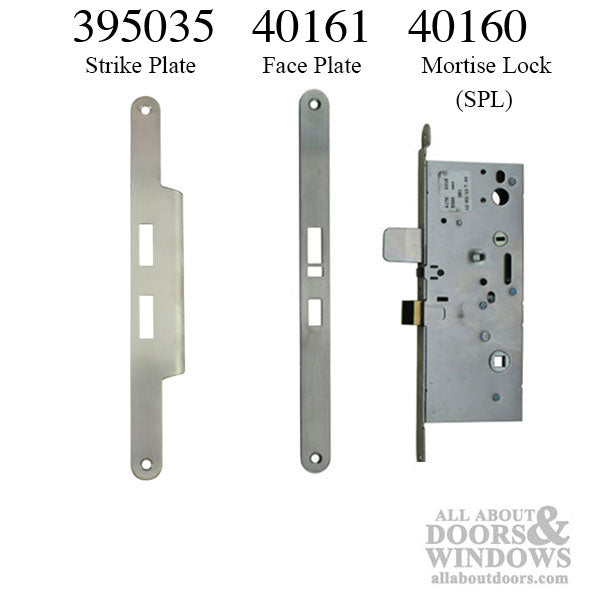

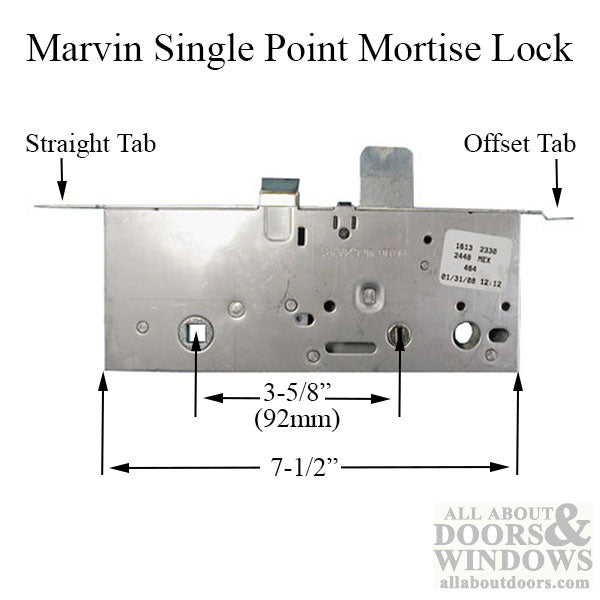

REPLACEMENT OPTIONS: SINGLE DOORS - work best suited for trim carpenter 1. Switch to a single point lock with a slightly larger body - 40160 You will need a new strike plate 395035 and a new lock faceplate 395040 2. Route door edge and install face mount Shootbolt Version MPL (Truth Sentry, key above). Will need new strike plates. 3. Replace Door(s)
DOUBLE DOORS - work best suited for trim carpenter 1. Switch to a single point system, replace both active and passive locks Add Flush bolts to passive door in place of Rod version Will need new strike plates, faceplates & Flushbolts 2. Replace Active & Passive locks with Shootbolt Version (Route face mount on door edge)
For more information, Contact: Rory@allaboutdoors.com
Rehanding a Marvin Integrity Multipoint Lock

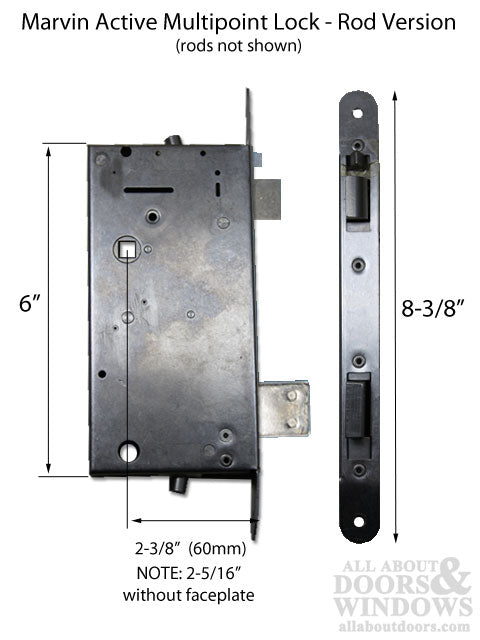

<p>This lock has been discontinued and is no longer available for purchase.<br />Several Options Available<br /><br />Marvin Active Vertical Rod Lock Body Only - NO Rods<br />This is a Concealed Rod version Multi-Point Lock used by Marvin on Active doors.<br />This lock has a pair of vertical locking rods that screw into the mortise locks body.<br />This lock is used on Active doors, The passive lock is different.<br />There is a Spring Latch and a Deadbolt on this multipoint lock.<br />It is designed to be used with single or double french doors.<br /><br /><strong>Lock Measurements:</strong><br /><a href="http://www.allaboutdoors.com/images/overalllength.jpg" rel="lightbox">Lock Body Length</a>: 6 inches<br />Lock Body Depth: 3 inches<br /><a href="http://www.allaboutdoors.com/images/handleheight.jpg" rel="lightbox">Handle Height (H.H.)</a>: Standard H.H. is 36 inches<br /><a href="http://www.allaboutdoors.com/images/PZ.jpg" rel="lightbox">Handle Spacing (PZ)</a>: 92mm (3-5/8")<br />Faceplate: Radius / Rounded Corners<br />Faceplate Length: 8-3/8 inch<br /><a href="http://www.allaboutdoors.com/images/faceplate.jpg" rel="lightbox">Faceplate Width</a>: 3/4 inch<br />Installation Screws: 7, 1/2 inch<br /><br /><strong>REPLACEMENT OPTIONS:</strong><br /><strong>SINGLE DOORS</strong> - work best suited for trim carpenter<br />1. Switch to a single point lock with a slightly larger body - <a href="https://www.allaboutdoors.com/Mortise-Lock-Single-Point-Lock-Active-60mm-Marvin-Caradc">40160</a><br />You will need a new strike plate <a href="https://www.allaboutdoors.com/Marvin-Strike-Plate-Panel">395035</a> and a new lock faceplate <a href="https://www.allaboutdoors.com/Marvin-Face-Plate-Active-Panel-Lock-cover-7-8-x-11">395040</a><br />2. Route door edge and install face mount Shootbolt Version MPL (Truth Sentry, key above). Will need new strike plates.<br />3. Replace Door(s)<br /><br /><strong>DOUBLE DOORS</strong> - work best suited for trim carpenter<br />1. Switch to a single point system, replace both active and passive locks<br />Add Flush bolts to passive door in place of Rod version<br />Will need new strike plates, faceplates & Flushbolts<br />2. Replace Active & Passive locks with Shootbolt Version (Route face mount on door edge)<br /><br />For more information, Contact: Rory@allaboutdoors.com <br /><br /><strong>Rehanding a Marvin Integrity Multipoint Lock</strong></p><p><iframe allow="accelerometer; autoplay; clipboard-write; encrypted-media; gyroscope; picture-in-picture" allowfullscreen="" frameborder="0" height="210" src="https://www.youtube.com/embed/hXuTwcqThhw" title="YouTube video player" width="360"></iframe></p>
Add to Card
Marvin Active Multi-Point Lock 2-3/8 Backset , Rod Version
