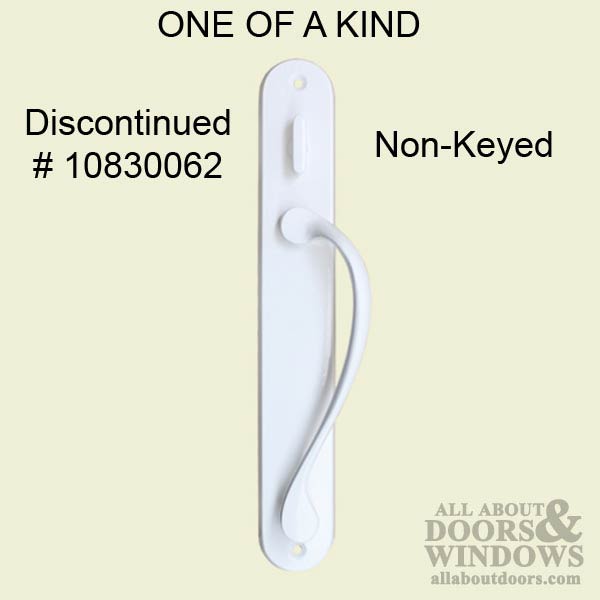

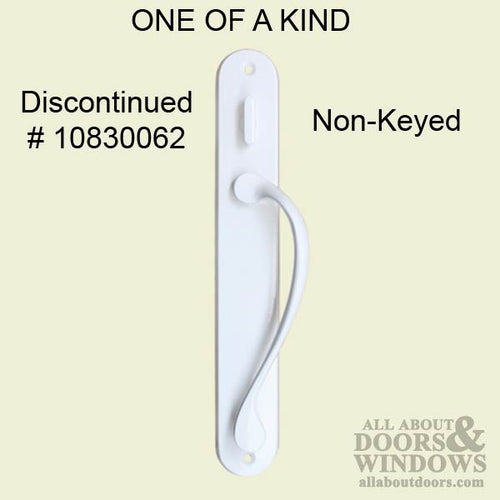

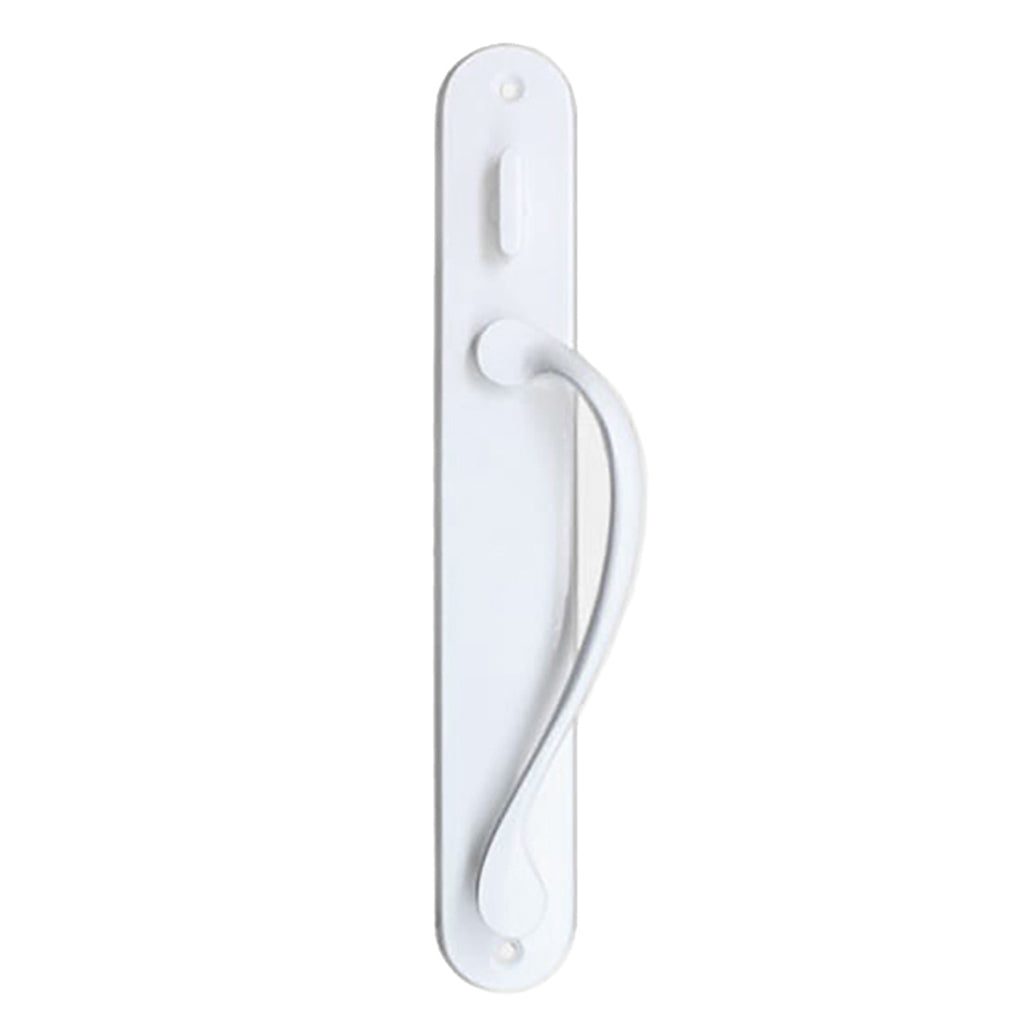

Marvin Non- Keyed Handle Set for Sliding Door in White - Discontinued

Works with Marvin Sliding French Door & Ultimate Sliding French Patio Glass Doors

Specifications:

Current Style Marvin Sliding French Door & Ultimate Sliding French Doors

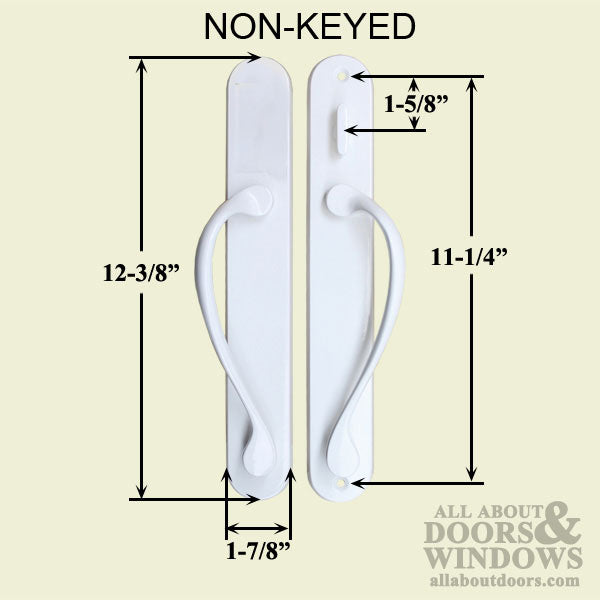

Escutcheon Plate Width: 1-7/8 inch

Escutcheon Plate Length: 12-3/8 Inches

Screw Holes: 2  Top and bottom of plate, Spaced Vertically @ 11-3/16  inch

Top Screw hole to Center of thumb turn: 1-5/8 inch

Handed: No, handles can be switched for left or right hand doors

IMPORTANT NOTE:

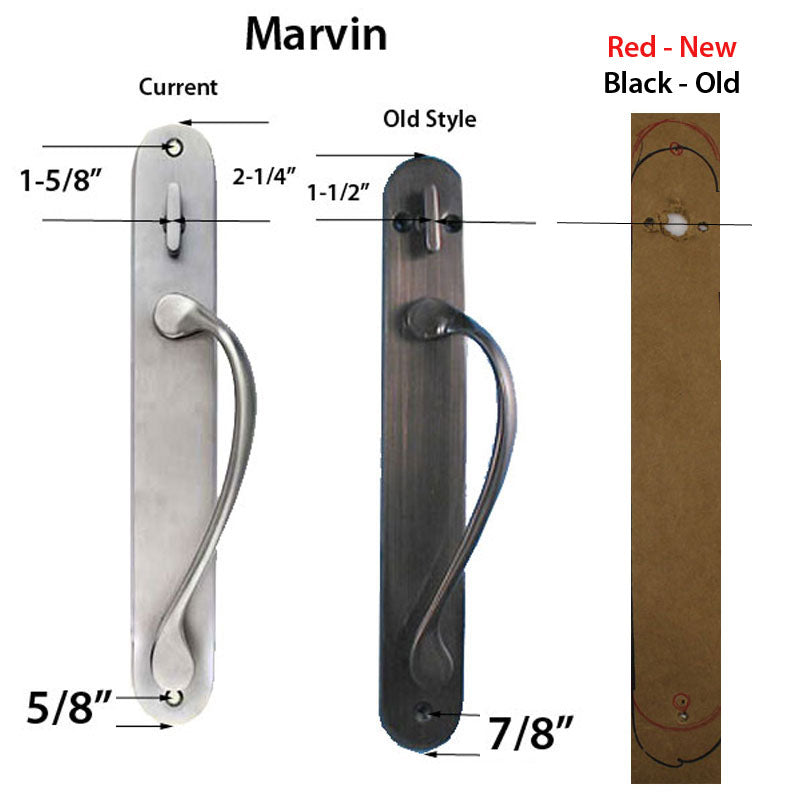

If you have the old style and are replacing with the new style, there will me marks from the old handle set that will NOT be covered by the new style.

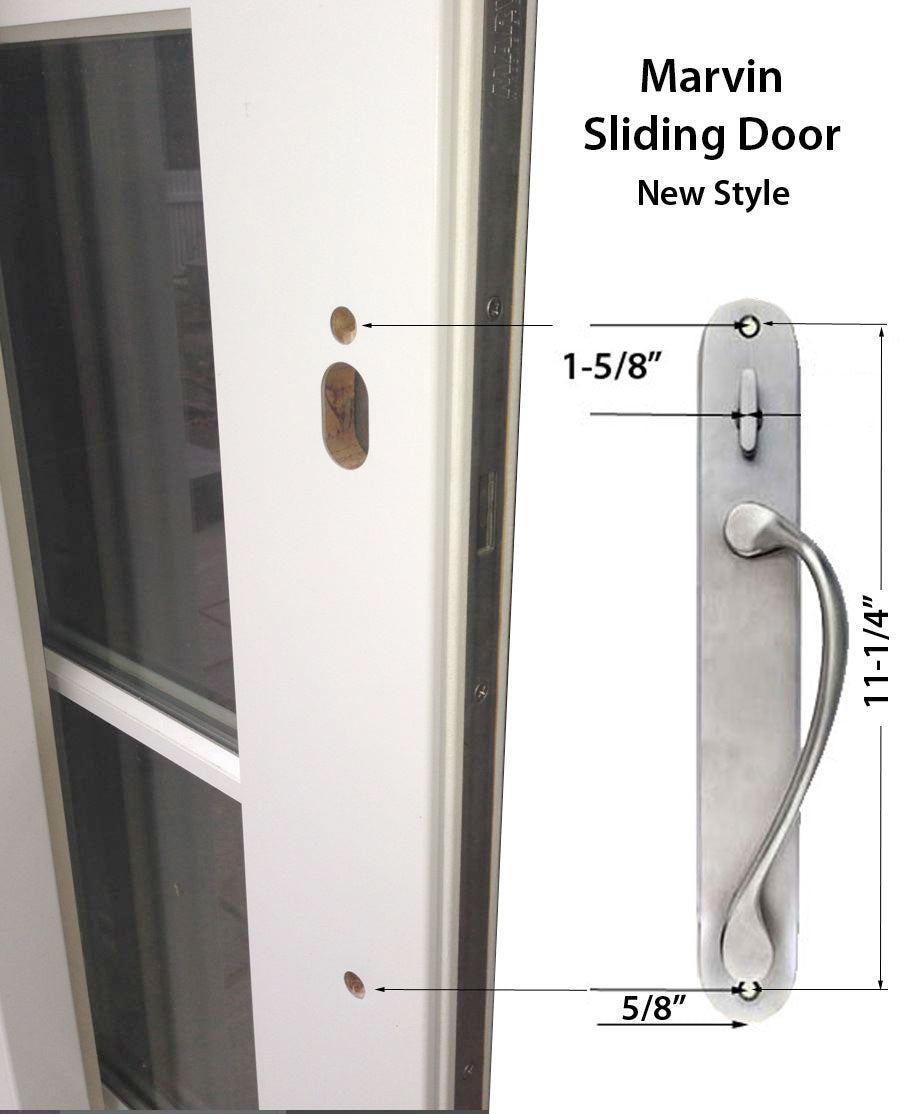

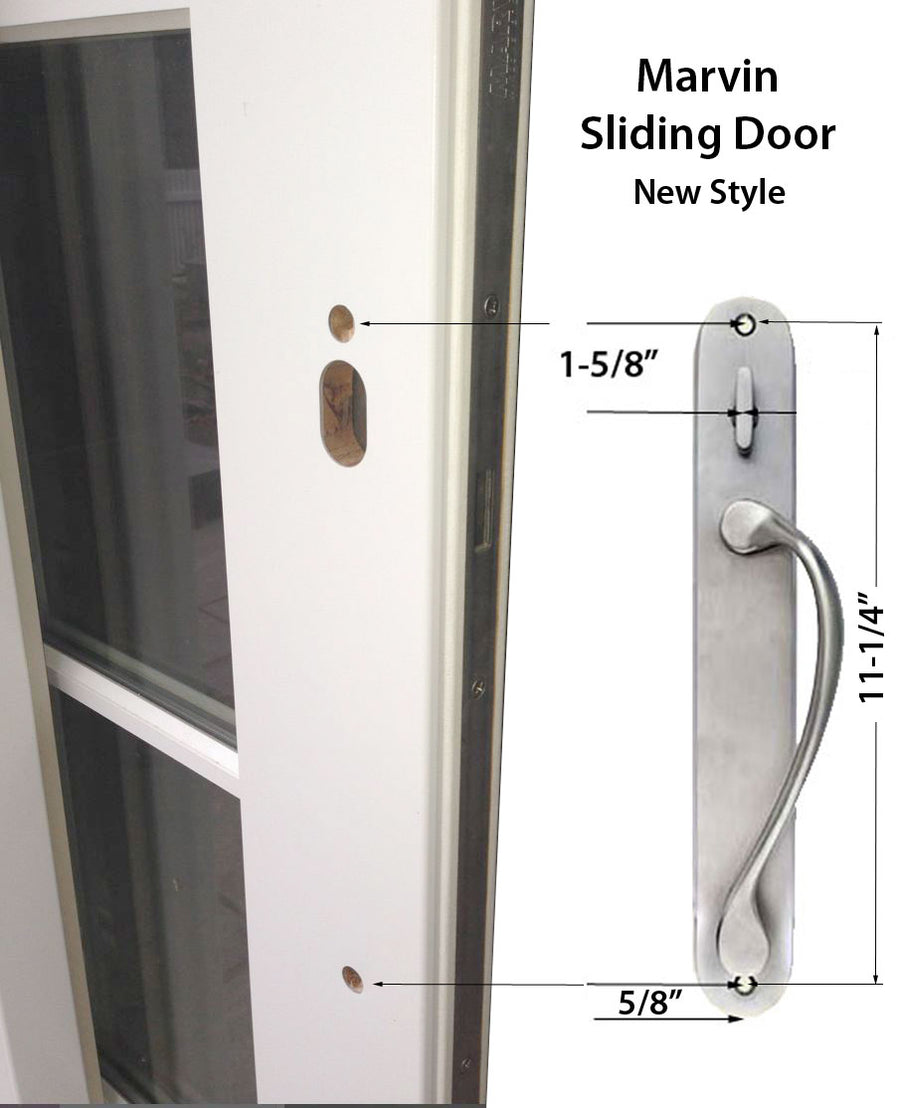

New Style  has 2 screws, vertical screw holes on the interior plate at top and bottom.

Old style has 3 screws, 2 horizontal screws at thumb turn and 1 bottom screw on the interior plate.
