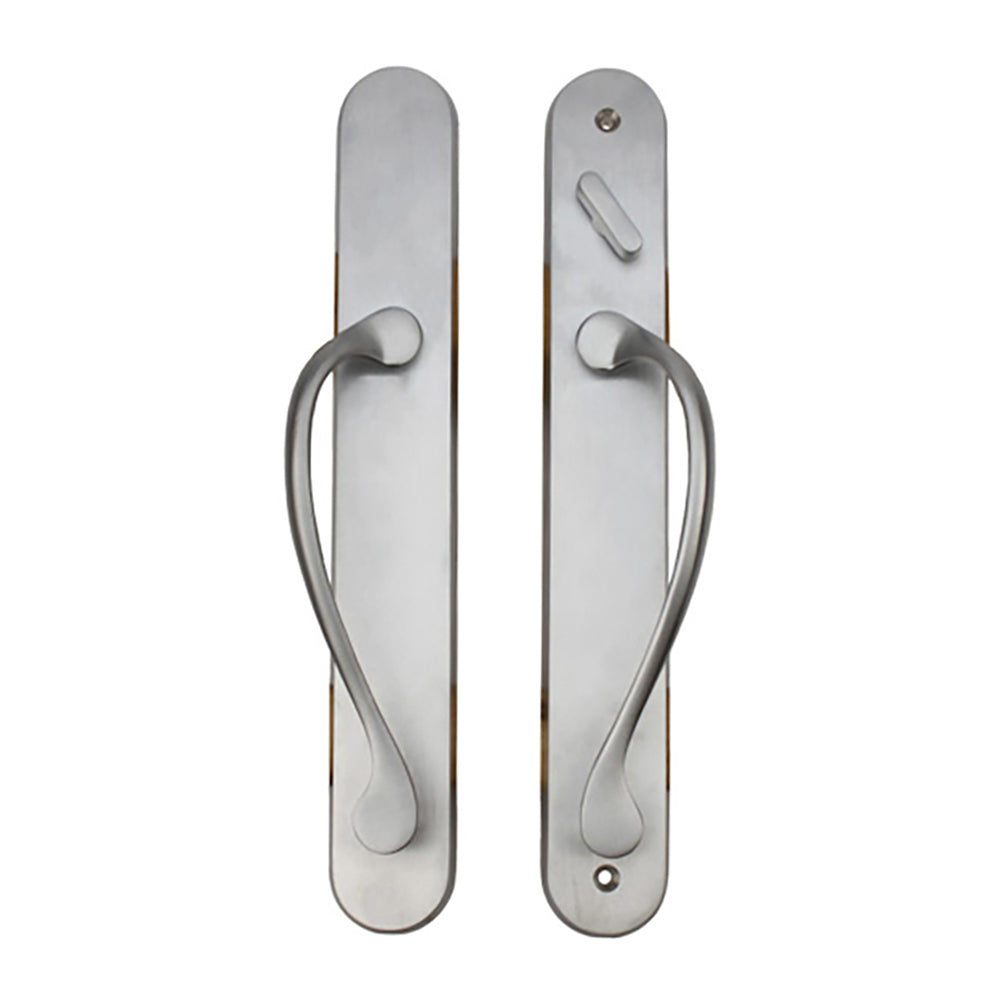

Marvin active Non-Keyed Ultimate Sliding French Door wide trim - Satin Chrome

Part Number: 10830334 Price: $530.20

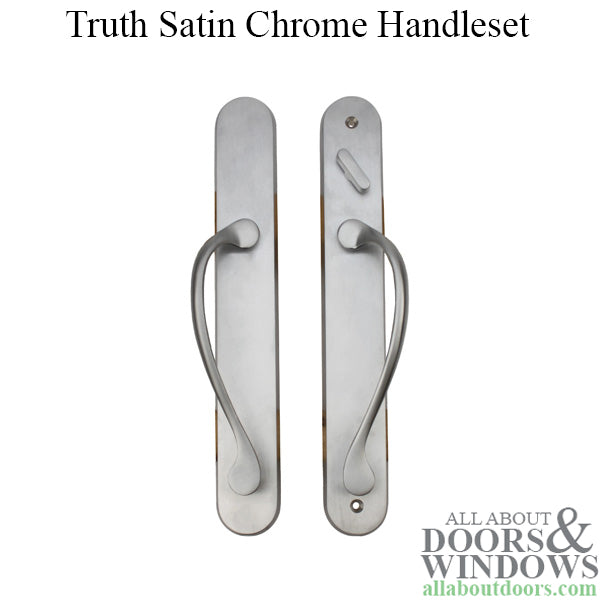

Marvin Traditional wide plate handle set trim for active door, non-keyed

Fits Current Style Marvin Sliding French Door & Ultimate Sliding French Doors

This is for the active door, without a key, thumb turn only on inside.

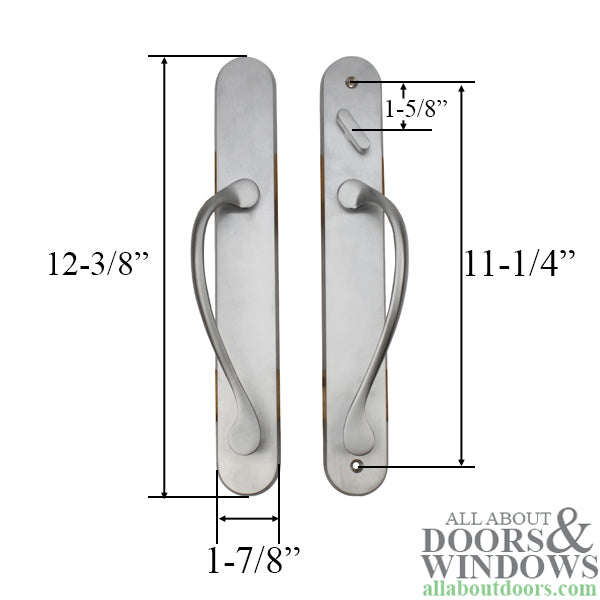

Marvin Handle Specifications:

Escutcheon Plate Width: 1-7/8 inch

Escutcheon Plate Length: 12-1/2 Inches

Screw Holes: 2  Top and bottom of plate, Spaced Vertically @ 11-3/16  inch

Top Screw hole to Center of thumb turn: 1-5/8 inch

Handed: No, handles can be switched for left or right hand doors

Color: Satin Chrome


IMPORTANT NOTE:

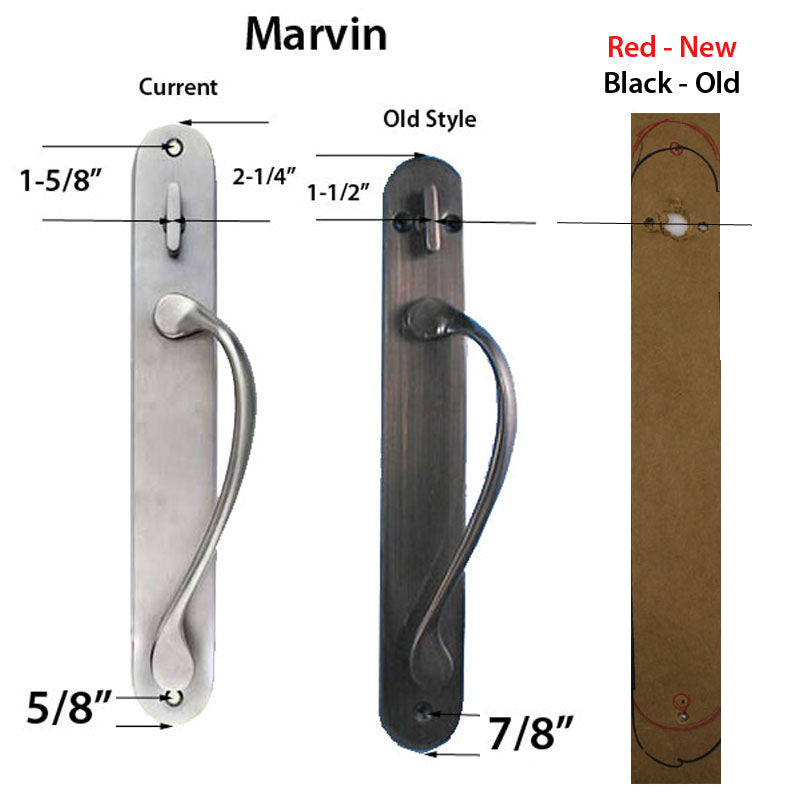

If you have the old style and are replacing with the new style, there will be marks from the old handle set that will NOT be covered by the new style.

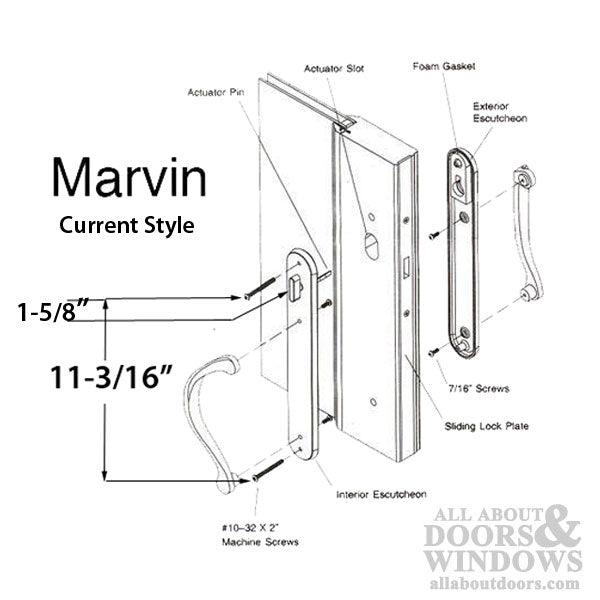

New Style  has 2 screws, vertical screw holes on the interior plate at top and bottom.

Old style has 3 screws, 2 horizontal screws at thumb turn and 1 bottom screw on the interior plate.
