Marvin Ashland Handle Bushing Pair Painted Trim Neutral Color
Part Number: $1.20 Ashland Handle Bushings - Painted Trim
11/16 Diameter
The bushing for PLATED trim sets has a 0.005" larger Outside Diameter and 0.005" smaller Inside Diameter versus the PAINTED version due to difference in plating versus painting coating thickness.

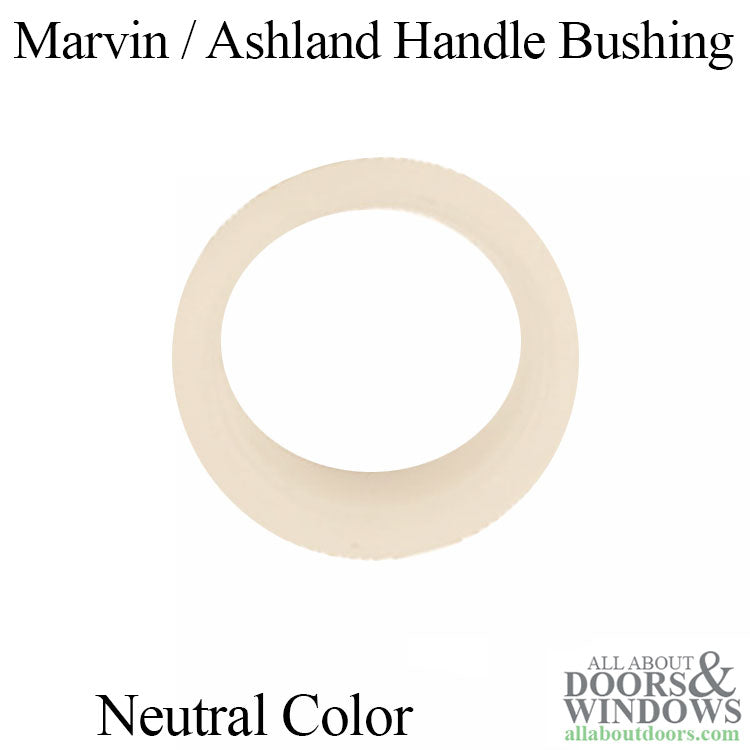

Neutral in color
Fits: Marvin and other brands using same size

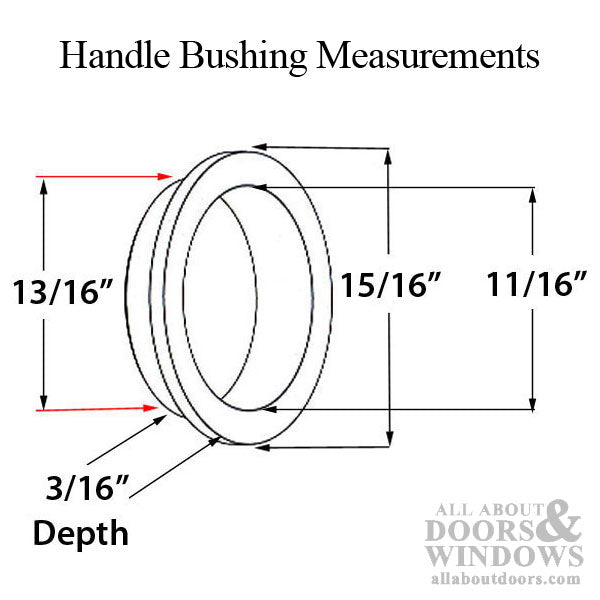

Inside bushing diameter: 11/16 inch
Handle Diameter: 11/16 inch
Escutcheon Plate Hole Diameter: 13/16 inch
Outside Bushing diameter: 15/16 inch
Bushing Depth: 3/16 inch
This item can be replaced with #395027 if needed. 395027 is slightly larger, but will work interchangeably.
Sold in Pairs
Ashland Handle Bushings - Painted Trim
11/16 Diameter
The bushing for PLATED trim sets has a 0.005” larger Outside Diameter and 0.005” smaller Inside Diameter versus the PAINTED version due to difference in plating versus painting coating thickness.
Neutral in color
Fits: Marvin and other brands using same size
Inside bushing diameter: 11/16 inch
Handle Diameter: 11/16 inch
Escutcheon Plate Hole Diameter: 13/16 inch
Outside Bushing diameter: 15/16 inch
Bushing Depth: 3/16 inch
Sold in Pairs
