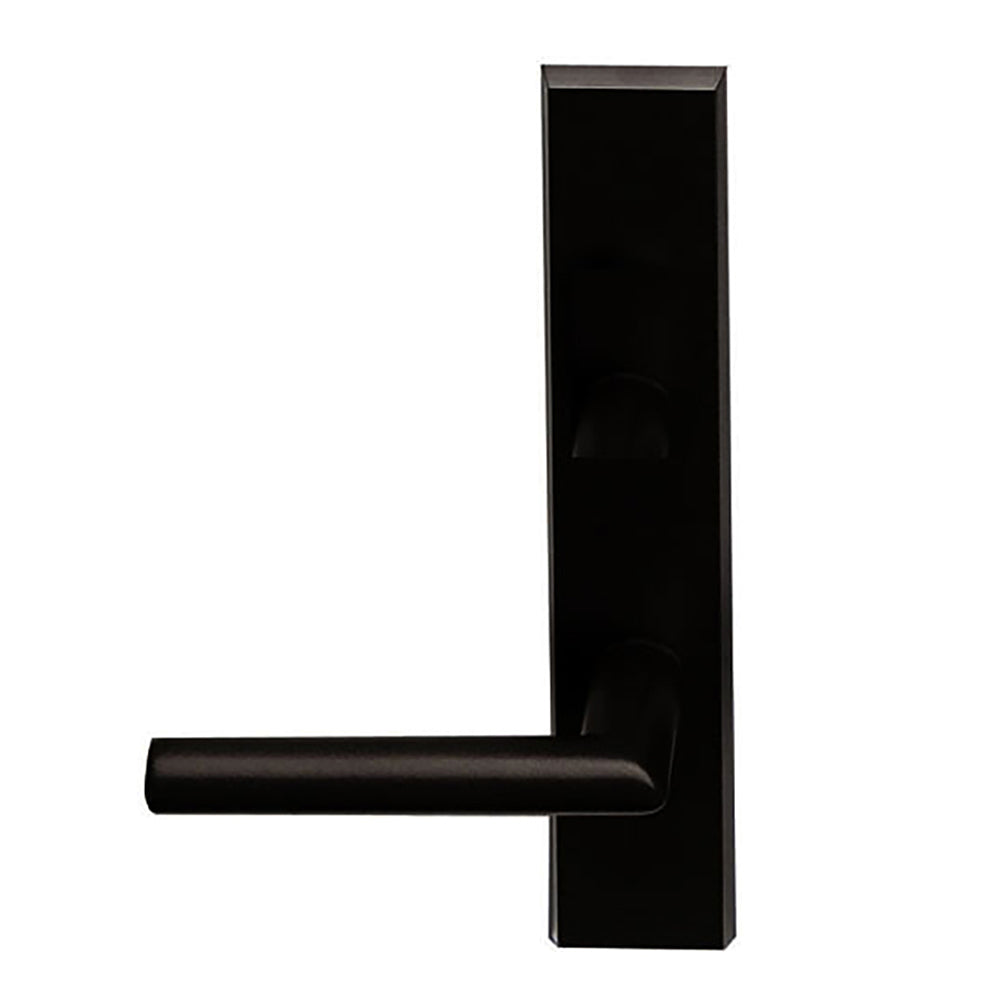

Marvin Modern Handle, Inactive / Dummy Ultimate Hinged French Door
Handle Assembly, Inactive / Dummy UIFD, UOFD
Escutcheon Plates = 1-7/8" x 10-1/8"
Screw Hole Center = 7-1/4"

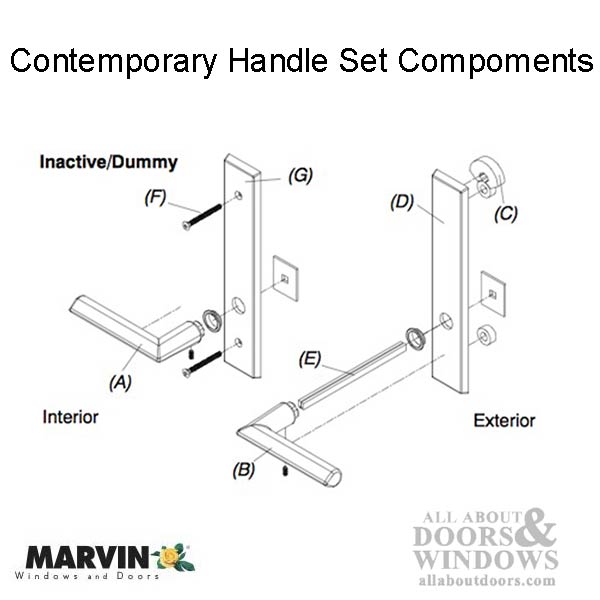

Includes:
1 − Interior lever (A) with 00142006 spindle, escutcheon plate and hardware
1 − Exterior lever (B) with escutcheon plate and hardware
1 − Exterior escutcheon plate gasket (C)
1 − Exterior escutcheon plate (D)
1 − Two piece spindle (E)
2 − M5 x 55mm Phillips oval head machine screws (F)
1 − Interior escutcheon plate (G)

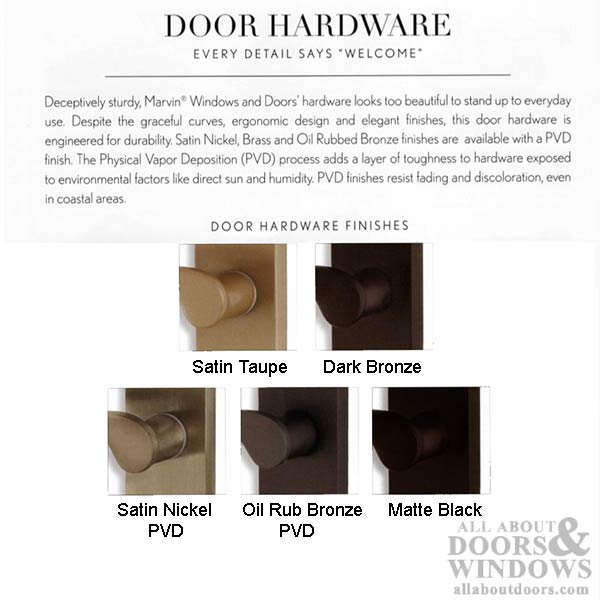

Active Panel, Keyed
11102151 - PVD Oil Rubbed Bronze
118701 - Matte Black
Passive / Fixed Dummy, no thumbturn, no key
11102153 - Satin Taupe
11102154 - PVD Oil Rubbed Bronze
11102155 - PVD Satin Nickel
11102157 - Dark Bronze

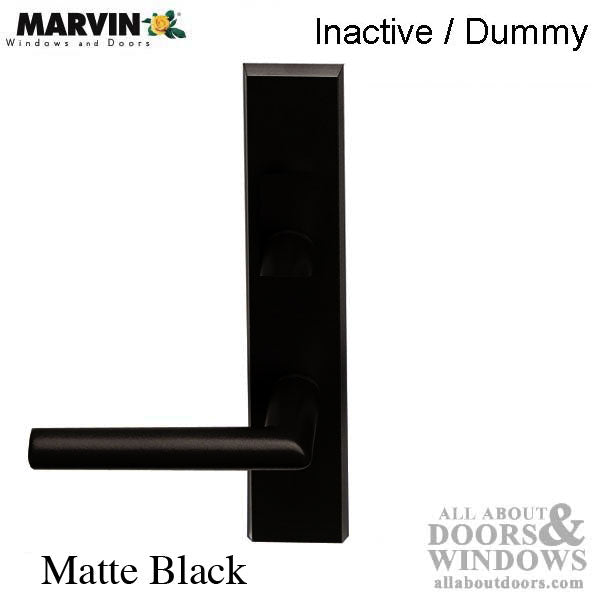

11102193 - Matte Black
