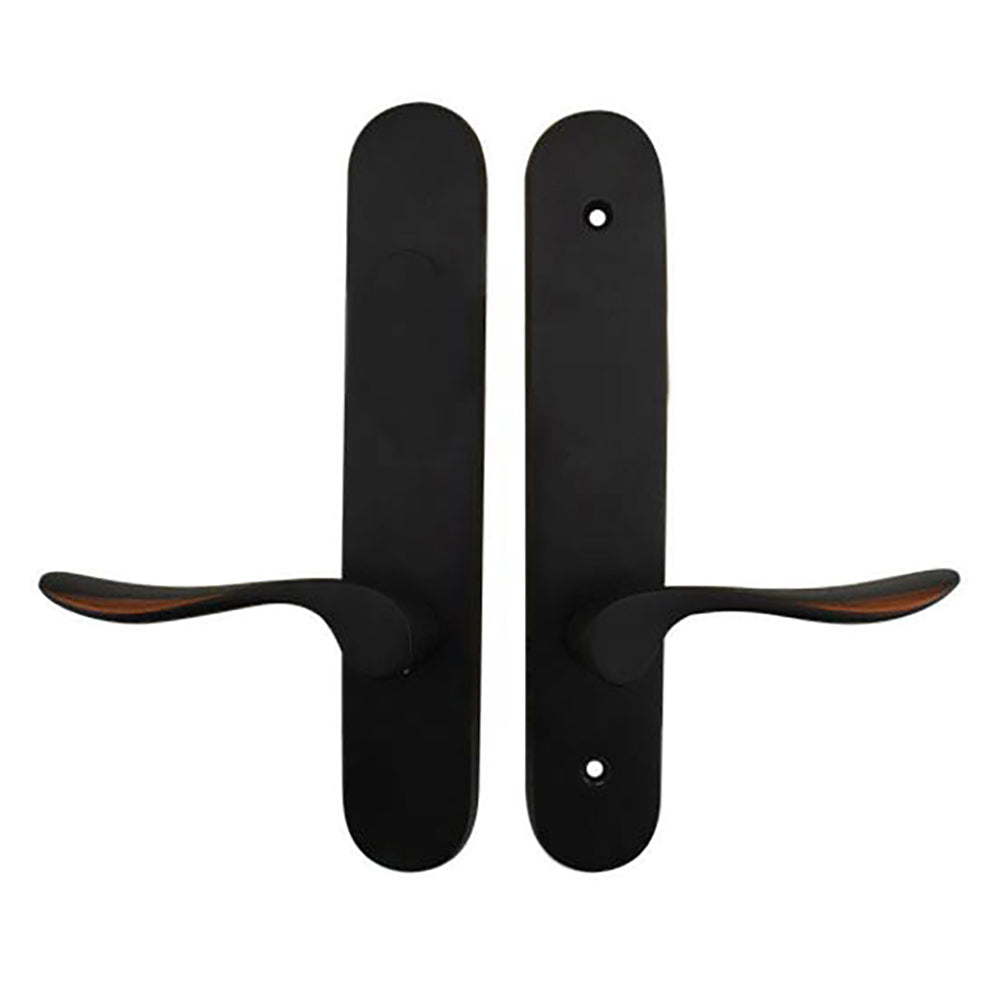

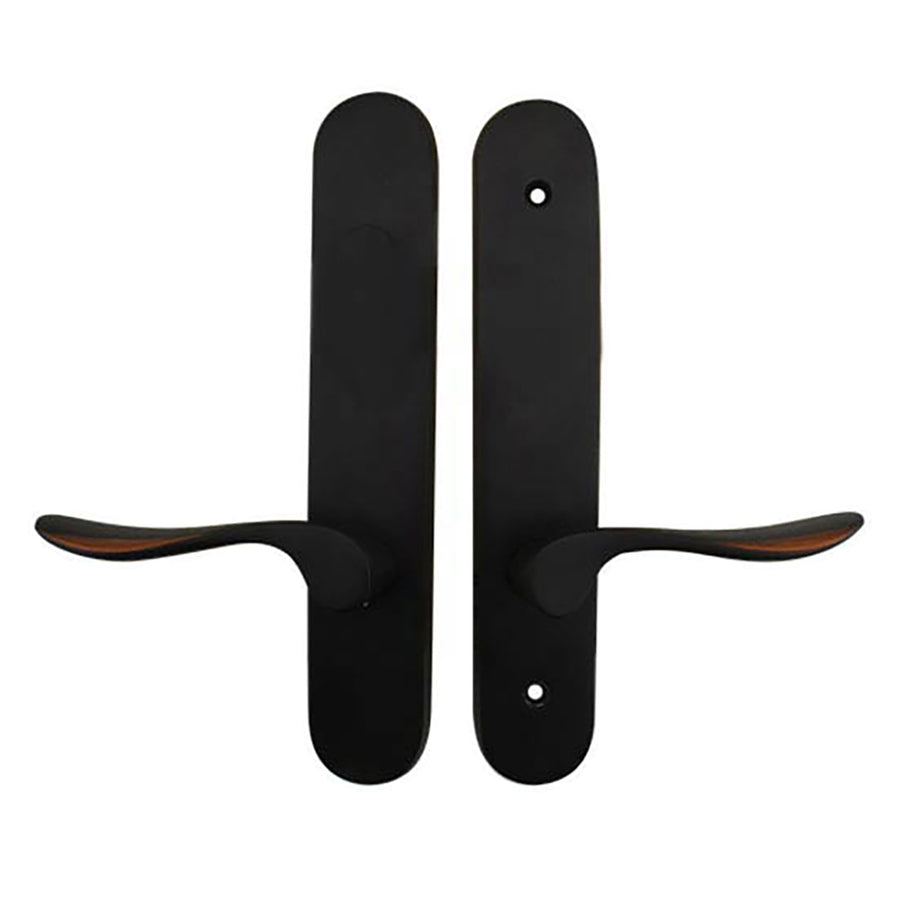

Marvin Inactive / Dummy Trim for Passive door - Oil Rubbed Bronze

Part Number: 10148154 Price: $358.56

Marvin inactive or dummy trim for hinged passive patio door


Used by Marvin, but will fit other doors with the same configuration.


Back-plate Length: 10-1/8 inch

Back-plate Width: 1-7/8 inch

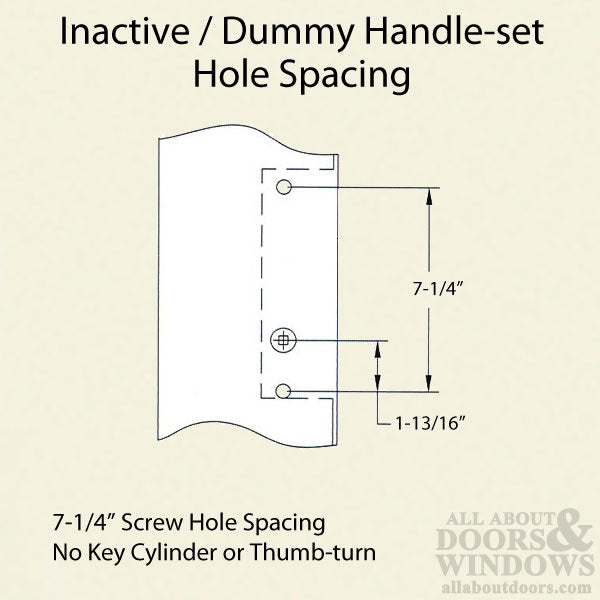

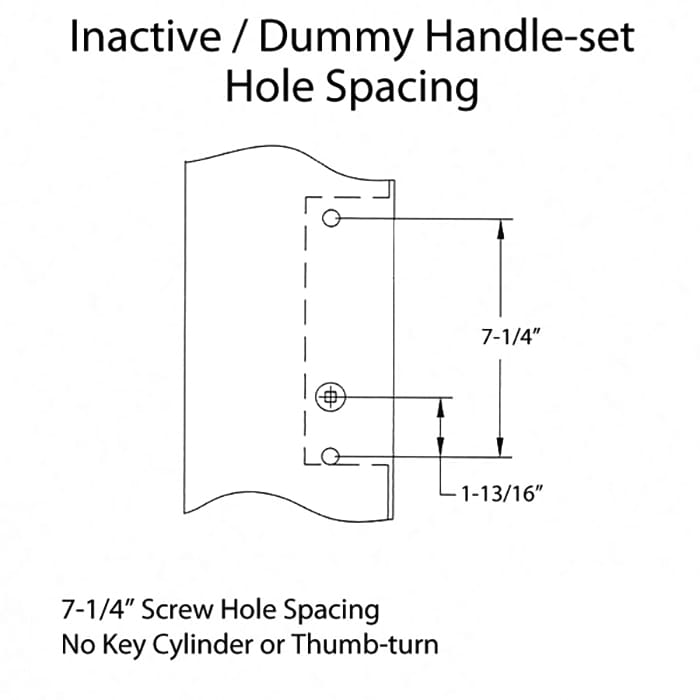

Screw Hole Spacing: 7-1/4 inch

Construction Material: Brass

Spindle: 5/16 inch Square

Spindle Length: 4-5/16 inch

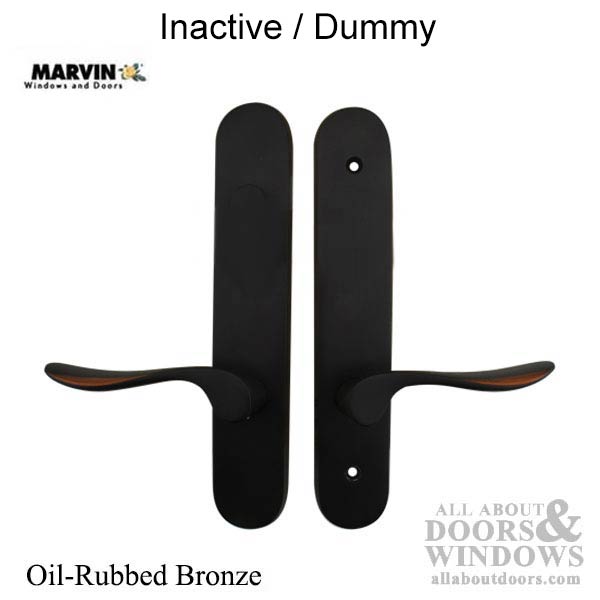

Color / Finishes: Oil Rubbed Bronze US10B


Available Functions:

Active: Keyed on exterior, Thumb turn on interior

Inactive: Levers move so they can operate an inactive lock, No Thumb Turn

Dummy: Levers do not move, they are fixed and can not operate lock.

The inactive is converted to dummy when required,  by adding a fixing plate to levers ( included with Package)


Priced and sold as a package.
