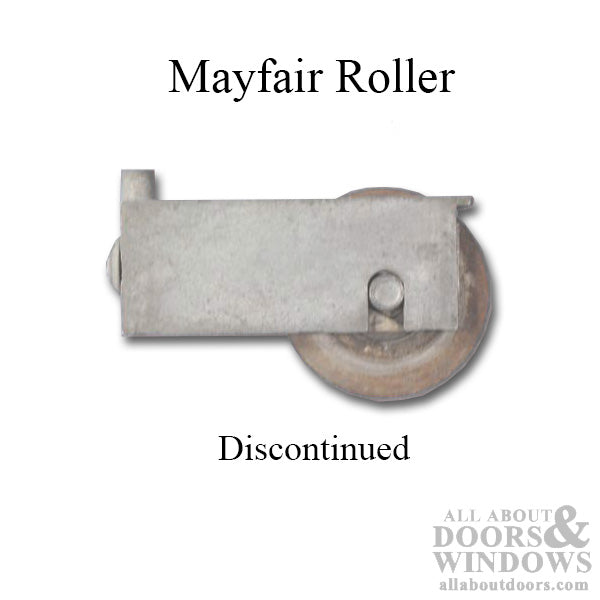

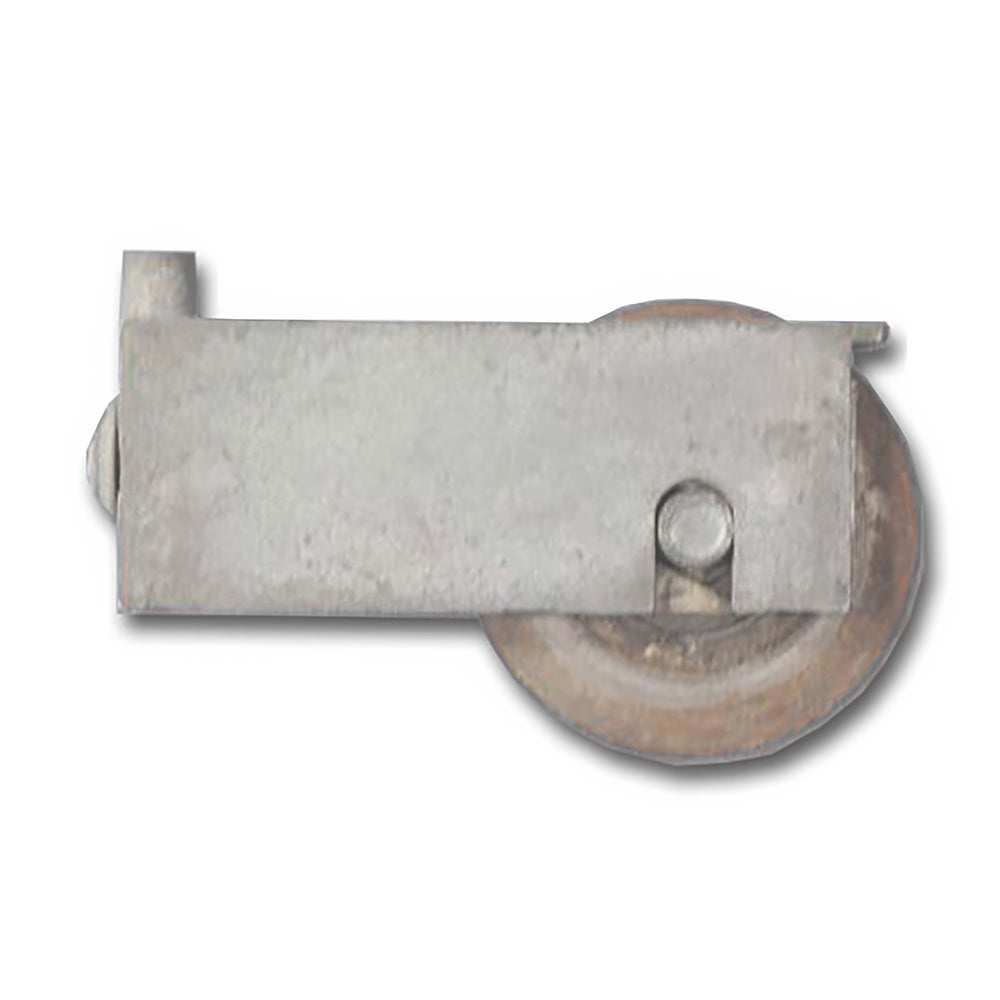

Mayfair Roller Assembly, 1-1/2 Wheel - Discontinued
Part Number:Mayfair Roller Assembly, Low Profile - Discontinued, No Longer Available
Replace with 13201, 13002 or 13103 (more information on replacement options below)
Mayfair Dimensions:
Housing Width: 5/8
Housing Height: 15/16
Wheel Diameter: 1-1/2 Steel
Replacement Options:

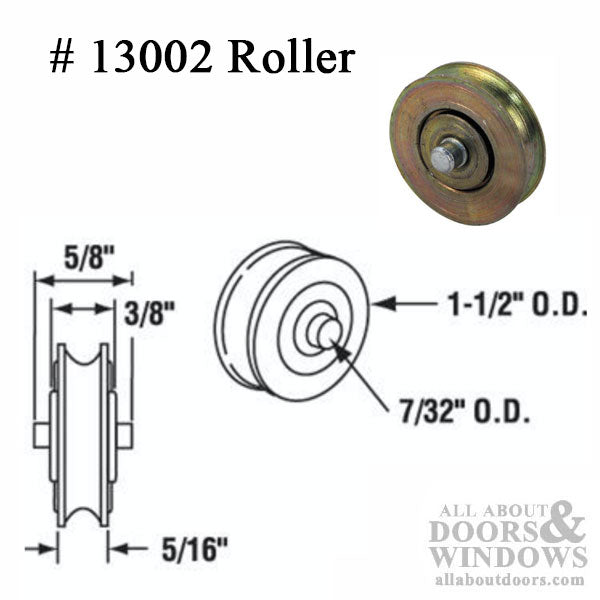

1. Replace roller only with 13201, 1-1/2 steel wheel with axle pins or 13002 (remove the roller from housing)
2. Optional Replacement if housing is damaged: Use 13103 and make your own pin with a screw, instructions below

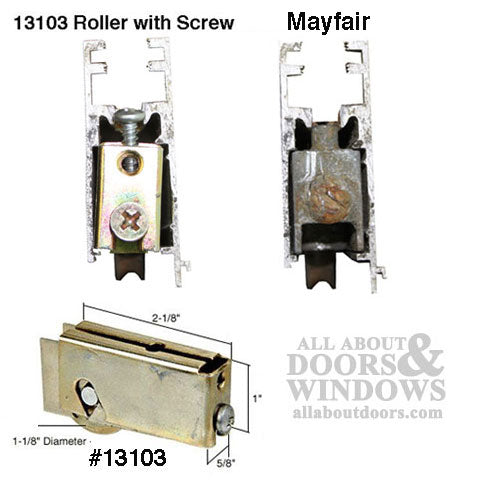

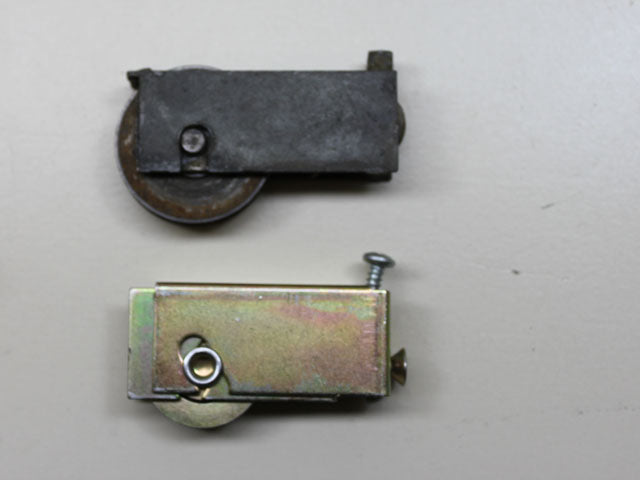

Replacing Mayfair Roller with 13103:
1. Add screw thru top to replicate the pin
2. Grind screw head so it will fit into slot
3. New roller can be adjusted after installation
Helpful Article: How to Replace Rollers in an Aluminum Sliding Glass Door
Replace with 13201, 13002 or 13103 (more information on replacement options below)
Mayfair Dimensions:
Housing Width: 5/8
Housing Height: 15/16
Wheel Diameter: 1-1/2 Steel
Replacement Options:
1. Replace roller only with 13201, 1-1/2 steel wheel with axle pins or 13002 (remove the roller from housing)
2. Optional Replacement if housing is damaged: Use 13103 and make your own pin with a screw, instructions below
Replacing Mayfair Roller with 13103:
1. Add screw thru top to replicate the pin
2. Grind screw head so it will fit into slot
3. New roller can be adjusted after installation
Helpful Article: How to Replace Rollers in an Aluminum Sliding Glass Door
