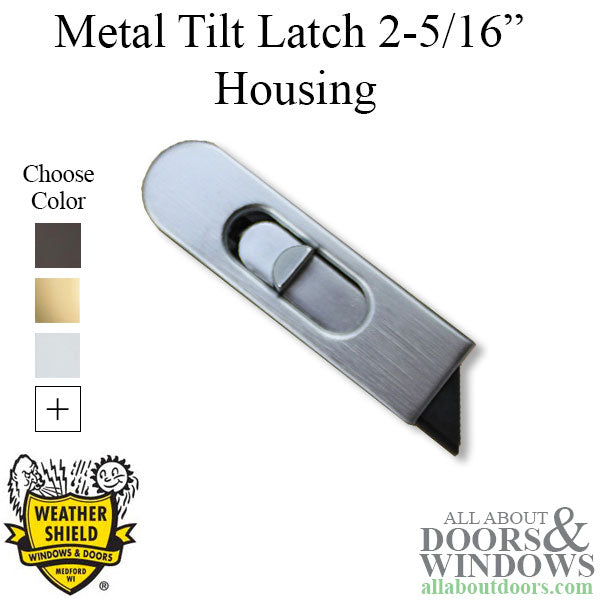

Weather Shield Metal Tilt Latch Upper Sash 45° Latch Left & Right

Part Number:503211 Price: $9.95 to $9.95
COLOR
ITEM HANDING

Used in wood double hung windows. Metal housing with plastic tip. Priced and sold each.

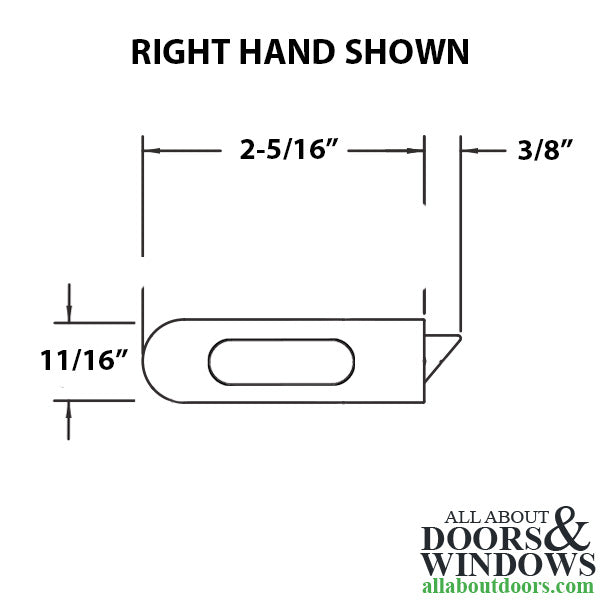

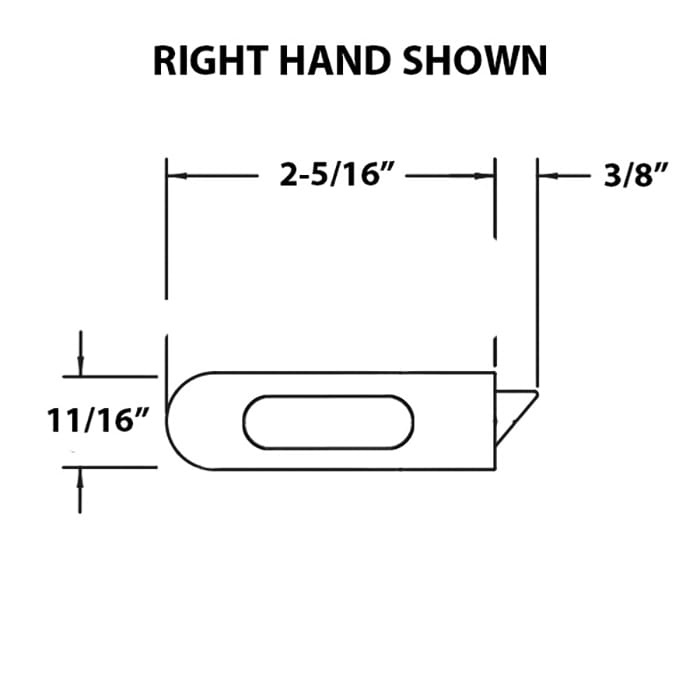

Housing Length: 2-3/8"
Housing Width: 11/16"
Tip / latch projection: 3/8"
Latch Shape 45 degree
Thumb latch actuator: Standard Profile

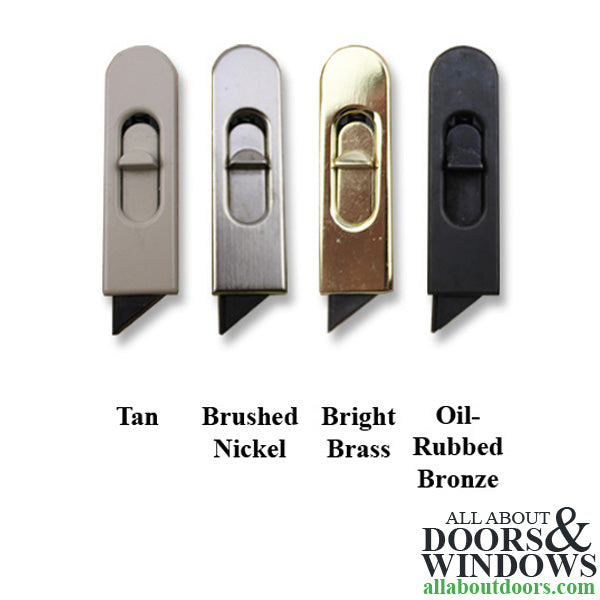

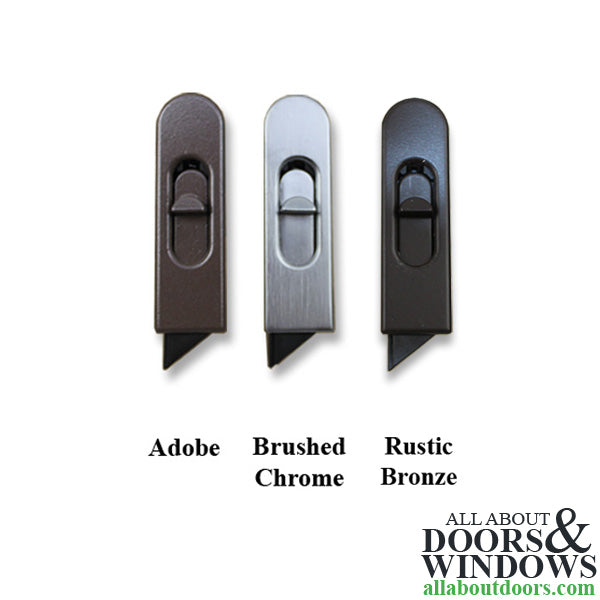

Available Colors/Finishes:
Tan
Brushed Nickel
Bright Brass
Oil-Rubbed Bronze
Adobe
Brushed Chrome
Rustic Bronze

NOTE:
This latch is held in with a screw located under the thumb button.
To remove button, slide back and insert a small screw driver under the edge, and lift up.
Then, remove Phillips head screw and slide latch out.

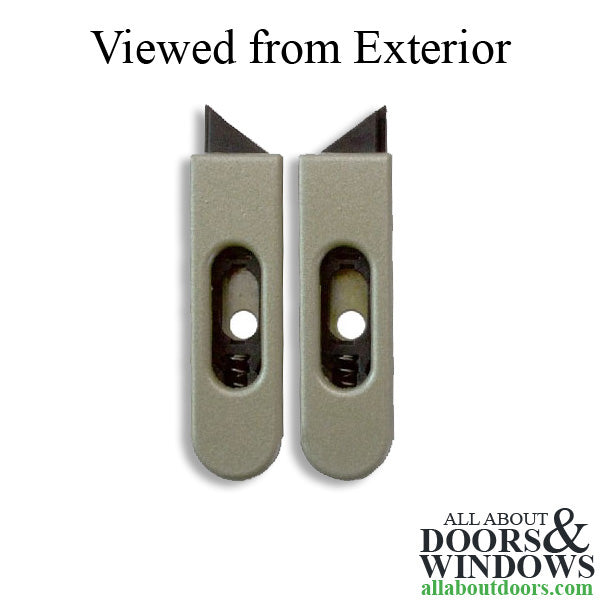

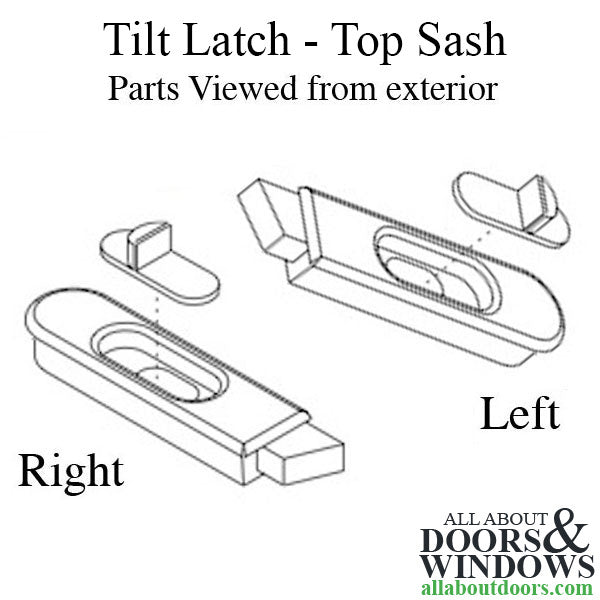

Handing Note:
Some companies referred to this as a left hand viewed from the outside. Other times is is referred to as a right hand viewed from inside. Please refer to the image to determine which handing you need.
