Miami handles are designed for easy assembly and feature a robust PVD finish that provides superior corrosion resistance.
Application: Wood, Vinyl or Aluminum Sliding doors
Function: Keyed (Active)

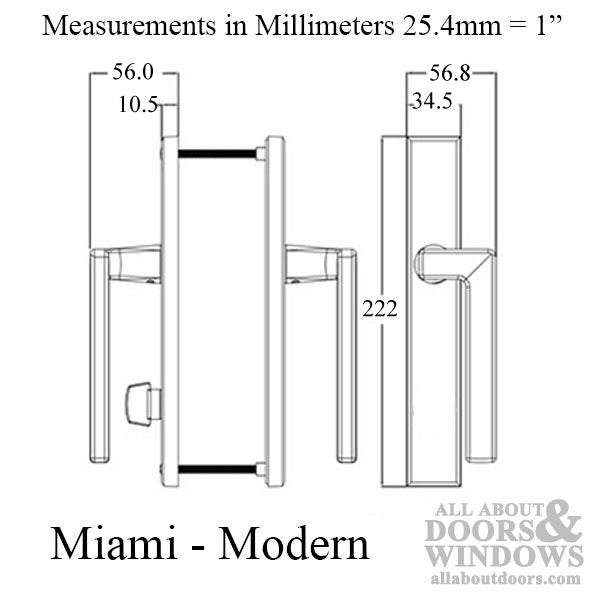

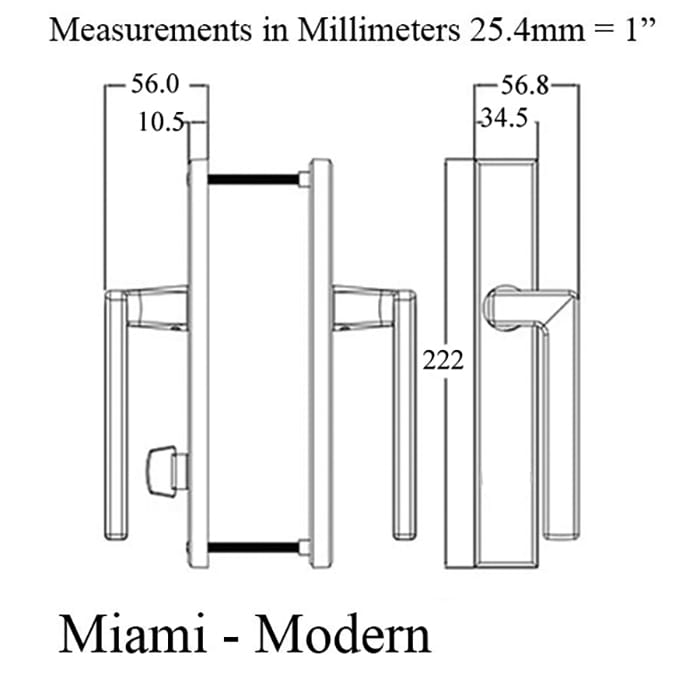

Door Thickness: 1-3/4 or 2-1/4 inch (45mm or 57mm)
Plate Width: 1.358 inches (34.5mm)
Plate Height: 8.740 inches (222mm)
Screw Hole Center: 7-7/8 inches (200mm)
Handle Projection: 2.204 inches (56mm)

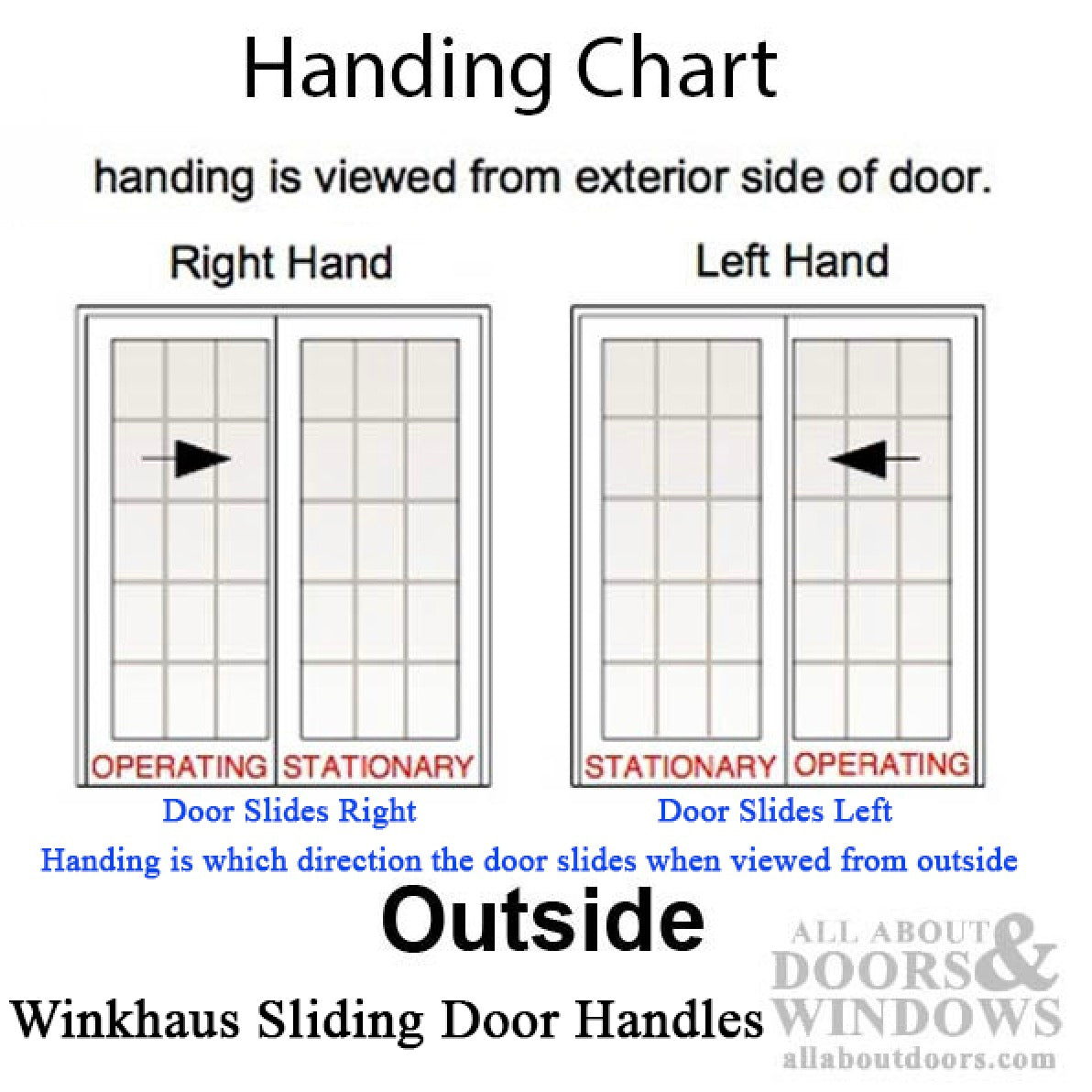

Handed: Right (Door slides right when viewed from exterior)
Material: Stainless Steel

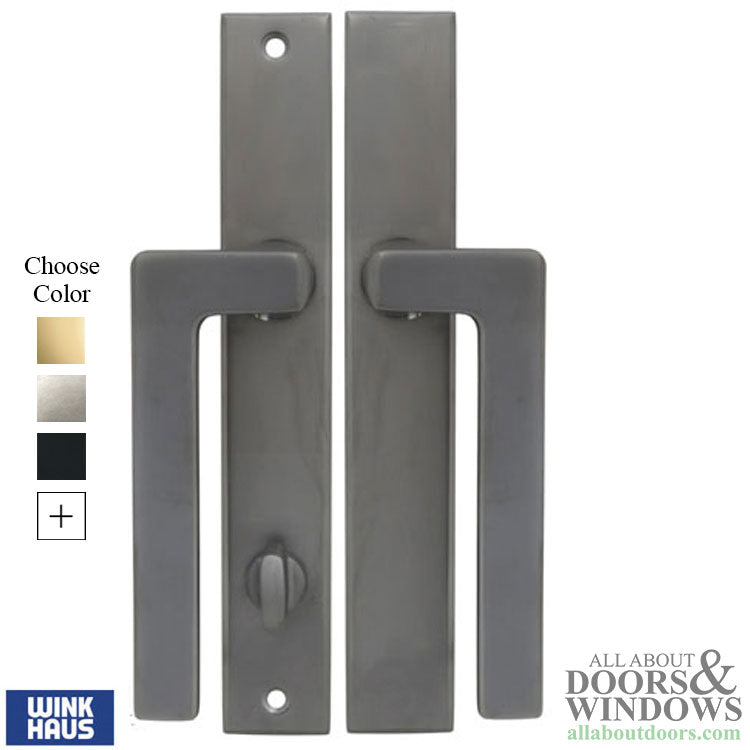

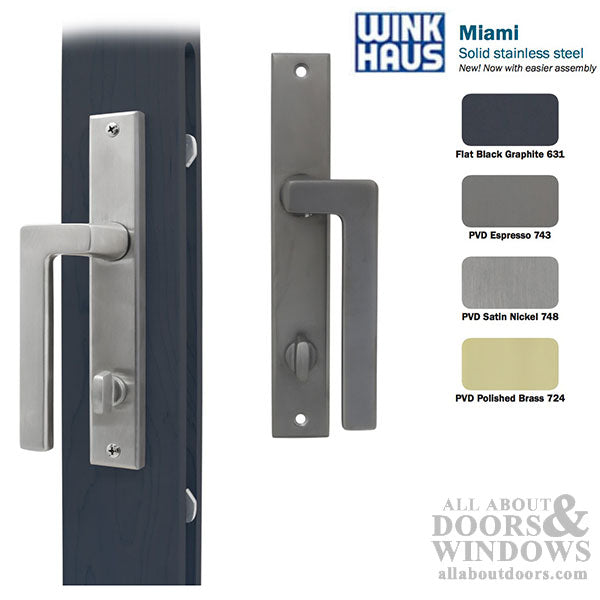

Colors: Flat Black (622), PVD Bronze (739), PVD Satin Nickel (748), PVD Polished Brass (723)
Made for use with Winkhaus sliding door lock #15122
This set includes:
- Interior and Exterior Handles & plates (Right handed)
- Cylinder
- Spindle
- Screws
- Foam gasket
- Allen wrench
- Instructions
Left Handed version of this handle set is available #398115
Please note: This is a special order, non-stock item. It is non-returnable and has a 2-3 week lead time
<p>Miami handles feature new easier assembly and PVD corrosion resistant finishes.<br /><br />Application: Wood, Vinyl or Aluminum Sliding doors<br />Function: Keyed (Active)<br />Door Thickness: 1-3/4 or 2-1/4 inch (45mm or 57mm)<br />Plate Width: 1.358 inches (34.5mm)<br />Plate Height: 8.740 inches (222mm)<br />Screw Hole Center: 7-7/8 inches (200mm)<br />Handle Projection: 2.204 inches (56mm)<br />Handed: Right (Door slides right when viewed from exterior)<br />Material: Stainless Steel <br /><span style="background-color:rgb(255,255,255);color:rgb(38,38,38);"><span style="-webkit-text-stroke-width:0px;display:inline !important;float:none;font-family:"Open Sans", Helvetica, sans-serif;font-size:13px;font-style:normal;font-variant-caps:normal;font-variant-ligatures:normal;font-weight:400;letter-spacing:normal;orphans:2;text-align:left;text-decoration-color:initial;text-decoration-style:initial;text-decoration-thickness:initial;text-indent:0px;text-transform:none;white-space:normal;widows:2;word-spacing:0px;">Colors: Flat Black (622), PVD Bronze (739), PVD Satin Nickel (748), PVD Polished Brass (723)</span></span><br /><br />Made for use with Winkhaus sliding door lock #<a href="http://www.allaboutdoors.com/Winkhaus-2-Hook-Multi-Point-Lock-for-Sliding-Patio-Door-28" target="_blank">15122</a><br /><br />This set includes:<br />- Interior and Exterior Handles & plates (Right handed)<br />- Cylinder<br />- Spindle <br />- Screws<br />- Foam gasket <br />- Allen wrench <br />- Instructions<br /><br />Left Handed version of this handleset available as part #398115<br /><br />Please note: this is a special order, non-stock item. It is non-returnable and has a 2-3 week lead time</p>
