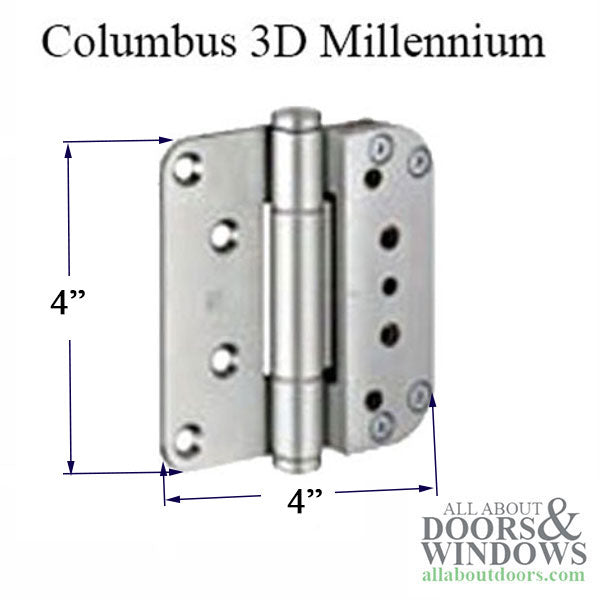

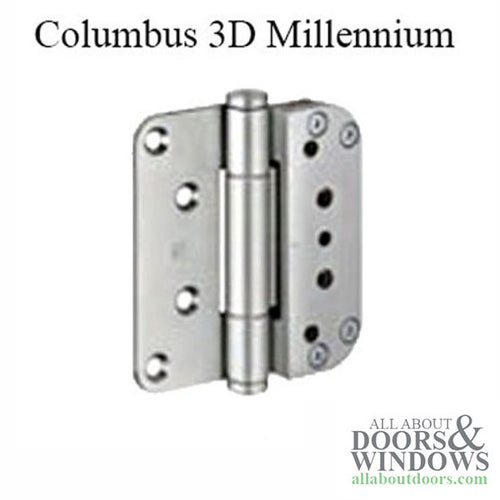

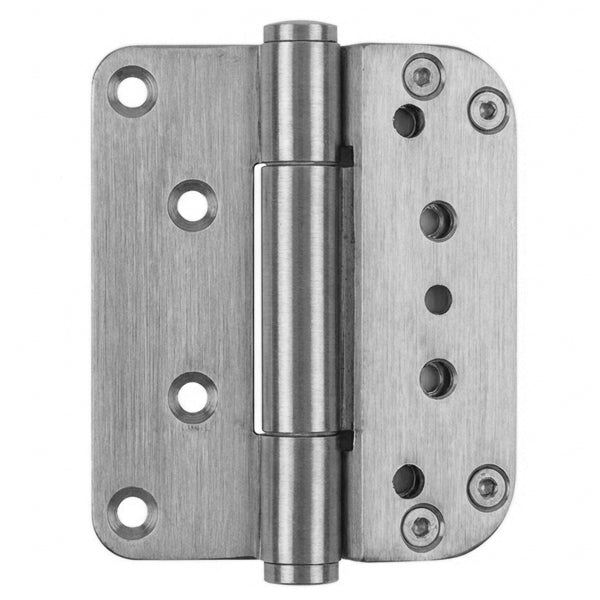

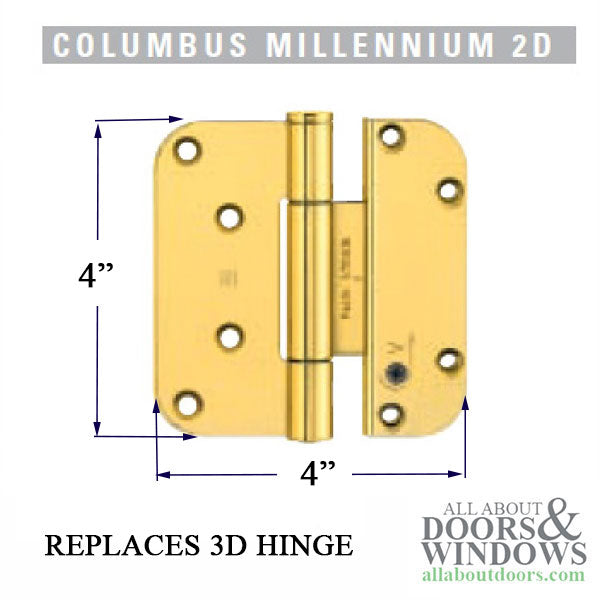

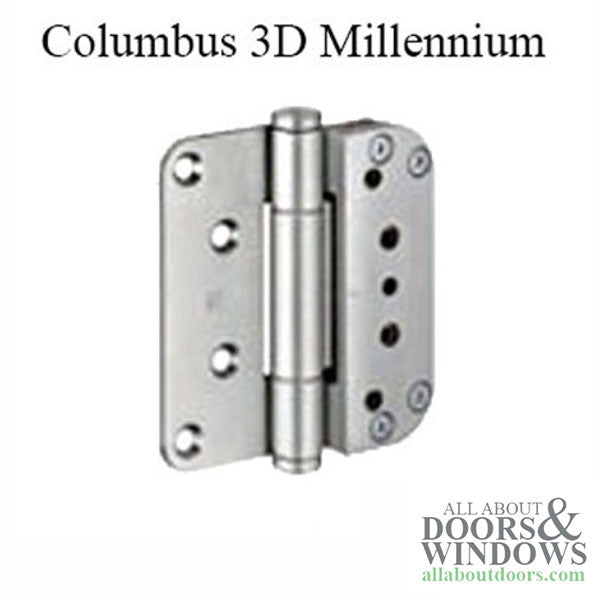

The Columbus Millennium 3D 4 x 4 Hinge is not available - Replace with Millennium 2D Set and Guide hinge.
Fits the same route in door, Same screw hole Pattern - See Additional Images

Handing: Reversible for left and right hand doors.
Finish: Polished Brass
Hinge Size: 4 x 4
Hinge Thickness: 9/16 door & 3/32 Frame
Material: Steel
Screws: Not Included
Screw Pattern: Please note, not all hinges are the same

Columbus Millennium 3D Replacement Hinges - SPECIAL LOW PRICING
369910 - 2D Guide Hinge, Horizontal Adjustment
369911 - 2D Set Hinge, Vertical Adjustment


Millennium 3D (all in one) Hinge Adjustment Instructions:
The adjustment is to be carried out without unhanging the door.
Open the door by appr. 90° and fix it by wedging.
Loosen the two clamping screws of each hinge.
A. Adjust the height (+/- 3 mm) and the depth (+/- 2 mm) of the door leaf by moving the sash carefully in the appropriate directions and fasten the clamping screws again.
B. Adjust the lateral position, Side to Side (+/- 2 mm) by turning the upper and the lower screw of each hinge.
Use an Allen key 4 mm for all actions.
