This item is considered blemished and may include but is not limited to slight scuffs, scratches, and/or missing components such as screws.

Blemished items are priced accordingly and are sold as is.

No returns, refunds, or exchanges.

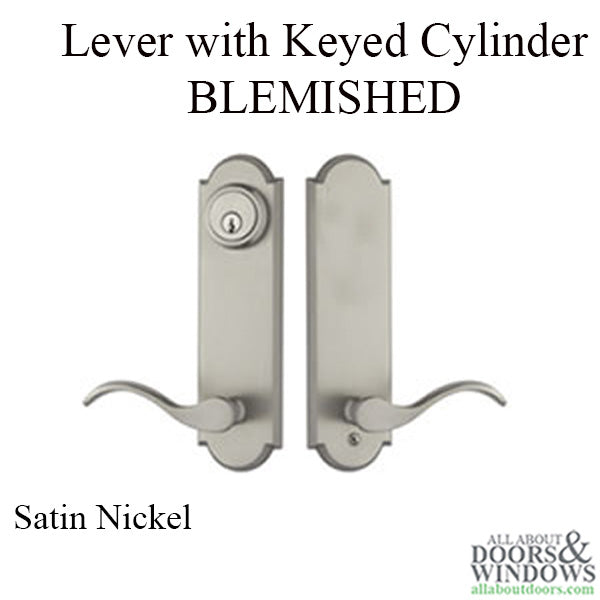

Monaco Wave style lever for Triple Latch multipoint lock hardware
Premium multipoint handle set for use with triple latch, deadlocking tongue, and shoot bolt multipoint locks

Application: Residential exterior door with Rockwell multipoint lock.
Function: Active Keyed door

Plate Width: 2-1/2 inches
Plate Length: 9 inches
Finish: Brushed Satin Nickel or Oil Rubbed Bronze
Plate Style: Traditional arch top escutcheon plates
Lever Style: curved lever, classic wave design
Material: solid forged brass

Bore Application: 5-1/2 inch, center of holes for Passage and Deadbolt
Cross Bore: 2-1/8" Standard
Door Thickness: 1-3/4 inch
Lock Handle Hub to Cylinder: 5-1/4 inch
Spindle Length: 4-5/16 inch
Keyway: Schlage SC1, 5 pin
Keys: 2 with Large Bow head

Strike Plates ordered Separately ( 1-3/4 x 3-1/2" length) Need 4 on 8' door

Note:

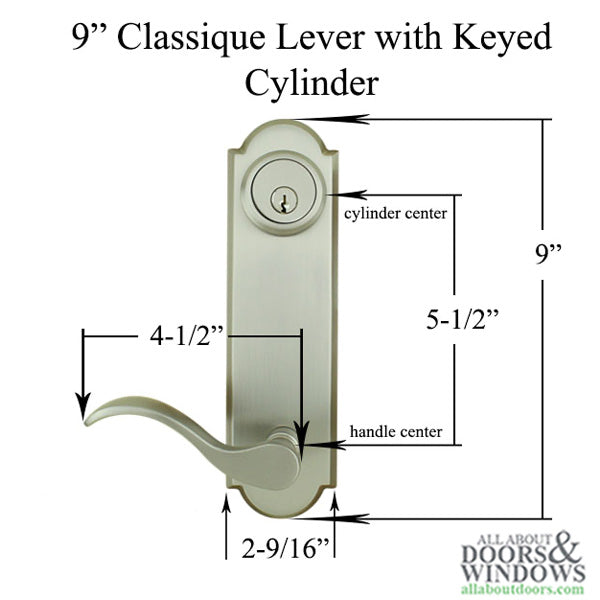

The key cylinder hole on the deadbolt is not in the center of the rosettes, it is offset from the center of the rosette by a small distance. This is the reason they measure 5-1/4 inches but they are made to fit a 5-1/2 Center to Center double bore on the door.

This item is considered blemished and may include but is not limited to slight scuffs, scratches, and/or missing components such as screws.

Blemished items are priced accordingly and are sold as is.

No returns, refunds, or exchanges.
