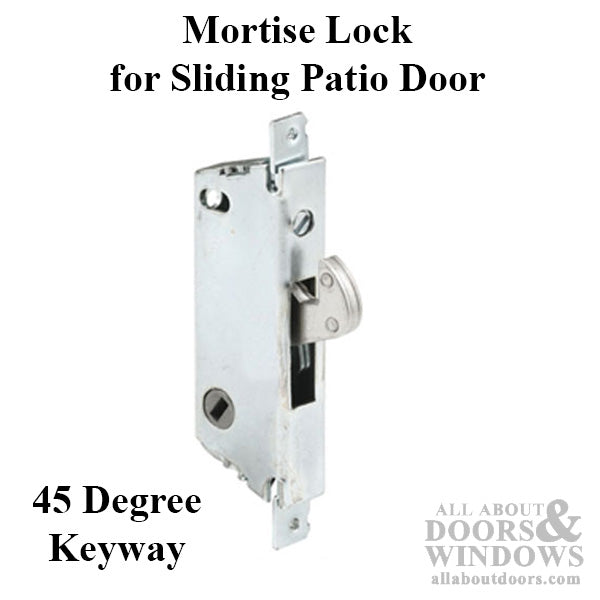

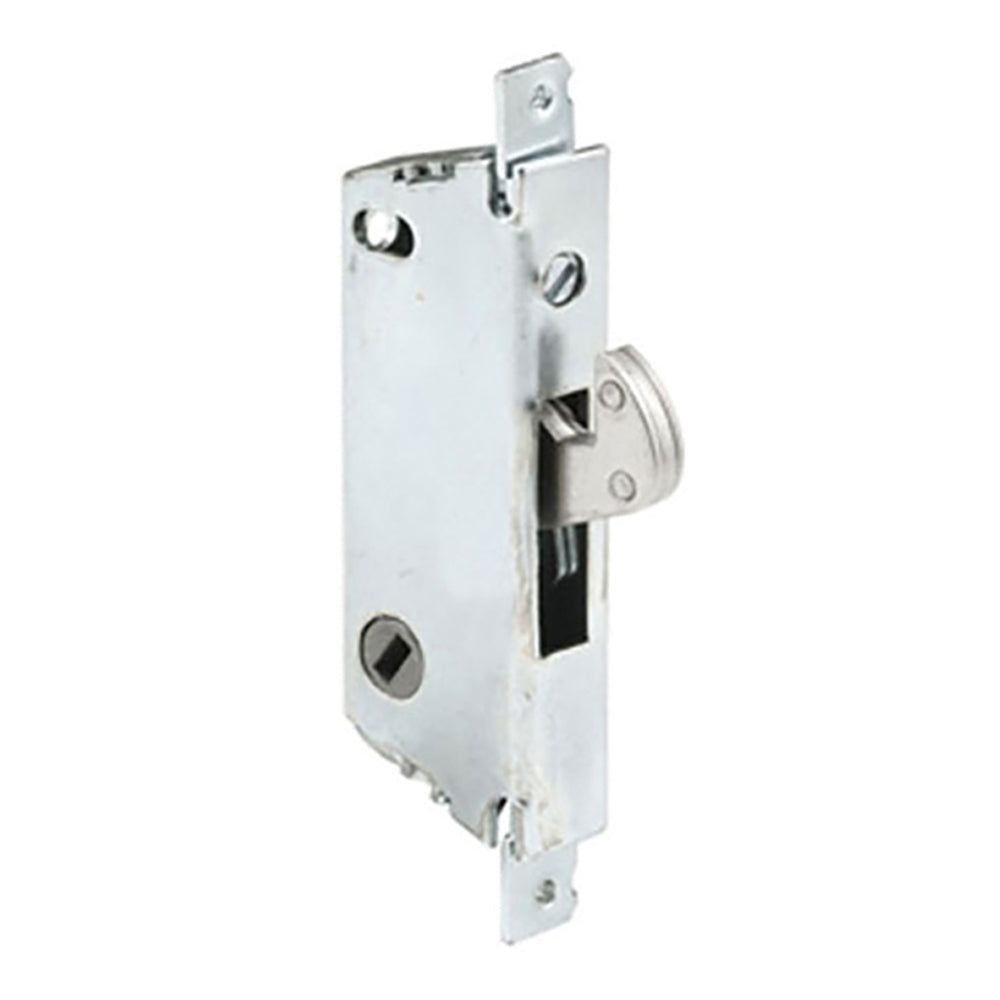

Mortise lock for sliding patio door constructed out of steel.

This Lock requires a Mortise installation.

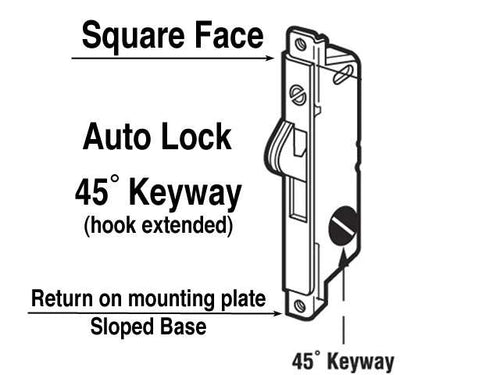

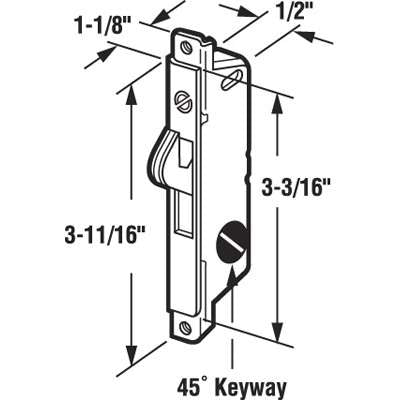

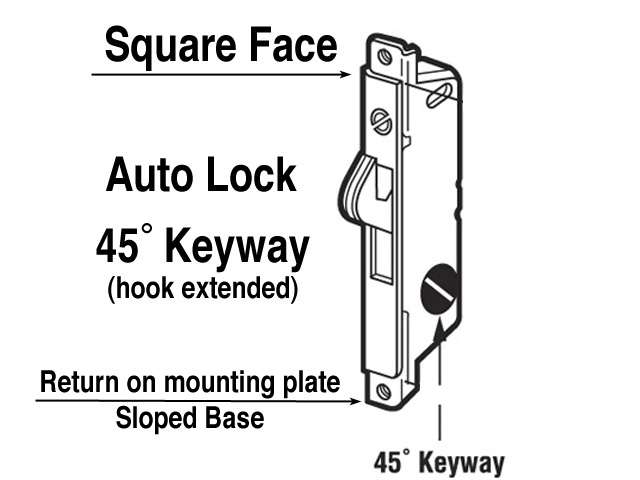

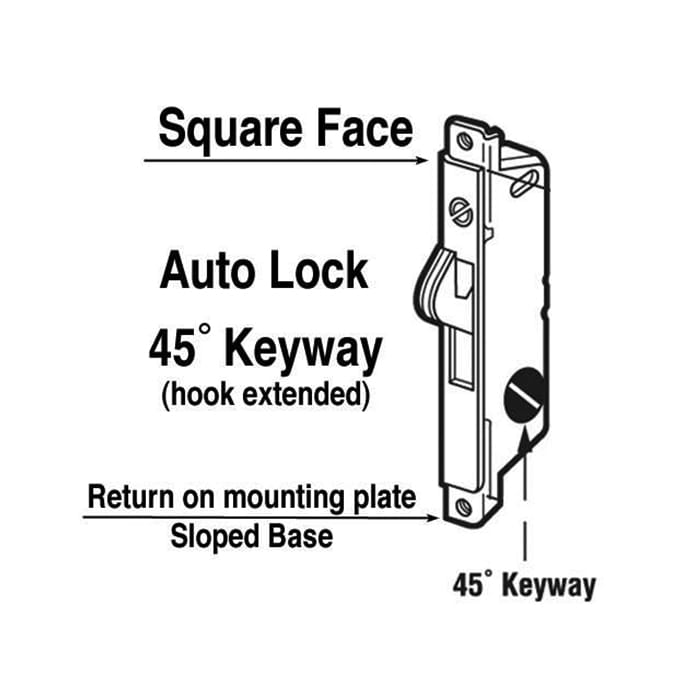

It has a square end face plate with a 45 Degree keyway.
The Hook is spring loaded and does not hold back in unlocked position. Its projection is adjustable.
Hook remains in projected position unless keyway is turned.
This lock will automatically latch the door.
This design is used by door manufacturers such as Adams Rite.

Mounting flanges have return angle and use 6-3 tapped thread machine screw used

Contents:
1 lock
Installation fasteners

Related Adams Rite Mortise Locks:
15024 - 22.5 ¡ Slot - Round Face
15025 - 22.5 ¡ Slot - SquareFace
15026 - 45 degree Slot, Round Face - Automatic locking
15027 - 45 degree Slot, Square Face
15028 - 45 degree Slot, Round Face
15029 - Vertical Slot Square Face
15094 - Vertical Slot, Round Face
