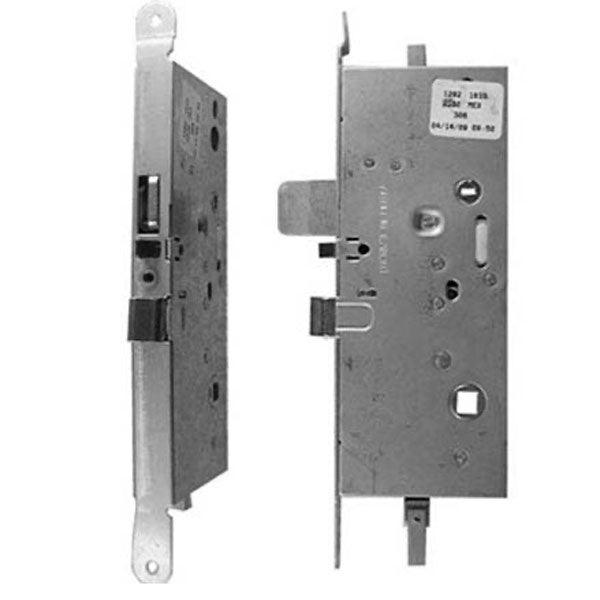

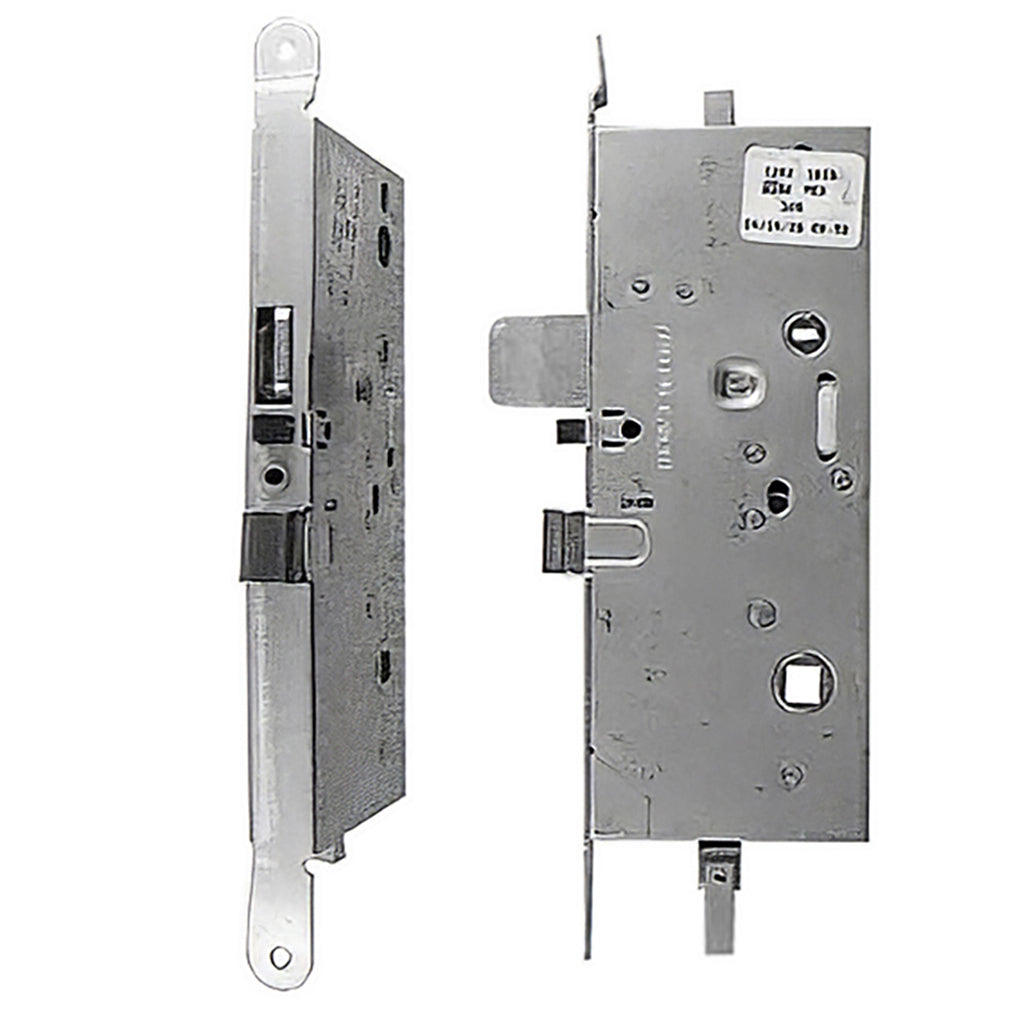

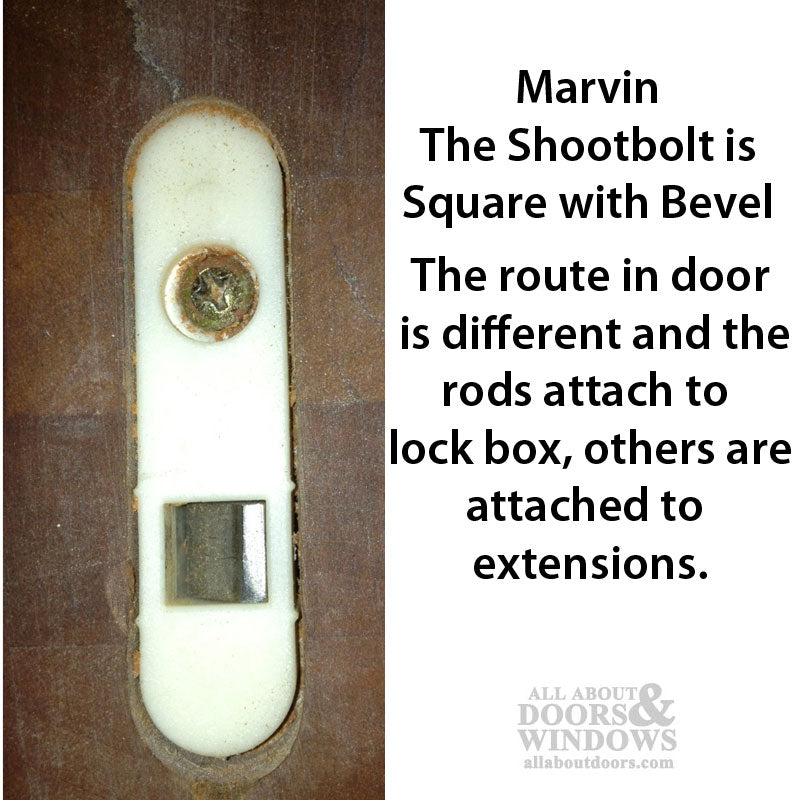

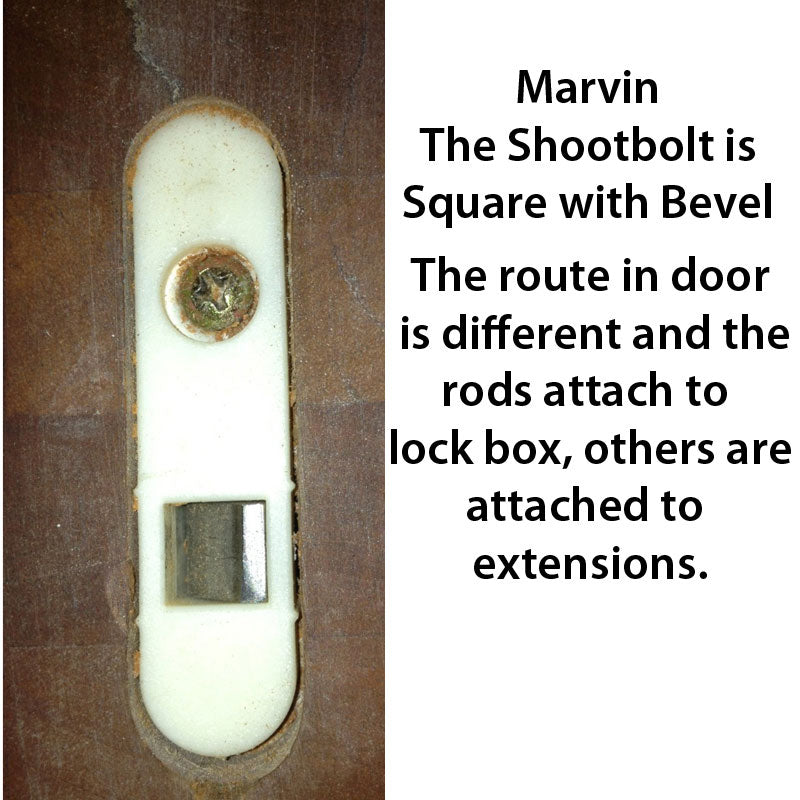

Active Multi-Point Mortise Lock Body Fits Marvin Ultimate Inswing Doors
Marvin Ultimate Inswing/Outswing doors manufactured 1/17/2000 to present.
Active Multi-Point lock body, used with Concealed Rods that screw into top and bottom.
DOES NOT include rods, lock case only. American 5 pin cylinder
Handle Spacing: 3-5/8 inch (92mm)
Backset: 2-3/8 inch (60mm) with faceplate (measures 2-5/16 as shown)
Tapered Deadbolt throw 1 inch (25.4mm)
Markings: Patent NO. 6,209,931
Marvin Part Number 05700130
See additional information tab for resources regarding installation and rehanding.

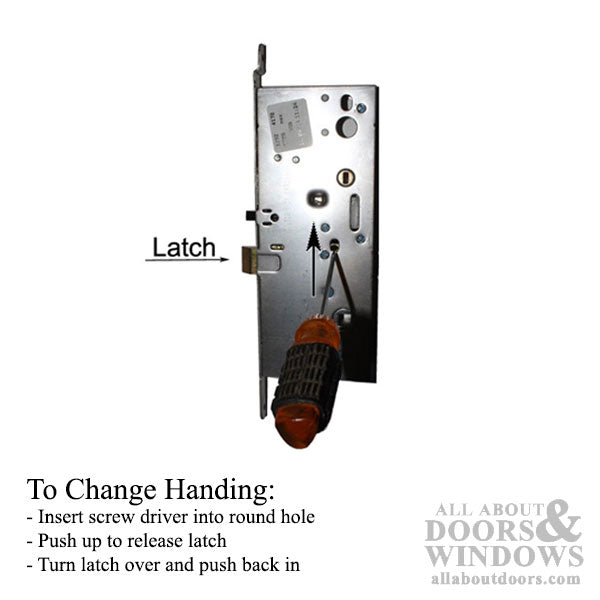

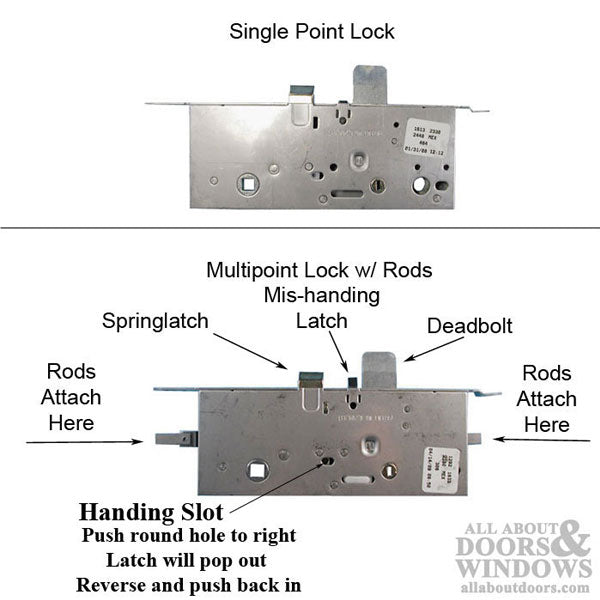

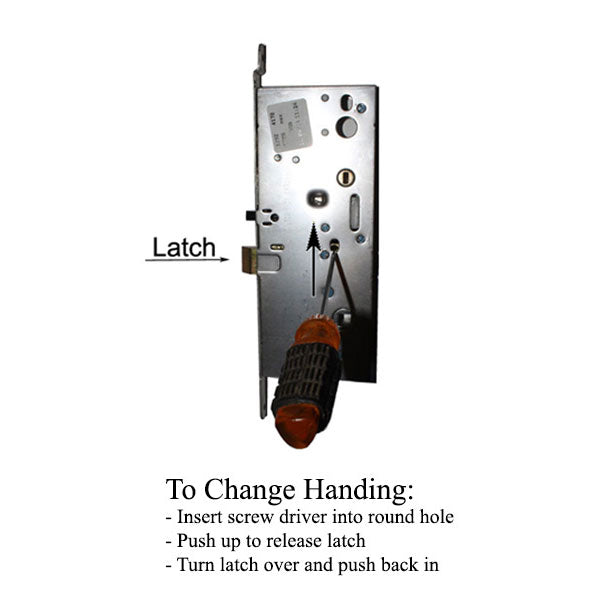

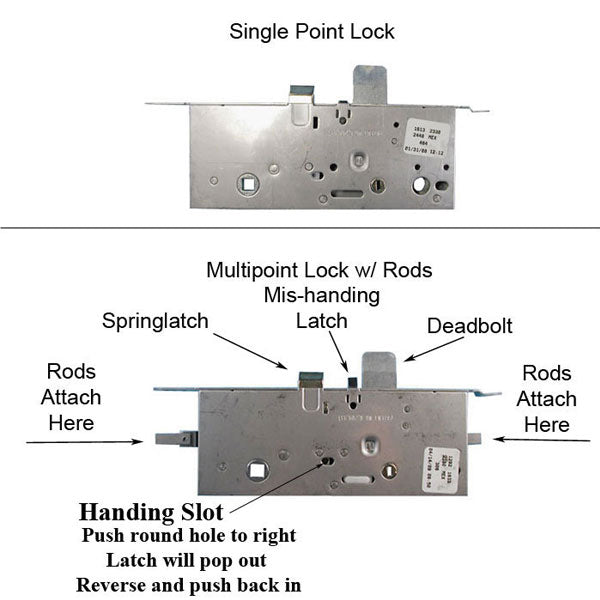

<p><span style="font-size:18px;"><strong>Marvin Related Parts:</strong></span><br /><a href="https://www.allaboutdoors.com/Mortise-Lock-Single-Point-Lock-Active-60mm-Marvin-Caradc" target="_blank"><span style="font-size:18px;">40160</span></a><span style="font-size:18px;"> - Single point lock, no rods</span><br /><a href="https://www.allaboutdoors.com/Marvin-Face-Plate-Active-Panel-Lock-cover-7-8-x-11" target="_blank"><span style="font-size:18px;">395040</span></a><span style="font-size:18px;"> - Face plate for single point lock</span><br /><br /><span style="font-size:18px;"><strong>How to Operate Lock</strong>:</span><br /><span style="font-size:18px;">1. Lift handle to Extend vertical shootbolt rods</span><br /><span style="font-size:18px;">2. Turn Key or Thumbturn to extend deadbolt and secure rods in locked position</span><br /><span style="font-size:18px;">3. Reverse process to unlock door.</span><br /><br /><span style="font-size:18px;"><strong>Change Handing:</strong></span><br /><span style="font-size:18px;">1. Insert screw driver into slot behind latch</span><br /><span style="font-size:18px;">2. Pull down on handing release, latch pops out</span><br /><span style="font-size:18px;">3. Rotate latch and push back into lock case</span><br /><span style="font-size:18px;">Always check function of lock before closing door</span><br /><br /><span style="font-size:18px;"><strong>Removal / Installation Note:</strong></span><br /><span style="font-size:18px;"><strong>Removal:</strong></span><br /><span style="font-size:18px;">1. Remove door from hinges and lay on edge</span><br /><span style="font-size:18px;">2. Remove Top and Bottom plastic guides, held in place with Philip head screw</span><br /><span style="font-size:18px;">3. Remove rods from top and bottom of door, Unscrew, counter clockwise</span><br /><span style="font-size:18px;">4. Remove handle set and faceplate</span><br /><span style="font-size:18px;">5. After removing faceplate from door edge, remove screws holding lock</span><br /><br /><span style="font-size:18px;"><strong>Installation:</strong></span><br /><span style="font-size:18px;">1. Install lock body in door</span><br /><span style="font-size:18px;">2. Re-install Lock faceplate and handle set.</span><br /><span style="font-size:18px;">3. Test lock after you install in door and before putting the plastic guides in place.</span><br /><span style="font-size:18px;">4. If working properly, install plastic guides and try again, Shootbolts should extend 3/4" - 1"</span><br /><span style="font-size:18px;">5. Install door back in frame and test lock again before closing door.</span><br /><br /><span style="font-size:18px;"><strong>NOTE:</strong></span><br /><span style="font-size:18px;">You can disconnect the top rod and most of the time pull the bottom rod out with the gearbox.</span><br /><span style="font-size:18px;">However, to get it back in the door, the plastic guide in the bottom is a problem, and you will most likely have to remove the guide to get the rod back in the door.</span><br /><br /><span style="font-size:18px;"> </span><br /><span style="font-size:18px;">How to Rehand an Ashland Multipoint Lock (Marvin Doors)</span><br /><span style="font-size:18px;"> <iframe allow="accelerometer; autoplay; clipboard-write; encrypted-media; gyroscope; picture-in-picture" allowfullscreen="" frameborder="0" height="210" src="https://www.youtube.com/embed/l8ZyXrjj5oY" title="YouTube video player" width="360"></iframe></span><br /><br /><span style="font-size:18px;"> </span><br /><span style="font-size:18px;">Rehanding Ashland Multipoint Locks</span><br /><span style="font-size:18px;"><iframe allow="accelerometer; autoplay; clipboard-write; encrypted-media; gyroscope; picture-in-picture" allowfullscreen="" frameborder="0" height="210" src="https://www.youtube.com/embed/8QQCIZtgh6c" title="YouTube video player" width="360"></iframe></span><br /><br /><span style="font-size:18px;"> </span><br /><span style="font-size:18px;">Rehanding a Marvin Integrity Multipoint Lock</span><br /><span style="font-size:18px;"><iframe allow="accelerometer; autoplay; clipboard-write; encrypted-media; gyroscope; picture-in-picture" allowfullscreen="" frameborder="0" height="210" src="https://www.youtube.com/embed/hXuTwcqThhw" title="YouTube video player" width="360"></iframe></span></p>
