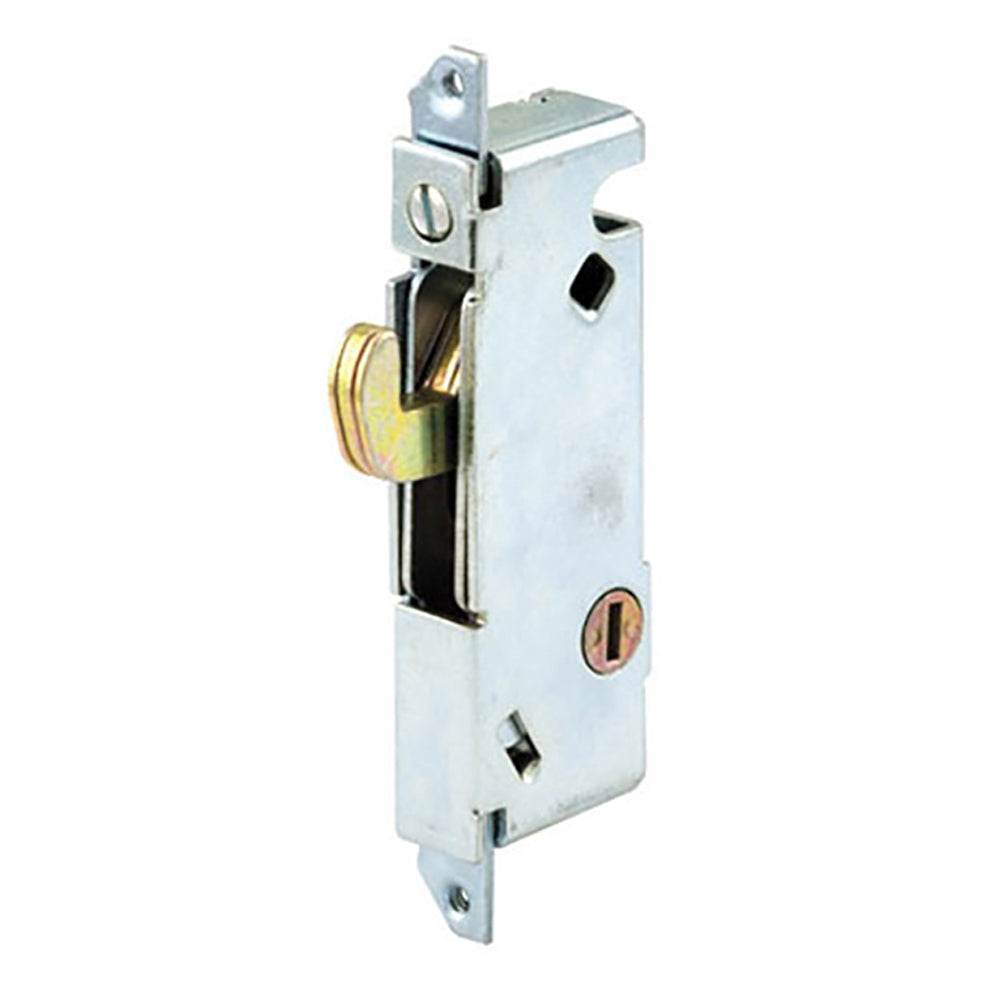

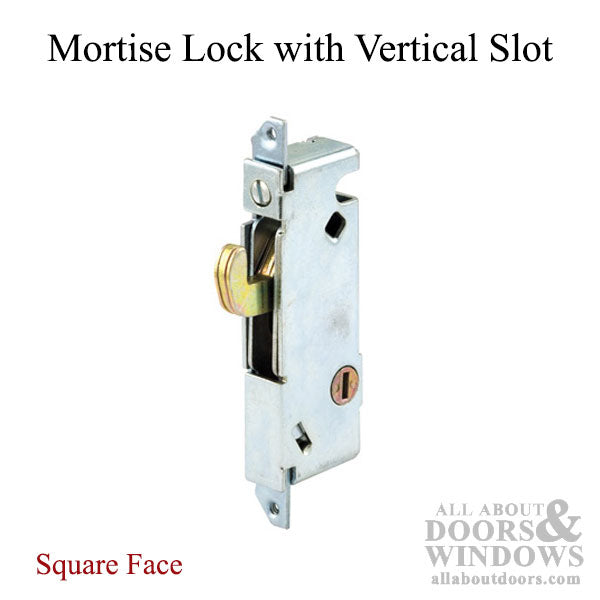

Mortise lock for sliding patio door constructed of steel.

This lock requires a mortise installation.
It has a square end face plate with a Vertical keyway.
The hook projection is adjustable.
6-32 tapped thread on mounting flanges.
This design is used by manufacturers such as W&F.

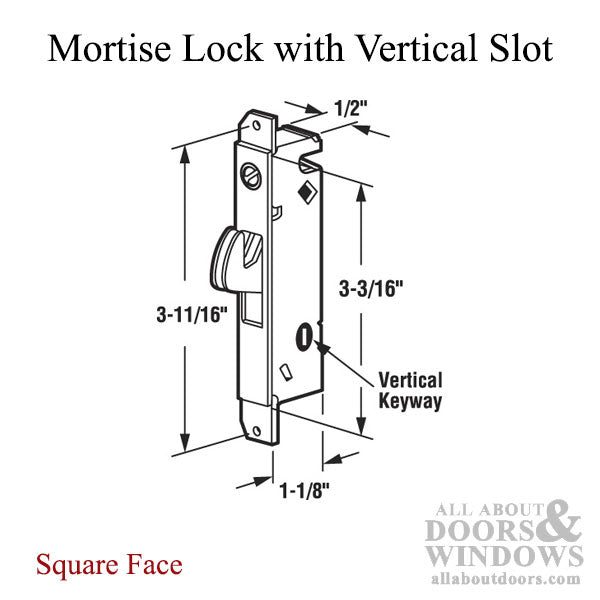

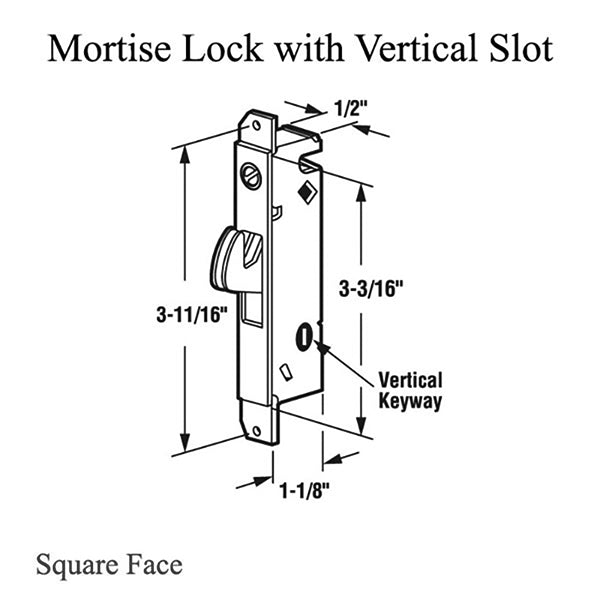

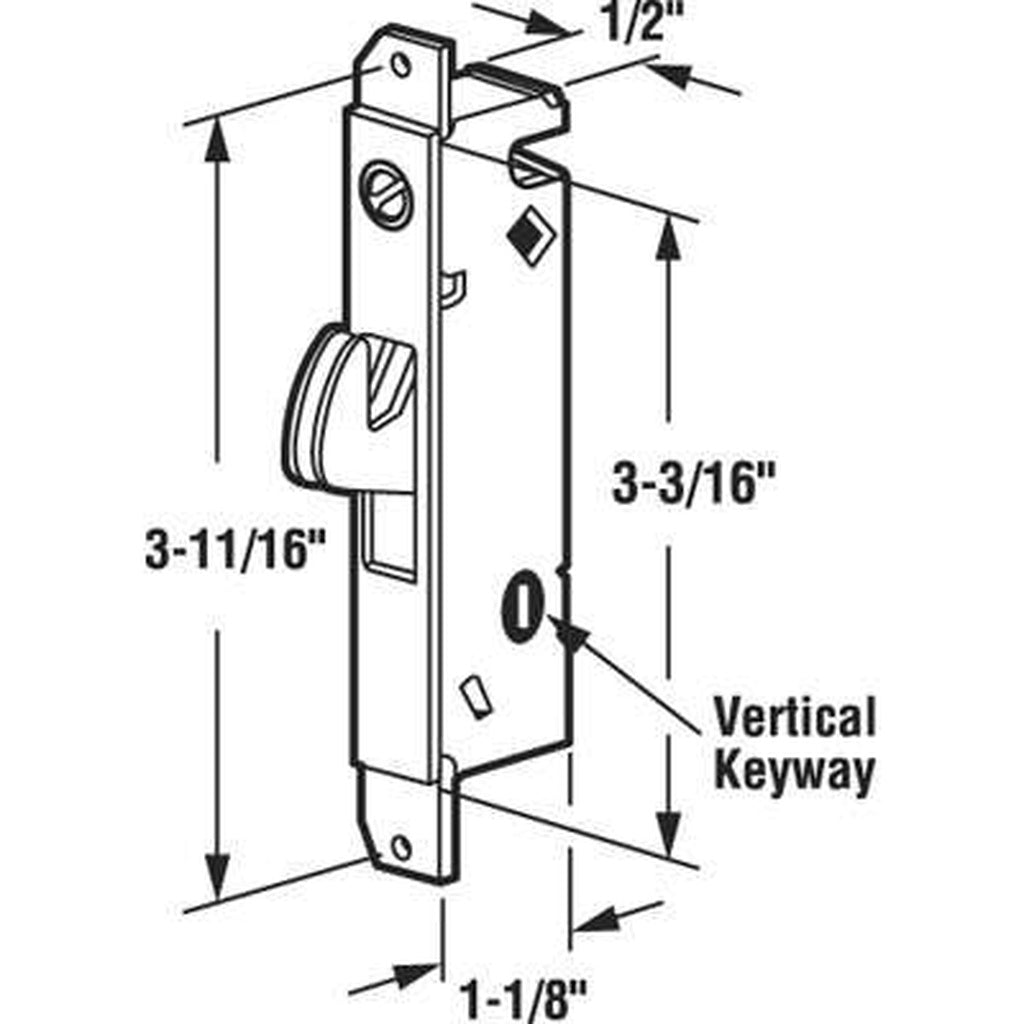

Hole Center: 3-11/16-inch
Backset: 13/16 inch
Keyway: Vertical

Contents
1 lock
Installation fasteners

Priced and sold each.

15073 - Auto Lock, 45 Degree slot when Locked - Steel

15026 - Auto Lock, 45 Degree slot when Locked - Stainless Steel


Related Adams Rite Mortise Locks:
15024 - 22.5 ° Slot - Round Face
15025 - 22.5 ° Slot - SquareFace
15026 - 45 degree Slot, Round Face - Automatic locking
15027 - 45 degree Slot, Square Face
15028 - 45 degree Slot, Round Face
15029 - Vertical Slot Square Face
15094 - Vertical Slot, Round Face
