Sentry RS triple latch multipoint lock and deadbolt for standard 6-8 / 80 inch (2032 mm) tall doors.

Designed for New Construction or replacing existing standard lock and deadbolt when converting to a multipoint lock.

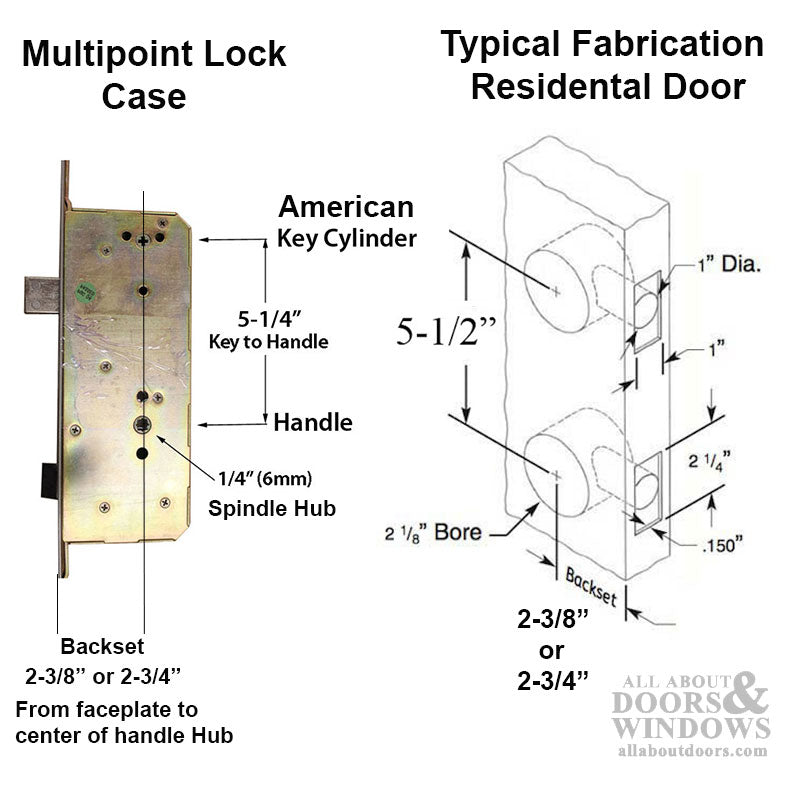

Backset: 2-3/8 inch (60 mm)
Hole Bore Centers: 5-1/2 inch (139.7 mm) Center of Deadbolt to center of Handle
Deadbolt Throw: 1 inch (25.4 mm)
Spring Latch Throw: 1/2 inch (12.7 mm)
Faceplate: 25/32 inch ( 20 mm) Eurogroove application
Spindle: 6 mm

Cylinder Type: American Style

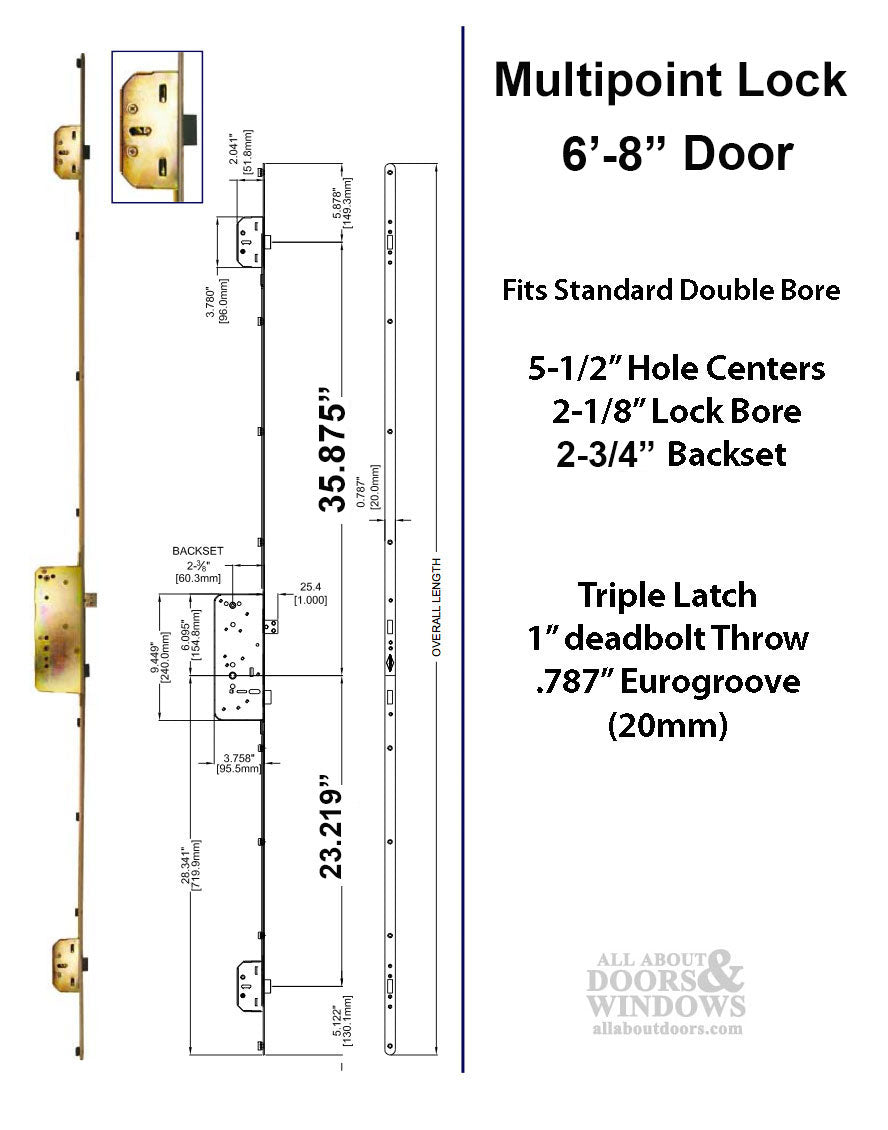

Top Latch Position: 35.875 inches (822.325 mm) (center of latch to center of door handle)
Bottom Latch Position: 23.219 inches (589.8 mm) (center of latch to center of door handle)
Door Panel Size: Standard 6-8 / 80 inches (2032 mm)
Overall lock Length: 73.094 Inches ( 1692.28 mm)


Note: The lock faceplate has radius ends and is not intended to run the full length of door panel

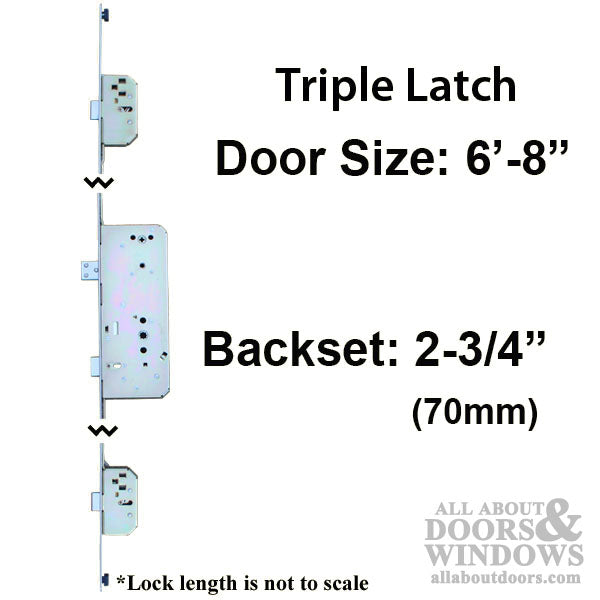

Automatic Independent triple latching points. Anti-saw and kick proof center deadbolt for maximum security.
One piece construction for ease of installation.

Contact us for special trim available for this lock.

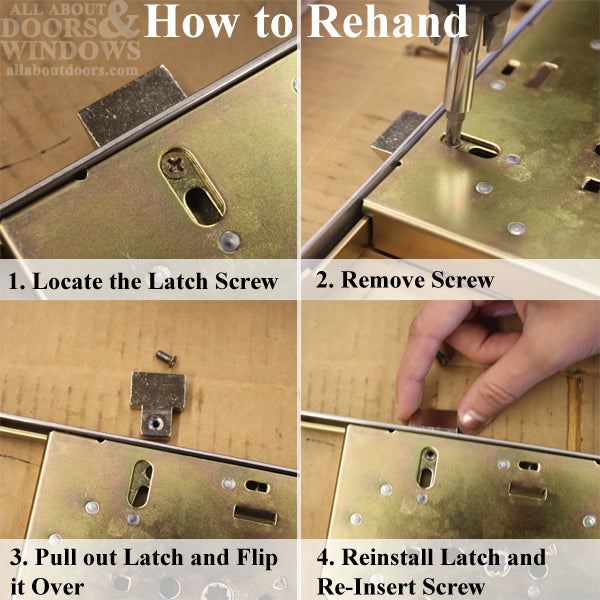

Lock latch can be rehanded with screw driver. See image 3.
