Sentry XL triple latch multipoint lock with deadbolt for standard 8-0 / 96 inch ( 2438 mm) tall doors.

Designed for New Construction or replacing existing standard lock and deadbolt when converting to a multipoint lock.

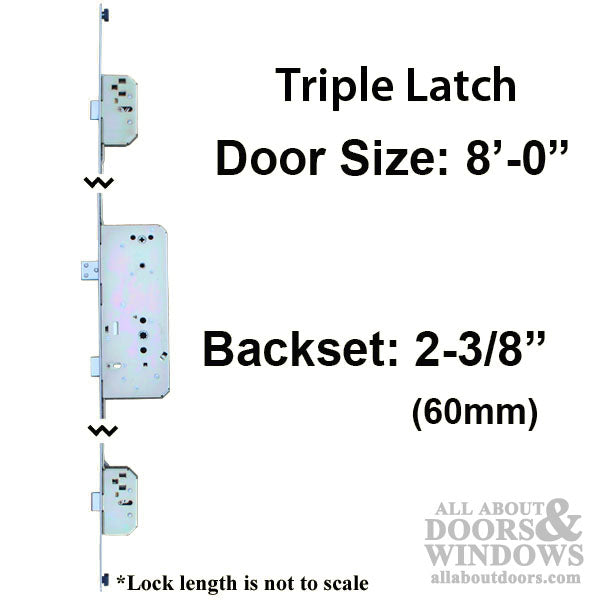

Backset: 2-3/8 inch (60 mm)
Hole Bore Centers: 5-1/2 inch (139.7 mm) Center of Deadbolt to center of Handle
Deadbolt Throw: 1 inch (25.4 mm)
Spring Latch Throw: 1/2 inch (12.7 mm)
Faceplate: 25/32 inch (20 mm) Eurogroove application
Spindle Hub: .236 inch (6 mm)

Door Panel Size: Standard 8-0 / 96 inch (2438.4 mm) tall door

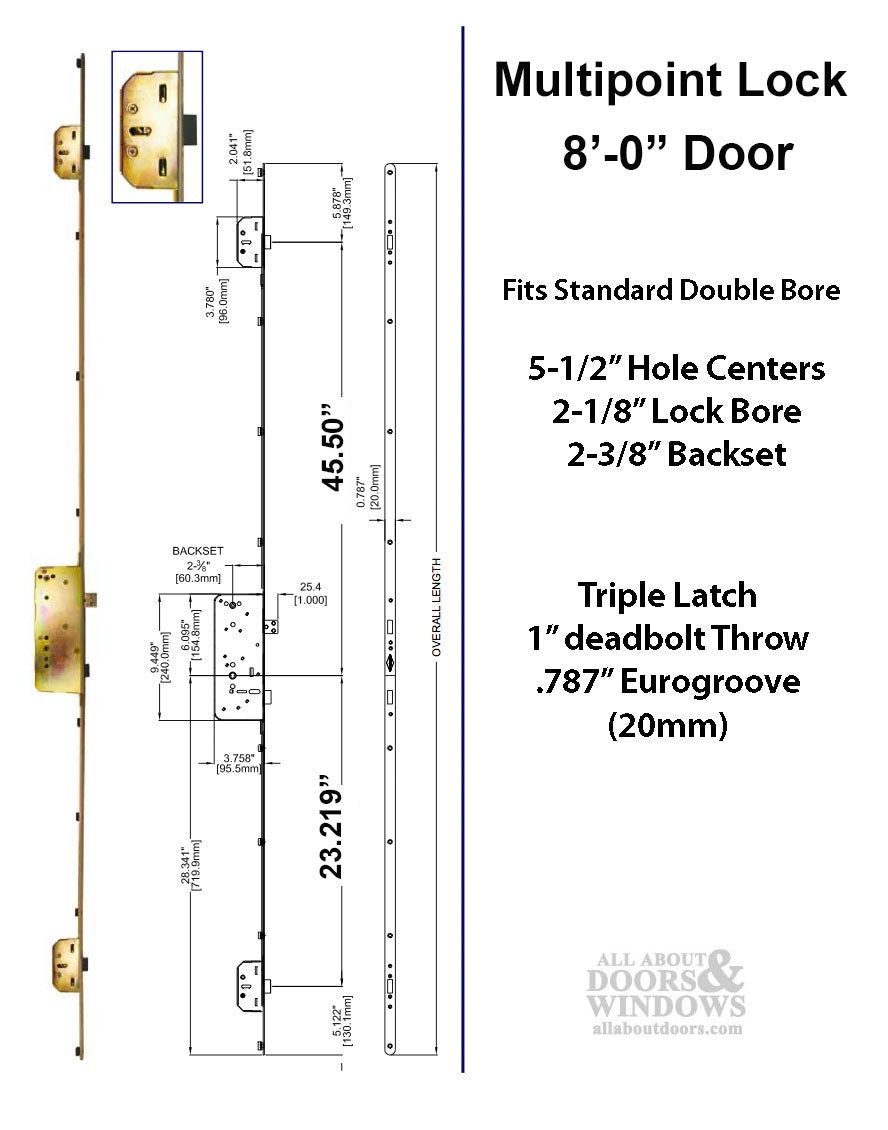

Overall Lock Length 79.724 Inches, (2029.99 mm)
Top Latch @ 45.50 inches (1155.7 mm) center of latch to center of door handle
Bottom Latch @ 23.219 inches ( 589.8 mm)

Note: The lock faceplate has radius ends and is not intended to run the full length of door panel

Automatic Independent triple latching points. Anti-saw and kick proof center deadbolt for maximum security.
One piece construction for ease of installation.

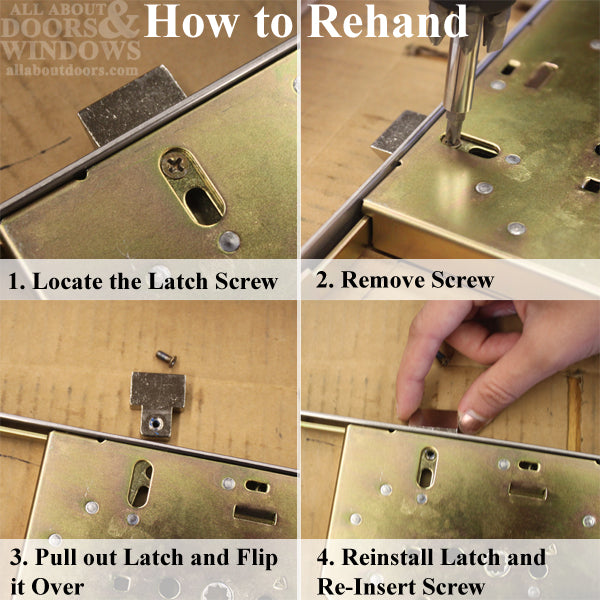

Lock latch can be rehanded with screw driver. See image 3
Note: special handleset trim available for triple latch versions, contact us for more information.

Priced and sold each.

Sentry XL multipoint lock features:
Automatic Independent triple latching points. Anti-saw and kick proof center deadbolt for maximum security.
90 degree consumer friendly locking operation.
One piece construction for ease of installation.
Visual lock indicator suitable for the American consumer.

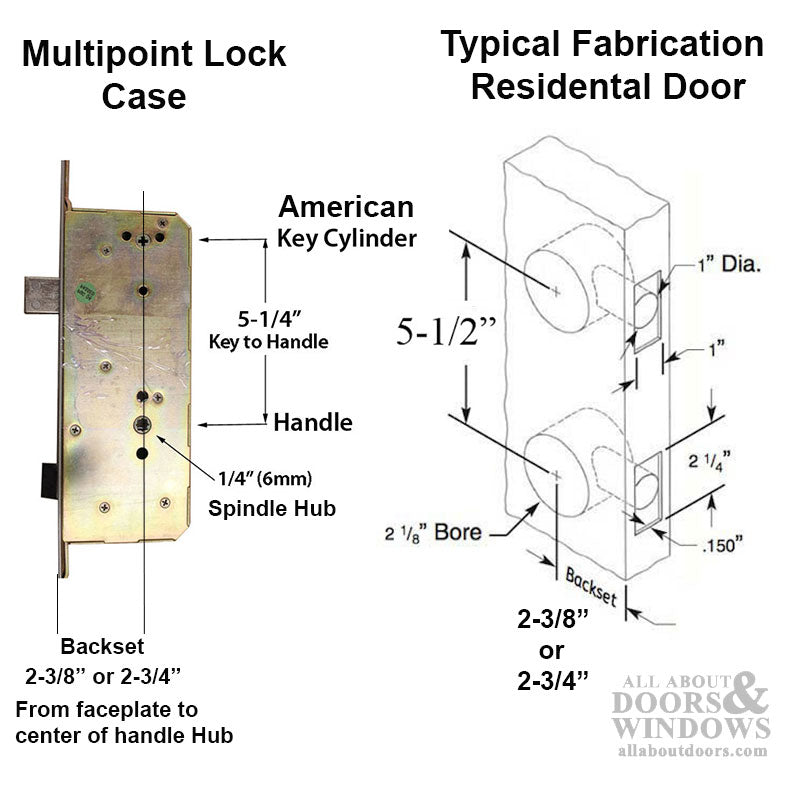

Will Fit standard double bore with 5.5 hole centers and 2-1/8 bore.
