Multipoint Lock, 77-3/8 Hinged Door- Outswing

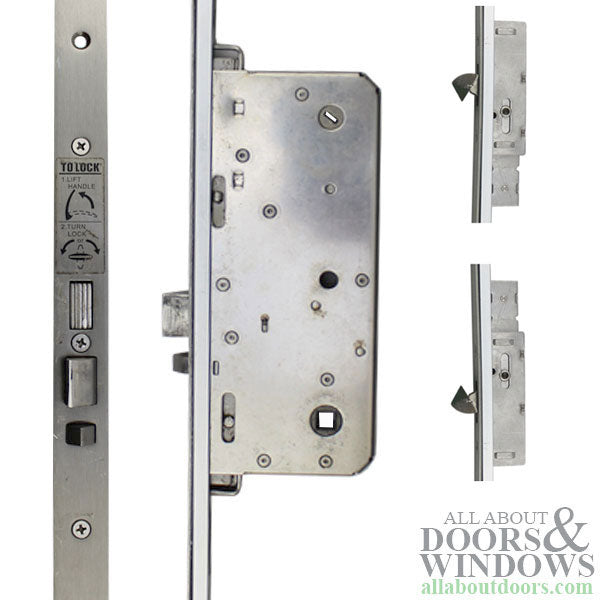

Part Number: Price: $480.00Multipoint Lock (MPL) 77-3/8 inch tall In-Swing Door with 15/16" wide faceplate, 2-3/8 inch lock backset, 2 hooks, 1 deadbolt,
Taiwan, Republic of China, Hinged Patio Door

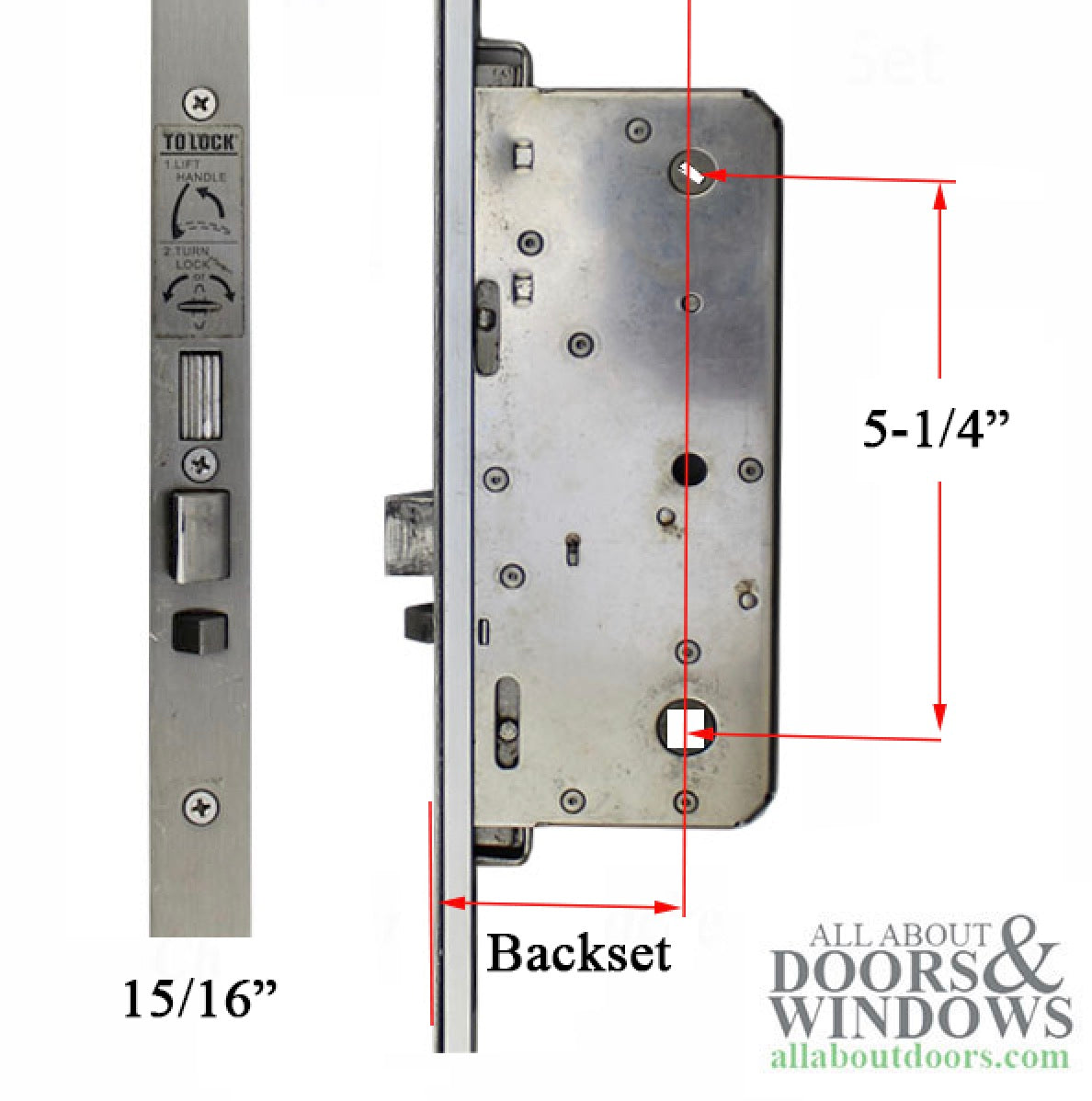

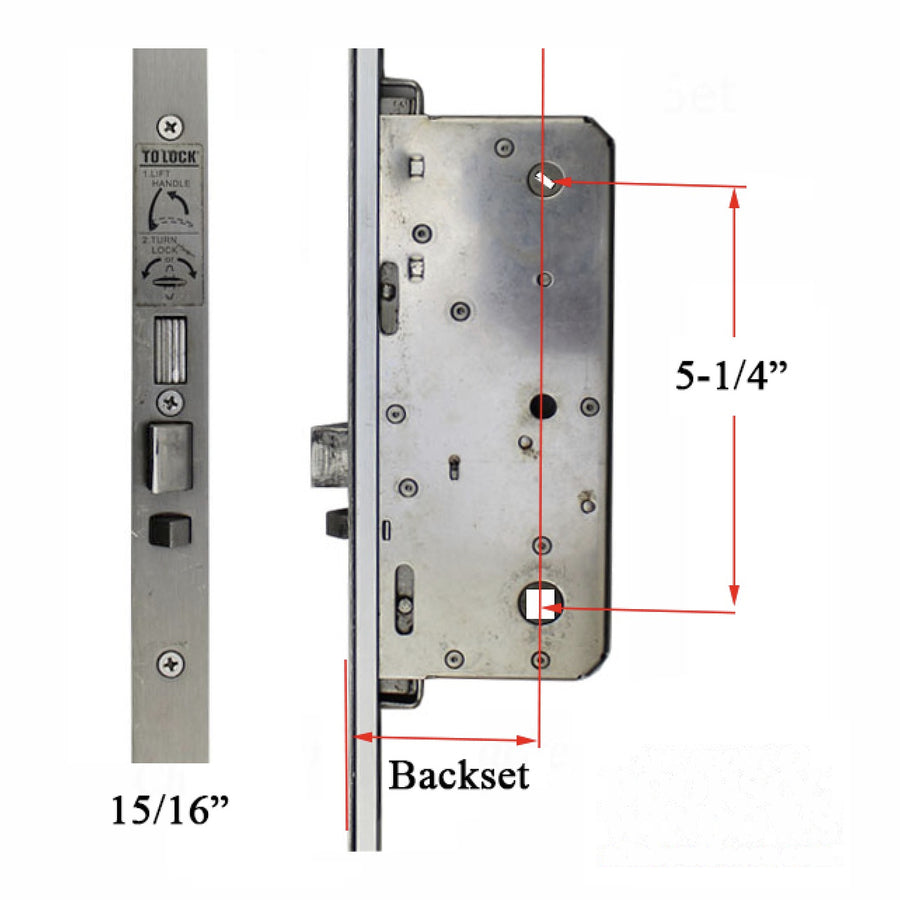

This lock is a direct Taiwan Import and has an unusual handle to thumb turn spacing of 5-1/4 inch

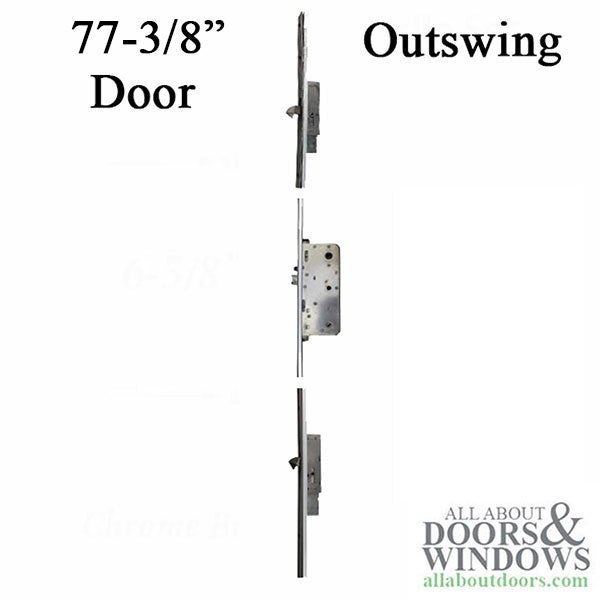

Application: 77-3/8 inch Out-Swing Door
Backset: 2-3/8 (60mm)
Faceplate: 15/16 inch (24mm)
Cylinder Type: American
Hooks: Top, Points down, Bottom, Points Up
Overall Length: 77-3/8 inches
Handle Height: 38-3/16 inch
Handle PZ: 5-1/4 inch
Handle Position: Key Above Handle
Lower Hook: 30-3/4 inch
Upper Hook: 35-1/4 inch
Markings: Pat M267300
Markings on some handle sets: HPVD
This lock is a direct Taiwanese Import used primarily on Fiberglass Door.
This is a one (1) piece unit and available in 8 heights: 6-8, 6-11, 7-6, 8-0 Inswing and Outswing
Taiwan, Republic of China, Hinged Patio Door
This lock is a direct Taiwan Import and has an unusual handle to thumb turn spacing of 5-1/4 inch
Application: 77-3/8 inch Out-Swing Door
Backset: 2-3/8 (60mm)
Faceplate: 15/16 inch (24mm)
Cylinder Type: American
Hooks: Top, Points down, Bottom, Points Up
Overall Length: 77-3/8 inches
Handle Height: 38-3/16 inch
Handle PZ: 5-1/4 inch
Handle Position: Key Above Handle
Lower Hook: 30-3/4 inch
Upper Hook: 35-1/4 inch
Markings: Pat M267300
Markings on some handle sets: HPVD
This lock is a direct Taiwanese Import used primarily on Fiberglass Door.
This is a one (1) piece unit and available in 8 heights: 6-8, 6-11, 7-6, 8-0 Inswing and Outswing
