This is an active Keyed HOPPE Munchen Lever Handle set for a multipoint lock with the Weather Shield Logo on the interior plate.
Specifications

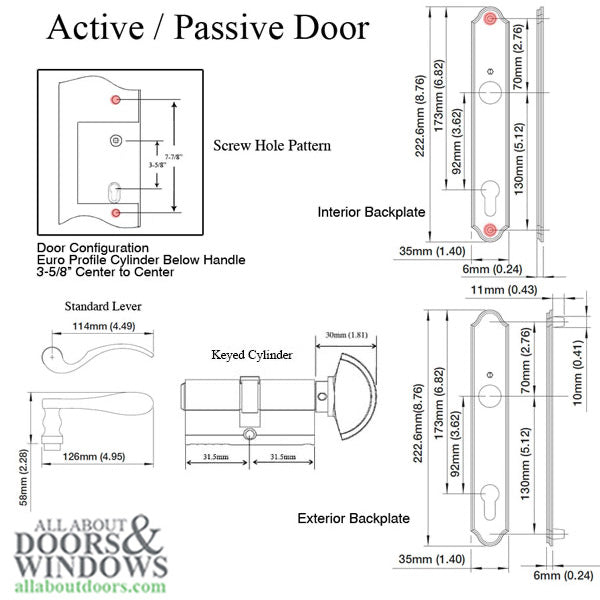

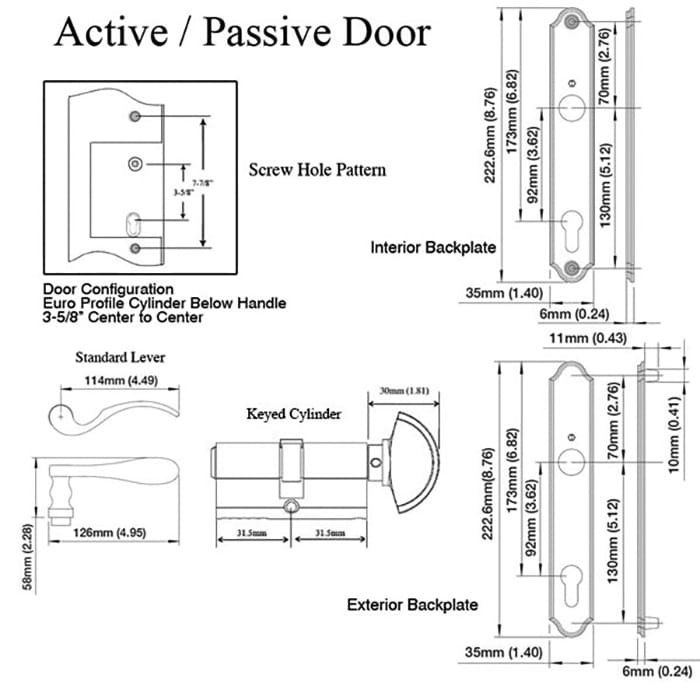

Escutcheon Plate Length - 8 -3/4 (8.76)
Escutcheon Plate Width - 1 - 3/8 (1.40)
Handle PZ: 3-5/8 (92mm) (center of handle to center of cylinder)
Top to Bottom screw hole spacing: 7-7/8 inch (7.87)
Top screw hole to handle spacing: 2-3/4 inch (2.76)
Bottom screw hole to handle spacing: 5-1/8 inch (5.12)
See additional images.
Key Cylinder: H-Knob, Schlage 5 pin SC1
Color / Finish: Standard Bright Polished Brass US3
Constructed from solid brass and will fit on doors that are 1-3/4 thick.

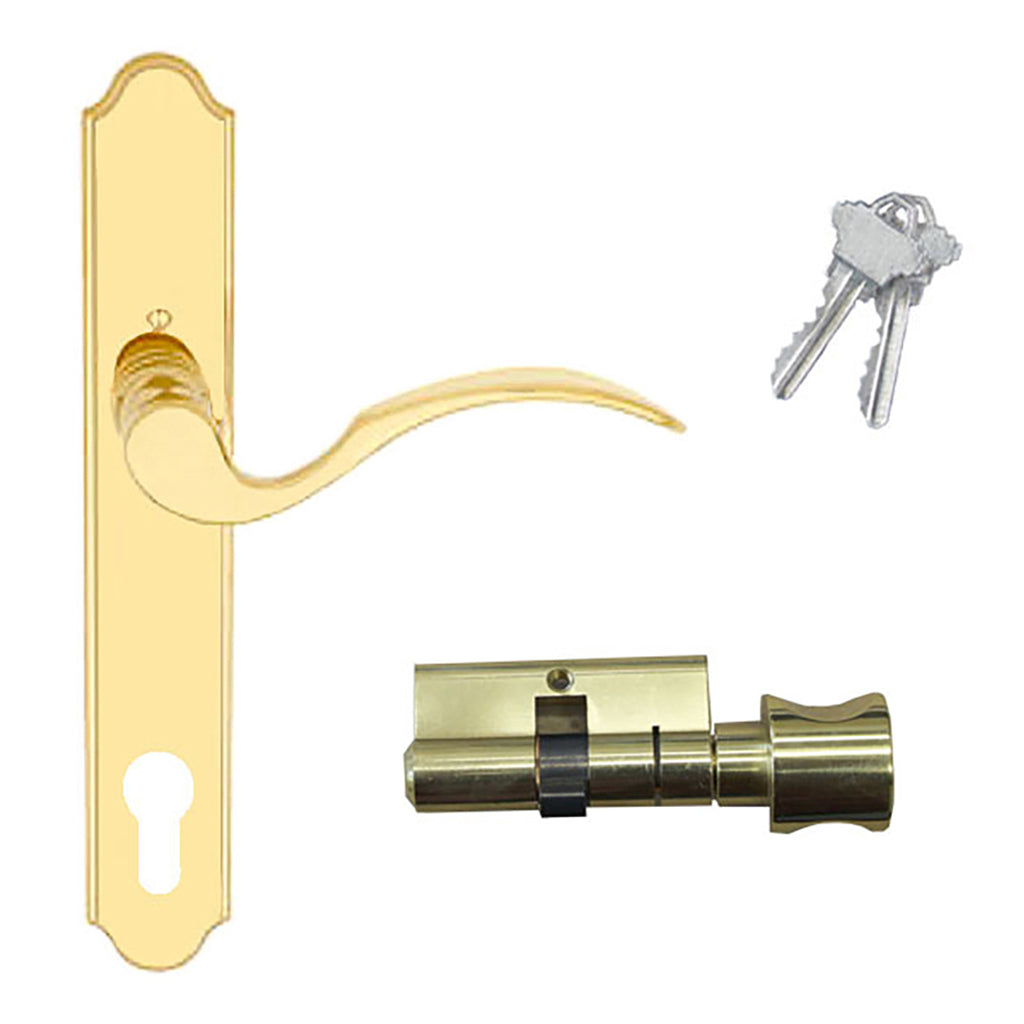

Includes interior and exterior handle levers with backplates, spindle, profile cylinders with 2 keys, and Installation screws
Priced and sold as is, No returns, refunds, or exchanges.
<p>This item is considered blemished and may include but is not limited to slight scuffs, scratches, and/or missing components such as screws.</p><p>Blemished items are priced accordingly and are sold as is.</p><p><b>No returns, refunds, or exchanges.</b></p><br>Active HOPPE Multi-point handle set with Munchen lever in resista brass.<br>It is constructed of solid brass and will fit on 1-3/4 inch thick doors.<br>This brass door handle set includes interior and exterior handle levers with backplates and all the necessary installation hardware.<br><br><b>Function:<a href="http://www.allaboutdoors.com/images/articles/glossary/activeFunction.jpg" rel="lightbox"> Active</a></b> - Keyed Cylinder with inside Thumb turn<br><b>Keyway:</b> Schlage SC1, 5 Pin<br><b>Lever Style:</b> Munchen<br><b><a href="http://www.allaboutdoors.com/images/articles/glossary/PZ.jpg" rel="lightbox">Handle PZ</a></b>: 3-5/8 inch (92 mm)<br><b>Escutcheon Plate Height:</b> 8-3/4 inches<br><b>Escutcheon Plate Width:</b> 1-3/8 inches<br><b>Screw Hole Spacing:</b> 7-7/8 inches<br><b>Material:</b> Solid Brass<br><b>Color/Finish:</b> Resista Brass<br><br><b>Guide:</b> <a href="http://www.allaboutdoors.com/Articles/Doors-and-Their-Hardware/HOPPE-Multipoint-Handle-Operation">HOPPE Multi-point Handle Operation</a><br><br>For more functions, lever/backplate styles, and finishes, browse our collection of multi-point<br><a href="http://www.allaboutdoors.com/Products/Hoppe-Swinging-Door-Handles">HOPPE SWINGING DOOR HANDLES</a>.<br><br>HOPPE handle set priced and sold as set.<br> <p>This item is considered blemished and may include but is not limited to slight scuffs, scratches, and/or missing components such as screws.</p><p>Blemished items are priced accordingly and are sold as is.</p><p><b>No returns, refunds, or exchanges.</b></p>
