Narrow 5/8" Sliding Door Keeper, 1/2-N Raised Dual Point lock - YDI
Part Number: Price: $15.60This item is Discontinued and limited to existing stock. When sold out, Replace with 15163-SS

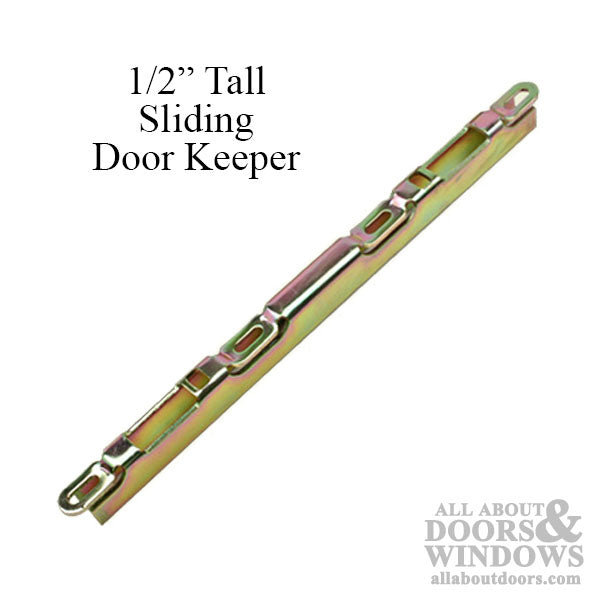

Sliding door keeper with raised dual point lock in zinc dichromate.
Used on wood and vinyl sliding doors.
Raised double hole strike plate used with double hook sliding door locks.
Material: Steel
Color/Finish: Zinc Dichromate (YDI)

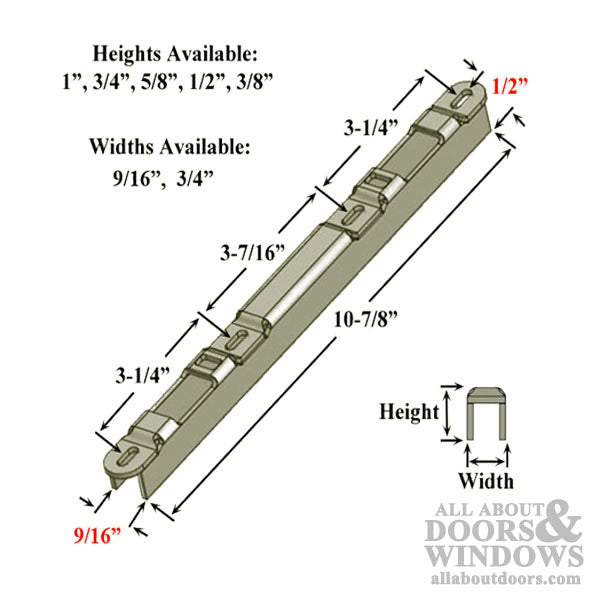

Overall Length: 10-7/8 inches
Width: 9/16 inch
Height: 1/2 inch
Slotted holes for screws: 1/2 inch (allows for maximum adjustment)
Rectangular hole for mortise latch hooks: 3/8 x 1-1/8 inch
Standard Screws: 1-1/4 inch Pan Head - Not Included (longer screws may be used).
Note: There are 7 of these that look the same with different measurements -
Heights: 3/8, 1/2, 5/8, 3/4, 1 inch (Height is from base to highest point).
Widths: 5/8 Narrow, 3/4 inch wide.
Priced and sold each.
Sliding door keeper with raised dual point lock in zinc dichromate.
Used on wood and vinyl sliding doors.
Raised double hole strike plate used with double hook sliding door locks.
Material: Steel
Color/Finish: Zinc Dichromate (YDI)
Overall Length: 10-7/8 inches
Width: 9/16 inch
Height: 1/2 inch
Slotted holes for screws: 1/2 inch (allows for maximum adjustment)
Rectangular hole for mortise latch hooks: 3/8 x 1-1/8 inch
Standard Screws: 1-1/4 inch Pan Head - Not Included (longer screws may be used).
Note: There are 7 of these that look the same with different measurements -
Heights: 3/8, 1/2, 5/8, 3/4, 1 inch (Height is from base to highest point).
Widths: 5/8 Narrow, 3/4 inch wide.
Priced and sold each.
