Important Note: These handle sets are special order and cannot be returned or exchanged. Some handle sets may take 6 to 8 weeks for delivery.

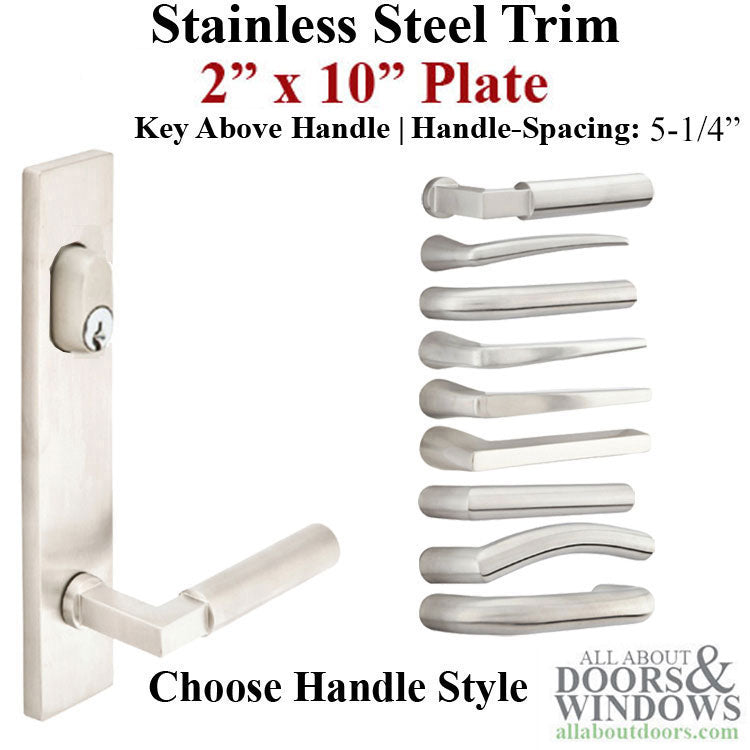

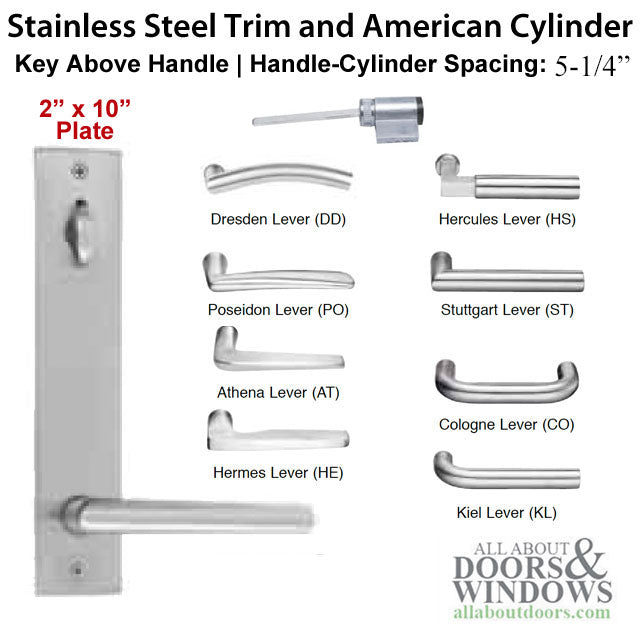

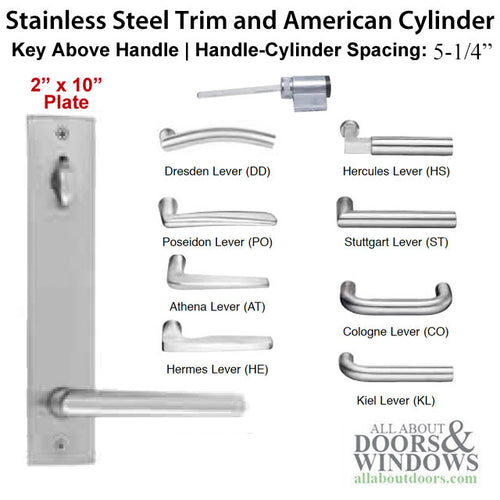

Replacement multipoint lock handle set trim with 2 x 10 inch plate in stainless steel.

Cylinder Version: American Cylinder
Keyway: Schlage 5 Pin SC1

Escutcheon Plate Style: Modern
Escutcheon Plate Shape: Square Ends
Escutcheon Plate Size: 2 inch x 10 inch
Material: Stainless Steel
Color/Finish: Stainless Steel (SS)

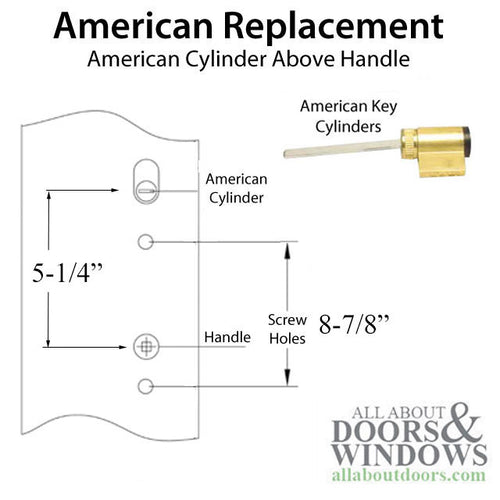

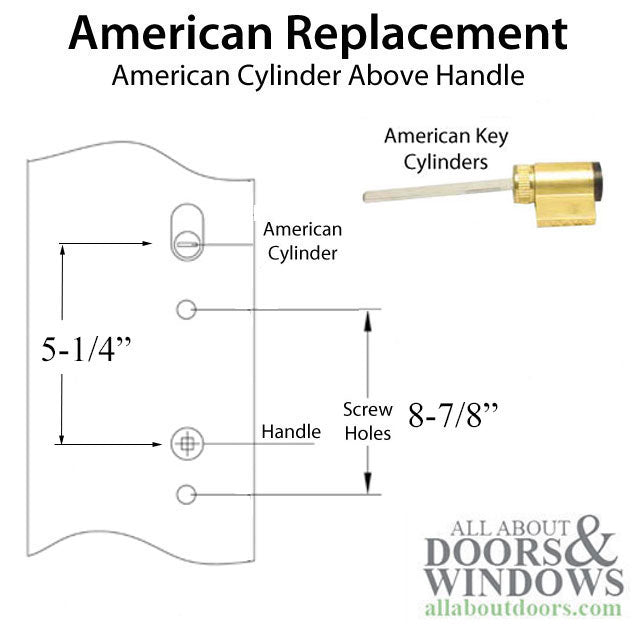

Screw Hole Pattern: 8-7/8 inch
Key or Thumb-turn positioned Above Handle
Handle Spacing (PZ): 5-1/4 inch (133.35 mm) = Center of Handle to Center of Key or Thumb-turn

Replaces American version multipoint lock hardware for the following companies:
Neuma

A. Function: Choose from the following 5 Options
(1) Active - Keyed American Cylinder with inside Thumb turn
(2) Passage - Non-keyed, No Thumb turn
(3) Inactive - Non-keyed with inside Thumb turn
(4) Dummy Passage/Half Passage - Fixed Handle Outside, Passage Inside, No Thumb turn

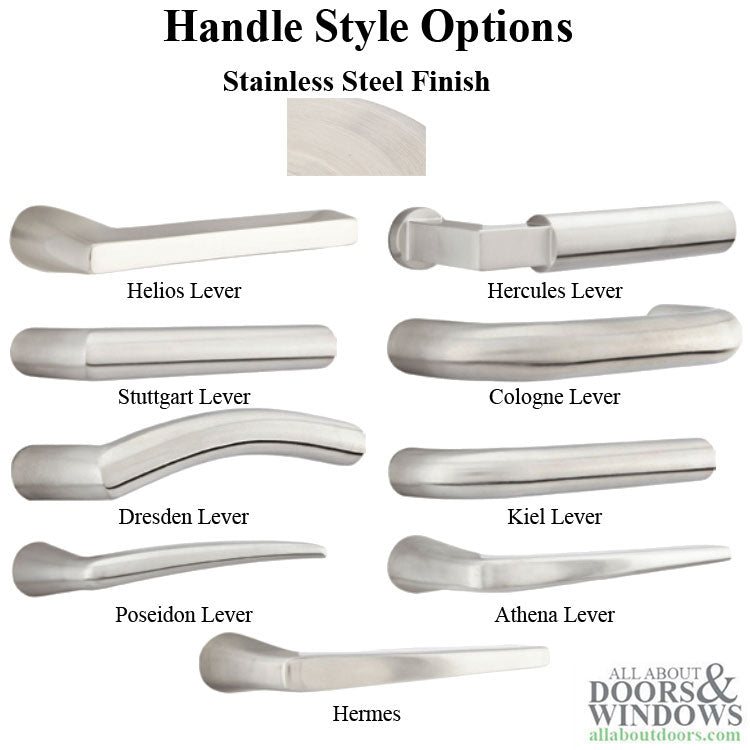

B. Handle / Lever Design: Choose from 9 Styles
See Drop Down List

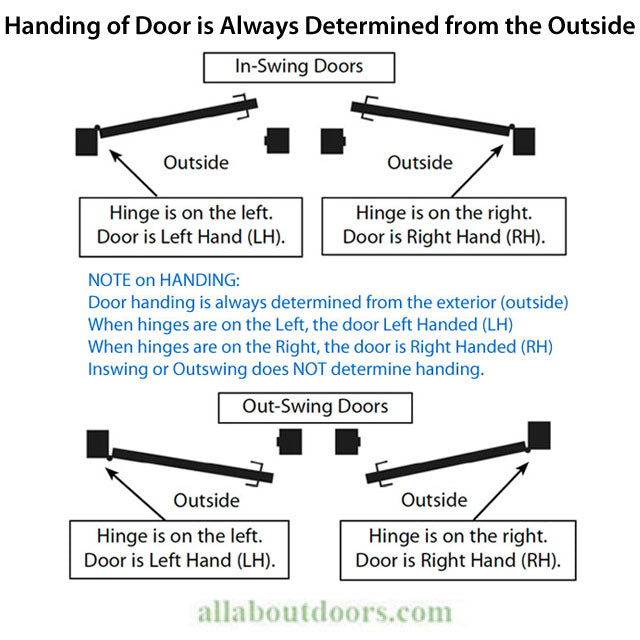

C. Handing: Choose Left or Right - As viewed from outside hinge location
LH - Left Hinge
RH - Right Hinge

Note on Screw Hole Patterns:
Check your measurements carefully to reduce chance of error.
If your door has a different screw hole pattern, a new pattern may still work by drilling new screw holes in door panel.

Caution: Be sure the Lock body in door will not be in direct line of screws.

Priced and sold as a package.
