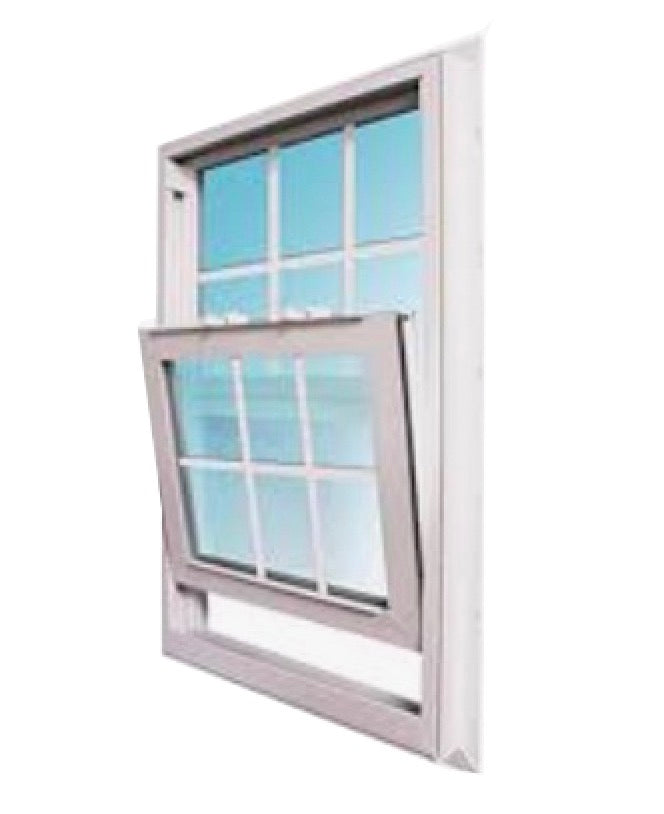

New Construction Single Hung High Performance Vinyl Window w/ Nail Fin
Part Number: Windgate-SH-WColumbia Alliance Windgate Single Hung New Construction window with fixed top sash and operable bottom sash that slides up and down, with tilts-in feature.
Windgate New Construction Single Hung Features:
* Application: New Construction Window with Nailing Fin, 120 Standard sizes
* Upper Sash: Fixed, does not move reduces air infiltration
* Frame Type: Fusion welded frame and sash, provides stronger window
* Frame Width: 3-1/4 inch jamb depth chambered frame for maximum structural integrity
* Integrated J-Channel: Yes, designed into the frame, eliminating the cost of an add-on "J" channel while providing a pleasing "beveled" exterior look.
* Nailing Fin: Available with or with out
* Glass: 3/4" Insulating glass provides optimum energy efficiency
* Sash Lock: Cam Lock action draws sashes closer together for positive lock.
* Interlocking Meeting Rail: Integral interlock provides additional security.
* Material: Heavy walled PVC framing acts as a natural insulator
* Glass Spacer: Warm edge low conductance spacer resists energy flow through the edge of glass
* Fin Seal Perimeter and meeting interlocking rail weather strip, reduces air infiltration, longer life span
* Heavy Duty 3 screw Zinc Die cast pivot bars
* Constant Force Balance system offer smooth, consistent operation, minimal maintenance
* Integrated Lift: Yes, stronger more dependable lift rail is part of bottom rail sash profile
* Bottom Rail weathersstrip with Closed cell Foam Filled bulb and fin seal resists air and water penetration
* Glass: Standard Dual Pane or Low E High Performance
* Duralite(R) warm edge glass spacer bar for reducing Heat / Cold conductivity also reduces condensation.
* Built in screen frame eliminates screen rattle
Optional Features:
InnovativE(R) high-performance glass utilizes Low-E coating specifically engineered for better insulation
Aluminum Wire Insect Screen Material
Additional Information
* Single-hung windows offer several benefits including being cost-effective, having good energy efficiency due to fewer moving parts, and being simple to operate and maintain.
* They also present a classic aesthetic appeal, particularly suitable for traditional home designs.
* Looks similar to the double hung and has glass with equal sight lines
* InnovativE(R) high-performance glass utilizes Low-E coating specifically engineered for better insulation
Windgate New Construction Single Hung Features:
* Application: New Construction Window with Nailing Fin, 120 Standard sizes
* Upper Sash: Fixed, does not move reduces air infiltration
* Frame Type: Fusion welded frame and sash, provides stronger window
* Frame Width: 3-1/4 inch jamb depth chambered frame for maximum structural integrity
* Integrated J-Channel: Yes, designed into the frame, eliminating the cost of an add-on "J" channel while providing a pleasing "beveled" exterior look.
* Nailing Fin: Available with or with out
* Glass: 3/4" Insulating glass provides optimum energy efficiency
* Sash Lock: Cam Lock action draws sashes closer together for positive lock.
* Interlocking Meeting Rail: Integral interlock provides additional security.
* Material: Heavy walled PVC framing acts as a natural insulator
* Glass Spacer: Warm edge low conductance spacer resists energy flow through the edge of glass
* Fin Seal Perimeter and meeting interlocking rail weather strip, reduces air infiltration, longer life span
* Heavy Duty 3 screw Zinc Die cast pivot bars
* Constant Force Balance system offer smooth, consistent operation, minimal maintenance
* Integrated Lift: Yes, stronger more dependable lift rail is part of bottom rail sash profile
* Bottom Rail weathersstrip with Closed cell Foam Filled bulb and fin seal resists air and water penetration
* Glass: Standard Dual Pane or Low E High Performance
* Duralite(R) warm edge glass spacer bar for reducing Heat / Cold conductivity also reduces condensation.
* Built in screen frame eliminates screen rattle
Optional Features:
InnovativE(R) high-performance glass utilizes Low-E coating specifically engineered for better insulation
Aluminum Wire Insect Screen Material
Additional Information
* Single-hung windows offer several benefits including being cost-effective, having good energy efficiency due to fewer moving parts, and being simple to operate and maintain.
* They also present a classic aesthetic appeal, particularly suitable for traditional home designs.
* Looks similar to the double hung and has glass with equal sight lines
* InnovativE(R) high-performance glass utilizes Low-E coating specifically engineered for better insulation
