NO LONGER AVAILABLE, Cifial Passage Latch, Lever, 2-3/8" bs,
Part Number: 481850002Discontinued - Limited Inventory, can be Replaced with # 48145332
The Lever and Knob latches look the same, the lever has a stronger spring.

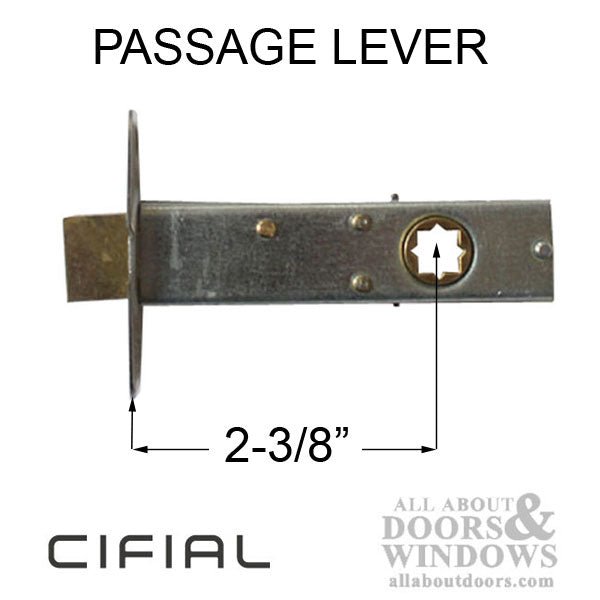

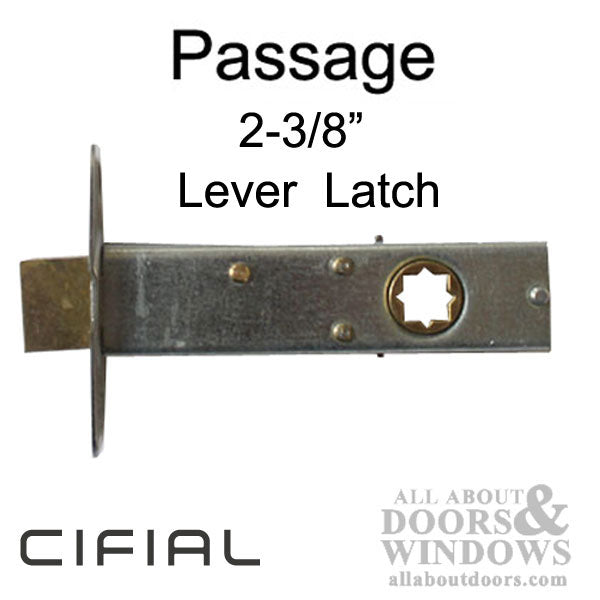

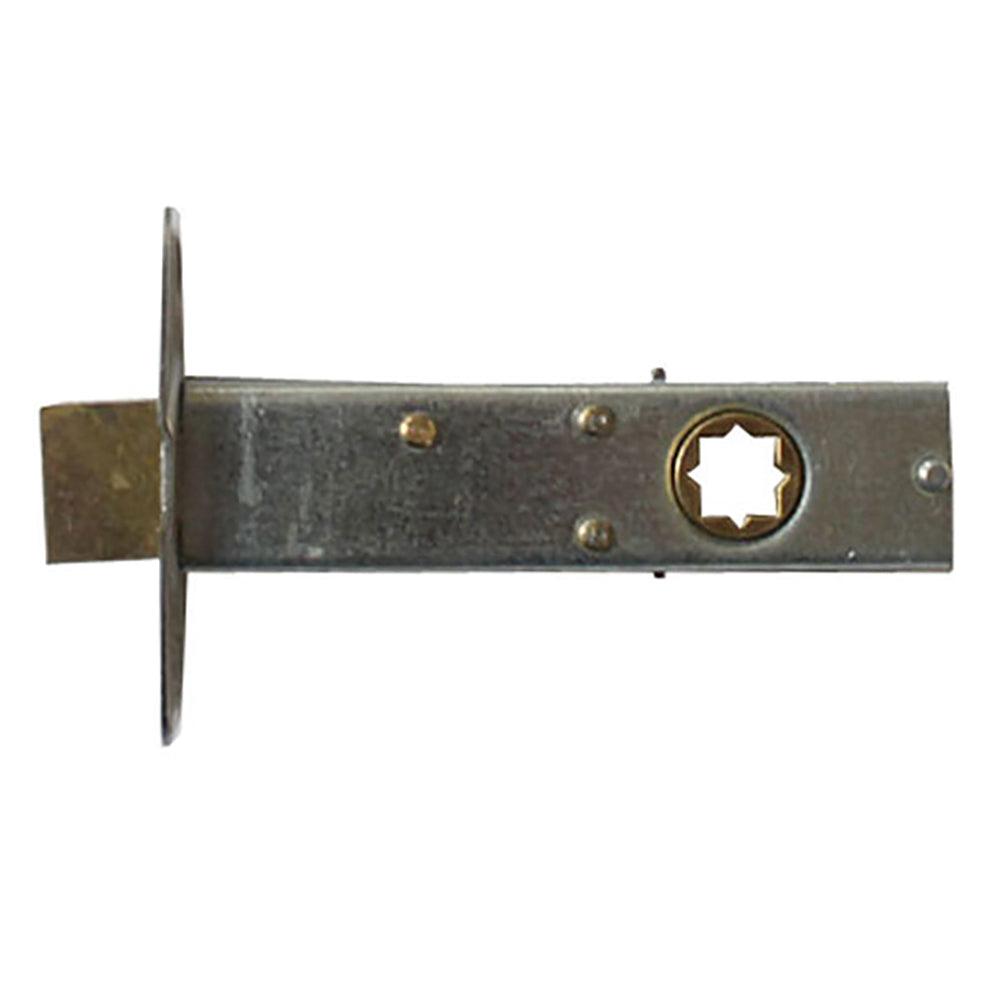

Cifial Passage Latch, Lever, 2-3/8" Backset,
Function: Passage, Closet or Hall
Type: Lever, with heavy duty spring
Tongue Color: Silver Spring Latch
Faceplate: None, Not included
Backset: 2-3/8 inch
Overall Length: 3-1/4 inches, not including spring latch
Hub Diameter : 5/16 inch (8mm) on the Square / 7mm on Diamond
Note:
This is latch only, does not include the faceplate, screws or strike plate.
The latch is made with different springs for knobs and levers.
The spring latch can be Satin Brass or Chrome finish.

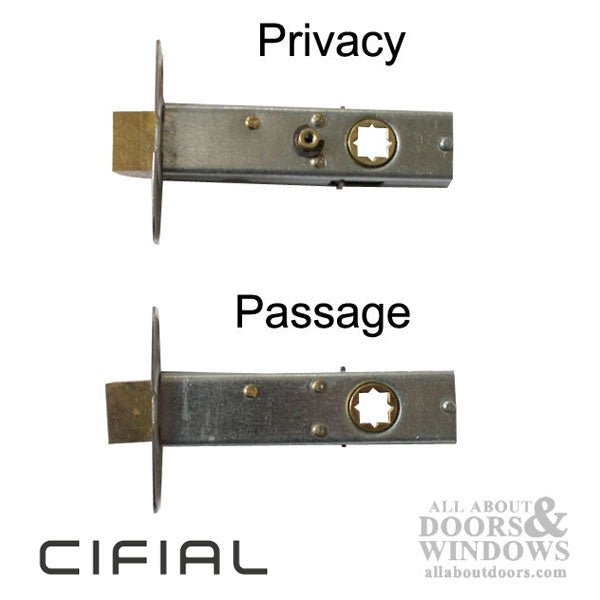

Passage - Knob, 2-3/8" Backset, 01 = 481850001
Passage- Lever, 2-3/8" Backset, 02 = 481850002
Privacy - Knob, 2-3/8" Backset, 03 = 481850003
Privacy - Lever, 2-3/8" Backset, 04 = 481850004
The Lever and Knob latches look the same, the lever has a stronger spring.
Cifial Passage Latch, Lever, 2-3/8" Backset,
Function: Passage, Closet or Hall
Type: Lever, with heavy duty spring
Tongue Color: Silver Spring Latch
Faceplate: None, Not included
Backset: 2-3/8 inch
Overall Length: 3-1/4 inches, not including spring latch
Hub Diameter : 5/16 inch (8mm) on the Square / 7mm on Diamond
Note:
This is latch only, does not include the faceplate, screws or strike plate.
The latch is made with different springs for knobs and levers.
The spring latch can be Satin Brass or Chrome finish.
Passage - Knob, 2-3/8" Backset, 01 = 481850001
Passage- Lever, 2-3/8" Backset, 02 = 481850002
Privacy - Knob, 2-3/8" Backset, 03 = 481850003
Privacy - Lever, 2-3/8" Backset, 04 = 481850004
