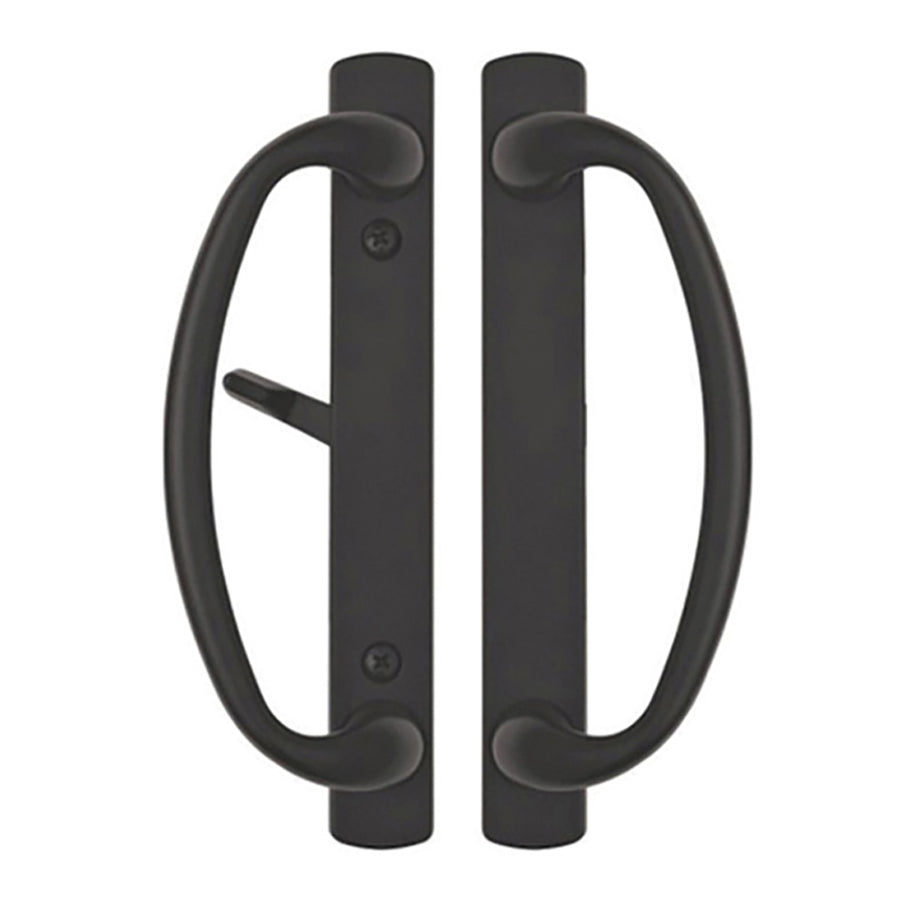

Charlotte Sliding Door Handle Set, Non-Keyed, Privacy

Non-Keyed Charlotte Handle Set for Sliding Glass Patio Doors

To be used with a hook-style mortise lock (not included).

Used in 3 different positions to accommodate centered or off-set locking thumb latches
Locking but non-keyed; can be used with a mortise lock, can be locked and unlocked from the
inside with the thumb latch, cannot be locked or unlocked from the outside

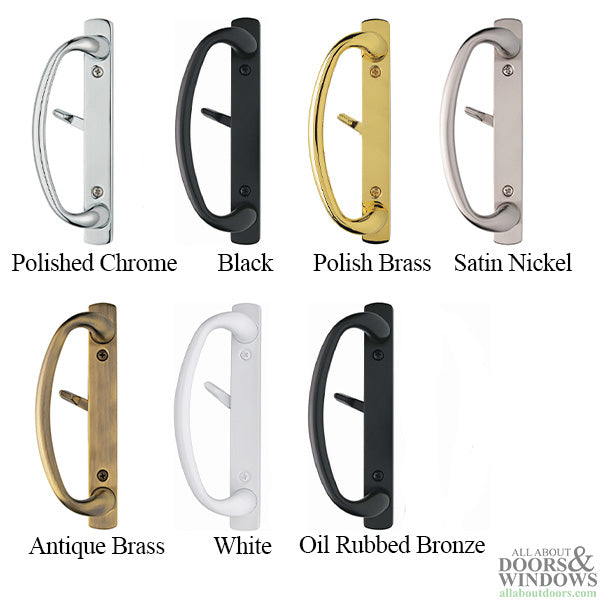

Colors Available: white, black, antique brass, polished brass, venetian brass, satin nickel
Used on wood, vinyl and aluminum doors
Compatible with many brands including all Keynetic™ sliding door handles and locks
Right-handed and left-handed applications; handle can be unscrewed from escutcheon
plate to change direction of handle depending on how your door slides open

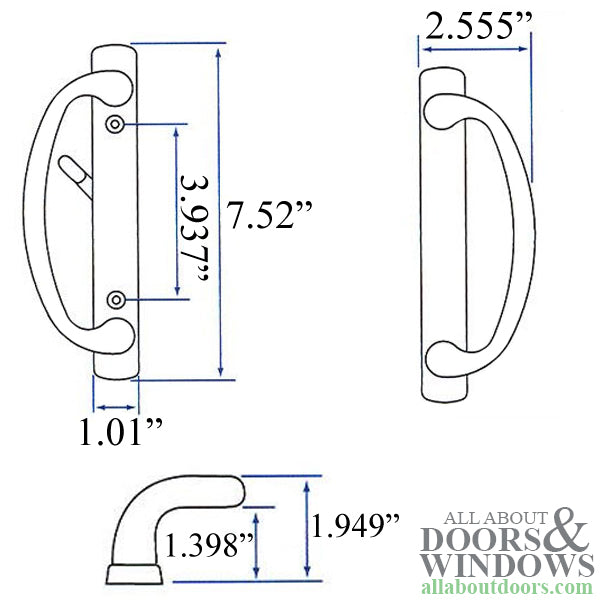

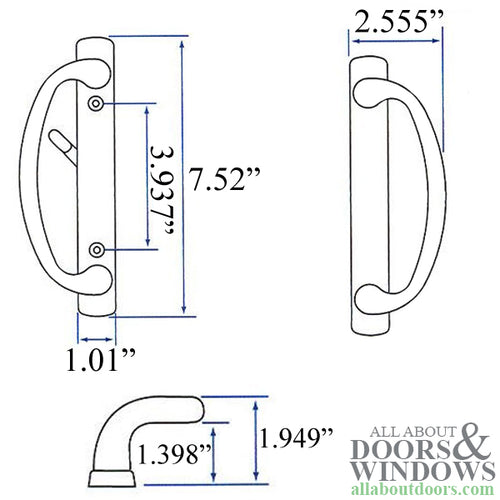

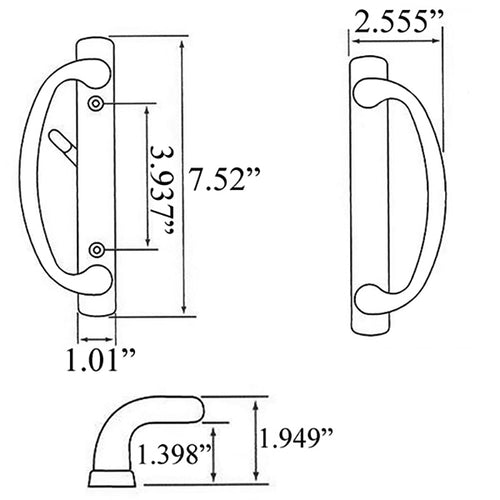

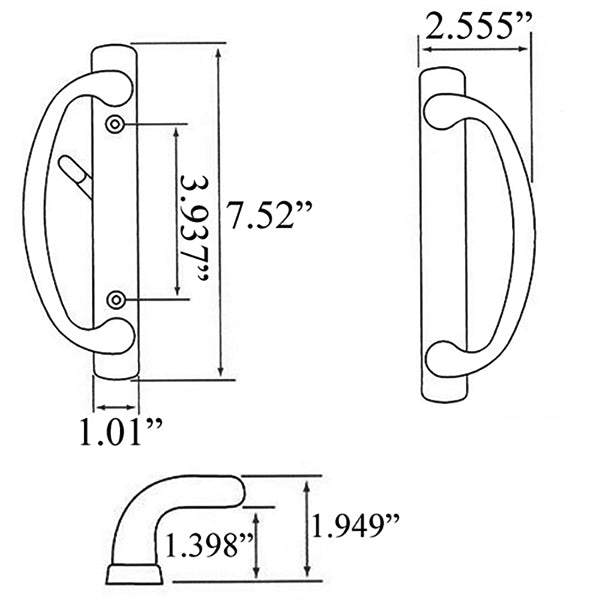

Overall handle dimensions: 7-1/2" tall x 2-1/2" wide
Distance between installation screw holes: 3-15/16"
Projection (how much handle sticks out from door): almost 2"

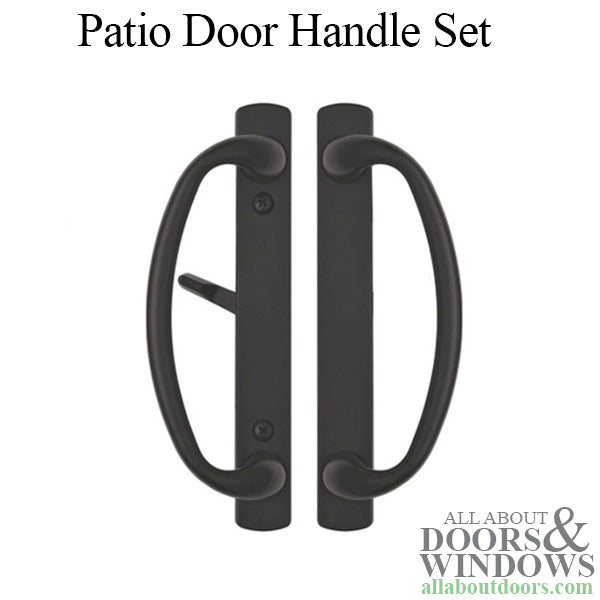

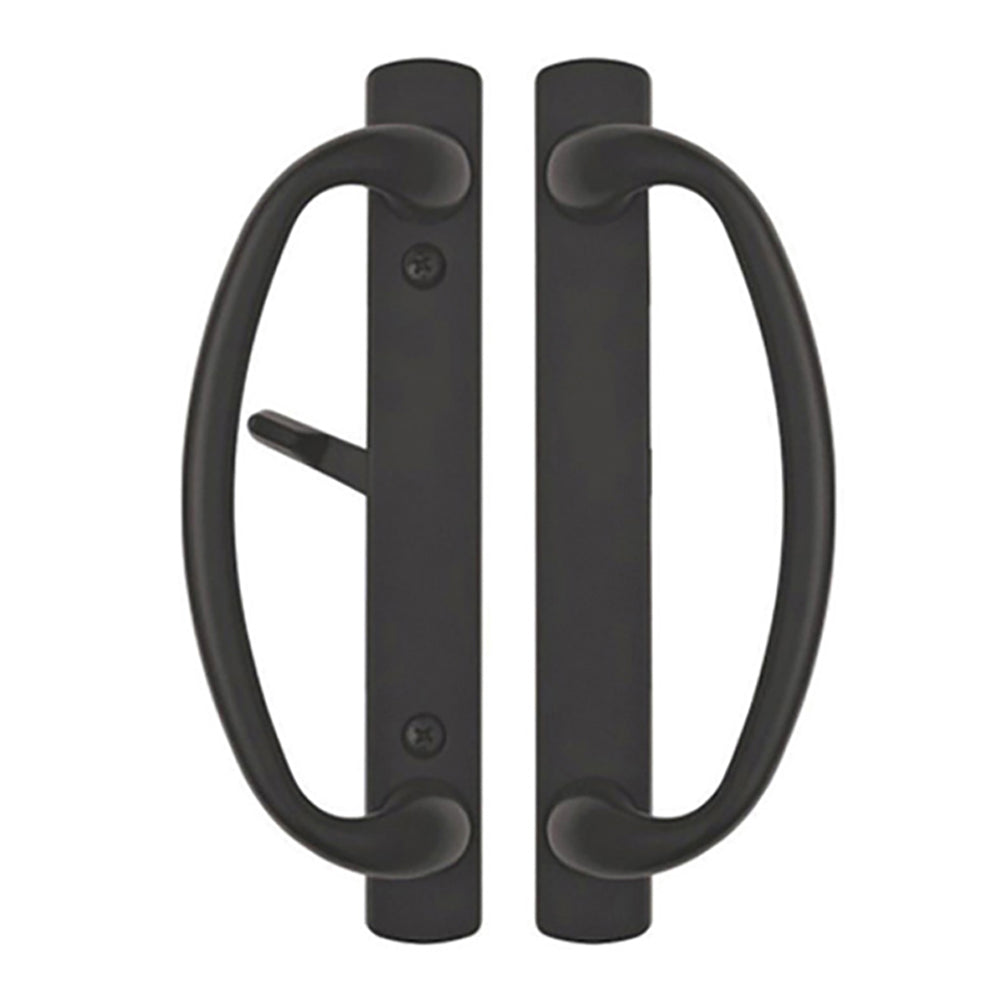

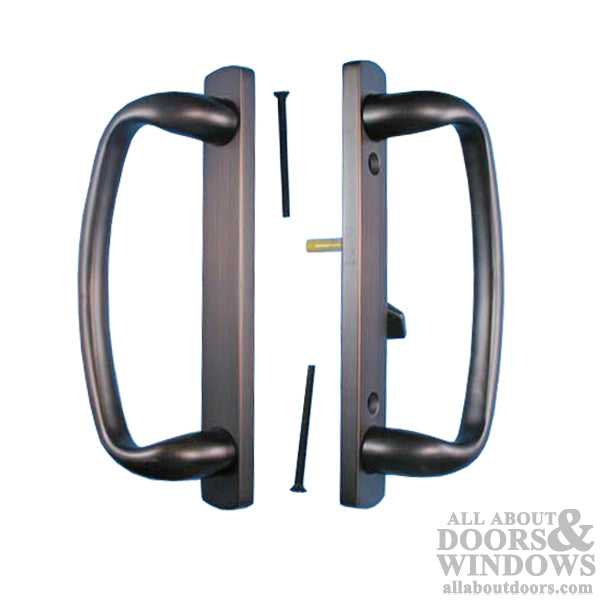

Includes External handle, Internal handle with latch shim and thumb latch
Installation screws to fit doors from 1-11/16" - 1-3/4" thick, Plastic washers,
Installation instructions
