Discontinued on 9/17/2018. Replacement Options available with your help.
Repair Option:

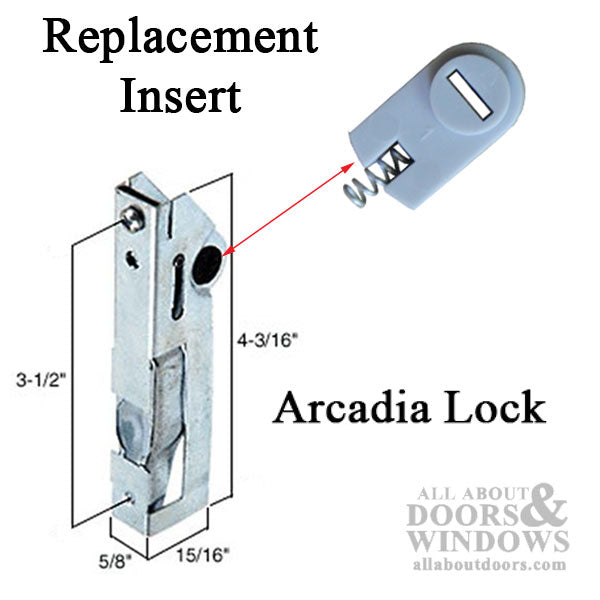

Replace broken insert - See 15089-Insert
Replacement Option:
Replace handle set with another product.
We need pictures:
1. Your door handle on the door
2. The hole pattern after the handle is removed
3. Edge of door where keeper fits into hole
4. Picture of keeper on door jamb.
5. Send images to customer service and we will come up with a replacement solution

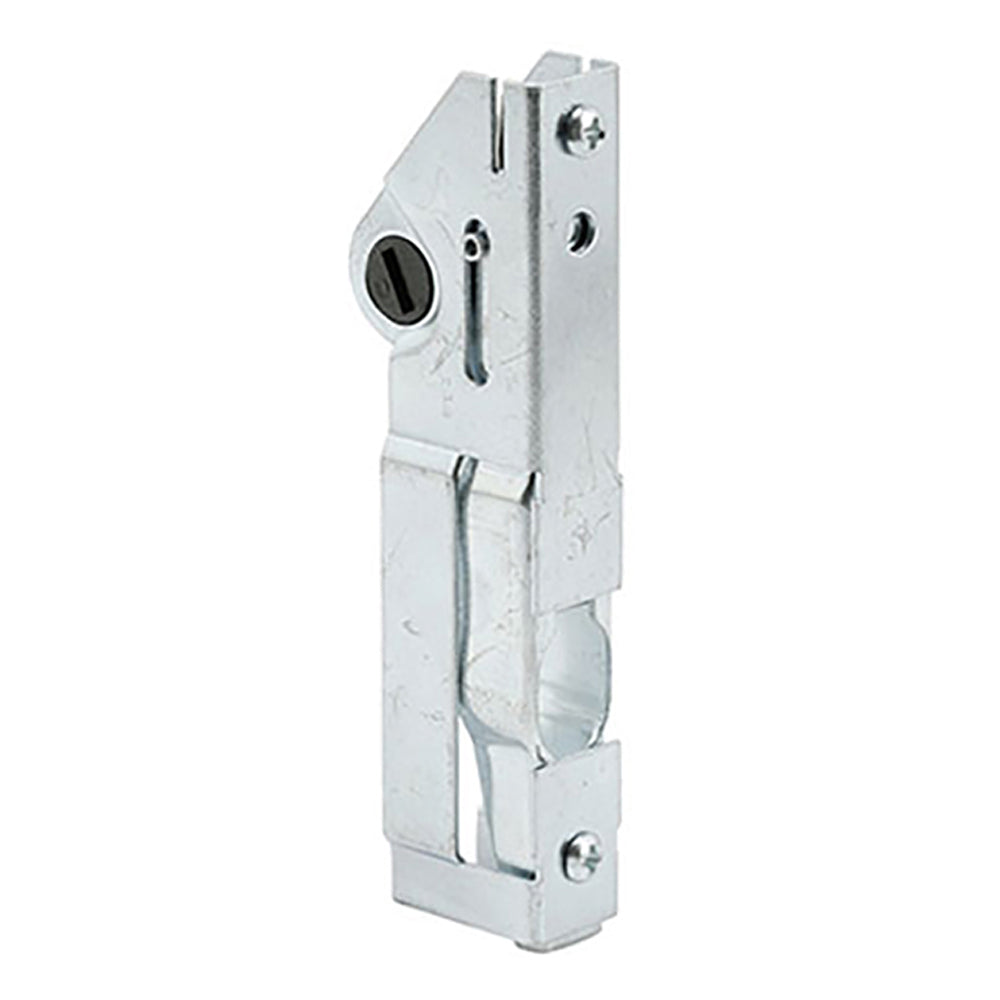

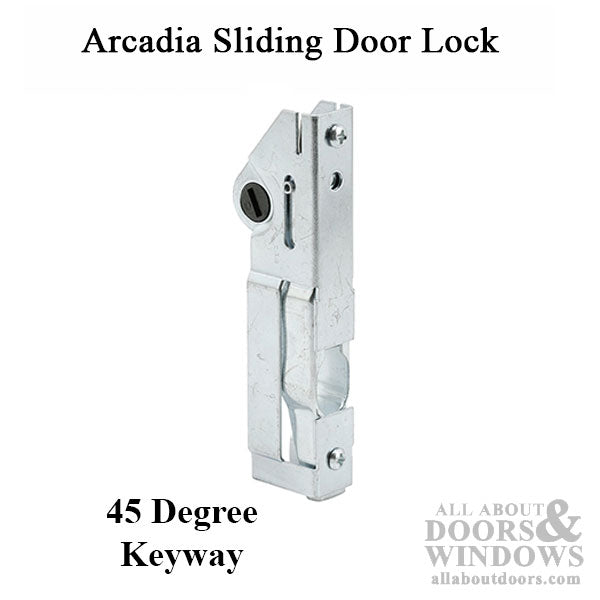

Steel, Arcadia 700 series 45 degree keyway mortise lock for sliding patio door.
This lock requires a mortise installation.
The lock housing is constructed out of Steel.
There is a Stainless Steel spring.
It has a 45 Degree keyway
This design is used by door manufacturers such as Northrop.

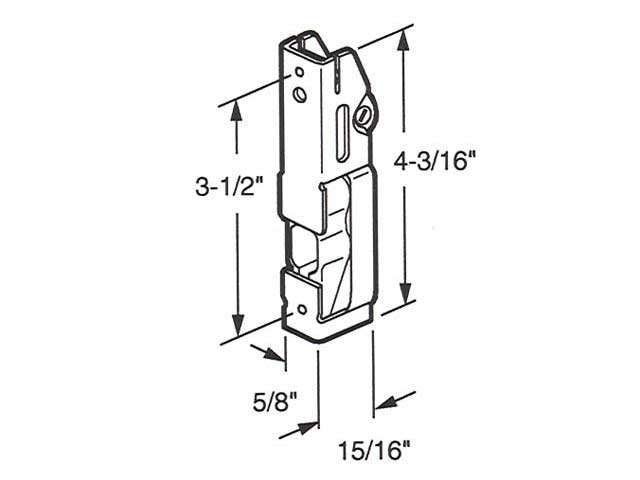

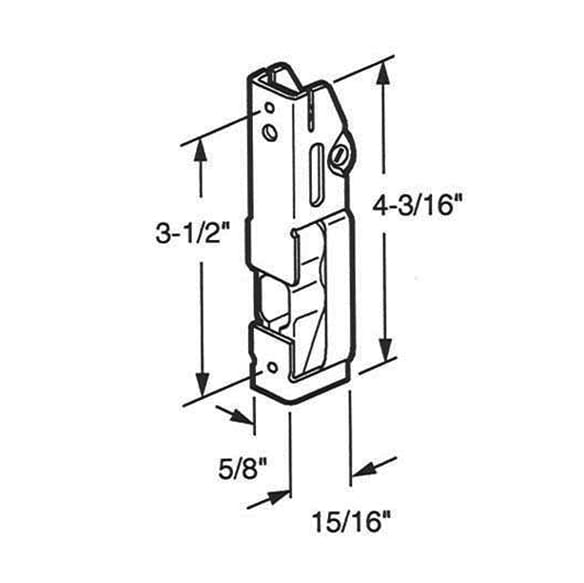

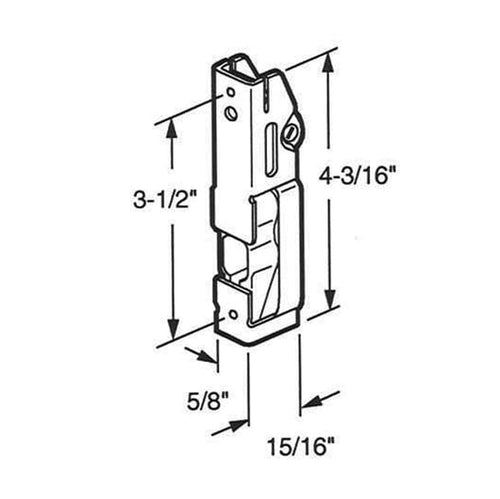

Hole Center: 3-1/2-inch
Keyway: 45 Degrees
Contents
1 lock
Installation fasteners
Priced and sold each.
