Old Style V200, Left Hand All In One Adjustable Hinge 3D - Polished Brass

Part Number: 363711 Price: $0.00
This item is no longer available for purchase.

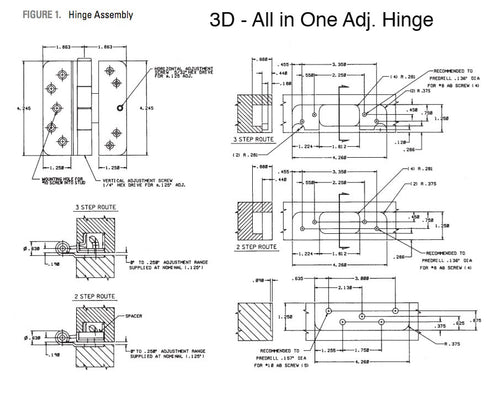

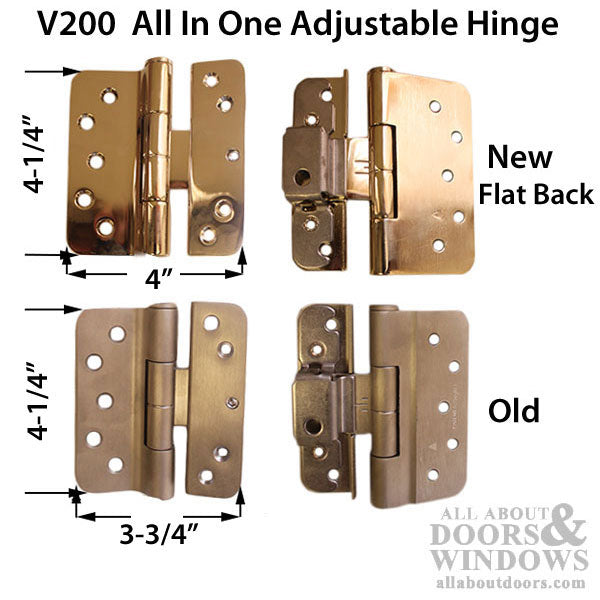

A new style design has been made.
The new design is to accommodate aluminum clad and wood doors

New Style Hinges
363717 - Left Hand
363718 - Right hand

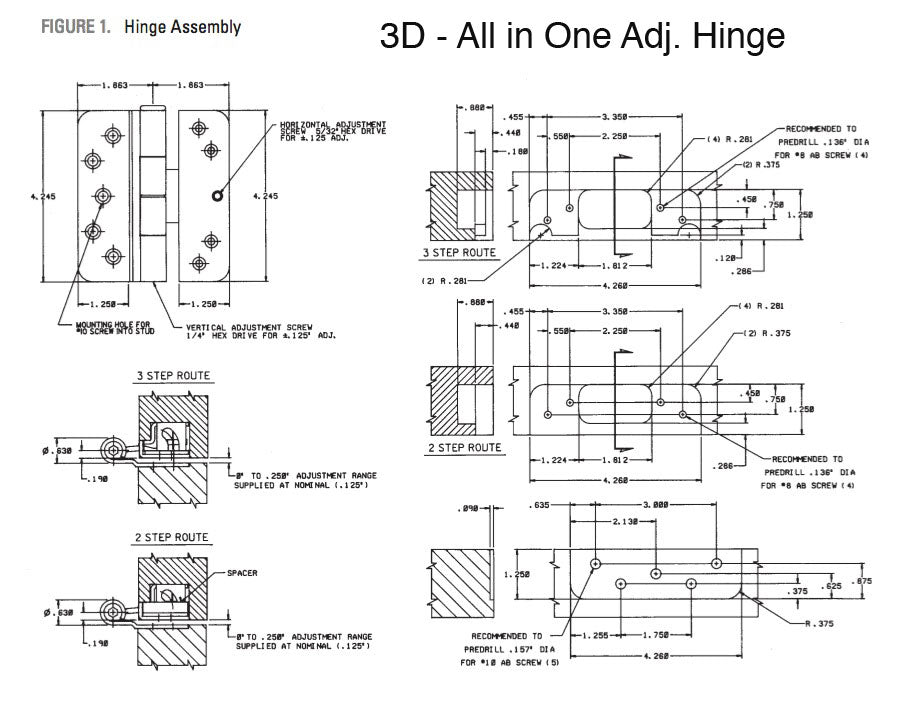

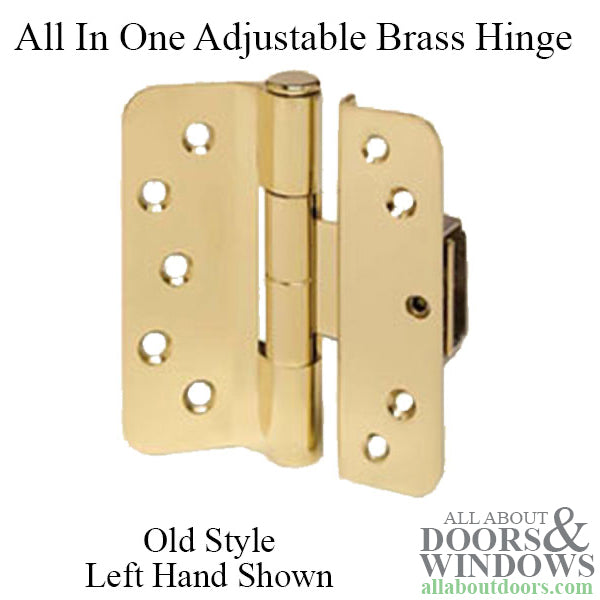

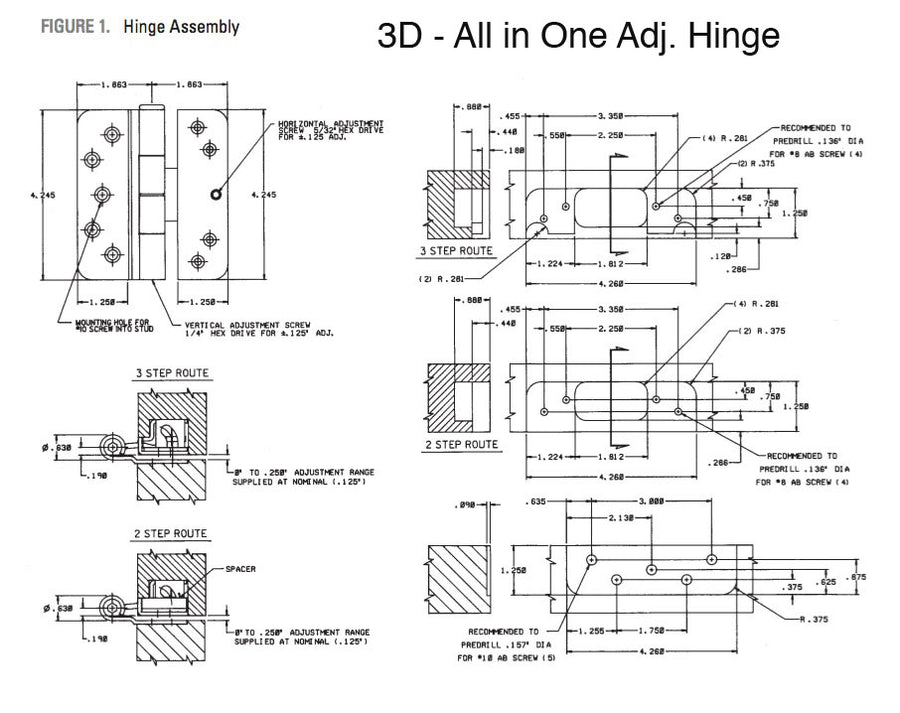

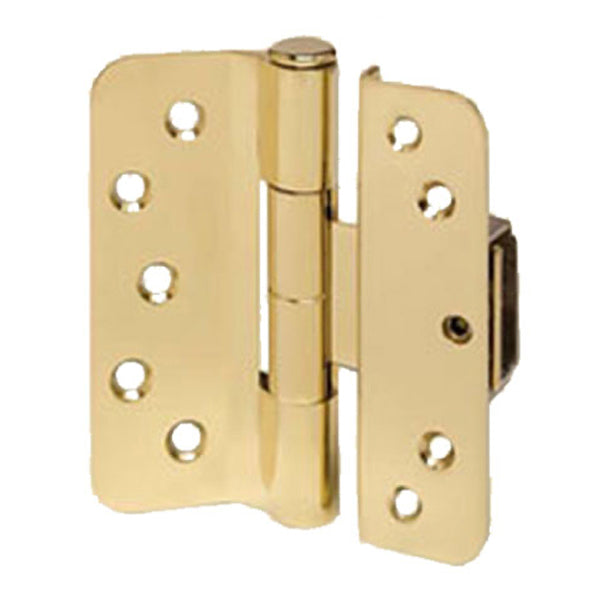

V200 Left Hand All In One 3D Adjustable Door Hinge
Used by Marvin, Caradco (Jeld-Wen ) and others
Door Type: Inswing or Outswing doors

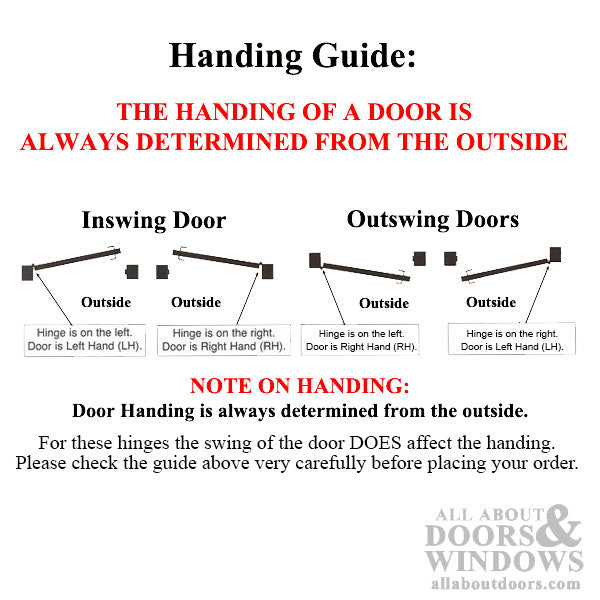

Door Handed: Yes - Left or Right hand as shown

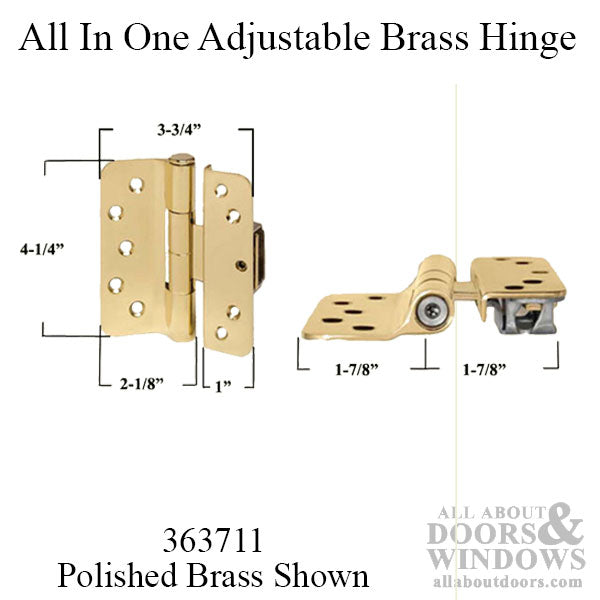

Hinge Size: 3-3/4 x 4-1/4
Hinge Material: Solid Brass Leaf
Color / Finish: Polished Brass

This hinge will adjust both horizontally and vertically. (all in one design)
A Solid Brass extruded jamb wing allows for higher hinge carry capacity.
Hex head adjustment screws, not Phillips or slotted to provide secure tool engagement and prevent stripping during adjustment.
Stainless steel adjustment screws provide superior corrosion resistance.
An integrated hinge pin to provide security for outswing and inswing doors, and will not lift up during normal door operation.

Horizontally adjusts 1/16Ó further than most hinges on the market.
Hinge system adjusts 1/4Ó vertically and horizontally.
Extremely low adjustment force by vertically adjusting the door from below, not laterally like other hinge designs.
Provides an easy-to-see indicator line for accurate vertical adjustment.
A Òmaintenance and noise-freeÓ operation, even after a million cycles, by incorporating an internal polymer bushing to eliminate any metal to metal contact
Exceeds BHMA-Grade 3 standards for wood, vinyl, aluminum and steel doors

ADJUSTMENT NOTES:
The V200 has both vertical and horizontal adjustment on EACH hinge. The vertical adjust on each hinge is found inside the bottom barrel. The horizontal adjust is found on the face of the door leaf.
The best way to adjust the hinges are to set the middle hinge vertical adjustment first to align the door reveal then "snug up" the other two hinges vertical adjustment screws so all three hinges are taking some portion of the door weight. This is one BIG advantage of this hinge design over a lot of other adjustable hinges.
Once this is done the horizontal adjustment can be performed on the upper and lower hinge to finish the door alignment.
Important to do micro movements, like the lug nuts when changing a tire on a car.
