Omnia Single Cylinder Keyed Entry Mortise Full Lock Set, Keyed Differently

With Omnia 260 Knob with 1000 Rose.
For doors 1-3/4" thick.
Heavy wrought steel case with zinc dichromate finish for corrosion resistance.

Adjustable armored steel front with 8" and 1-1/4" solid brass faceplate for all lock bodies.
2-piece anti friction design.
1" Mortise Cylinder, Keyed Differently, Schagle C keyway.

Handing: Right
Finish: Polished Brass
Backset: 2-1/2"

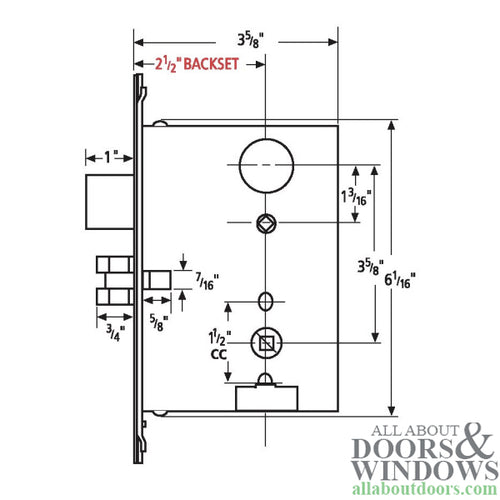

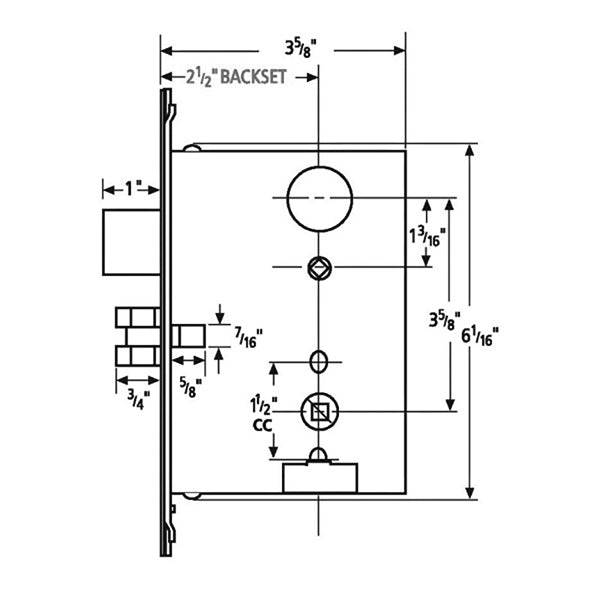

measurements included in pictures below


Includes:

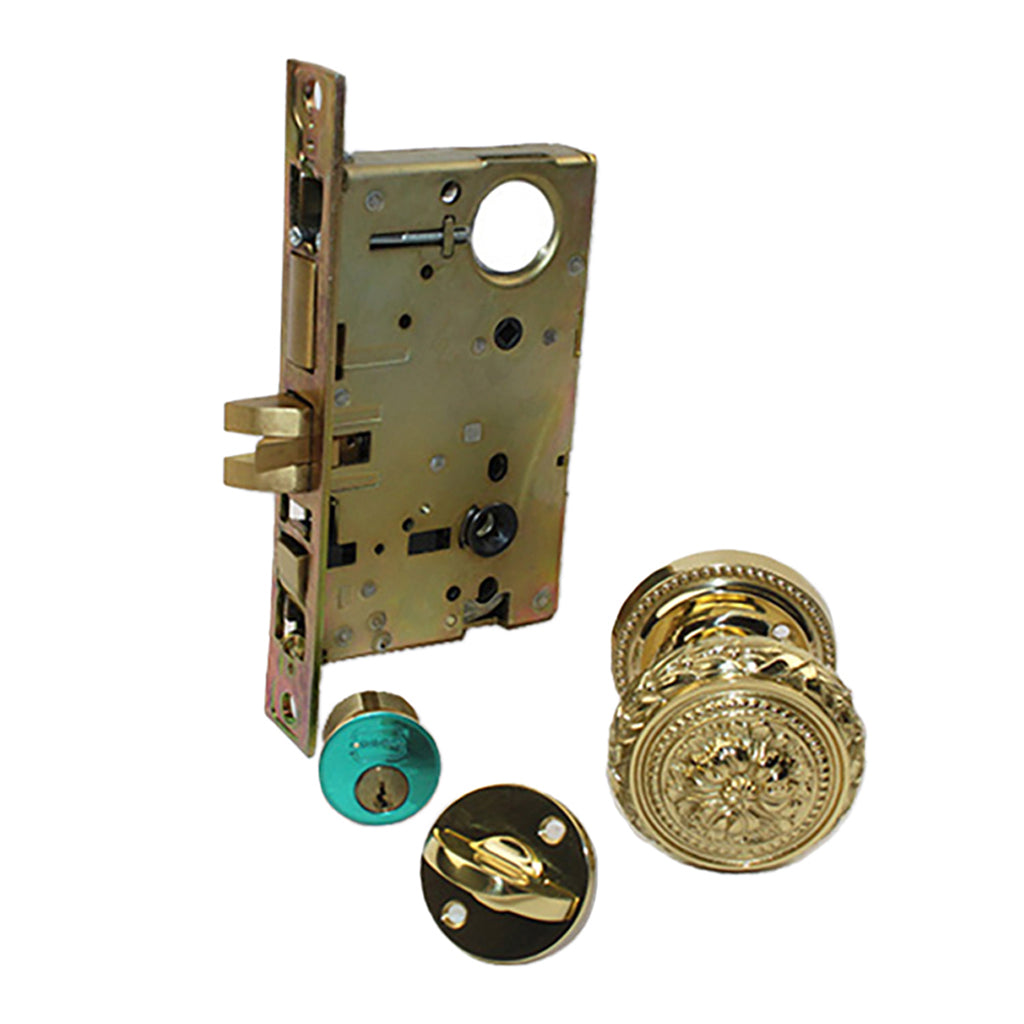

1 deadbolt and two knobs, 1" single cylinder with two keys, collar, mortise lock faceplate, strike, dustbox, and installation screws.
