One Motion Lock, Key Above Handle, Hook Version 45/92 - Discontinued

Part Number:499116299 Price: $0.00
Please note, this product has been discontinued.

DISCONTINUED-- Winkhaus One Motion Lock (OML ) with Key above handle is not available.
Winkhaus One Motion Lock featured automatic retraction of hooks and deadbolt when handle is depressed.
Winkhaus Multipoint Lock hardware has several available options, Please fill out worksheet and forward to office.

Features - Dimensions:
Key Position: Key Above Handle
Door Companies: Manco, Milgard Fiberglass Door, and others
Locking Devices: Hook type Lock (7/8" Projection)
Faceplate Width: 13/16 inch (20mm)
Overall Length: 76-1/4 inch (same as door panel - No Sweep)
Faceplate support Pins: Project 3/8 inch or 1/2 inch with faceplate
Handle height: 36 inch

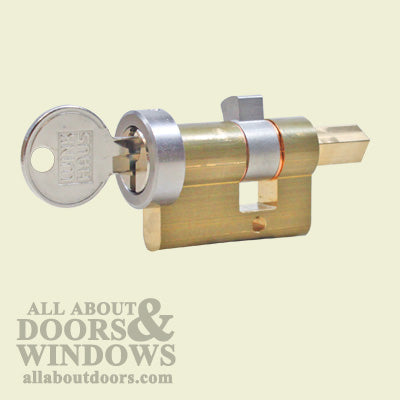

Handle / Cylinder PZ: 3-5/8 inches ( 92mm)

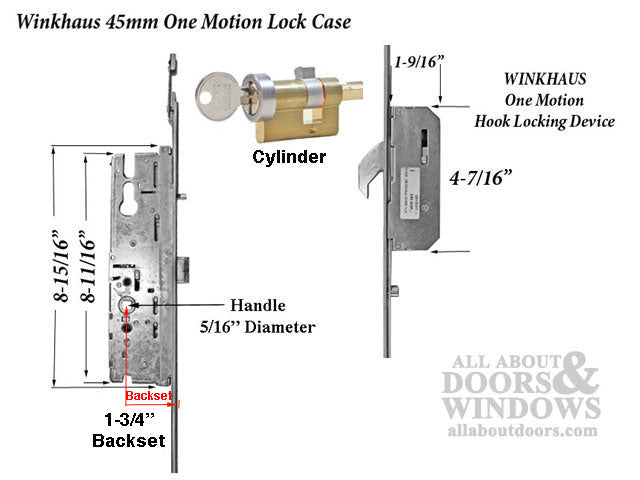

Backset: 1-3/4 inch ( 45mm)
Spring Latch 13/16 above center of handle - 3-1/16 to top of Deadbolt Latch
Overall Door Panel Height: 76-1/4" tall

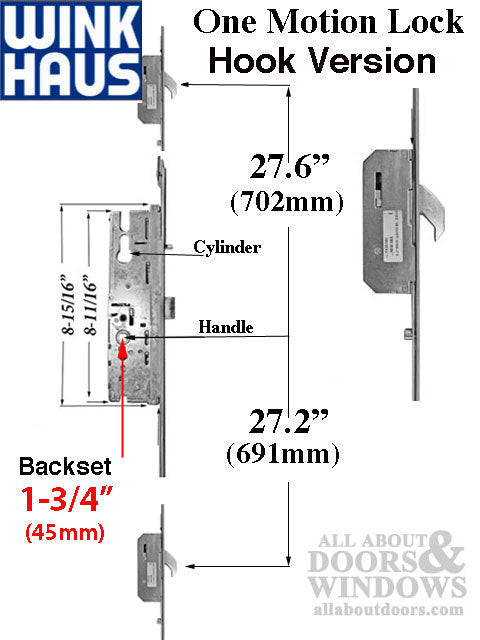

Top Hook position: 27-5/8 inches
Bottom Hook Position: 27 inches
Hook Projection: 7/8 inch

NOTE: door may have different measurements - We will add additional information as we find it.
