20mm Winkhaus OML, 6092 Key Above Handle, 2 Hook Version - Discontinued

Part Number:499116399
Please note, this product has been discontinued.

--DISCONTINUED--  The Winkhaus One Motion Lock (OML) with automatic retraction of hooks and deadbolt when handle is depressed.

REPLACEMENT AVAILABLE - FILL OUT WORKSHEET -
CHECK INFORMATION BELOW TO VERIFY THIS IS YOUR DOOR

Markings on Lock Case: TTX 6092

Product Features:

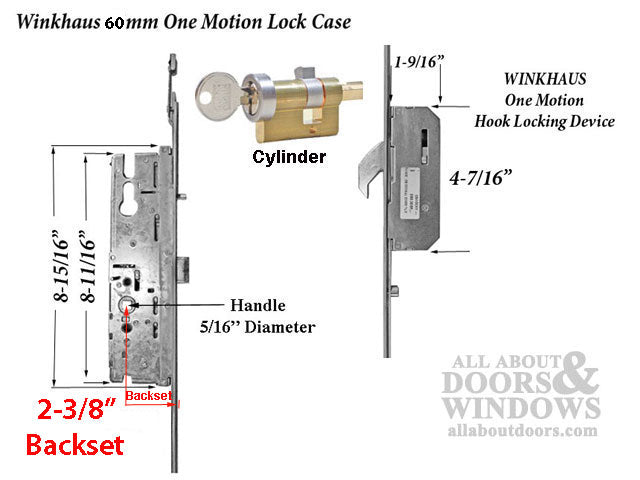

Faceplate Width: 13/16 inch ( 20mm)
Backset: 2-3/8 inch ( 60mm)
Handle height: 36 inch
Handle/Cylinder PZ: 3-5/8 inches ( 92mm)
Key Position: Key Above Handle
Key Cylinder: Special Design, Schlage keyway SC1, 5 Pin
Door Companies: Manco, Milgard Fiberglass Door, and others
Locking devices: Tongue Version Lock (7/8 in Projection)
Overall Door Panel Height: 81-1/2 inches (2070mm)

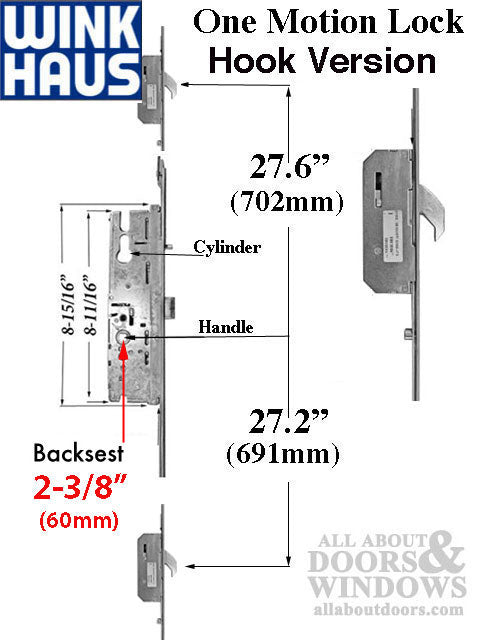

Top Hook position: 27.6 inches (702mm)
Bottom Hook Position: 27.2 inches (691mm)
Faceplate Length: 81-1/2 inch ( same as door panel - No Sweep )

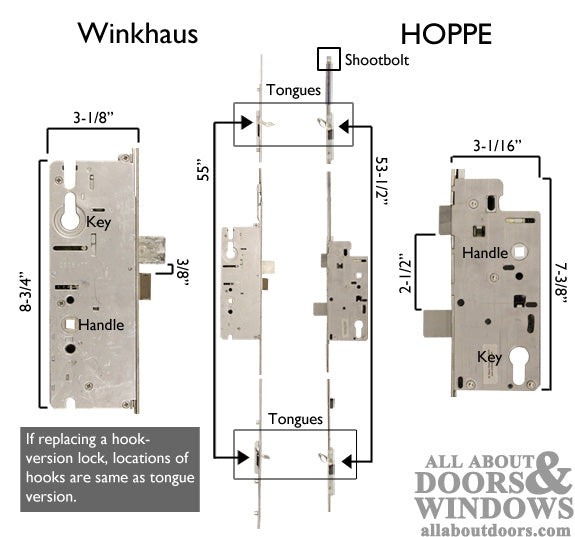

Replacement NOTE: The faceplate is adjustable and fits doors ranging from 76.7 inches to 85.7 inches (1947 mm to 2177 mm). The replacement will feature a Key Below Handle, suitable for most applications.
