One Motion Lock, Key Above Handle, Tongue Version 81-1/2" door - 60/92 - Discontinued

Part Number: 499111599 Price: $0.00

DISCONTINUED
Winkhaus One Motion Lock (OML) with automatic retraction of Tongue hooks and deadbolt when handle is depressed.
Winkhaus Multipoint Lock hardware has several available options, Please fill out worksheet and forward to office.

Markings on Lock Case: TTX 6092

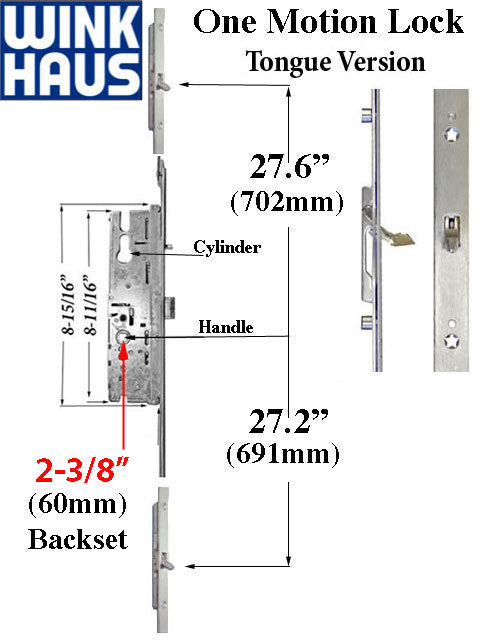

Features - Dimensions:
Faceplate Width: 13/16 inch ( 20mm)

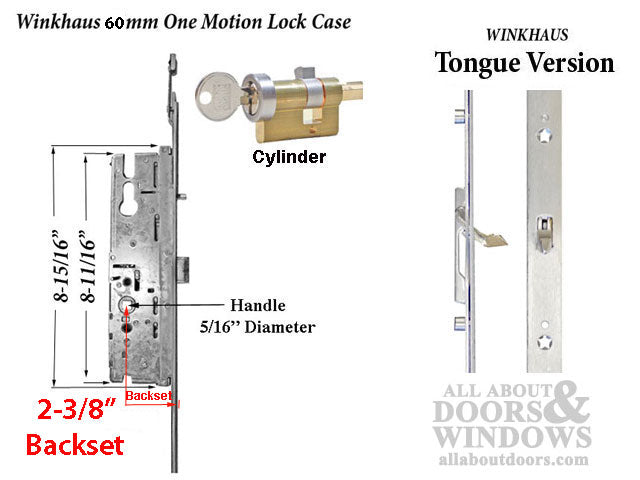

Backset: 2-3/8 inch ( 60mm)
Handle height: 36\"
Handle / Cylinder PZ: 3-5/8 inches ( 92mm)
Key Position: Key Above Handle
Key Cylinder: Special Design, Schlage keyway SC1, 5 Pin
Door Companies: Manco, Milgard Fiberglass Door, and others
Locking devices: Tongue Version Lock (7/8\" Projection)

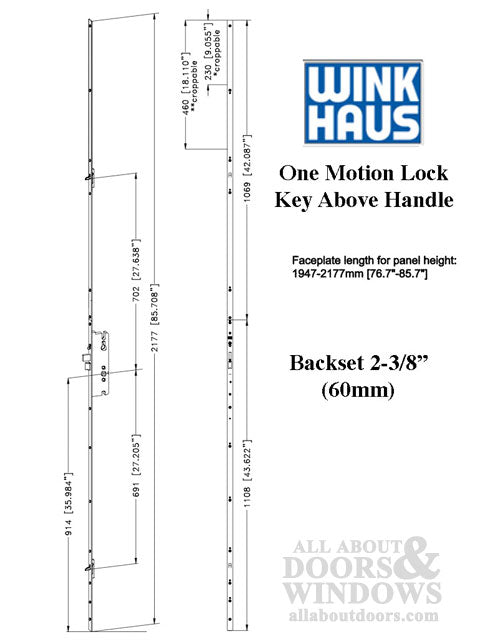

Overall Door Panel Height: 81-1/2 inches (2070mm)
Top Tongue position: 27.638 inches (702mm)
Bottom Tongue Position: 27.205 inches (691mm)
Faceplate Length: 81-1/2 inch ( same as door panel - No Sweep )

NOTE: the faceplate was croppable and fit doors 76.7\" - 85.7\" ( 1947-2177mm)
Faceplate support Pins: Project 3/8 inch or 1/2 inch with faceplate
Spring Latch 13/16 above center of handle - 3-1/16 to top of Deadbolt Latch

YOUR DOOR may have different measurements - We will add additional information as we find it.
