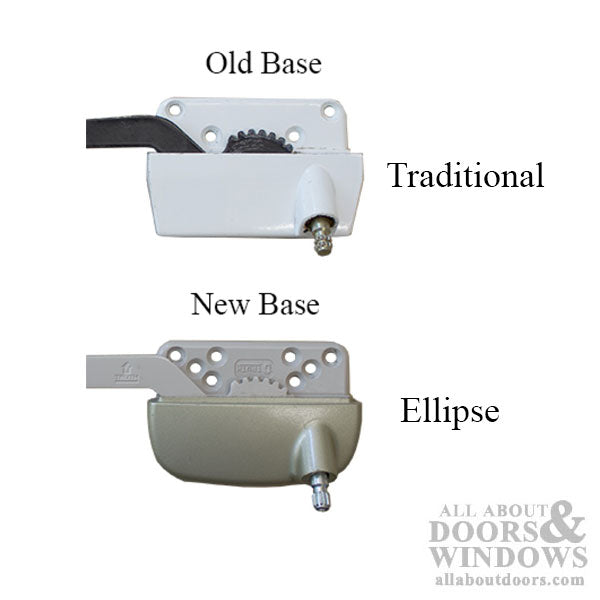

Discontinued - Old Style Base, Replace with New Style 55083

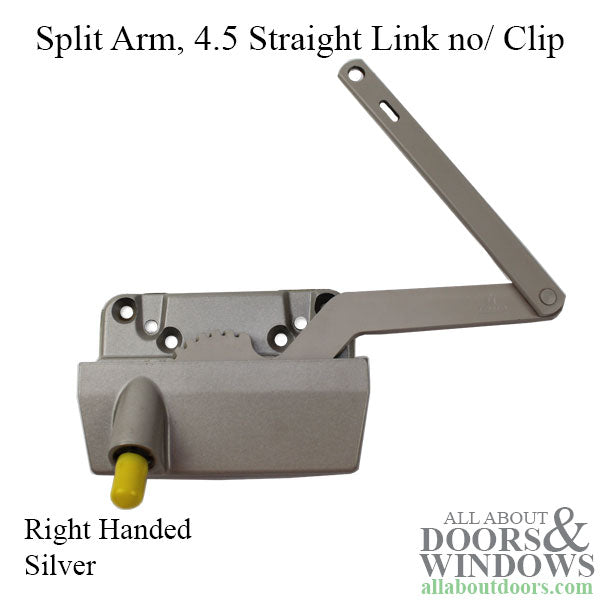

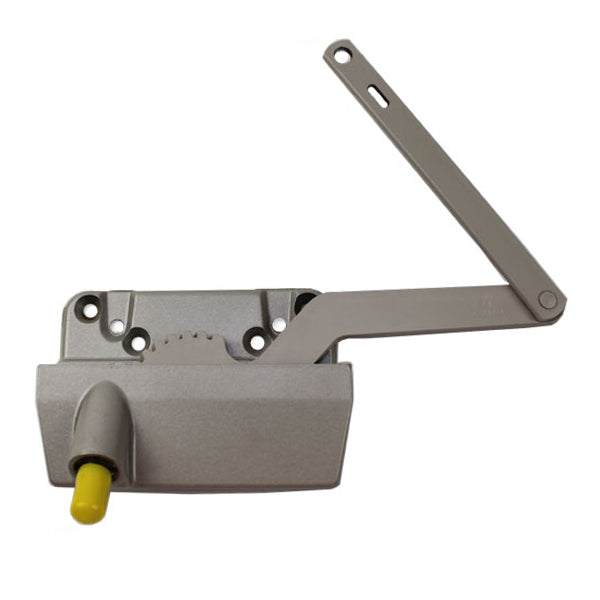

Truth Traditional  Dyad Split Arm Casement Operator, Sill Mount for wood or vinyl windows.
Operator Handing: Right - Windows Viewed from Outside, Hinge side

Main Body:  Truth  # 45135
Arm link:  Straight, Truth # 31850
Link Length: 5 inch
Link Holes:  4.5 inch  (measured from center of rivet to Stud hole center)
Link Mount: Mounted on Top of main arm
Detach clip:  NO

Note 1: There are 4 configurations for this Truth Window crank operator
1. Straight link mounted on top, No Clip
2. Offset link, mounted on bottom -15/64 inch Offset, No Clip
3. Offset link, mounted on bottom -  7/16 inch Offset, No Clip
4. Offset link, mounted on bottom - 49/64 inch Offset, Detach Clip

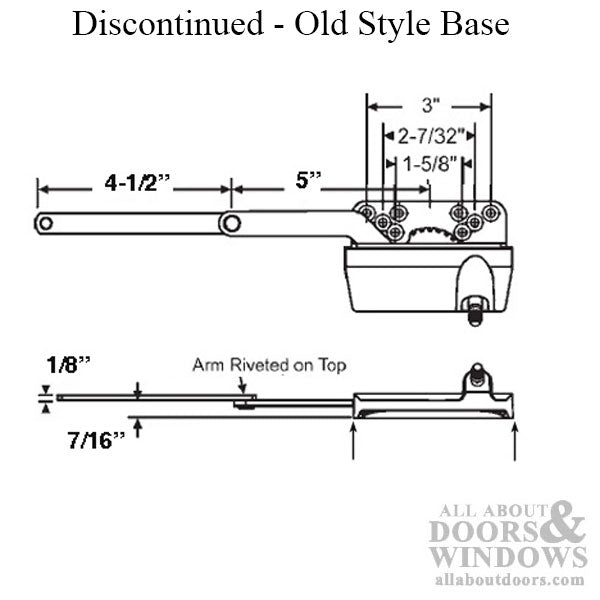

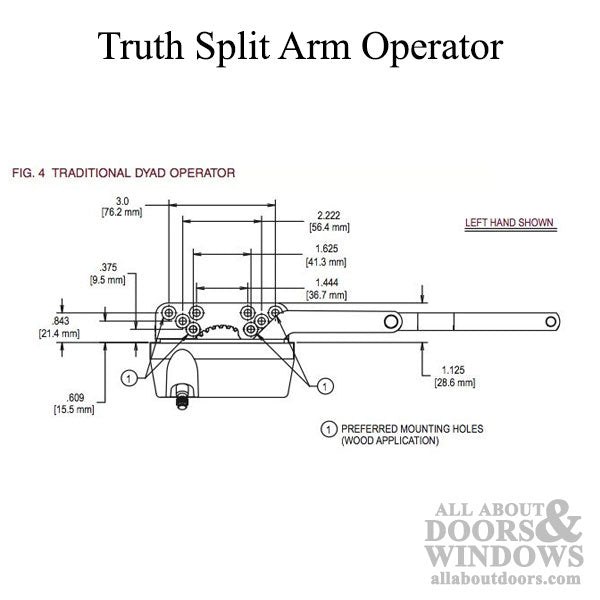

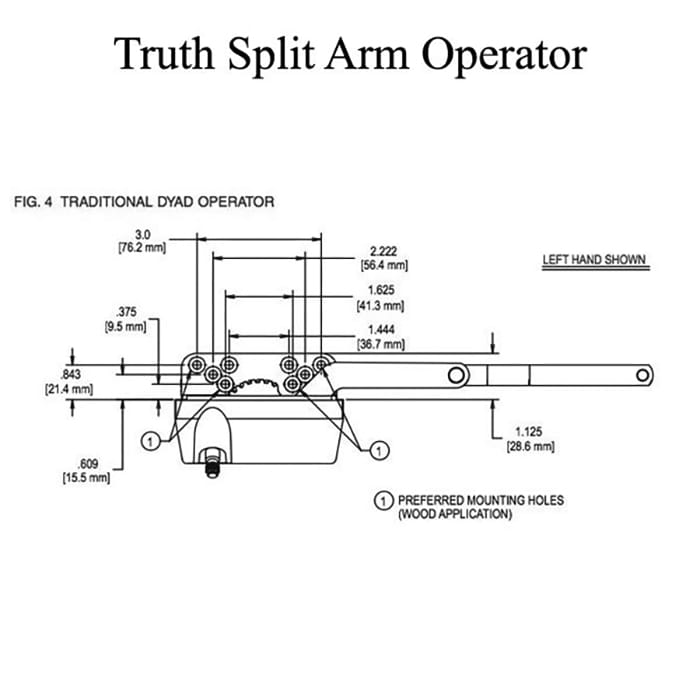

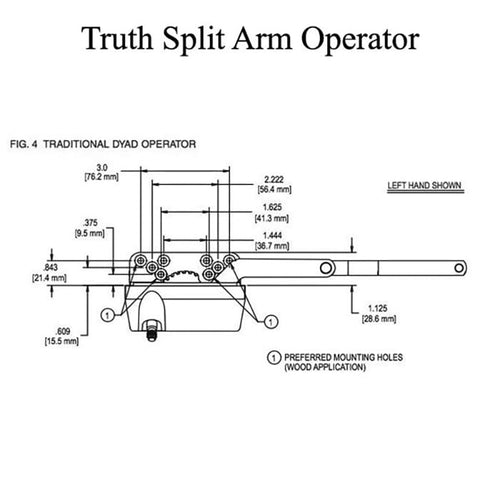

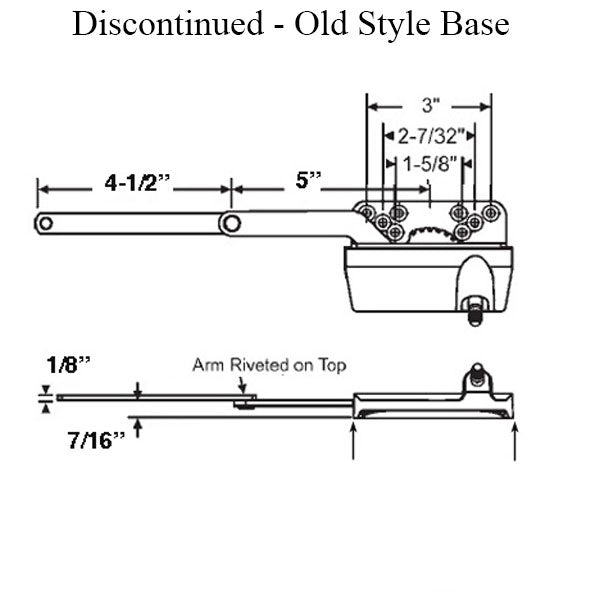

NOTE 2: See additional Pictures for line drawings

Colors: White, Silver, and Gold

Priced and sold each.

Crank handles that can be used with this operator:
55317 - Contour Handle
55311 - Regular Handle
55312 - Folding handle
55313 - T-Handle
