Discontinued. Replace with 55084-GLD.

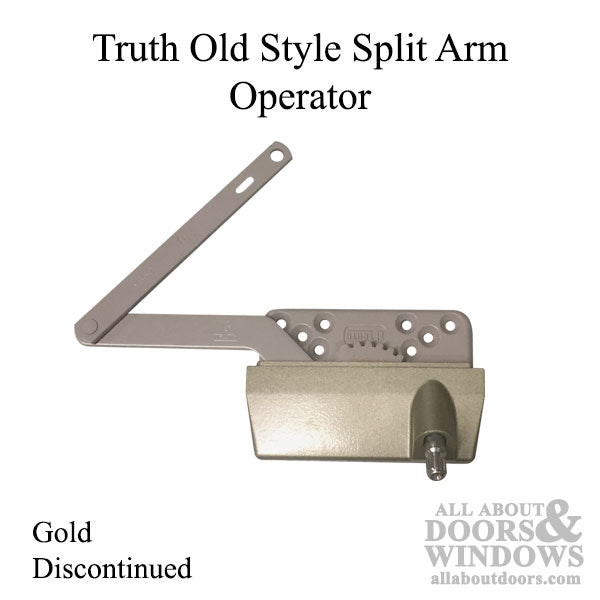

Truth Traditional Dyad Split Arm Casement Operator, Sill Mount for wood or vinyl windows
Operator Handing: Left and Right Handed - Windows Viewed from Outside, Hinge side
Main Body: Truth # 45135
Arm link: Straight, Truth # 31850
Link Length: 5 inch
Link Holes: 4.5 inch (measured from center of rivet to Stud hole center)
Link Mount: Mounted on Top of main arm
Detach clip: NO
Note 1: There are 4 configurations for this Truth Window crank operator
1. Straight link mounted on top, No Clip
2. Offset link, mounted on bottom -15/64 inch Offset, No Clip
3. Offset link, mounted on bottom - 7/16 inch Offset, No Clip
4. Offset link, mounted on bottom - 49/64 inch Offset, Detach Clip

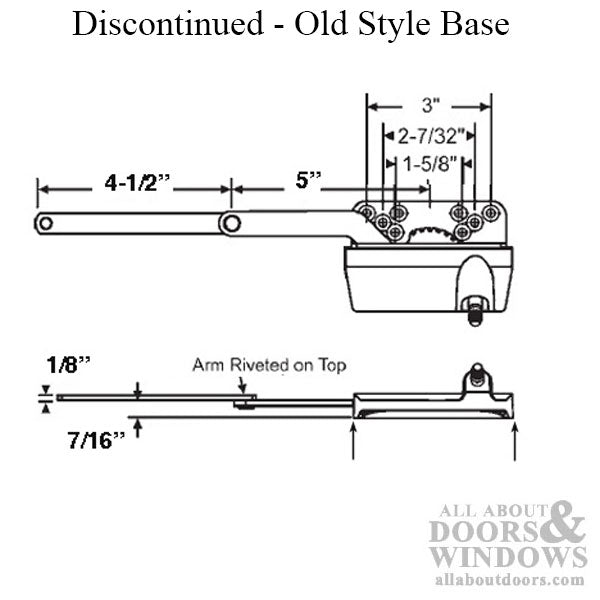

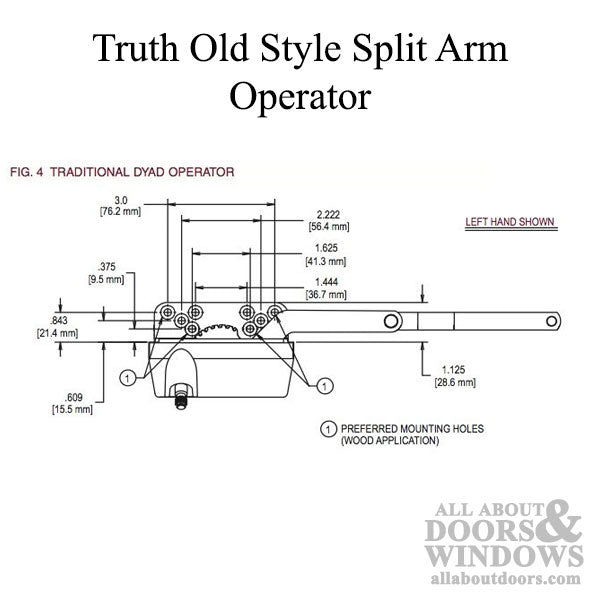

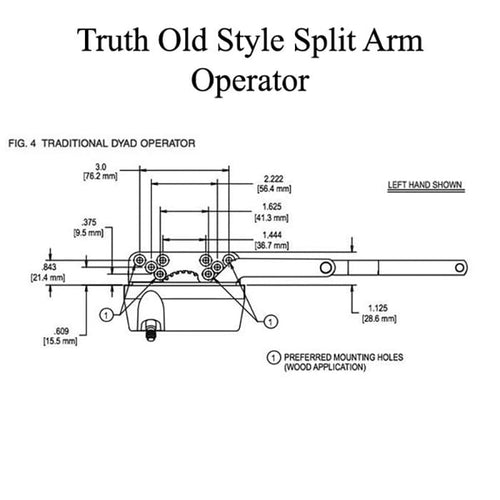

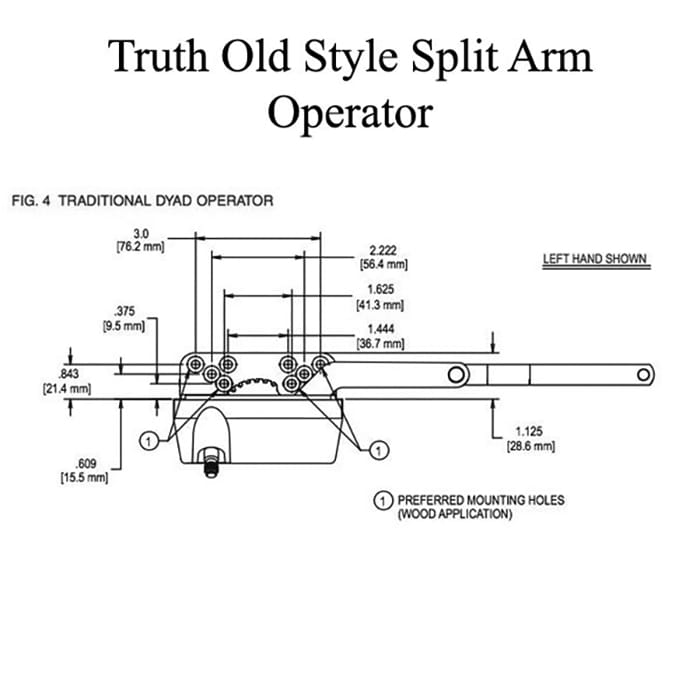

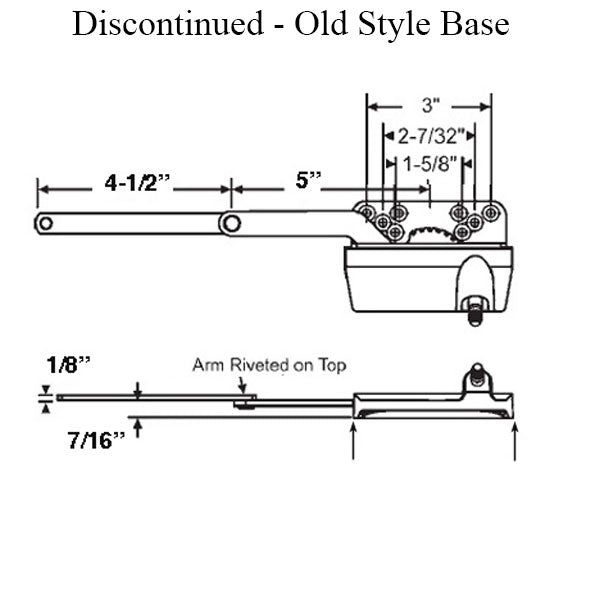

NOTE 2: See additional Pictures for line drawings
Related Parts:
Crank Handles: # 55317 Contour Handle; 55311 Regular Handle ; 55312 Folding handle ; 55313 T-Handle
Priced and sold each.
Discontinued and limited to existing inventory.
Truth Traditional Dyad Split Arm Casement Operator, Sill Mount for wood or vinyl windows
Operator Handing: Left and Right Handed - Windows Viewed from Outside, Hinge side
Main Body: Truth # 45135
Arm link: Straight, Truth # 31850
Link Length: 5 inch
Link Holes: 4.5 inch (measured from center of rivet to Stud hole center)
Link Mount: Mounted on Top of main arm
Detach clip: NO
Note 1: There are 4 configurations for this Truth Window crank operator
1. Straight link mounted on top, No Clip
2. Offset link, mounted on bottom -15/64 inch Offset, No Clip
3. Offset link, mounted on bottom - 7/16 inch Offset, No Clip
4. Offset link, mounted on bottom - 49/64 inch Offset, Detach Clip
NOTE 2: See additional Pictures for line drawings
Related Parts:
Crank Handles: # 55317 Contour Handle; 55311 Regular Handle ; 55312 Folding handle ; 55313 T-Handle
Priced and sold each.
Discontinued and limited to existing inventory.
