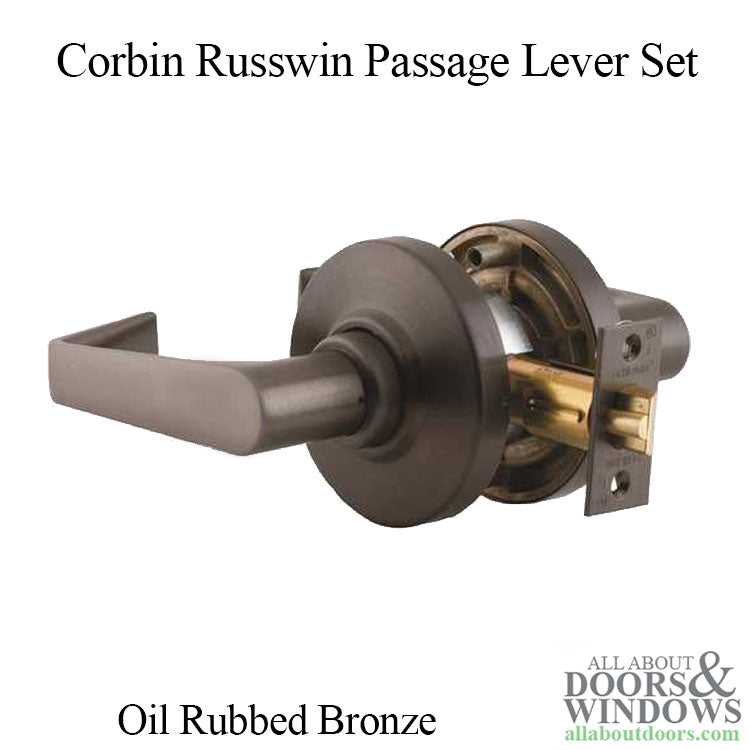

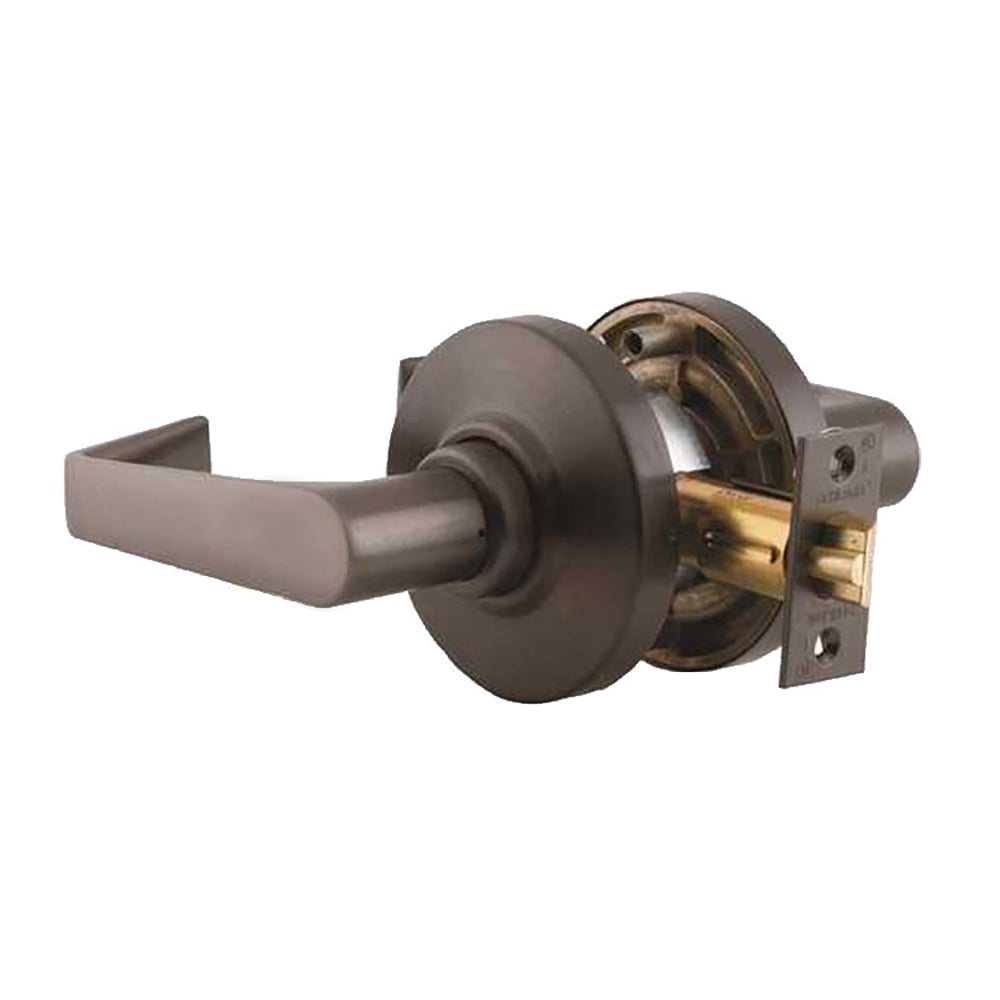

Corbin Russwin CL3810 Grade 2 Passage Lever Set - ANSI F75
Latchbolt by lever either side Both levers always free.
Handing: Non-handed.
Lever Style: Armstrong AZD, Newport NZD, Princeton PZD
Door Thickness: Adjustment Standard 1-3/8" to 1-3/4"; factory set for 1-3/4" doors.
Lock Chassis: Steel, zinc dichromated for corrosion resistance.
Backset: 2-3/4"
Latchbolt: 1/2" throw latch with universal floating front to fit both flat and
beveled doors. 2-1/4" x 1-1/8" square corner front for 2-3/4" backset standard.
Color/Finish: Oil Rubbed Bronze
Auxiliary Latchbolt: Deadlocking latchbolt prevents manipulation when door is closed.
Strike: ANSI curved lip strike standard, 4-7/8" x 1-1/4" x 1-1/4" lip to center. Optional strikes, lip lengths and ANSI wrought strike box available
Latchbolt by lever either side Both levers always free.
Handing: Non-handed.
Lever Style: Armstrong AZD, Newport NZD, Princeton PZD
Door Thickness: Adjustment Standard 1-3/8" to 1-3/4"; factory set for 1-3/4" doors.
Lock Chassis: Steel, zinc dichromated for corrosion resistance.
Backset: 2-3/4"
Latchbolt: 1/2" throw latch with universal floating front to fit both flat and
beveled doors. 2-1/4" x 1-1/8" square corner front for 2-3/4" backset standard.
Color/Finish: Oil Rubbed Bronze
Auxiliary Latchbolt: Deadlocking latchbolt prevents manipulation when door is closed.
Strike: ANSI curved lip strike standard, 4-7/8" x 1-1/4" x 1-1/4" lip to center. Optional strikes, lip lengths and ANSI wrought strike box available
