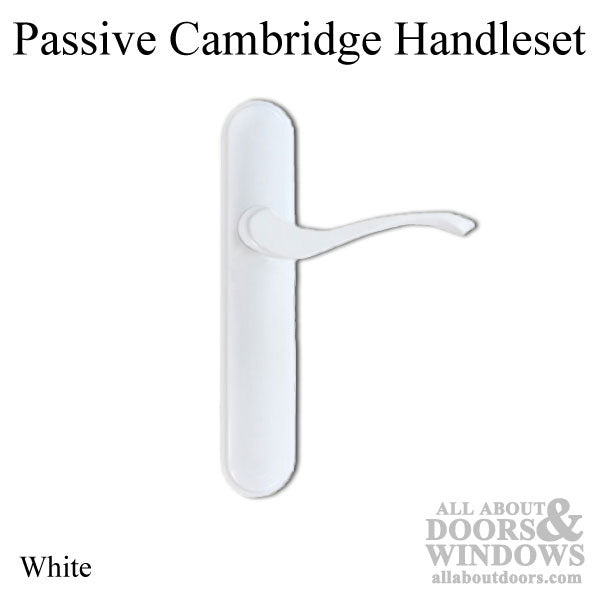

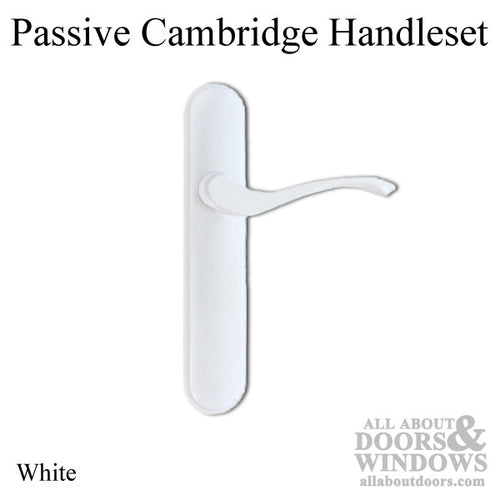

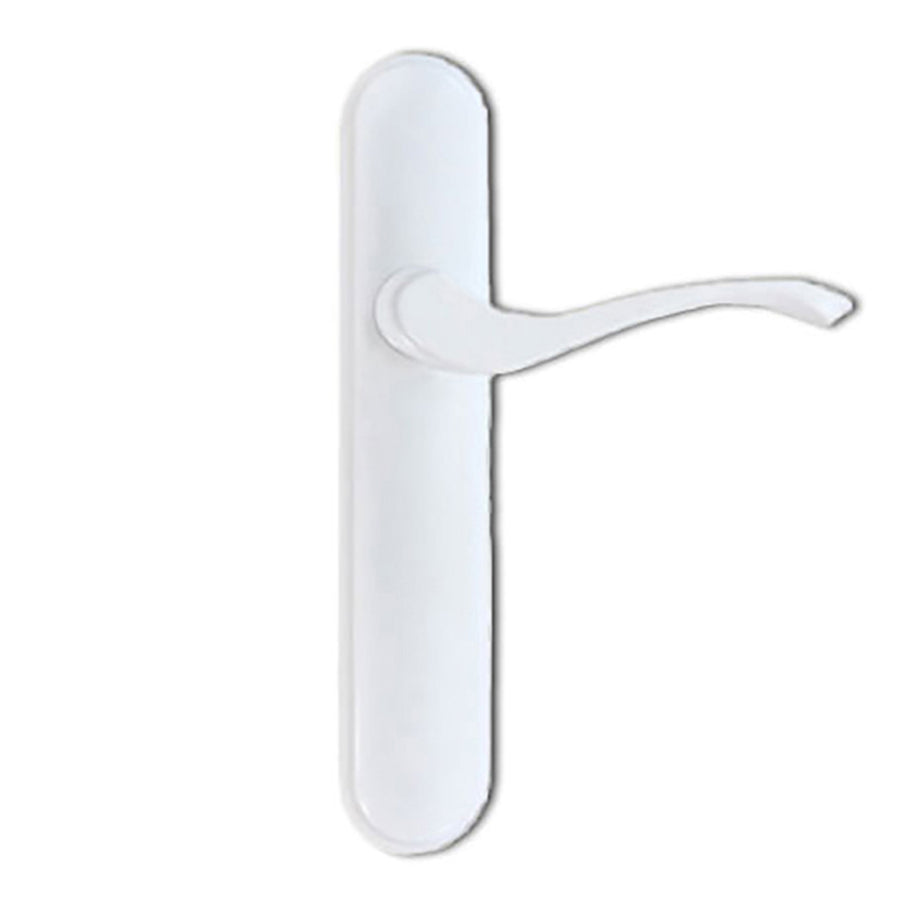

Passive Cambridge Handleset, Right Hand Multipoint Lock Trim - White

Part Number: 11869244 Price: $153.19

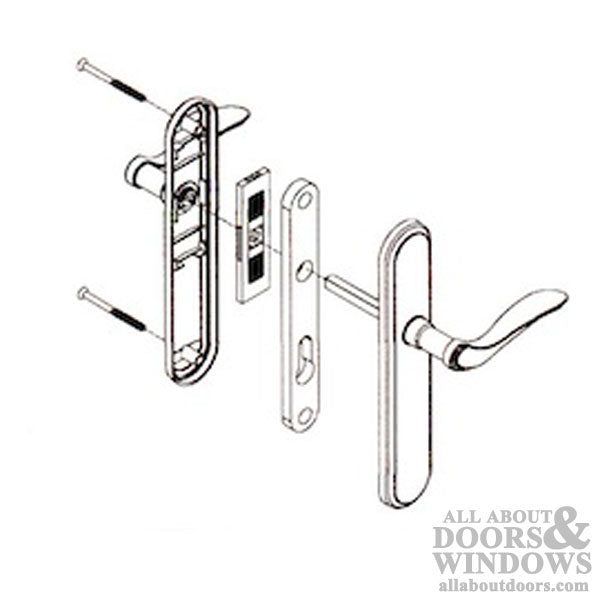

Complete Inside and outside Trim for Integrity by Marvin Door with Multipoint Lock.

Function: Passive Hardware for Secondary Door
Color / Finish: White
Door thickness: 1-3/4 inch

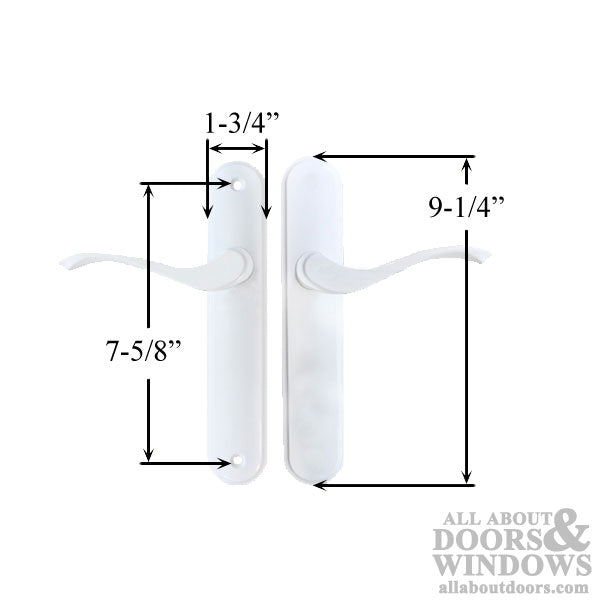

Escutcheon Plate: 1.80" x 9.31"
Escutcheon Plate Screw hole spacing: 7.665"

Cylinder to Handle spacing: 3-5/8 inches ( 92mm)
Keyed Cylinder: None
Spindle Diameter: 5/16 inch (8mm) Square
Spindle Length: 4-1/2"
Installation screws: M5 x 58mm
Spring Cassette: 1-1/16" x 3-7/8"
Base Material: Zinc

Handed: Yes, But handles can be removed and reattached.
Levers do not have handle set screws. It uses a snap ring to hold handles to the escutcheon plate.
This handle set uses a spring loaded cassette for added lever action.

This part is discontinued and has been limited to existing inventory
