Andersen Frenchwood Passive door replacement hardware kit for INSWING doors. See 2573474 for outswing.

Andersen Frenchwood Hinged Passive door replacement hardware kit for INSWING doors.
Stainless steel passive lock mechanism replacement kit for hinged doors manufactured between 1989 and 2003.
Replaces part number 2579529 a gold-colored zinc dichromate passive lock mechanism.

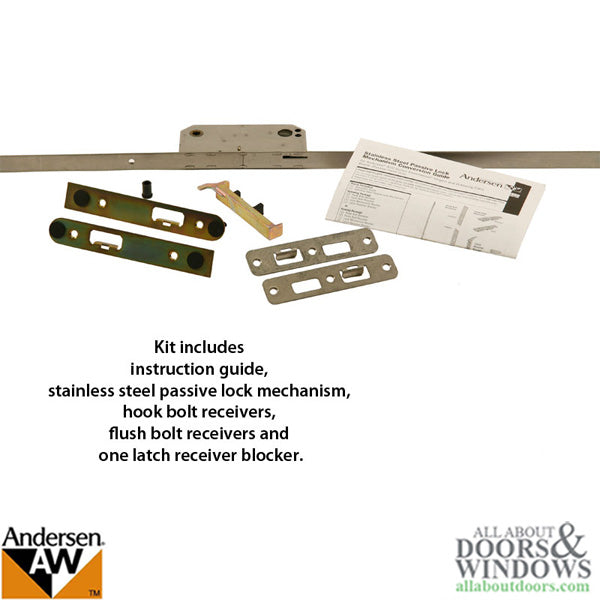

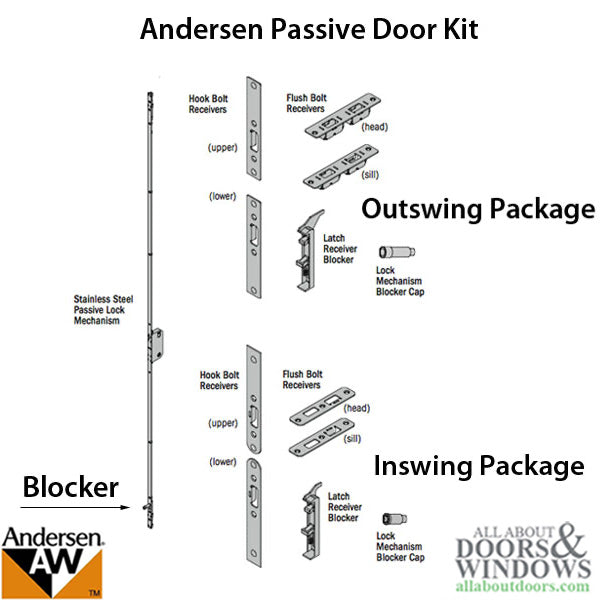

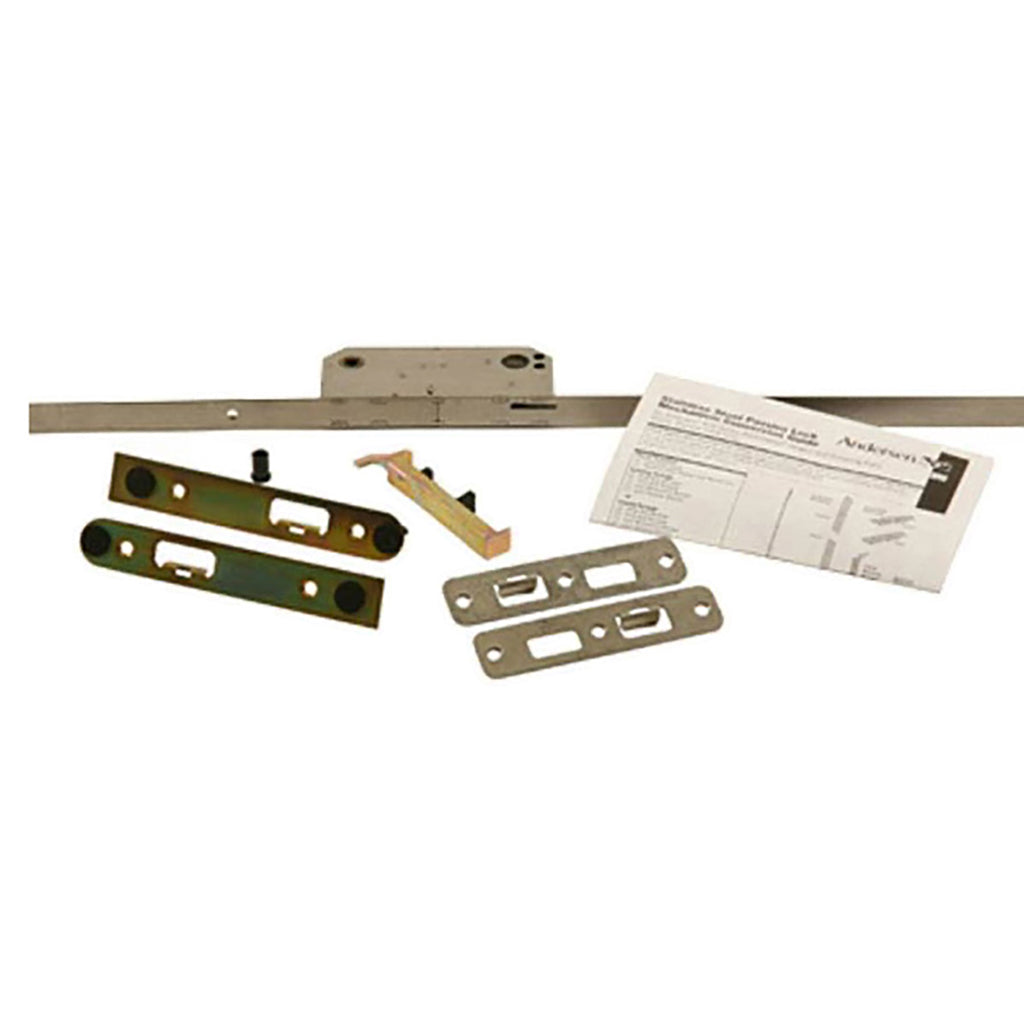

Kit includes instruction guide, stainless steel passive lock mechanism, hook bolt receivers, flush bolt receivers and one latch receiver blocker.

The blocker moves down when the Passive door is Locked, allowing the hooks from the active door to engage. This prevents the locking of the Active door, unless the Passive door is locked first.

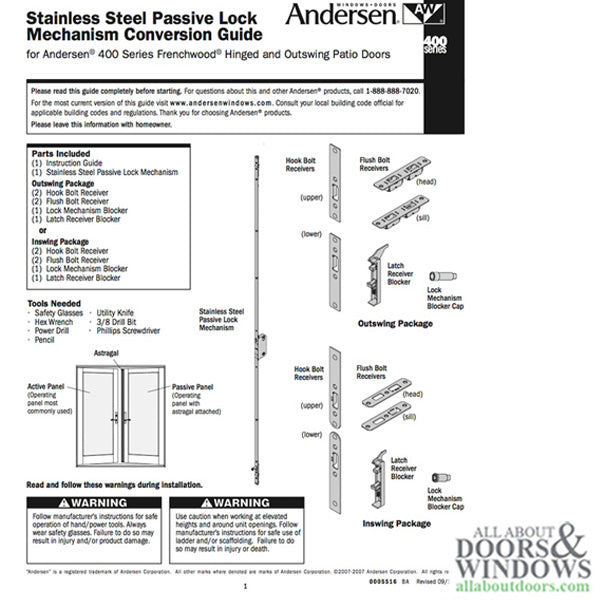

Kit includes: Instruction Guide
1-Passive Lock mechanism - Stainless steel
2-hook bolt receiver
2-flush bolt receiver
1-latch receiver blocker

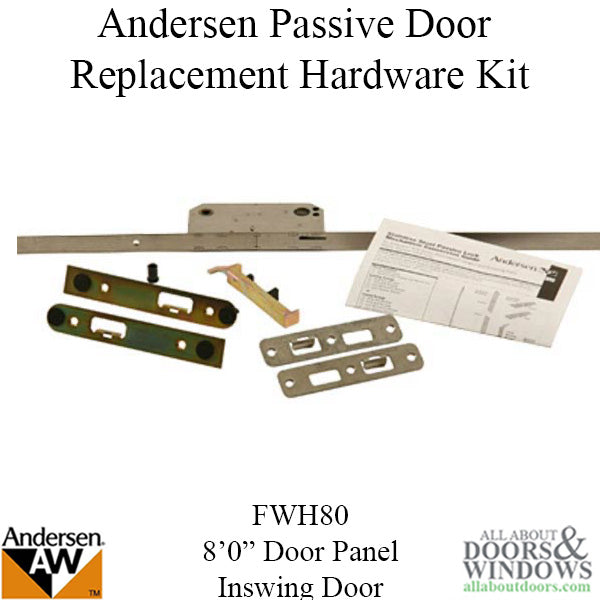

Andersen Hinged Door Unit Size: FWH 80
Visible Glass Height: 79 1/2

Works With:
400 Series Frenchwood Hinged

Related Andersen Multipoint lock hardware for Passive Doors:

INSWING Door - Passive Kit - OUTSWING Door
2573469 - 68 2573472 - 68
2573470 - 611 2573473 - 611
2573471 - 80 2573474 - 80

Priced and sold as a package.
