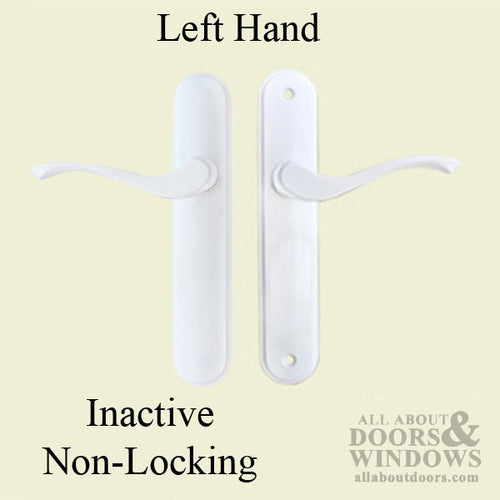

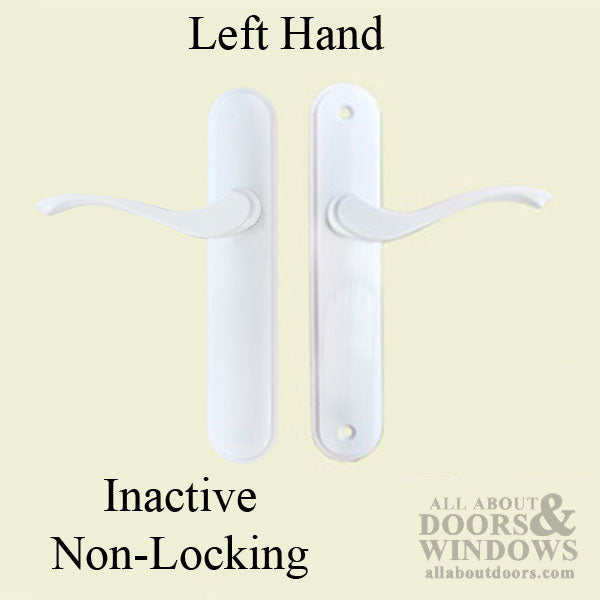

Inactive Hardware for Passive door with multipoint lock, left hand
Replaces Integrity by Marvin, Milgard and other inactive Hardware for Multipoint Locks

Function: Passage type lever to lock shootbolts on Inactive door, No Key or Thumb Turn.
Base Material: Zinc

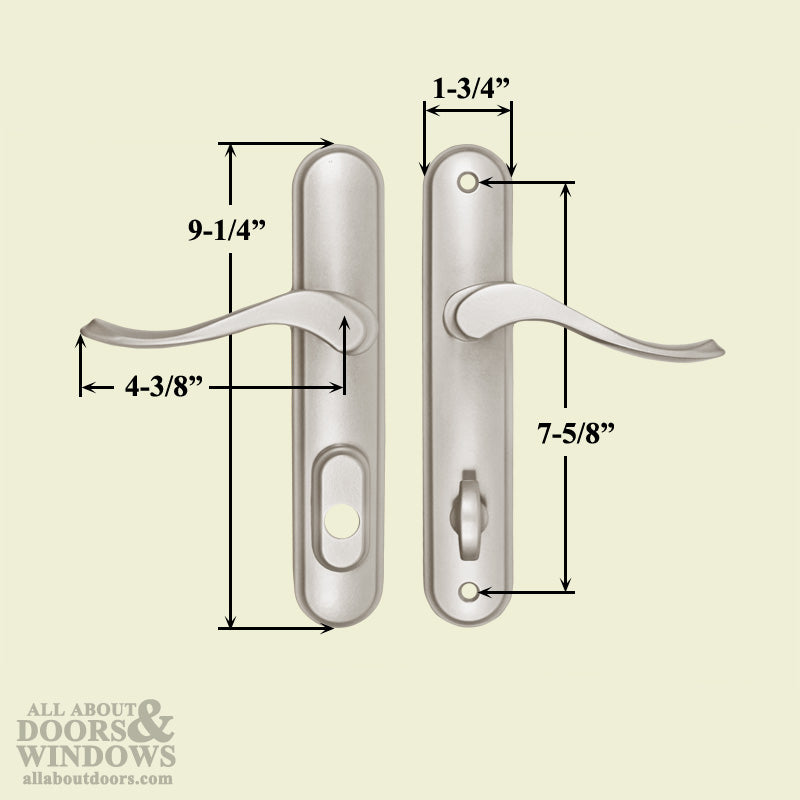

Screw Holes: 7-7/8 inch centers
Escutcheon Plate Width: 1-13/16 inch
Escutcheon Plate Length: 9-3/8 inch
Door thickness: 1-3/4 inch
Screws: M5 x 58mm
Handed: Yes, But handles can be removed and reattached to change handing
Note: does not have handle set screws. It uses a snap ring to hold handles to the escutcheon plate.
Color / Finish: White

Single Door = 1 Active Keyed
Double French Door = 1 Active Keyed and 1 Inactive or Dummy Set

NOTE:
Some colors / finishes are available with a zinc or forged brass substrate to provide economical and performance options.
Zinc material: Painted Colors, White, Tan, Dark Oil Rubbed Bronze, Polished Brass or Satin Nickel
Brass material: Premium Finishes, Dark Oil Rubbed Bronze , PVD Polished Brass or PVD Satin Nickel
Brass is a better material for coastal areas, PVD is a No Tarnish Finish

Marvin Related Handle set Trim Parts
11860963 - Spring Cassette
11860963 - Keyed Cylinder, 2 keys
11805188 - Escutcheon Plate Screw - White
11869243 - Active, RIght Hand - White
11869234 - Passive Left Hand - White
